Basic Info

Model No. DL-2
Brand Name
application Industrial Lubricant
General ingredients Base Oil
Application Industrial Lubricant

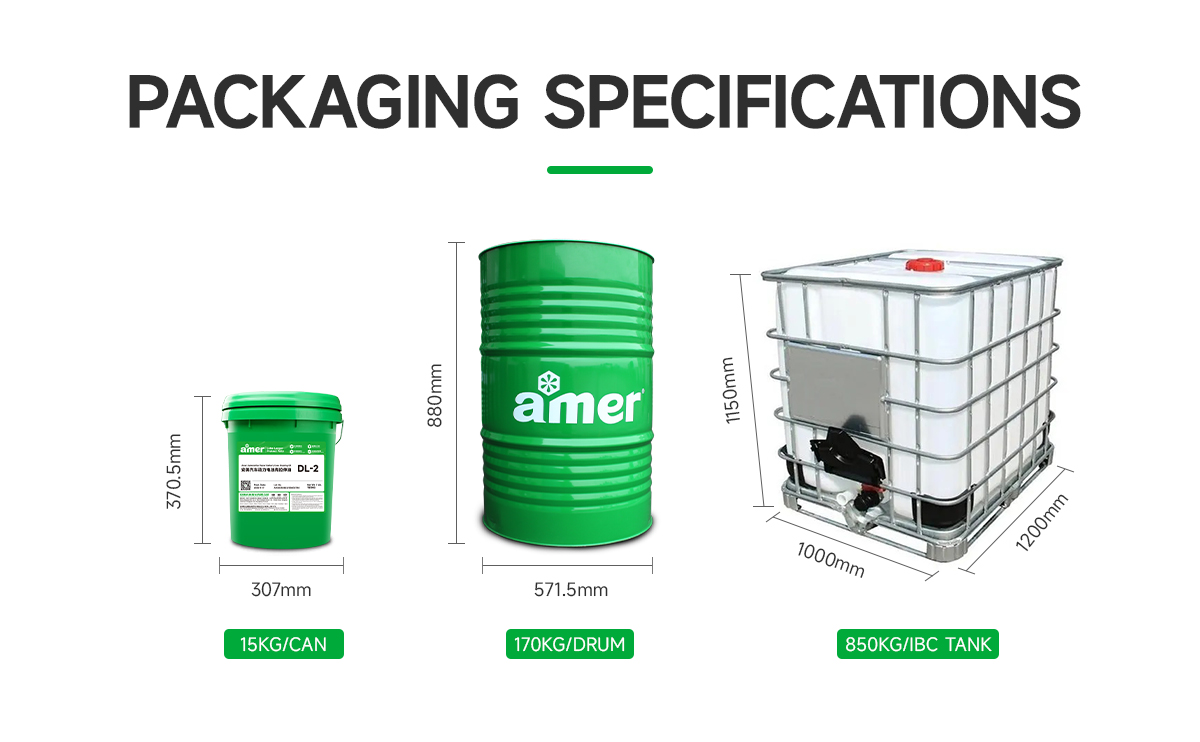

Specification 15KG/170KG/850KG/DRUM
Item Medium and Large Cases for Power Aluminum Battery Shells and Applications in High-Difficulty Stamping and Drawing Oil
Appearance Yellow to brownish-yellow transparent liquid
Service ODM/OEM
MOQ 4 DRUMS
Show More

Product description

Medium and Large Cases for Power Aluminum Battery Shells and Applications in High-Difficulty Stamping and Drawing Oil
1
Product Description

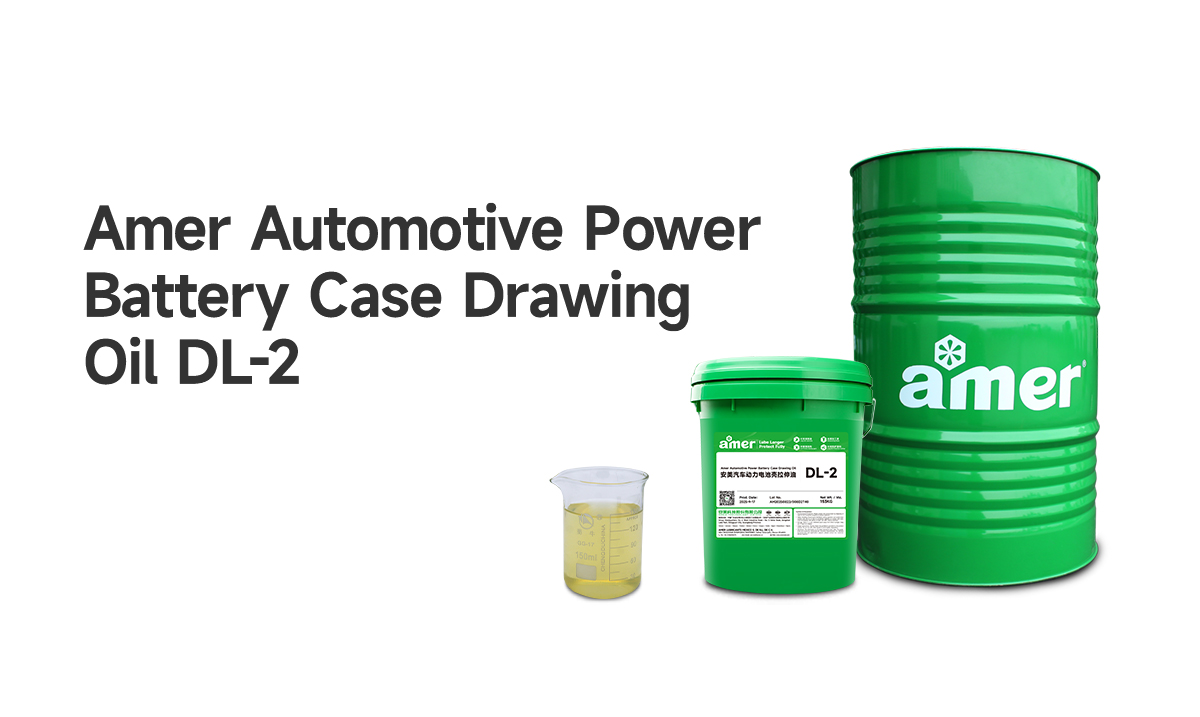

Amer Automotive Power Battery Case Drawing Oil DL-2 is a lubricant specifically developed for the stretching (deep drawing) process of new energy power battery cases. It uses refined mineral oil as the base oil and is formulated with various internally synthesized ester lubricants, antioxidants, and sedimentation inhibitors. It provides very strong drawing lubrication performance and oil film strength, while being easy to clean. It is recommended for large shells and higher-difficulty drawing in new energy power battery cases, and is also suitable for deep drawing and blanking of other aluminum materials.
23
Advantage
Item Description
Excellent lubrication performance Contains a substantial amount of high-efficiency extreme-pressure lubrication additives that effectively protect molds and provide outstanding workpiece surface finish, significantly extending mold life and reducing mold repair frequency.
High utilization The product has good antioxidation properties; used oil can be filtered and reused.
Good cleanability Even under the same cleaning conditions, this oil is very easy to remove, with a lower return-cleaning rate than competing products, reducing cleaning costs.
?
4

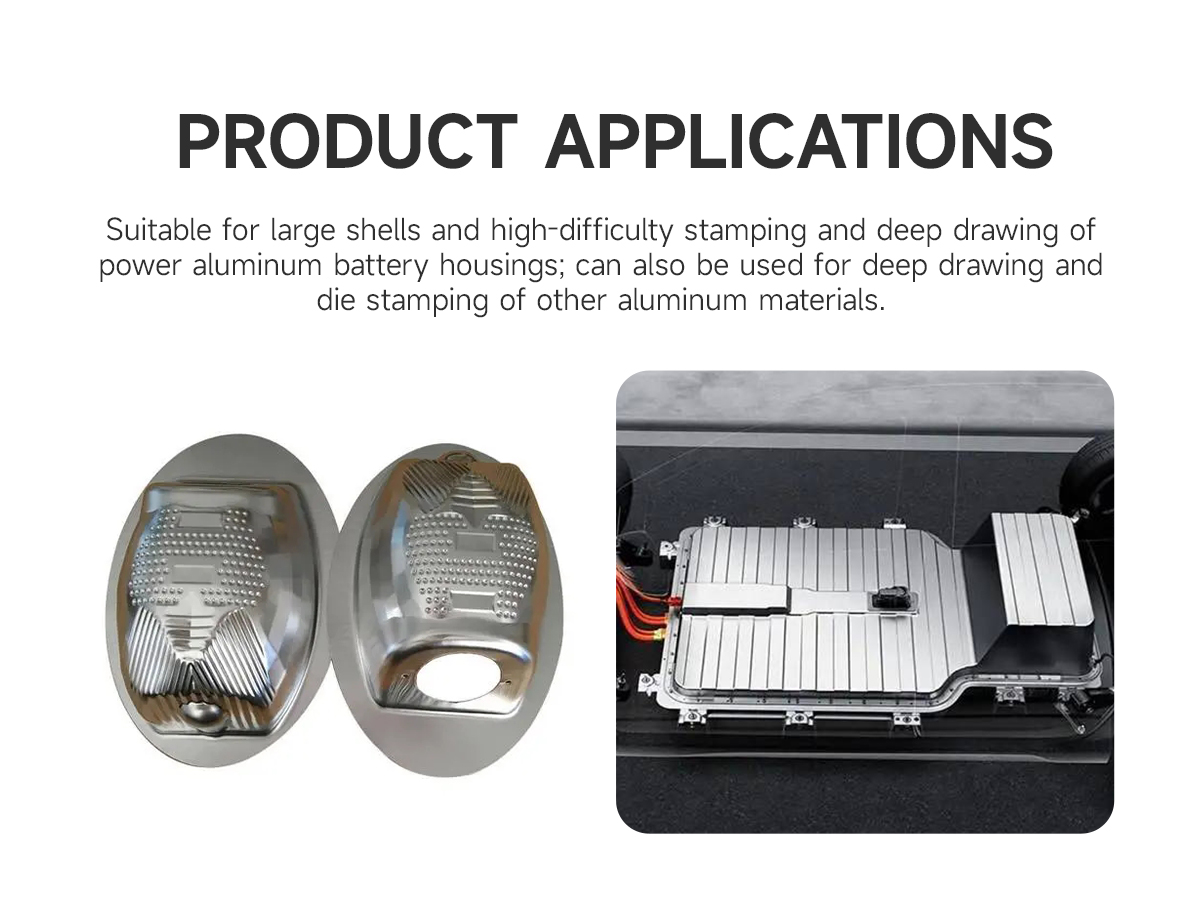

Application

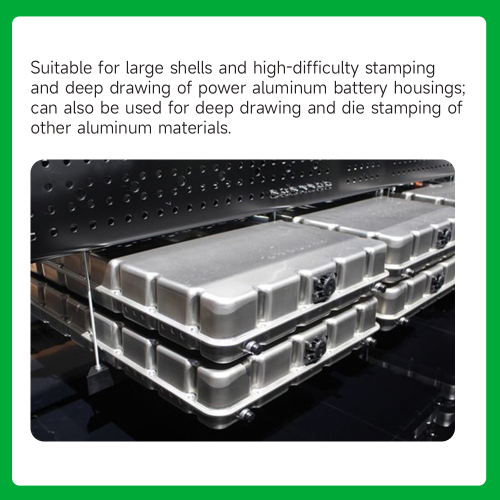

Suitable for large shells and high-difficulty stamping and drawing applications in power aluminum battery cases;
It can also be used for deep drawing and die forming of other aluminum materials.
?
Attentions
Store indoors; if stored outdoors, lay the drum on its side to prevent water ingress and the obscuring of markings on the drum.
This product must not be contaminated with water or foreign matter, as that can cause the oil to emulsify, deteriorate, and fail.
Do not mix with other oils to avoid deterioration of performance.
?
Technical data
Test Items Test Methods Performance Parameters
Appearance Visual Yellow to brownish-yellow transparent liquid
40℃ kinematic viscosity, mm2/s GB/T 265 155
Flash point, ℃ GB/T 3536 220
Moisture, % GB/T 260 None
Mechanical impurities, % GB/T 511 None
?
567891011
?
12131415
?
