Metal Cutting CNC Plasma Table
Basic Info
| Model No. | 1530 |
|---|---|
| Brand Name | XUANLIN |
Product description

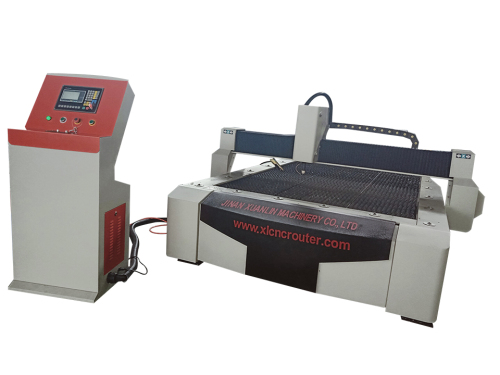

Metal Cutting CNC Plasma Table
The process of ionization is responsible for the existence of plasma. Ionization is the change in the charge of an atom and occurs when the atom loses or gains electrons. However, plasma does not require 100% ionization of atoms to occur. If even 1% of the atoms are ionized a plasma can exist. The level of ionization is what defines how hot the plasma will be. Lower levels are referred to as [cold plasmas" and vice-versa with high levels. Don`t get the wrong idea though, plasma is never actually cold. The [cold plasmas" are still thousands of degrees Celsius.
Impression
Technical Parameter
|
Model |
XLP1530 |
|
Cutting methods |
Plasma cutting/ Flame cutting |
|
Cutting size |
1500x3000mm |
|
Machine size |
2300x4000x1600mm |
|
Lifting travel |
≤100mm |
|
Max travel speed |
18000mm/min |
|
Cutting speed |
0~15000mm/min |
|
Running accuracy |
≤0.005mm ≤0.1mm |
|
Height control Arc pressure Auto |
THC Lifting body |
|
Cutting thickness |
Less than 20mm is better Less than 30mm is better |
|
Cutting gus Air |
Oxygen+Ethyne/Propane |
|
Gas pressure |
0.4~0.8 Mpa |
|
power |
AC220v/380v 50HZ |
|
Number of nozzles |
10 pieces |
|
Support software |
Star CAM Fast CAM |
Introduction:
Space saving ,Quick installation, no foundation request
High accuracy AC servo motor drive
Friendly operation panel, easy-to-use
Automatic program optimization nest path
G and M code recognizable
DXF/DWG files programming and nest
USB data transmission
Metal Cutting CNC Plasma Table
