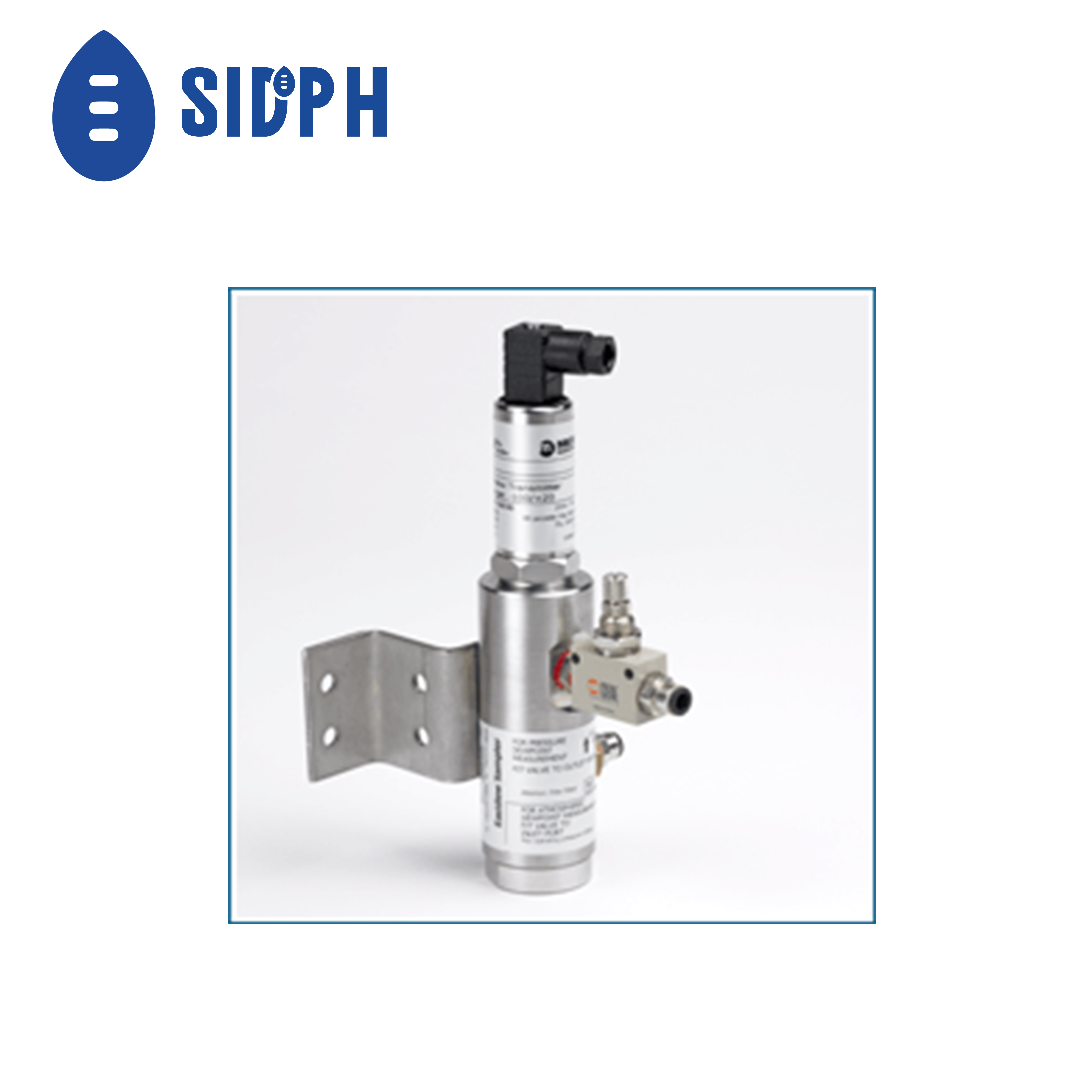

Michell Easidew Sampler Self-Contained Sampling System

A low-cost, self-contained sampling system, with filtration and flow control, for measurement of either pressure or atmospheric dew points.?
Product Features
- Universal configuration for atmospheric or line pressure?
dew-point measurements - Integral particulate filter
- Metering valve for flow control
- Single block design for faster measurement response
- Gas pressure to 1 MPa (10 barg) with a high pressure option?
to 21 MPa (210 barg) available
Technical Specification |
| Gas Flow Rate | 1 to 5 Nl/min | | Operating Pressure | 1 MPa (10 barg) with a high pressure option to 21 MPa (210 barg) available | | Particulate Filter | 99.5% removal of 0.3 microns | | Gas Connections | Quick Connect fittings for 6mm O/D plastic tubing or ?" Swagelok??tube fittings (PTFE or FEP recommended) | | Sample Tube | Supplied with 0.5m pig-tail vent tube, to prevent back-diffusion | | Vacuum Rating | Standard push fittings are not vacuum rated | | Construction Material | Block and Cap: 316 Stainless Steel Flow Control Block: Aluminium Couplings: Nickel plated Brass | | Sensor Port | 5/8''?UNF to support all Michell Instruments' Impedance Sensors / Transmitters | | Environmental | IP66 (NEMA 4) | | Operating Temperature | -40 to +60°C (or as determined by sensor specification) | | Storage Temperature | -40 to +70°C, 0-95% RH; non-condensing | | Weight | 1.1kg (1.3kg with sensor installed) |
|
