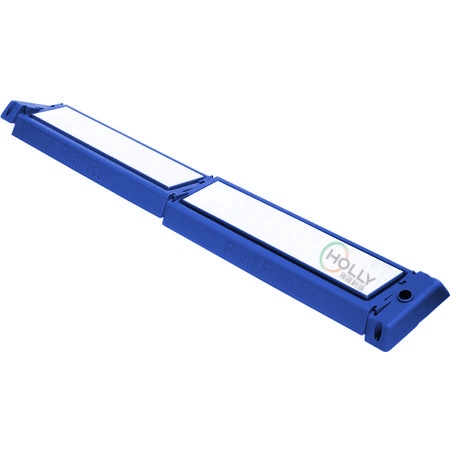

Micro Bubble Diffuser: Advanced Aeration Solution for Fish Farming with Ceramic Oxygen Diffuser
$40.00
/ piece
Options:
- HLTC-190
Get Latest Price
You might also like
Basic Info
| Condition | New |
|---|---|
| Applicable Industries | Hotels, Garment Shops, Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Restaurant, Home Use, Retail, Food Shop, Printing Shops, Construction works?, Energy & Mining, Food & Beverage Shops, Other |
| Showroom Location | Indonesia, Thailand, Malaysia |
| Video outgoing-inspection | Provided |
| Machinery Test Report | Provided |
Show More
Product description
It has equality structure, high porosity, low aeration resistance, big air-liquid contact area, spread evenly for bubble, without perforation blocked, lower gas consumption than conventional diffusers, higher efficiency for water treatment.

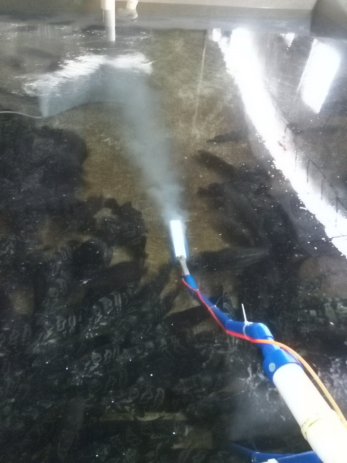

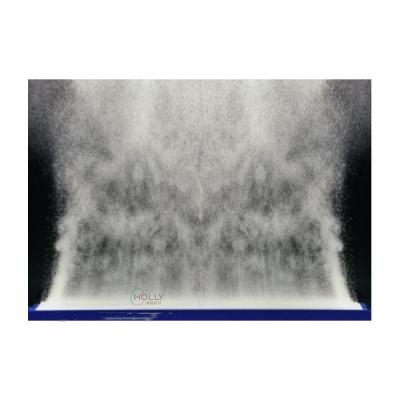

This product is a method to increase the total amount of gas dissolved in the liquid by increasing the contact area of gas and liquid. The gas passes through the very small pores of the microporous ceramic, and is dispersed in the liquid into many misty micro bubbles with a diameter between 0.05 and 0.5 mm. The gas is dissolved in the liquid during the floating of the microbubbles, to achieve the purpose of increasing a certain gas content in the liquid.
The dissolution efficiency is directly proportional to the depth of the liquid. Because the micro bubble diffuser has a pressure resistance of 0.7Mpa, it can be used in liquids with a depth of less than 70 meters. In addition, the micro bubble diffuser only needs to be connected to a gas source with a pressure output greater than 0.1Mpa to work, without electric drive, so it is also suitable for use in occasions where stable power cannot be provided.

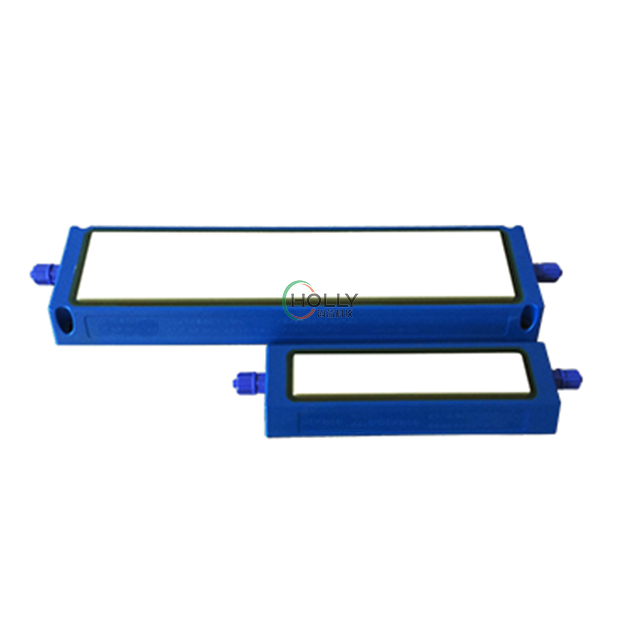

Model | Dimensions （cm） | Ceramic Area （cm2） | Best Working Pressure (Mpa) | Max Working Pressure (Mpa) | Max Under Pressure (Mpa) | Flow Rate (L/min) | Base Material | N.W. |
HLTC-190 | L38*W8*H2.9 | 190 | 0.1-0.15 | 0.35 | 0.7 | 1.0~1.5L | Aluminum Alloy | 1.5KG |
HLTC-380 | L70*W8*H2.9 | 380 | 0.1-0.15 | 0.35 | 0.7 | 2.0~3.0L | 2.5KG |
12mm pagoda connector
8mm quick connector
*High Oxygen Efficiency: Bubbles with diameter of 0.05～0.5mm, the oxygen transfer?rate is 35% at ?water depth of 1?meter, and it?increases by 5-8% every 0.5 meter increase in depth
*High Pressure Endurance?: The ultimate pressure bearing capacity 0.7Mpa (kg/cm2), and there will never be a phenomenon that similar products will burst at 0.3Mpa pressure
*High Utilization Rate: The oxygen transfer?rate is 3 to 5 times than Aero Tube, which saves 40 to 60% of gas, and the operating cost is the lowest in the world for similar products
*Corrosion Resistance: All products are resistant to seawater. Corrosion-resistant, UV-resistant, and the service life is as long as 5-8 years without man made?damage
*Easy Installation: Quick?connector which saves costs and is easy to install. Anyone can install without guidance.
*Flexible Combination: Can be used alone or in combination
*Low?Maintenance: Sanding with 80# sandpaper, it can be restored as before, easy to clean
*High Energy Saving: No need to use electric power to drive, it can work normally with a pressure greater than 0.1Mpa
*Wide Range Applications: Aquaculture oxygenation, reservoir oxygenation, water treatment system aeration
*RAS System : pure oxygen aeration, biological filter aeration, storage tank aeration
*Flowing water aquaculture: pure oxygen aeration, storage tank aeration
*Open pond aquaculture: pond aeration, emergency oxygenation in the feeding area
* Amplification of microorganisms and microalgae: aeration and oxygenation
*Others: denitrification, aeration
Yixing Holly Technology Co., Ltd
Q1: Do you provide OEM or ODM customized service?
A: Yes, we provide OEM and ODM service. We are sure to be your unique and reliable partner of ODM/OEM business.
Q2: What’s your MOQ?
A: MOQ: 50pcs/item . If use customized packaging, quantity need be negotiated.
Q3: When’s your delivery time?
A: Generally, 5-7 working days for samples, within 30-40 days for mass production.
Q4: How can we pay?
A: T/T, Western Union, PayPal etc. are acceptable.
