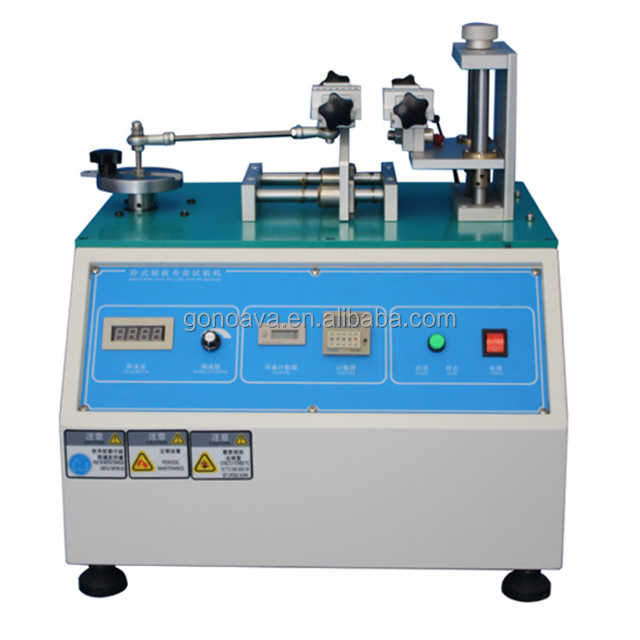

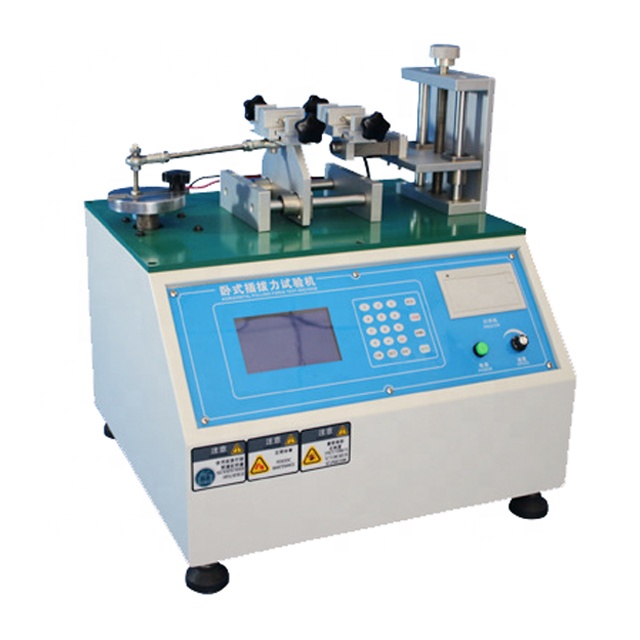

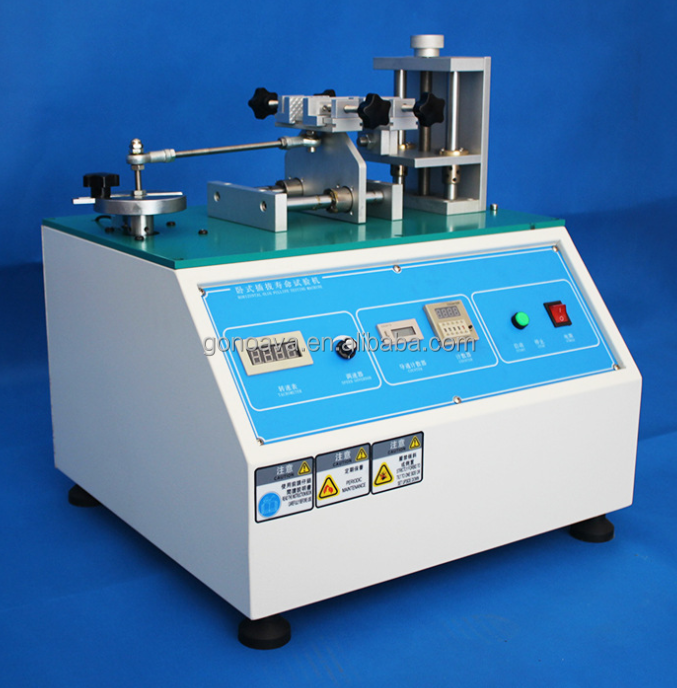

Micro Computer usb Plug And Pull Force Tester,Insertion and extraction force life testing machine

Application:?

This machine is suitable for many kinds of connector plug and pull test, adopt embedded microcomputer measure and control technology, it can show insert force, pull out force, real time force value at the same time, and has number setting, speed travel adjustable, and display speed value, automatically return to zero, unit turn calculation etc.

Is set to automatically stop the surcharge load alarm function, and has the function of automatically saved, the biggest can save ten points automatically, and average, the tabular form, save the test data of column test, with the administrator password for user can modify the password, using software calibration load value, using English tips set internal functions, convenient operation, simple.

?

?

Micro Computer usb Plug And Pull Force Tester,Insertion and extraction force life testing machine

Specification

Number of times?range	0-999999
Driving mode	rotating eccentric wheel
Range of plugging force	0-50kg
Minimum interpolation resolution	0.01kg
Travel adjustment example	?0-60mm
Test speed	10-60 (digit show)
Two unit transitions	N?KG.
Machine size	550(D)*470(W)*450(H)mm
Working voltage	single phase 220V
Main circuit fuse	2A

? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ??
