Micro Deval Abrasion Testing Machine

$1200.00 ~ $1500.00 / unit

use:

Aggregate Testing Machine

Get Latest Price

Model No.
Brand Name
place of origin	China
Brand Name	TBT
Model Number	TBTDAT-II
Product name	Aggregate Micro Deval Abrasion Testing Machine
Warranty	1 Year

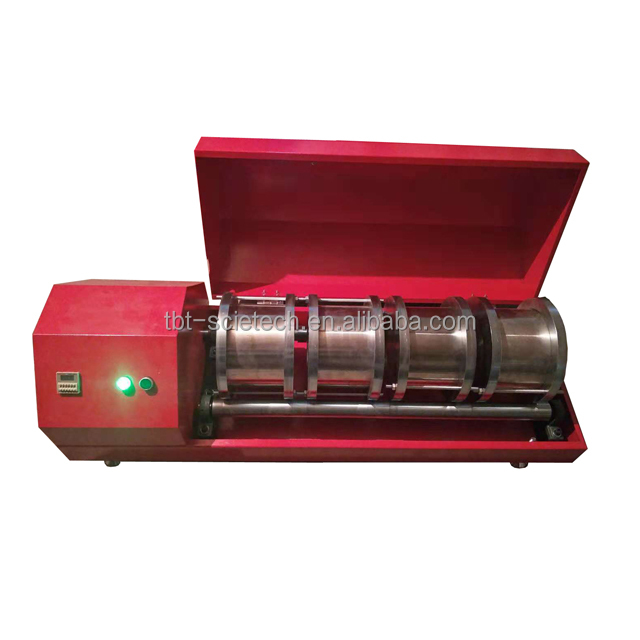

Aggregate Micro Deval Abrasion Testing Machine

Introduction:

This Deval machine is used to measure specific abrasion strength of aggregates, then to determine the quality of it.

For some stone aggregates, the abrasion strength are different depend on in state of dry or moist. This Deval machine is used to
measure specific abrasion strength of aggregates, then to determine the quality of it.
The machine mainly consists of 4 rolling cylinder tanks, sealing covers, holding frame, gearbox, motor and controller.

Features:

The 4 cylinder tanks are mounted on two horizontal axis. Each cylinder can be used for one test.
The cylinder tanks are made of stainless-steel (Z 2 CN 18-10).
Inside the cylinder, there should not be any uneven due to welding.
The milling balls which to be put in cylinder and rolling with specimen, are made of stainless steel Z 30 C 13 of diameter
10±0.5mm.
Electric motor drives the cylinders rotating at a constant speed of 100±5 tr/min to perform abrasion testing. The engine will be
automatically stopped at end of the test.

PRODUCT SPECIFICATIONS

Milling Cylinders	4 pcs
Cylinder inner diameter	200±1mm for particle 4~14mm
Cylinder inner diameter		400±2mm for particle 20~50mm
Cylinder length	154±1mm
Cylinder wall thickness	3~4mm
Caps for cylinders	8mm thickness for sealing
Steel balls	diameter 10mm, 4kg
Voltage	220V, power 1KW
Power consumption	1KW

Recommend Products

Business Fields

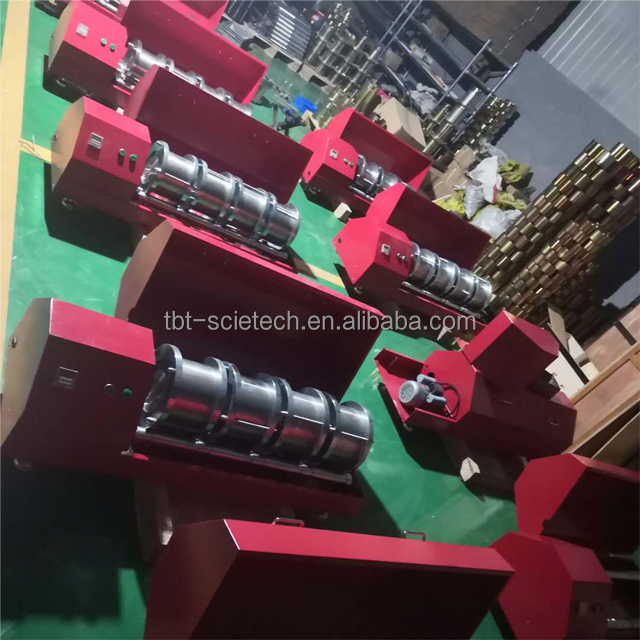

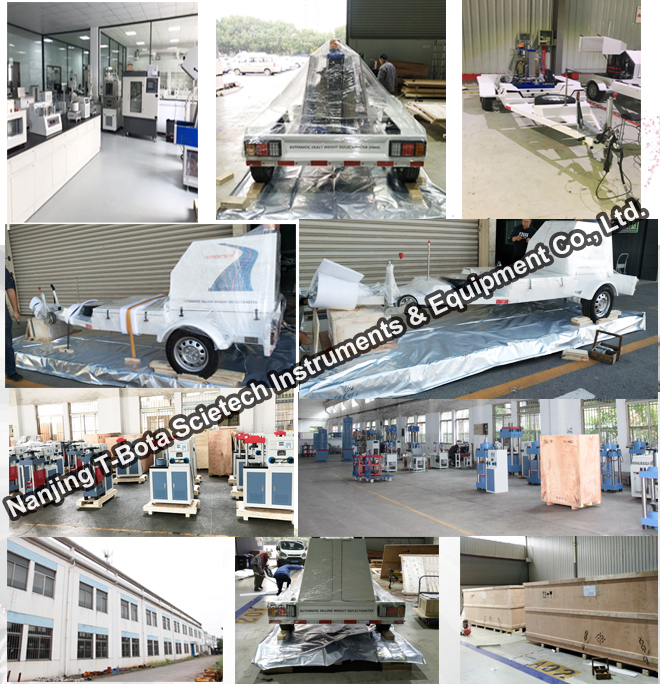

Product packaging
