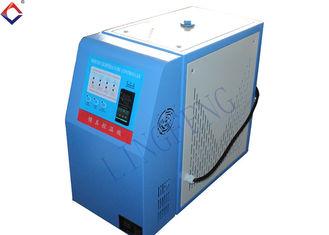

Microprocessor High Mould Temperature Controller High efficiency Oil Controller Unit

Quick Detail:

1. Heat fast

2. Gloss of the product

3. Microcomputer auto accurate control±1℃

4. Have security protection system

Description:

Mould Temperature Controller For Shoe Sole Foaming Industry

1. Can run tests, the pressure (<0.5Mpa), to obtain a higher operating temperature (≤ 320 ℃), reducing the

pressure level with hot equipment can improve the security of the system.

2. Soft, supple uniform heating, the temperature is adjusted by the intelligent self-tuning PID control,

temperature control and high precision ≤ 350 ℃, can meet the stringent requirements of high technology

standards.

3. Small footprint, can be installed near heating equipment, without dedicated boiler room, do not need to set up

special operations, reduce equipment investment and operating costs, fast recovery of investment.

4. Operational control and complete a comprehensive safety monitoring devices, automatic control of the

heating process, simple operation, easy installation.

5. Closed loop heating, heat loss, energy-saving effect is remarkable, no environmental pollution, using a wide range.

6. With low temperature (≤ 180 ℃), medium temperature (≤ 300 ℃), high temperature (≤ 320 ℃), product

specifications, user choice.

Free warranty for one year(except for the destruction of the artificial operation error)

1. High efficiency and energy saving

adopting microcomputer full-automatic sections heating method which is more stable and energy saving, the

energy saving ratio compared to other brands products can be up to 40% and above.

Direct heating method and high power heaters can make the temperature rise in a very short period.

2. High precise

thermostat imported from Japan with original packaging and double PID with touchscreen displaying guarantee

the temperature differential less than 1°C

3. High pressure and high flow pump

applying the pumps imported from Europe and America which are also used in mold temperature controllers to provide high pressure and high flow, which can effectively decrease the temperature differential and save the power supply

4. High reliability

electrical components: imported electrical elements from Japan, Italy, France, etc

power circuit design: interlocking failure-preventing circuit and failure displaying

shape/apperance design: seperate control cabinet design, thorough making the electrical

components free from the penetration of moisture, oil, heat, etc. and prolonging the service

life of the components

5. Wide use

temperature control of injection molding, extrusion mold, rubber and plastic machinery

indutrial water chillers and plastic auxiliary machines available

Applications:

1. Plastics industry : accurate control of all kinds of plastic processing mould temperature, shorten the moulding cycle to ensure product quality and stability.

2. Electronics industry : stabilize the internal molecular structure of electronic components in the production line to improve the pass rate of electronic components. Used in ultrasonic cleaning industry effectively preventing volatilize costly cleaning agent , reducing injury to persons.

3. Machinery industry : control hydraulic system pressure oil temperature , stabilize oil pressure and temperature , prolong the life time of oil . Improve the efficiency of machinery lubrication , reduce wear and tear .

Competitive Advantage:

Our products with reliable security protection devices,include:

1. High and low voltage protection

2. Overheating protection exhaust

3. Motor overheating protection

4. Overcurrent protection

5. Antifreeze temperature protection

6. Water flow protection

7. Emergency stop switch

8. A temperature sensitive fusible plug , safety valve etc.

Specifications:

Place of origin	Dongguan China
Brand name	LINGFENG
Model	LF-OM012
Condition	Brand new
Warranty	One year
Standard working voltage	220v / 380v
frequency	50Hz
appearance	Box type
Heat transfer medium	oil
material	Copper and metal plate
Function	Heating
probabilistic testing	100%
After sales service provided	No oversea service provided

Oil Type Schematic diagram
