STLB Series Mineral Separation Machine Centrifugal Concentrator

SUMMARY

STLB type Mineral Separation Machine Centrifugal Concentrator is one kind of gold separating equipment, which is specially designed for the recovery of placer gold (alluvial gold ) and lode gold. It is an ideal gold recovery equipment - working on land or in river.

Our company has developed 5 types centrifuge. After test, the placer gold recovery rate is above 99%. For the gold rock mine, when the particle size is under 0.074mm, and the percentage is about 65%, the recovery rate is about 98%;  when the material size is about 0.04mm, the recovery rate is about 97%.When the final concentration discharging cycle time is 1-4 hours for gold rock mine, and 4-8 hours for placer gold ore, the enrichment ratio is about 500-1000 times of raw material.

Technical parameter of Mineral Separation Machine Centrifugal Concentrator

TYPE	STLB20	STLB30	STLB60	STLB80	STLB100
CAPACITY (T/h)	0.2-1	2-8	10-40	35-70	75-120
PARTICLE SIZE (mm)	0-3	0-4	0-6	0-6	0-6
FEEDING CONCENTRATION(%)	0-50%	0-50%	0-50%	0-50%	0-50%
BACKWASH WATER(T/h)	1.5-2	4-6	10-15	17-25	40-60
OUTPUT (KG/TIMES)	2-3	10-20	30-40	60-70	70-80
POWER (kw)	0.75	1.5	4	15	18.5
REVOLUTION (r)	800	600	460	400	360
PRESSURE WATER (Mpa)	0.04	0.12	0.4	0.4	0.6
DIMENSION (mm)	930*700*900	1180*1140*1250	1970*1670*1750	2300*1800*2200	2500*2000*2400
WEIGHT (kg)	205	400	1300	1500	2000

REMARKS: THE STANDARDED MATERIAL FEEDING CONCENTRATION IS 30%~ 35%.

PRINCIPLE, STLB Mineral Separation Machine Centrifugal Concentrator Diagram as follow:

Motor (2) drive inner tank (5) rolling at high speed by belt (1) and axis (11) . Separation work will be strengthened in the tank (5) by centrifugal force.  Light material will be discharged by port (7), and final refined ore will be output by port (7) after stopping work.

OPERATION
-The preparation and check before starting.
Check the motor before using according to instruction.
Check the machine foot margin, and see if be fixed
Check the driving belt if or not suitable or too tight.
Check the transmission parts if or not working well.
Check the output port if or not closed.

-Starting
After check, turn on the current and motors to see if the machine running direction same as required (please notice the marks printed on the machine). When all parts running normally, then start work.
Material and water feeding

Open the water back washing valve after machine running well, and meanwhile feed the ore pulp.

-Attentions in the operation
Keep watch on the temperature and current if work well.
Keep watch on the parts and see if work well.
Keep watch on the pulp and see if the concentration% is right.
Open the watching-cover after a period of time to see the enriched ore depositing situation.

-Stopping
On the condition of equipment running well, clean refined ore one time a day. Before stopping, stop feeding material at first, then stop running the machine. Open the output port (10), and wash the refined material into a tank (users provide it by themselves). The cleaning work takes about 10-20 minutes. After cleaning, then can running machine again for the next collection work.

-Equipment stop running unnormally
When equipment running unnormally, and need stop the machine, stop feeding first, then stop water back washing, then turn off the machine. The stopping time should be not too long, if not, ore in the tank (5) would be hardened. (If need stop in a long time, then need clear the refined ore first, then stop. ) When re-starting the running after a short time stop, feeding first, then back washing water to prevent the loss of gold.

MAINTENANCE
-Maintain regularly according to instruction
-Clean one time one shift
-Adjust the driving belt and tight the bolt
-Lubricating each shift (especially for the inner tank axis)

WEARING PARTS LIST

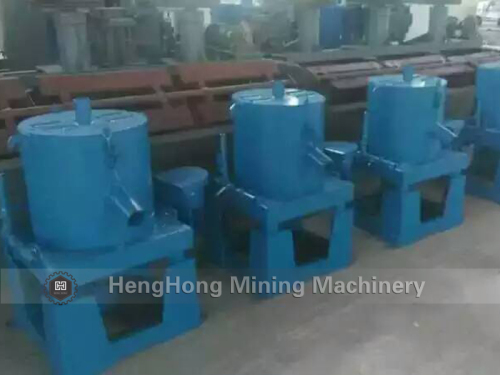

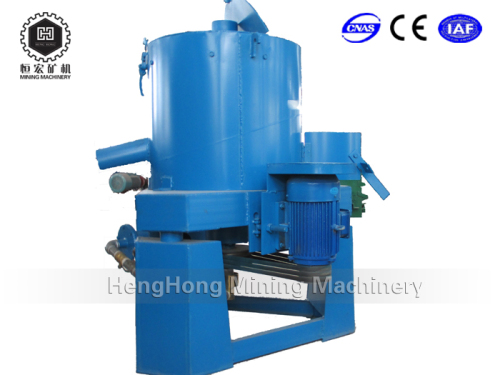

Water jacket Mineral Separation Machine Centrifugal Concentrator Pictures:

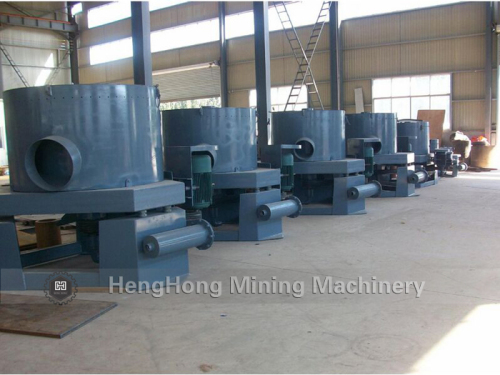

Packing and Delivery Pictures of Mineral  Separation Machine Centrifugal Concentrator

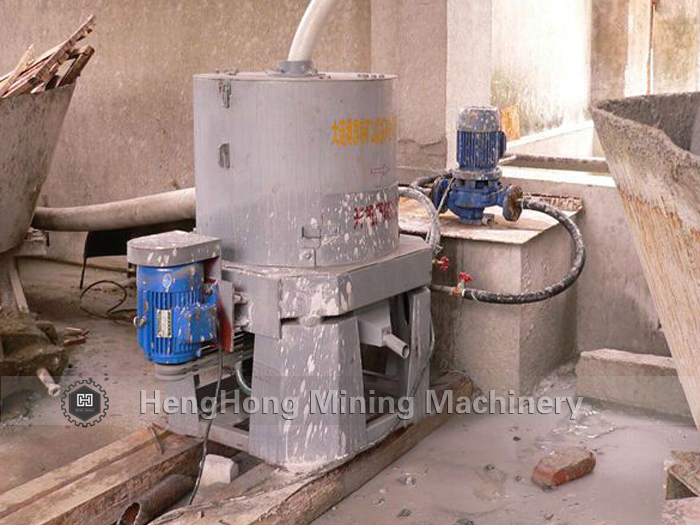

Mine Site Pictures Of Mineral Separation Machine Centrifugal Concentrator

Gravity Separation and Flotation Separation Flow Chart For Reference:
