Basic Information:

CPU

Intel Core i7-6567U

TDP

15W

BOIS

AMI BIOS, ACPI supported

Chipset

Intel Xeon E3 - 1200 v6/7th Gen Intel Core/DRAM Registers - 5904 - 7th Generation

Intel Processor Fami

Memory

1* SO-DIMM DDR3L Slot, Support 2GB/4GB/8GB

DDR3L-1600, DD3L-1333, LPDDR3-1600, LPDDR3-1333

OS

Windows 7/Windows 8/Windows 10/Linux

Audio

ALC662 sound chip, 6-channel, Intel Panther Point HDA

Network

RTL8168E PCI-E Gigabit Ethernet NIC

10/100/1000 BaseT LAN

PXE

Yes

Video

Refer to CPU

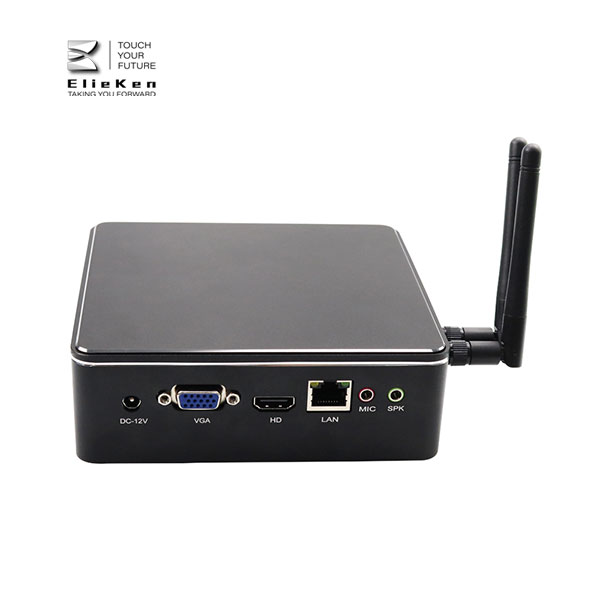

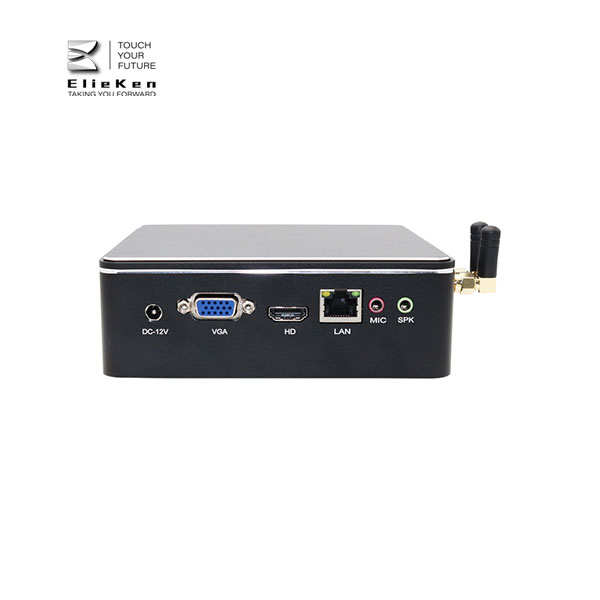

Input/output port

Switch

1 x Power On/Off Switch

Power

1 x DC In

LED

2 x LED

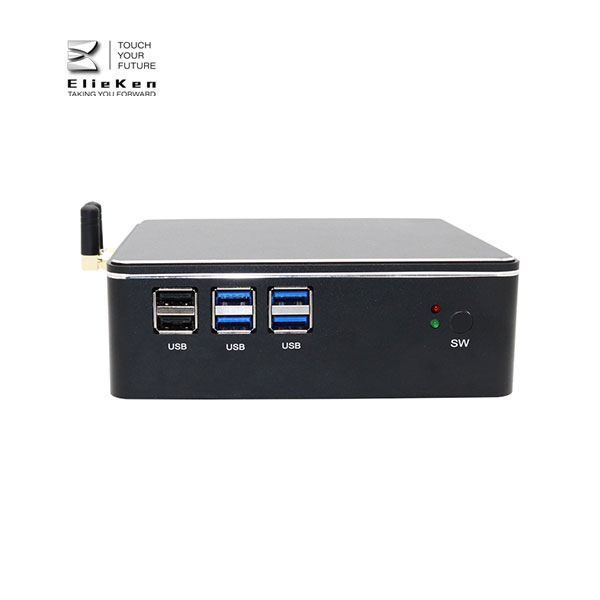

USB

2 x USB2.0, 4 x USB3.0

Display

1 x HDMI, 1 x VGA

LAN

1 x RJ45 Intel Giga LAN

Audio

1 x MIC, 1 x Audio

Others

1 x Kensington Lock

Storage

MSATA

2*M-SATA3.0 slot for MSATA SSD, support 6Gb/s,

SATA

1*SATA3.0 slot for SATA HDD or SSD, support 6Gb/s,

Wi-Fi

Module

1 x mini PCIE-half port for Wi-Fi & Bluetooth module

Antenna

2 x inner RF cables and 2 x external antennas,

Power and Working Environment

Input

DC100-240V AC/50-60Hz

Output

DC +12V~+19V, recommend 12V/5A

Operating Temperature

0/70 Centigrade(32F~140F)

Storage Temperature

-20/+85 Centigrade

Relative Humidity

10%~90% (non-condensing)

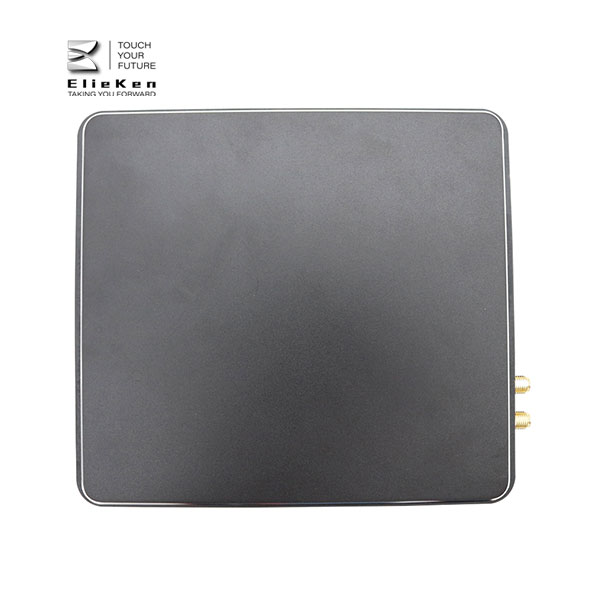

Product Dimension & Details

Size

130*130*40mm

Weight

Net 1.0kg, Gross 2.5kg

Shell

Black color aluminum alloy(any customized color for bulk order)

Mounting

4 Mounting holes on case

Cooling Mode

Fan

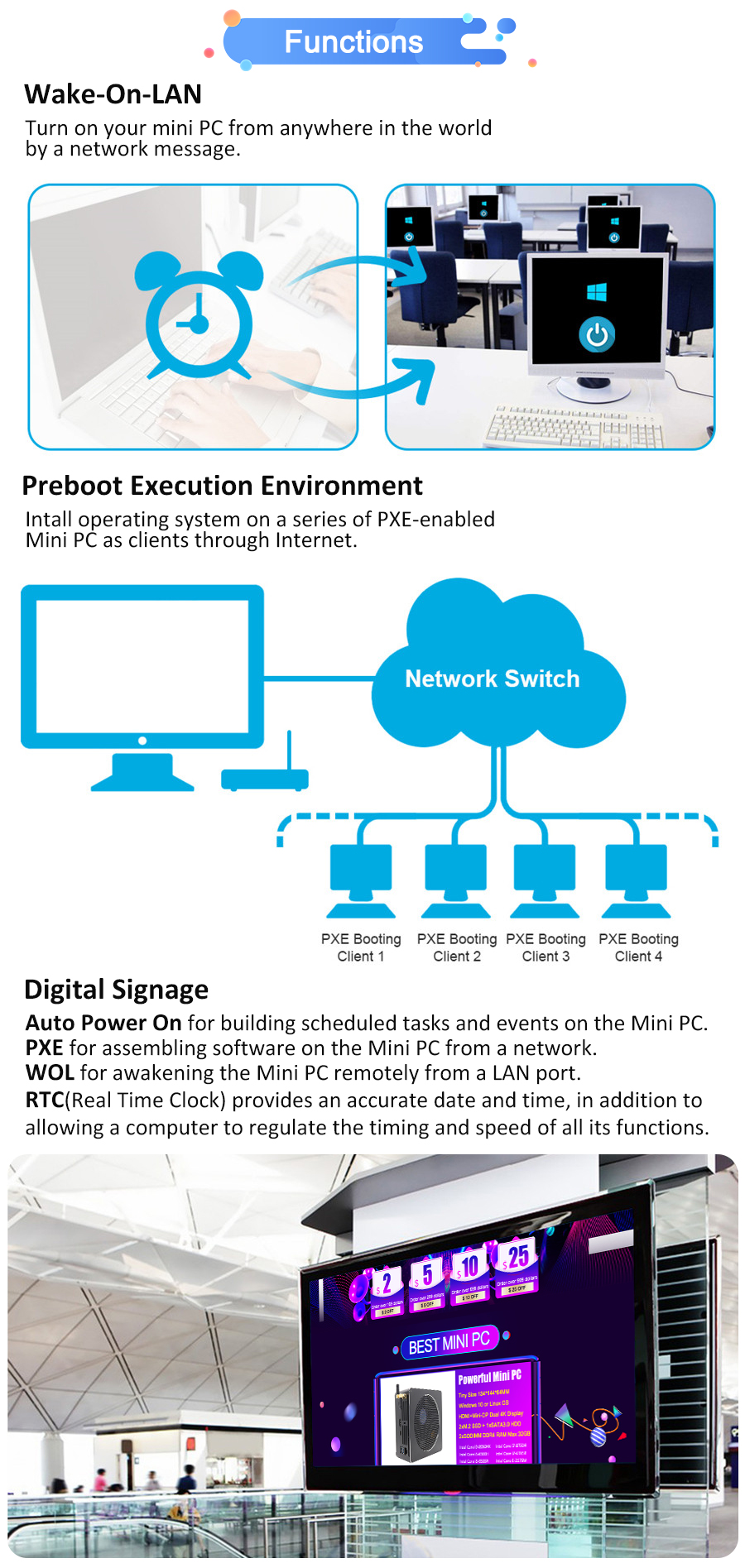

Function

AWAL, WOL, RTC,

Package Content

Standard

1X Mini PC, 1X Power Adapter, , 1xPower Cord, 1xScrews Bag,

Optional

Wi-Fi antennas, 1xHDMI cable, 1xUser Manual
