mining jigger machinery supplier

Features of Jig Machine:

1. Compact structure and small occupation area.

2. Energy saving and continuous working.

3. High recovery, high unit throughput and low water consumption.

4. Simple installation and Minimal maintenance requirements.

5. Stroke and frequency of stroke can be easily adjusted.

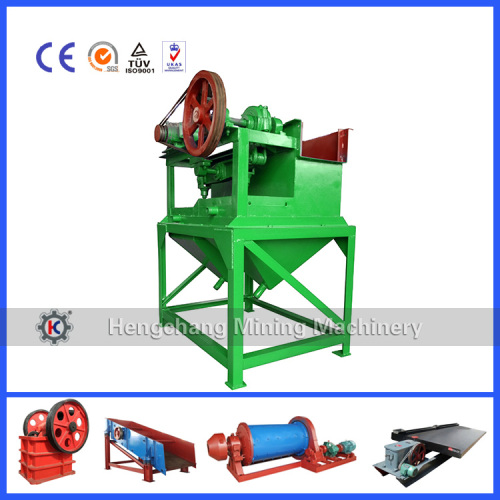

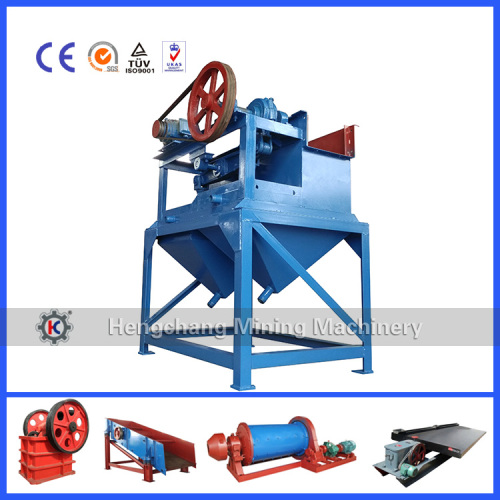

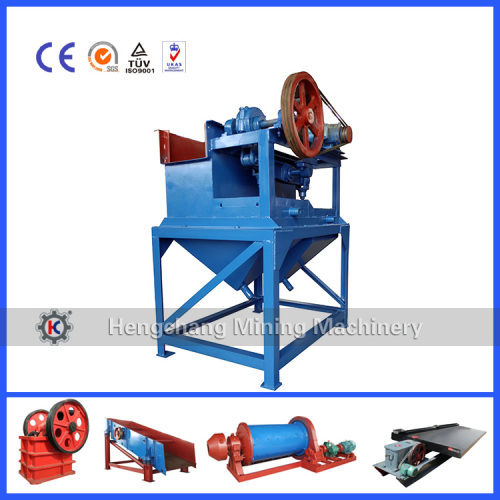

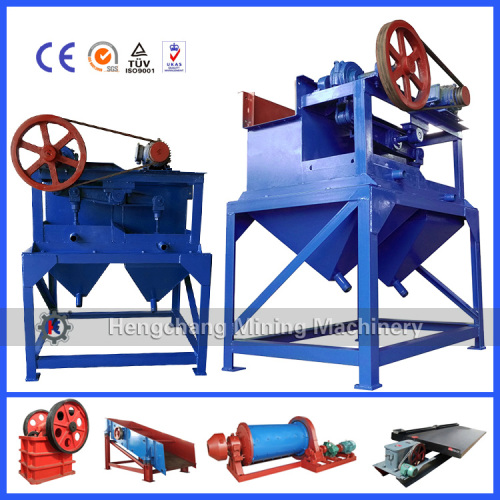

Description of Jig Machine:

Our Jig Machine for Tungsten is a new type of energy saving and high efficient gravity separation equipment and developed based on the traditional Sine gold equipment. The difference between Saw-tooth Wave Ladder Jig and Sine Wave Jig is that the pulsation curve for Mineral separation jigging machine is saw-tooth wave shape, with speedy upward flow and slow downward flow. Bed layer is elevated integrally and slowly dropped with a long effective loose time, allowing significant increase of handling capacity for unit screen surface, decrease of lower limit of grain size recovery and large save of make-up water for undersize fraction.

 Industrial tests carried our of Saw-tooth Wave Ladder Jig and Sine Wave Jig for comparison showed that the recovery rate for operation of Saw-tooth Wave Ladder Jig is raised by Sn:3.01%, W:5.5%, Pb:1.63%, Zn:2.04%; The water consumption reduces 30%-40% with water consumption being decreased by 30-40%. The area reduces 1/3 and the stroke may adjust also.

china mining jigger machinery

Application of Jig Machine:

Saw-tooth wave jigger is capable of handling almost full sizes of mineral materials other than very fine material. It features simple process operation, heavy duty equipment handling capacity with final products being obtained through one time separation. They can achieve a good result in processing such as placer gold, tantalum, niobium, titanium, tungsten, iron, tin, hematite, copper, coal, manganese, barite, zirconium and chrome etc.

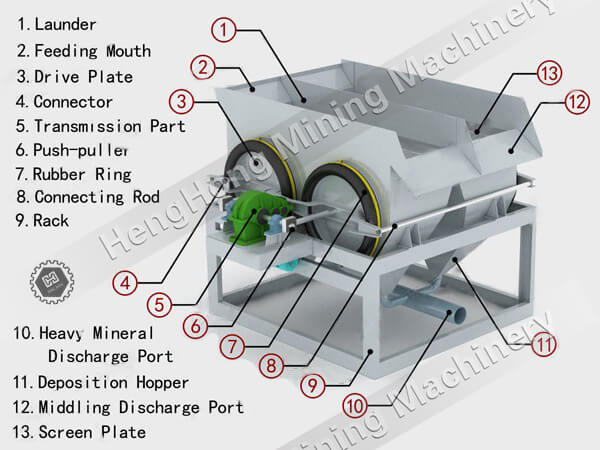

Working principle of jig machine:
Jig machine operating recovery rate is higher than the sine wave by the sn: 3.01%, w: 5.5%, pb: 1.63%, zn: 2.04%; water consumption reduced by 30% -40%, covers reduction by 1/3, and the stroke is adjustable. The performance of Saw-tooth Wave Jig has reached the domestic advanced level, and is one of the ideal devices in energy-saving gravity separation.

Pre-sale service:

We will provide you with the prior plan, process flowchart design and production equipment in line with your special needs.

Sale-service:

We will send technicians to you for guiding the equipment installation, commissioning and staff

training.

After-sale service:

We will regularly pay return visit to customers for establishing a long-term and friendly relationship.

All machines have one year warranty to make sure your machine work well.


Warmly welcome you come to visist our factory
Our factory located at Ganzhou city, Jiangxi province, China.
Visit line: Take flight from your country to Guangzhou airport in China, and then take flight from Guangzhou to Gan zhou airport, then we will send the car to pick  you up from Ganzhou airport.
