Mining Machine-Ore Flotation Machine

$2000.00 ~ $30000.00 / Set/Sets

Model:

XCF-1
XCF-2
XCF-3
XCF-4
XCF-8

Get Latest Price

You might also like

Mining Equipment/XCF Mechanical Agitating Flotation Cell

$2000.00

1 Set/Sets (MOQ)

New-Type High-Efficient Flotation Cell

$2000.00

1 Set/Sets (MOQ)

Good Working Performance Mineral Processing Flotation Cell

$2000.00

1 Set/Sets (MOQ)

Mining Machine-Ore Flotation Machine

$2000.00

1 Set/Sets (MOQ)

Mechanical Agitating Flotation Machine

$2000.00

1 Set/Sets (MOQ)

XCF Mechanical Agitating Flotation Cell

$2000.00

1 Set/Sets (MOQ)

Basic Info

Model No.	XCF-24
Brand Name	STMC,Sino Touch
warranty period	3 Months
Applicable industry	Building Material Shops, Machinery Repair Shops, Construction Works, Energy &Amp; Mining, Other
Where to provide local services (in which countries are there overseas service outlets)	Egypt, Canada, Turkey, United Kingdom, United States, Germany, Philippines, Peru, Saudi Arabia, Pakistan, India, Mexico, Russia, Spain, Japan, Malaysia, Australia, Morocco, Kenya, Argentina, South Korea, Chile, Uae, Colombia, Algeria, Sri Lanka, Romania, South Africa, Kyrgyzstan, Nigeria, Uzbekistan
Showroom location (in which countries are there sample rooms overseas)	Egypt, Canada, United States, Germany, Viet Nam, Philippines, Brazil, Peru, Indonesia, Pakistan, India, Mexico, Spain, Thailand, Kenya, Argentina, South Korea, Uae, Colombia, Algeria, Sri Lanka, Romania, Bangladesh, Kazakhstan, Ukraine, Nigeria, Uzbekistan, Tajikistan, Japan
Video factory inspection	Provided
Mechanical test report	Provided
Marketing type	New Product 2020
Core component warranty period	3 Months
Core components	Engine, Bearing, Gearbox, Motor
place of origin	China
status	New
Service system	No Overseas Service Provided

Product description

Mechanical Agitating Flotation Machine Working Principle
Flotation Separation machine is named as flotation cell and froth flotation concentrator.
When Flotation Cell is at work, ore slurry all around going through cell bottom is sucked into the interval between impeller and vane from the lower end of the impeller with the rotation of the impeller. Meanwhile, the low-pressure air produced by the blower going into it will go through air distributor in trunnion and impeller chamber. After the full mixture of ore slurry and air in the interval between vanes, they are pushed from all round of upper half part to above and get into whole cell after steady flow and orientation by the stator.
Air bubbles rise to the froth stability area and the froth overflows from overflow weir into froth tank after concentration process. Another portion of ore slurry flows toward the lower part and forms mineralization bubbles again after agitation of impeller, and the rest of ore slurry will flow to the next tank to become tailings eventually.

Agitating Flotation Machine Features
The structure and property of XCF cells and KYF cells are similar. The difference is that a stator is specially set above the impeller to form a special negative pressure area for automatic suction of ore slurry, but power consumption will be slightly higher.
XCF and KYF cells can be combined together to be as a complete flotation line.

Mechanical Flotation Cell Application

Agitair Flotation Cells is one of the most commonly used mining equipment, which is widely used in mineral processing and chemical industries. In the production of small scale, medium scale or large scale mineral processing plants, it is generally used as the concentration machine for metal ores of gold, silver, copper, lead, zinc, nickel, manganese, iron, molybdenum, tungsten and others, as well as barite, quartz, graphite, feldspar, fluorspar, etc.

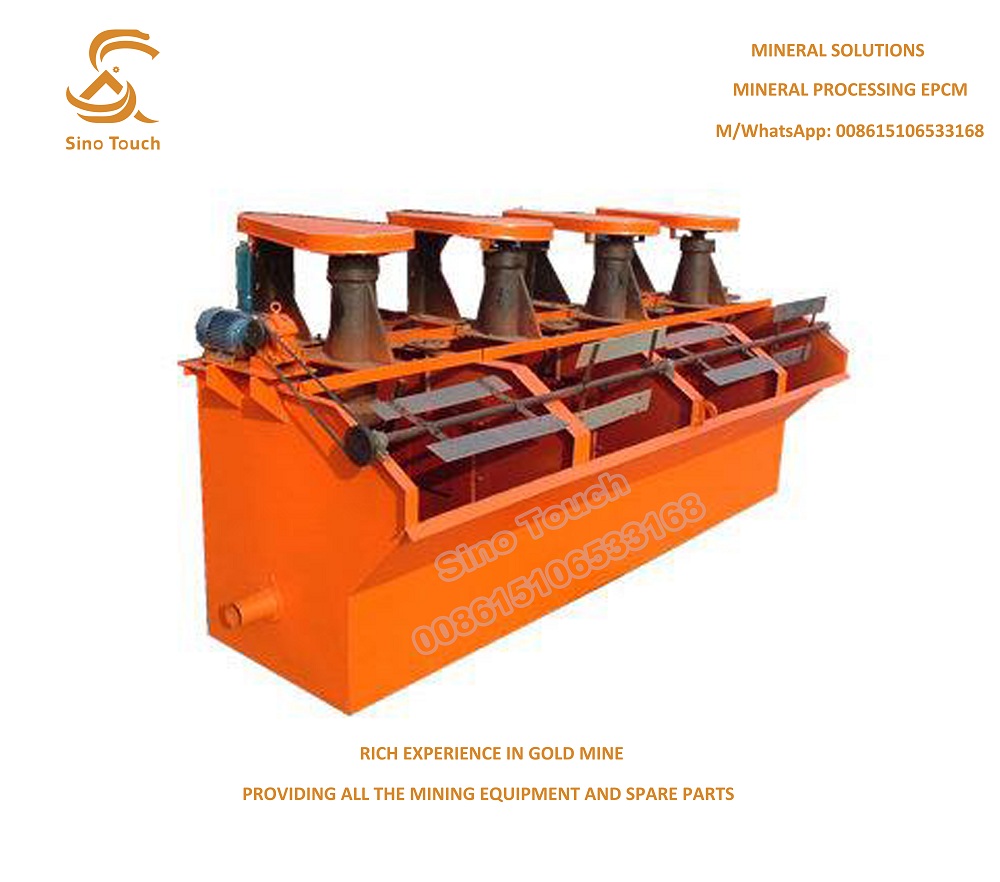

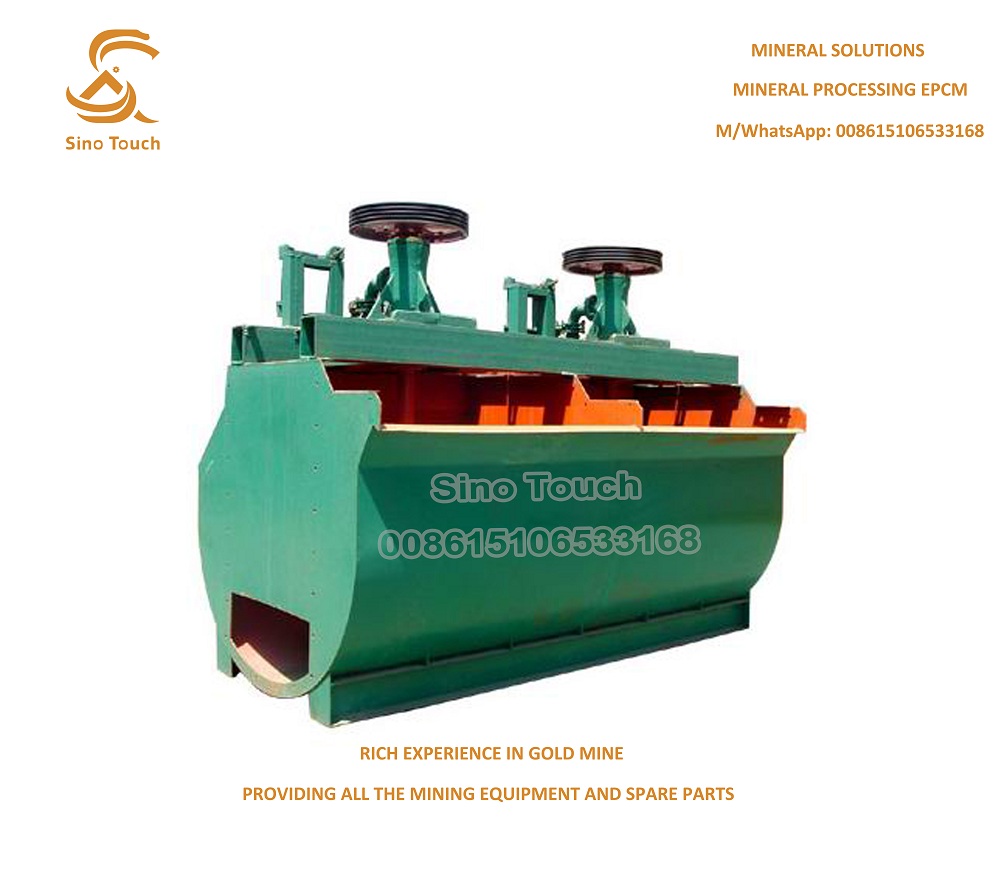

Mechanical Agitating Flotation Machine Self Aspirated Flotation Cells

Gold Flotation Machine Technical Parameters

Model	Effective Volume (m3)	Capacity (m3/min)	Impeller Diameter (mm)	Impeller Speed(r.p.m)	Inflation Pressure (KPa)	Air Inflation Flow (m3/m2.min)	Agitator Power (kW)	Power (kW)	Weight (kg)
XCF-1	1	0.2-1	400	358	≥12.6	≤2	5.5	1.1	1200
XCF-2	2	0.4-2	470	305	≥14.7		7.5	1.1	1710
XCF-3	3	0.6-3	540	266	≥19.8		11	1.5	2300
XCF-4	4	1.2-4	620	225	≥19.8		15		2720
XCF-8	8	3.0-8	720	175	≥21.6		22		4050
XCF-10	10	4-10	720	192	≥21.6		30		4890
XCF-16	16	4-16	860	160	≥25.5		37		6600
XCF-24	24	4-24	945	166	≥30.4		55		8088
XCF-30	30	8-30	1020	138	≥31		55		13550
XCF-38	38	10-38	1050	141	≥32		75		14979
XCF-40	40	10-40	1050	141	≥32		75		17834
XCF-50	50	10-40	1200	125	≥35		90		21878
