mining machinery jaw crusher,impact? hamer? cone crusher,

?

?

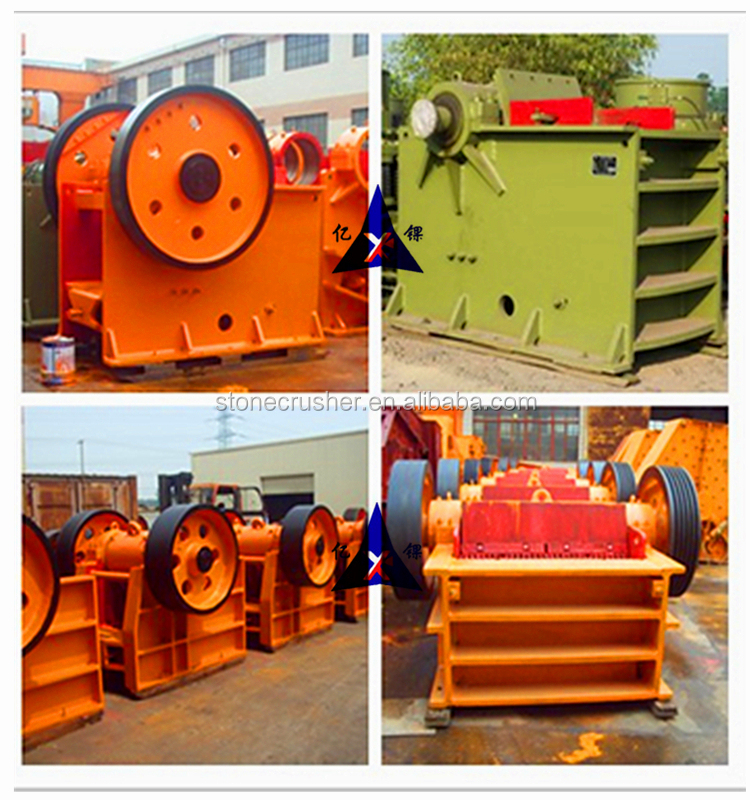

1.Jaw Crusher Use and Features:??

?

Jaw Crusher is ideally suitable for primary and secondary crushing. The highest anti-pressure strength of crushed material is 320Mpa.Jaw Crusher is designed by our engineers with large reduction ratio, even granularity, simple structure, reliable operation, convenient maintenance, low cost, Jaw Crusher is widely used in mining, metallurgy, construction, highway, railroad, and chemistry industries.

?

Main technical parameters

Model	Feed Opening (mm)	Max. Feed Size(mm)	C.S.S(mm)	Capacity(t/h)	Power(kw)	Weight(t)
PE-150*250	150*250	130	10-40	0.96-4.8	5.5	0.8
PE-250*400	250*400	210	20-80	5-20	15	2.8
PE-400*600	400*600	340	40-100	16-64	30	6.5
PE-500*750	500*750	425	50-100	45.6-100	55	10.3
PE-600*900	600*900	500	65-160	48-120	55/75	15.5
PE-750*1060	750*1060	630	80-140	51-208	110	25.1
PE-800*1060	800*1060	650	100-200	136-228.8	110	28.3
PE-870*1060	870*1060	670	200-260	288-384	110	28.7
PE-900*1200I	900*1200	750	100-200	144-304	132	50
PE-900*1200	900*1200	750	100-200	136-228.8	110	43.3
PE-1000*1200	1000*1200	850	195-265	315-342	132	50.6
PE-1200*1500	1200*1500	1020	150-350	300-800	220	83
PE-1500*1800	1500*1800	1200	220-350	450-1000	355	122
PEX-150*750	150*750	120	18-48	8-25.6	15	3.5
PEX-250*1000	250*1000	210	25-60	16-51.2	37/30	6.5
PEX-250*1200	250*1200	210	25-60	20-60	37	7.7
PEX-300*1300	300*1300	250	20-90	10-104	75	11

?

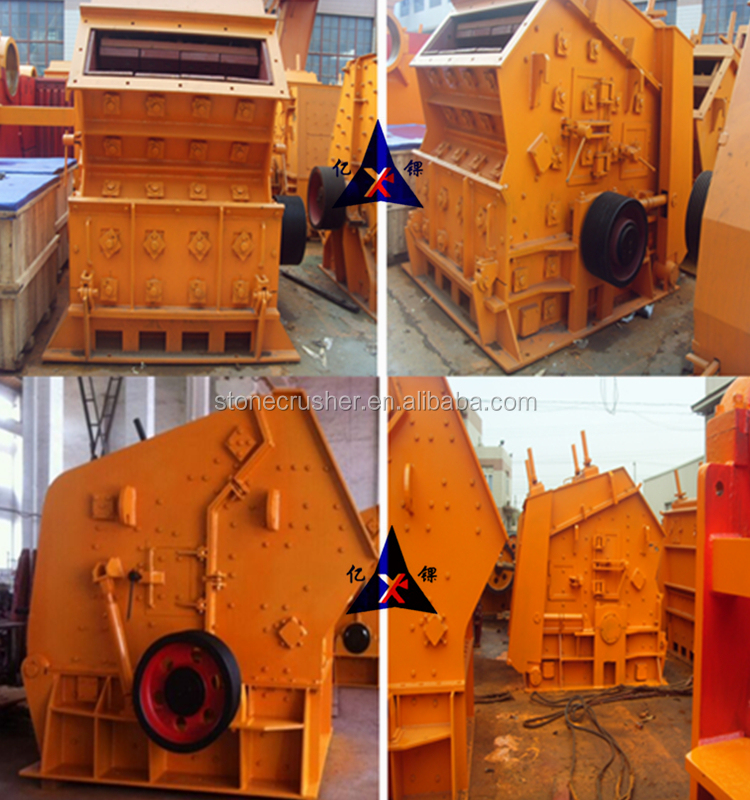

?2.Impact?Crusher Use and Features:

Impact Crusher can be widely used in the first and secondary crushing.Simple structure, Non-key Connection, high chromium Flat Hammer, special impact plate, simplified crushing process, and high-efficiency and energy conservation, Cubic Shape for the final products. The discharge opening can be adjusted. It is widely used in water and electricity, expressway, sand and stone, crushing fields.

?

Type	Feed Opening(mm)	Max Feed Size (mm)	Capacity (t/h)	Power (KW)	Overall Dimension (L*W*H) (mm)
PF-1010	400×1080	350	50-80	75	2440×2250×2630
PF-1210	400×1080	350	70-120	110	2700×2340×2870
PF-1214	400×1430	350	80-160	132	2700×2440×2900
PF-1315	860×1520	350	140-230	200	2860×2800×3050
PF-1316	1690X859	350	150-260	200	3096X2850X2667
PF-1516	1640X900	360	240-310	260-280	3400X3550X3285

?

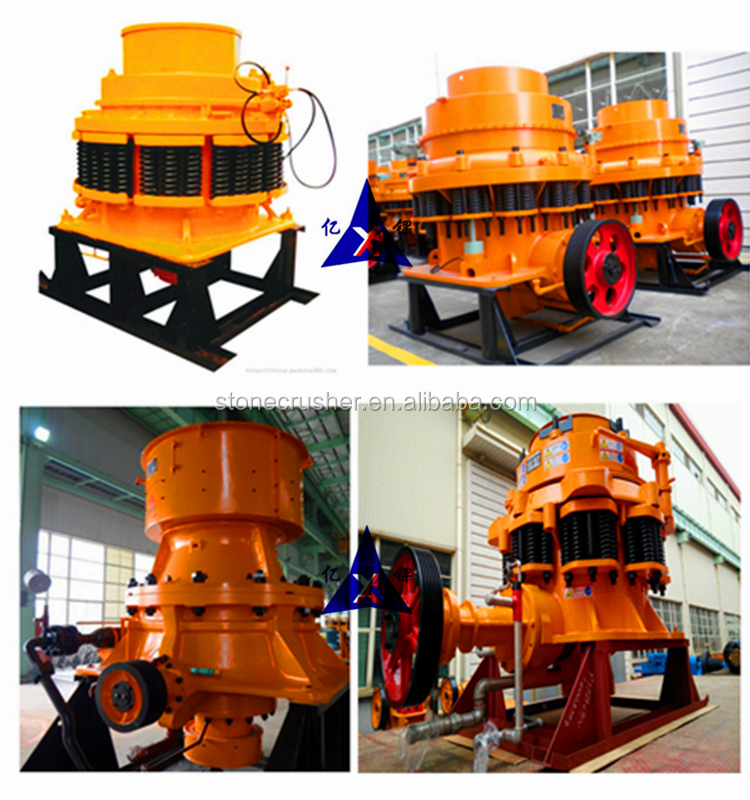

3. Cone Crusher Use and Features:

?

Comparing with other crusher, symons cone crusher with high-efficiency have excellences for fine crushing, high productions and low maintenance. The long force arm designed into the cone provides greater crushing force.

Benefits:

1. More crushing cavity
2. dry oil-sealed dust
3. in order to support large efforts in key parts broken selected on a special material.
4. high yields.
5. low cost of daily operation.

?

?

model	diameter of bottom end of conical crushing head(mm)	max.size of feed material(mm)	adjustable range of dischange opening(mm)	producing capacity(t/h)	electric motor power(kw)	speed of eccentric shaft	weight(t)	overall dimensions L×W×H(mm)
PYB600	600	65	12-25	40	30	356	5	2234×1370×1675
PYD600		35	3-13	12-23			5.5	2234×1370×1675
PYB900	900	115	15-20	50-90	55	333	11.2	2692×1640×2350
PYZ900		60	5-20	20-65			11.2	2692×1640×2350
PYD900		50	3-13	15-50			11.3	2692×1640×2350
PYB1200	1200	145	20-50	110-168	110	300	24.7	2790×1878×2844
PYZ1200		100	8-25	42-135			25	2790×1878×2844
PYD1200		50	3-15	18-105			25.3	2790×1878×2844
PYB1750	1750	215	25-50	280-480	160	245	50.3	3910×2894×3809
PYZ1750		185	10-30	115-320			50.3	3910×2894×3809
PYD1750		85	5-13	75-230			50.2	3910×2894×3809
PYB2200	2200	300	30-60	59-1000	280-260	220	80	4622×3302×4470
PYZ2200		230	10-30	200-580			80	4622×3302×4470
PYD2200		100	5-15	120-340			81.4	4622×3302×4470

?

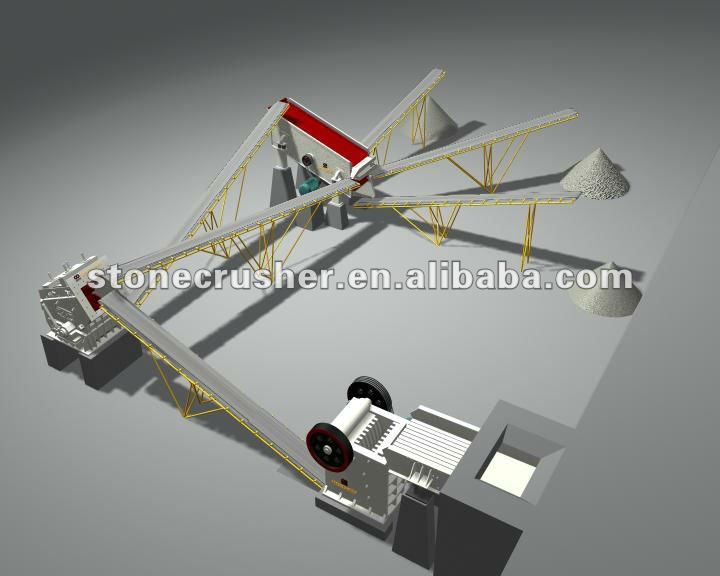

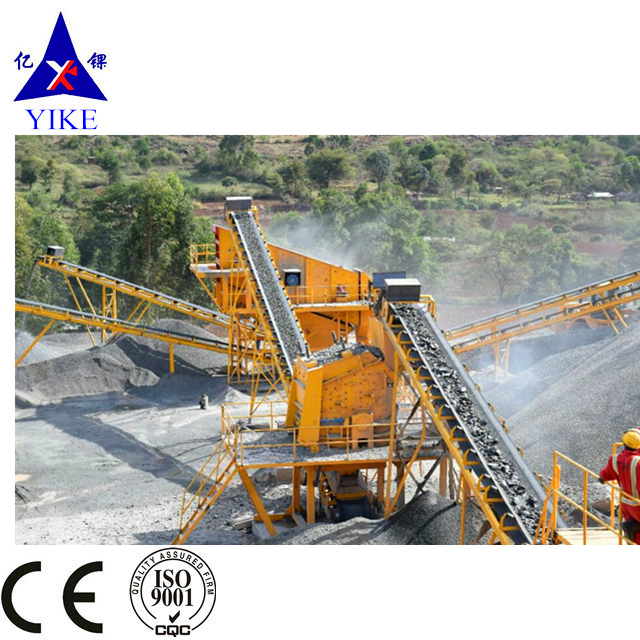

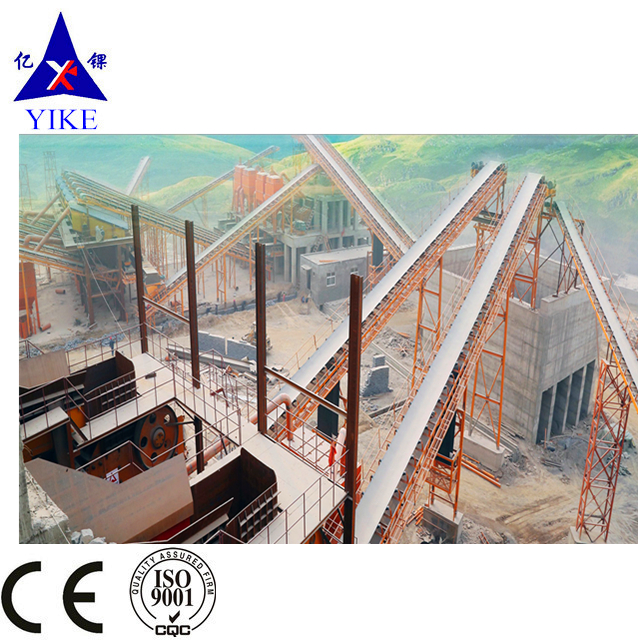

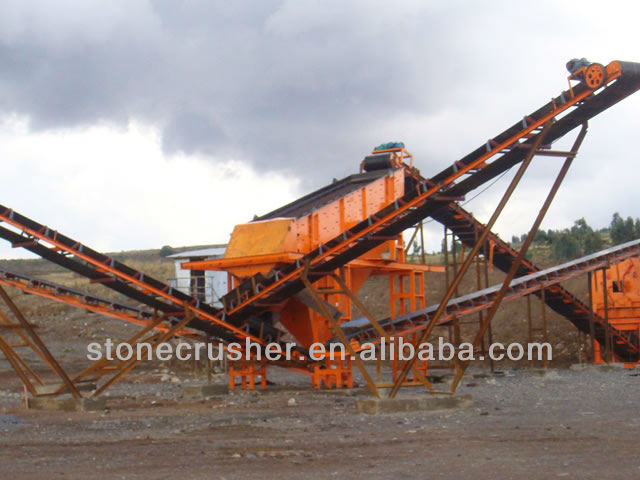

4.Stone Crushing Plant:

Stone crushing & screening plant is the most widely used crushing plant in today's mining, quarrying, construction, aggregate production and so on.The crushing & screening plant can equip with different model of jaw crusher, cone crusher, impact crusher,sand crusher?etc. to process different raw materials according to the application.

Capacity(tph)	Feeder	Primary crusher	Secondary crusher	Screen
30-50	GZD300*90	PE400*600	PF1010	3YK1237
50-80	ZSW380*96	PE500*750	PF1210	3YK1548
80-120	ZSW380*96	PE600*900	PF1214	3YK1860
120-200	ZSW490*110	PE750*1060	2*PF1214	3YK2160
200-300	ZSW590*110	PE1000*1200	2*PF1315	3YK2460
300-400	ZSW590*110	PE1000*1200	2*PF1315+2*PF1214	2*3YK2460
400-500	ZSW590*110	PE1200*1500	2*PF1315+2*PF1315	2*3YK2460

?

?Note:Above is based on the material for crush is limestone.

?

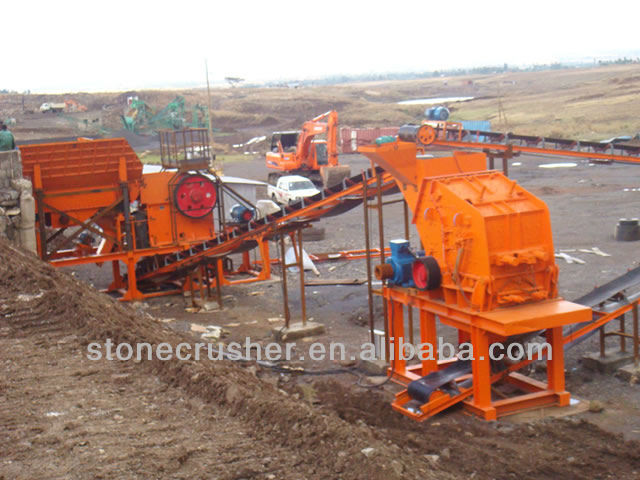

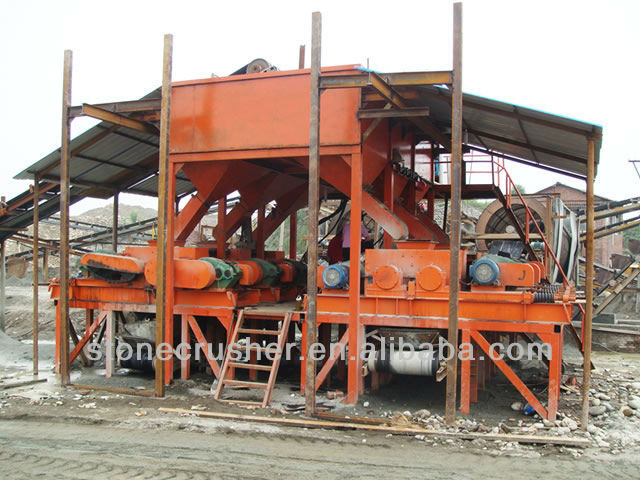

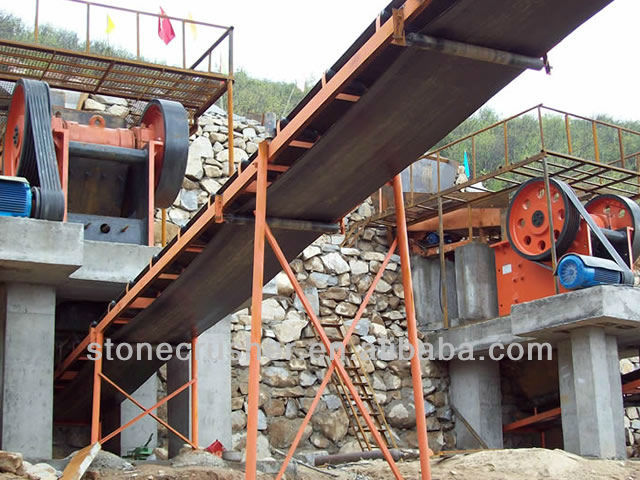

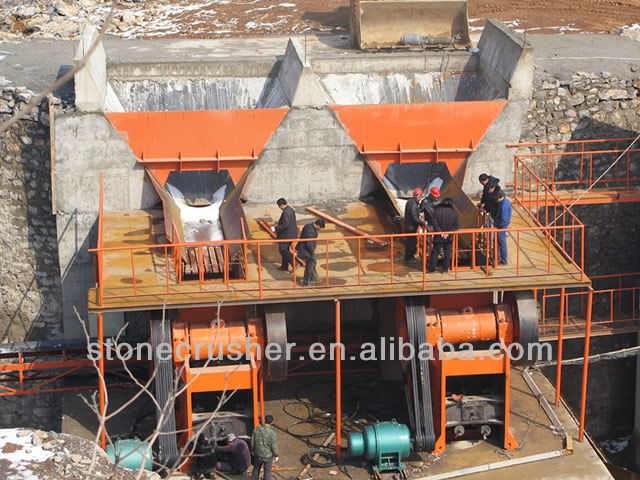

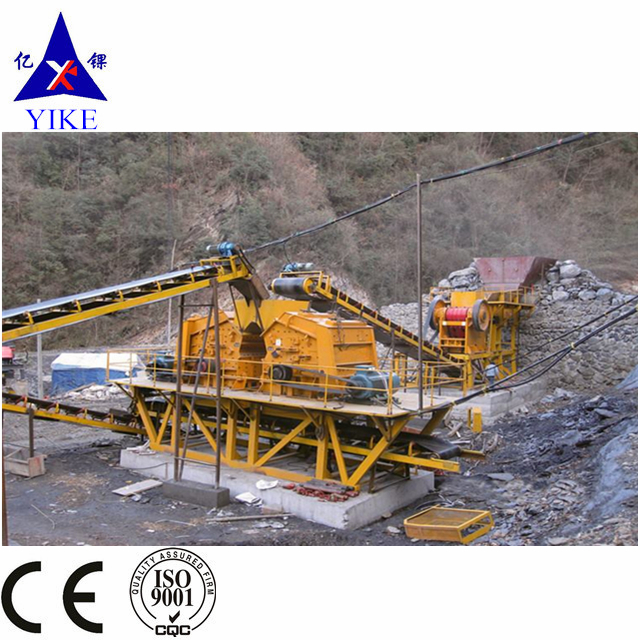

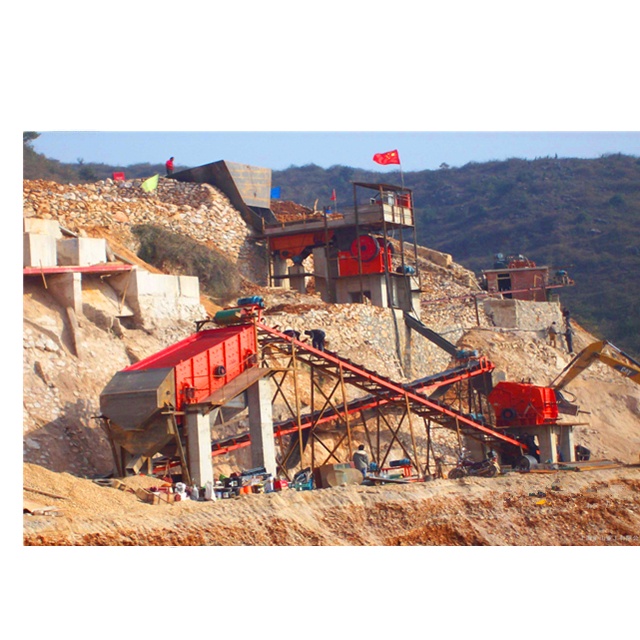

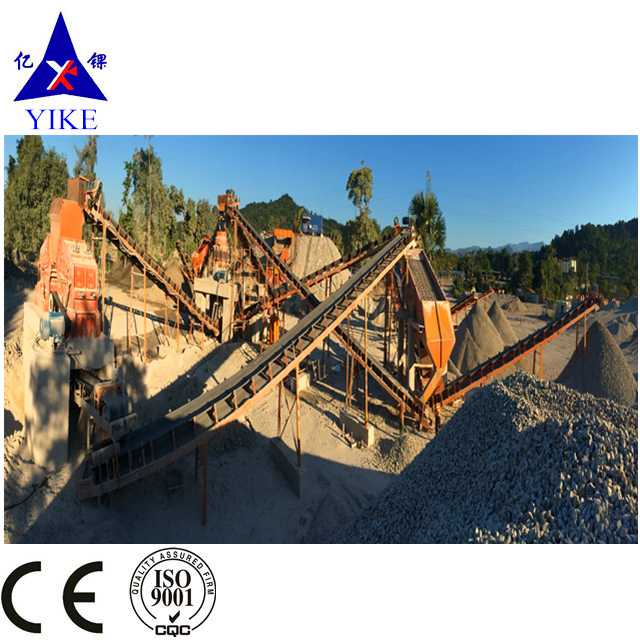

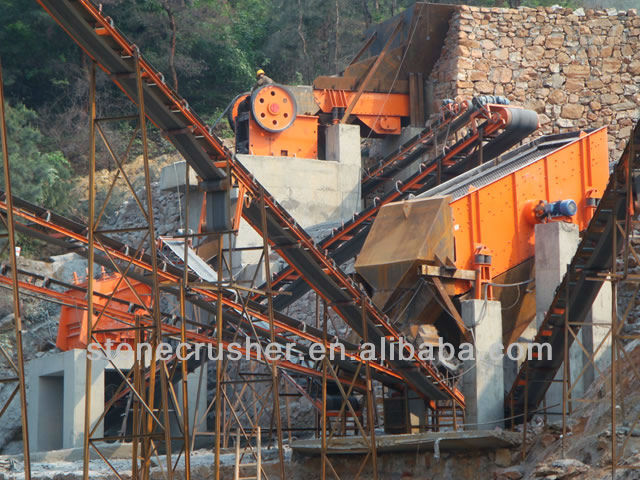

5.Stone Crushing Engineering Projects:

?

?

?

?Thanks your time! If you need price or technical help, pls contact us and have a free?online chat.
