The Model Z4018 is a high - strength industrial bench drill press, a top - notch industrial drilling machine designed to meet the rigorous demands of various drilling tasks. As a professional drilling machine, it combines precision, power, and durability, making it an essential tool for workshops, manufacturing facilities, and repair shops.

?

Drilling Capacity

?

With a maximum drilling diameter of 18mm, the Model Z4018 can handle a wide range of drilling jobs, from small - scale precision work to relatively larger holes. Whether you are working on metal, wood, or other materials, it provides consistent and accurate drilling results.

?

Spindle Performance

?

? Spindle Stroke: The 110mm spindle stroke allows for deeper drilling operations, enabling you to work on thicker workpieces without having to re - position frequently.

?

? Spindle Taper (MT2): The MT2 spindle taper ensures a secure and stable connection with drill bits and other accessories, minimizing vibrations during operation and enhancing drilling precision.

?

? Spindle Speed Range: The speed range of 335 - 3150 R.P.M offers great flexibility. You can adjust the speed according to the material being drilled. For example, lower speeds are suitable for harder materials like steel to prevent overheating, while higher speeds work well for softer materials such as wood.

?

Structural Design

?

? Span (240mm): The 240mm span provides a stable working platform, ensuring that the machine remains steady during operation, even when dealing with heavy - duty drilling tasks.

?

? Maximum Distance from Spindle End Face to Worktable Surface (400mm): This feature allows for drilling on taller or larger workpieces, increasing the machine's versatility in handling different sizes of materials.

?

Ease of Operation

?

The spindle feed positioning method using a scale rod simplifies the drilling process. It allows for precise control of the drilling depth, making it easy for both experienced operators and beginners to achieve accurate results.

?

Power and Efficiency

?

Powered by a 0.75Kw motor, the Model Z4018 delivers sufficient power to drive the spindle and drill through various materials efficiently. It can maintain consistent performance over long - term use, improving your work efficiency.

?

?

The Model Z4018 is constructed with high - quality materials to ensure its durability and reliability. The main body and structural components are made of robust metal alloys that can withstand the forces and vibrations generated during drilling. The spindle is crafted from high - strength steel, which is tempered and sharpened to maintain its precision and durability over time. The worktable surface is also made of a wear - resistant material, ensuring that it can support workpieces without getting damaged easily.

?

?

Metalworking Industry

?

In metal fabrication shops, the Model Z4018 is used for drilling holes in metal sheets, rods, and plates. It can be used for pre - drilling holes for further processing like tapping or riveting.

?

Woodworking Shops

?

For woodworkers, this bench drill press is ideal for drilling precise holes in wood for dowels, screws, or other joinery techniques. It can also be used for creating decorative holes in wooden furniture or crafts.

?

Repair and Maintenance Services

?

In auto repair shops, machine repair shops, and general maintenance services, the Model Z4018 is a go - to tool for drilling holes in various components, such as metal brackets, engine parts, and wooden or metal frames.

?

Educational Institutions

?

In technical and vocational schools, this industrial drilling machine is used to train students in basic and advanced drilling techniques, helping them develop practical skills for future careers in manufacturing and engineering.

?

?

Worktable Customization

?

We offer options to customize the worktable size and shape to fit specific workpiece dimensions. For example, if you frequently work on very large or irregularly shaped workpieces, we can modify the worktable to provide better support.

?

Speed Control Upgrades

?

For customers who require more precise speed control, we can install variable - frequency drives (VFDs) to enable stepless speed adjustment within the existing speed range, providing even more flexibility for different drilling applications.

?

Spindle Accessories

?

We can also customize spindle accessories, such as different types of chucks or adapters, to meet specific drilling tool requirements. If you need to use non - standard drill bits, we can provide the necessary adapters for a secure connection.

?

?

Increased Productivity

?

The powerful motor, flexible speed range, and precise control of the Model Z4018 enable faster and more accurate drilling operations. This reduces the time spent on each drilling task, allowing you to complete more jobs in less time and increase overall productivity.

?

Cost - Effectiveness

?

Due to its durable construction and reliable performance, the Model Z4018 has a long service life, reducing the need for frequent replacements. Additionally, its efficiency in drilling helps save on material waste and energy consumption over time, leading to cost savings for your business.

?

Improved Product Quality

?

The precision features of this bench drill press, such as the MT2 spindle taper, scale rod for feed positioning, and stable structural design, ensure that each drilled hole is accurate and consistent. This improves the quality of your end products, whether they are metal components, wooden furniture, or repaired parts.

?

Versatility and Adaptability

?

With its ability to handle different materials and workpiece sizes, the Model Z4018 can adapt to a wide range of applications. This versatility means that you can use a single machine for multiple tasks, reducing the need for investing in different specialized drilling equipment.

?

?

?

The maximum distance from the spindle end face to the worktable surface is 400mm, so in theory, you can drill through workpieces up to 400mm thick. However, you also need to consider the length of the drill bit and the clearance required for operation.

?

?

Yes, the Model Z4018 can be used for drilling stainless steel. However, you should use appropriate drill bits designed for stainless steel and adjust the spindle speed to a lower setting (within the 335 - 3150 R.P.M range) to prevent overheating and ensure clean, accurate holes.

?

?

Regular maintenance is recommended every 3 - 6 months, depending on the frequency of use. Maintenance tasks include lubricating the spindle and other moving parts, checking the motor for wear, and inspecting the worktable for any damage.

?

?

No, replacing drill bits is relatively easy. Thanks to the MT2 spindle taper, you can use a taper wrench to remove and install drill bits securely. The scale rod for spindle feed positioning does not interfere with the bit - changing process.

?

?

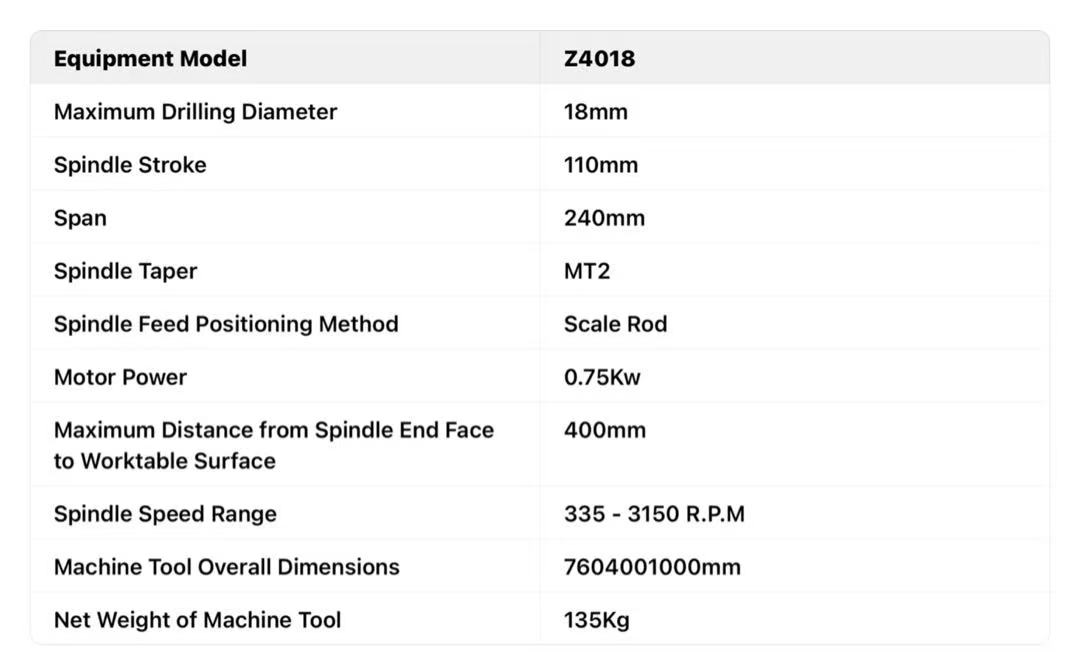

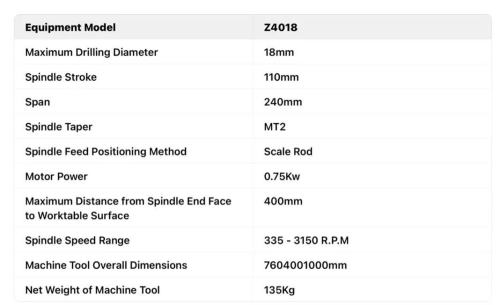

The machine tool overall dimensions are 7604001000mm, and the net weight is 135Kg. It can be accommodated in a small workshop as long as there is sufficient space for the dimensions and enough floor strength to support the weight. You can also consider customizing the worktable or other components to better fit your space if needed.

?

In conclusion, the Model Z4018 high - strength industrial bench drill press is a versatile, powerful, and precise drilling machine that offers numerous benefits to customers in various industries. Whether you are looking to improve productivity, enhance product quality, or need a reliable tool for your repair and manufacturing tasks, the Model Z4018 is an excellent choice.
