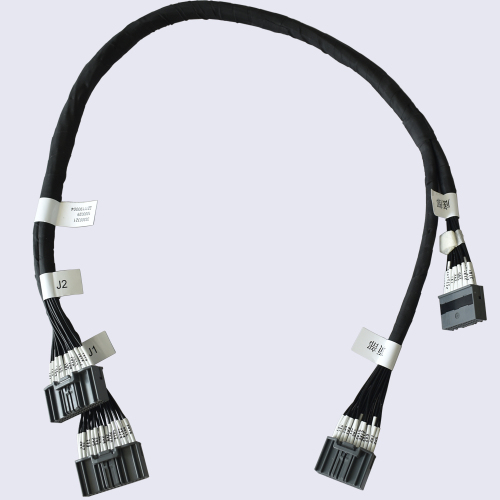

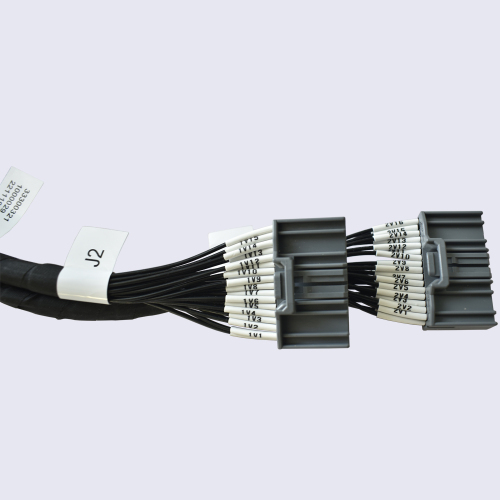

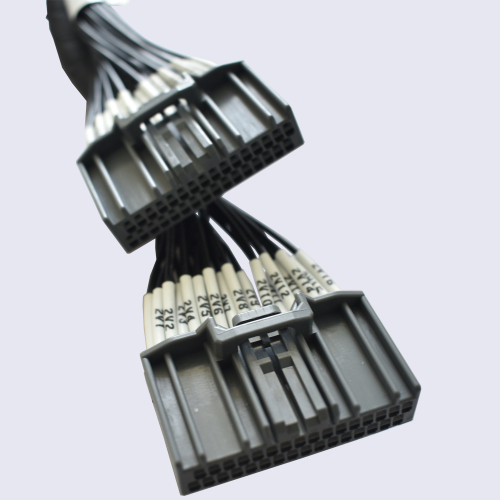

Module Sampling Wire Harness
Options:
- 100% open circuit & short circuit test
- Customization service provided
- All materials conforming to RoHS
- All materials conforming to REACH
Basic Info
| Model No. | DSC0625 |
|---|---|
| Brand Name | Kable-X |
| place of origin | China |
| Conductor material | Copper, Aluminum, Copper Clad Aluminum |
| Insulation Materials | Rubber, Pvc |
| jacket | Rubber, Pvc |
| Dielectric Strength | ≥500V |
Product description
A voltage sampling wire assembly is primarily used to monitor the voltage levels within a system. It is typically connected to a voltage sensor or a meter that can accurately read and display the voltage readings. This wiring harness is crucial in preventing overvoltage or undervoltage situations that could potentially damage the system or cause it to malfunction.
On the other hand, a temperature sampling wiring loom is used to measure the temperature within a system. It is usually connected to a temperature sensor or a thermometer that can accurately measure and display the temperature readings. This wiring assembly is essential in maintaining the correct temperature levels in a system, preventing overheating or freezing scenarios that could potentially harm the system or affect its performance.
Both voltage and temperature sampling cable harnesses are made of high-quality, durable materials to withstand the harsh conditions they are exposed to. They are designed to provide accurate and reliable readings, ensuring the smooth operation of the systems they are part of. Their role in maintaining the safety and efficiency of electronic and electrical systems cannot be overstated.
Product Name

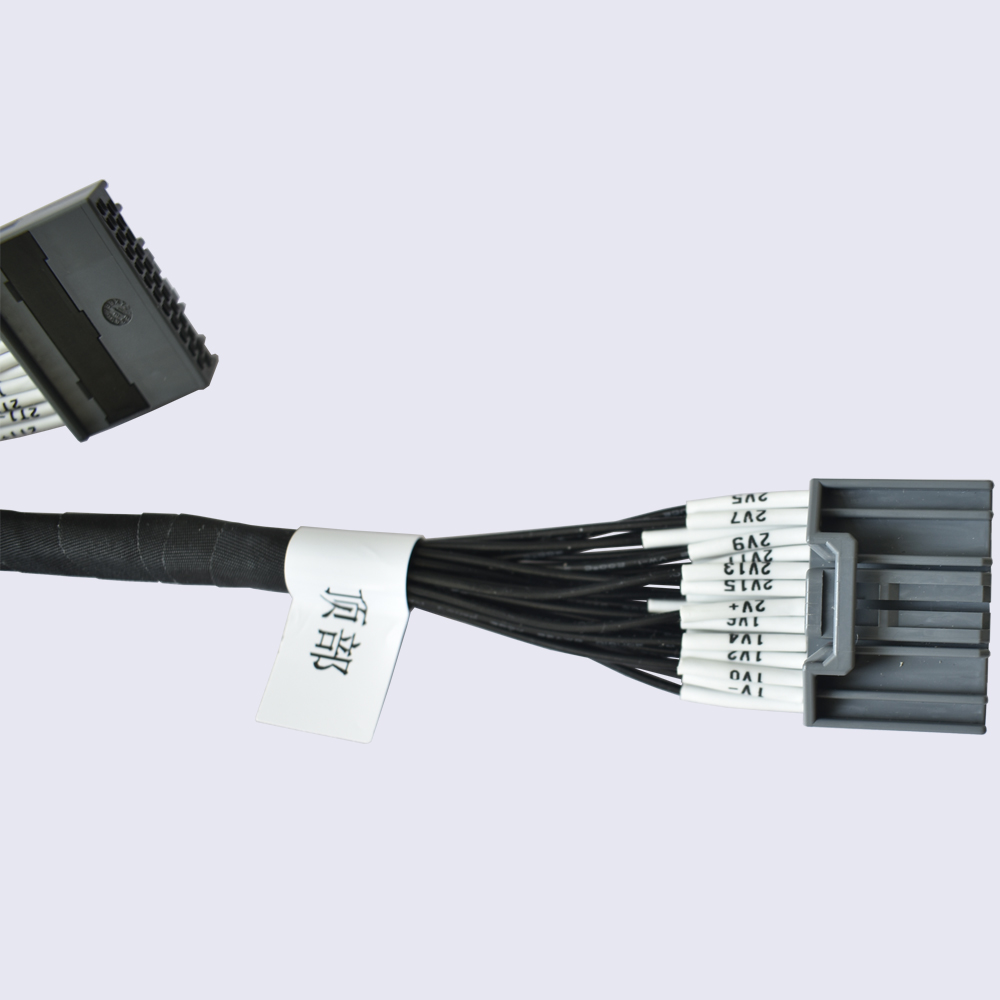

Cylindrical Module Voltage And Temperature Sampling Wire Harness
Specification
Custom Cable & Wire Harness / OEM,ODM
Dielectric Strength: ≥500V
Acetate Tape: W19xT0.18mm Black Single-Sided Adhesive
Heat-Shrinkable Tube 1: 2.0mm White Environment Friendly Withstand Voltage 600V 125℃ No Printing
Heat-Shrinkable Tube 2: 3.2mm Black Environment Friendly Withstand Voltage 600V 125℃ Adhesive on Inside Wall
Application
New Energy
Insulated Resistance
≥5 MΩ
On Resistance
≤1Ω
Salt Spray Test
≥48 h
Terminals
PH:2.2mm Tin Plated Applicable Wire Diameter 20#-24 JAE P/N:M34S75C4F1
Cable
UL1332 1Cx22# 19/0.15 -65~200℃ OD: 1.42mm Black
MOQ
Sample order/small order can be accepted
R&D
Provide complete engineering and design services
Certificates
ISO13485, ISO14001, ISO9001, IATF16949, UL, IPC620, IMDS, ROHS, REACH
QC
Passed ISO 9001:2015 quality control system. All the products are 100% test before delivery. UL factory certificate of compliance.
