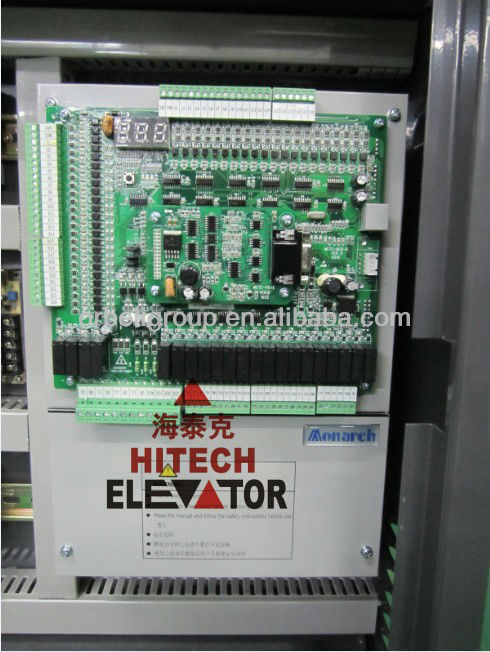

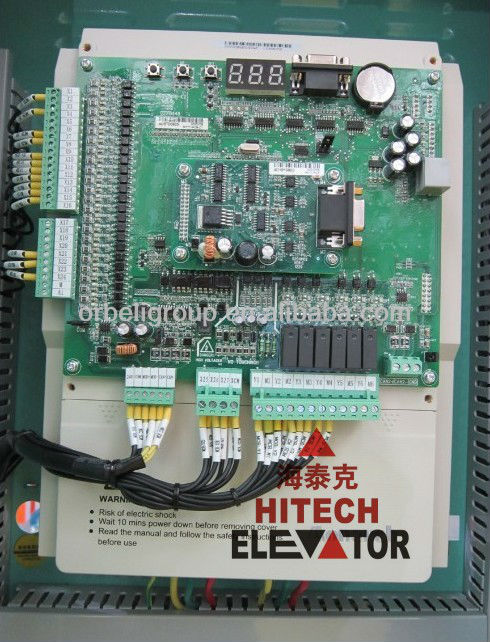

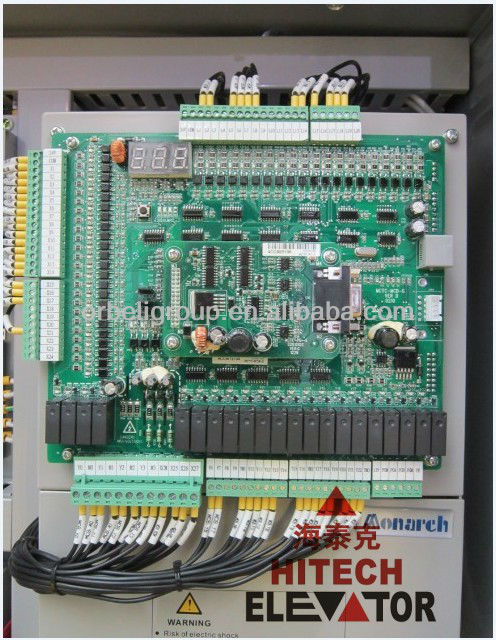

Monarch NICE 3000+ Controller - Integrated Controller with Main Board NICE-L-C-4011
Basic Info
| Warranty | 1 Year |
|---|---|
| After-sale Service | Online technical support, Other |
| Project Solution Capability | graphic design, Others |
| Application | Apartment |
| design style | Contemporary |
Product description
?Monarch Elevator integrated controller
?
NICE series is a modularized and high-powered elevator integrative controller,
which is developed independently by Suzhou Monarch control technology Co.,Ltd.
It represents the future development trend and can satisfy the variety
needs of different factories. Compared with the traditional general-type
controller, it has compact structure, more convenient installation method. What
is prior, its advanced motor control arithmetic, motor parameter auto-tuning
(static tune and complete tune), run contactor control, brake contactor control,
bypass variable frequency energy saved control, complete variable frequency
energy saved control, speed track control are incomparable. Particular
functions like run contactor contact detection, brake contactor contact
detection, touch conglutination detection, up and down light- electricity signal,
left and right armrest signal, step loss detection provide the most dependable
guarantee for the safe movement of the elevator.
Moreover , the special single-key design of NICE2000 elevator control system
makes the complicated keyboard operation much more easier; it can use the
general terminal RJ45 to connect to any position of the operation panel, that
enables the adjust of the elevator convenient and simple.
?
|
Model |
Capacity(kVA) |
Input current(A) |
Output current(A) |
Adoptable motor(kW) |
|
Single phase 220V, range-15%~20% |
||||
|
NICE-L-A/B-2002 |
2.3 |
13.2 |
5.2 |
1.1 |
|
NICE-L-A/B-2003 |
3.4 |
17 |
7.5 |
1.5 |
|
220-NICE-L-A/B-4007 |
9.8 |
29 |
10.3 |
5.5 |
|
220-NICE-L-A/B-4011 |
12.1 |
36 |
15.5 |
7.5 |
|
220-NICE-L-A/B-4015 |
13.9 |
41 |
19 |
11 |
|
220-NICE-L-A/B-4018 |
17.3 |
49.5 |
22.5 |
15 |
|
220-NICE-L-A/B-4022 |
23.1 |
62 |
27.7 |
15 |
|
220-NICE-L-A/B-4030 |
33 |
77 |
34.6 |
22 |
|
3-phase 220V,range -15%~20% |
||||
|
NICE-L-A/B-2002 |
4 |
13.2 |
9.6 |
3.7 |
|
NICE-L-A/B-2003 |
5.9 |
17 |
14 |
5.5 |
|
220-NICE-L-A/B-4007 |
17 |
29 |
18 |
11 |
|
220-NICE-L-A/B-4011 |
21 |
36 |
27 |
15 |
|
220-NICE-L-A/B-4015 |
24 |
41 |
33 |
22 |
|
220-NICE-L-A/B-4018 |
30 |
49.5 |
39 |
22 |
|
220-NICE-L-A/B-4022 |
40 |
62 |
48 |
22 |
|
220-NICE-L-A/B-4030 |
57 |
77 |
60 |
22 |
|
3-phase 380V,range -15%~20% |
||||
|
NICE-L-A/B-4002 |
4 |
6.5 |
5.1 |
2.2 |
|
NICE-L-A/B-4003 |
5.9 |
10.5 |
9 |
3.7 |
|
NICE-L-A/B-4005 |
? | ? | ? | ? |
?
Input Voltage: Single Phase 220V, Three Phase 220V, Three Phase 380V
Power Capacity (kVA):2.3~33,4~57,4~69
Input Current (A):13.2~77,13.2~77,6.5~93
Output Current (A):5.2~34.6,9.6~60,5.1~91
Appropriate Motor (kW):1.1~22,3.7~22,2.2~45
?
NICE3000 Elevator Integrated Controller
?
The NICE 3000 series of integrated controllers for elevators was independently developed and manufactured by MCTC, organically combining elevator control and motor drive to Create a new generation of intelligent, vector integrated controllers for elevators. The NICE3000 control system mainly includes a NICE3000 integrated controller for elevators, a carriage control board (MCTC-CTB-A), a display control board (MCTC-HCB-H), a carriage command board (MCTC-C).
?
?
