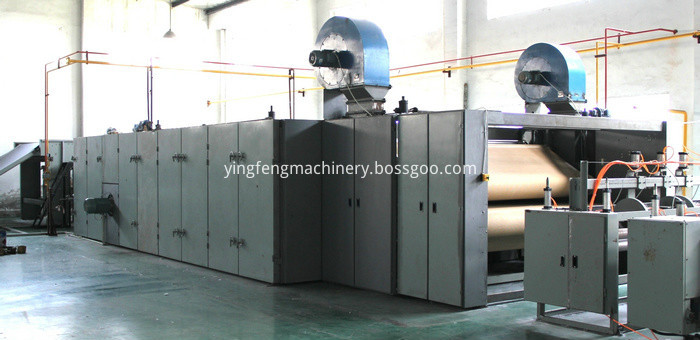

Production process: A percentage of polyester staple fiber ,hollow staple polyester( west fiber or west clother fiber) and low melting point fibers be opened and blended by opener, then carded and lapped with required thickness, and set by the process of needle , oven and setting.

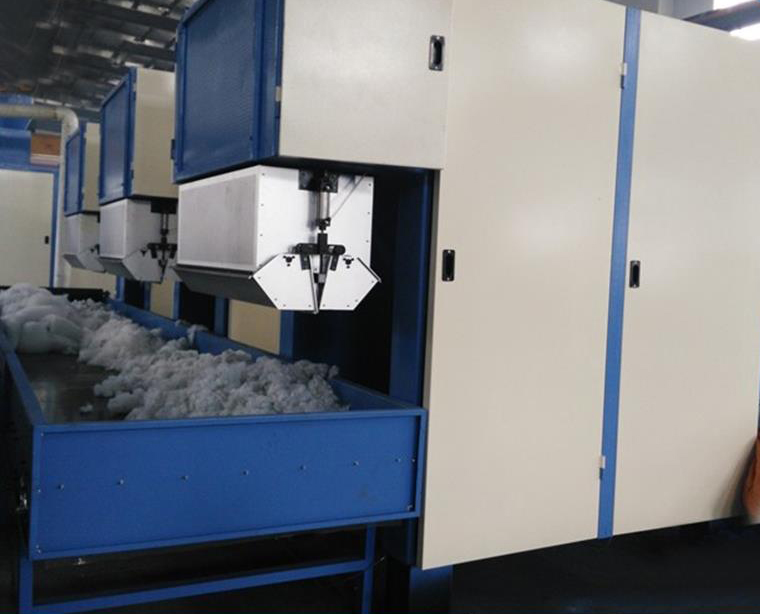

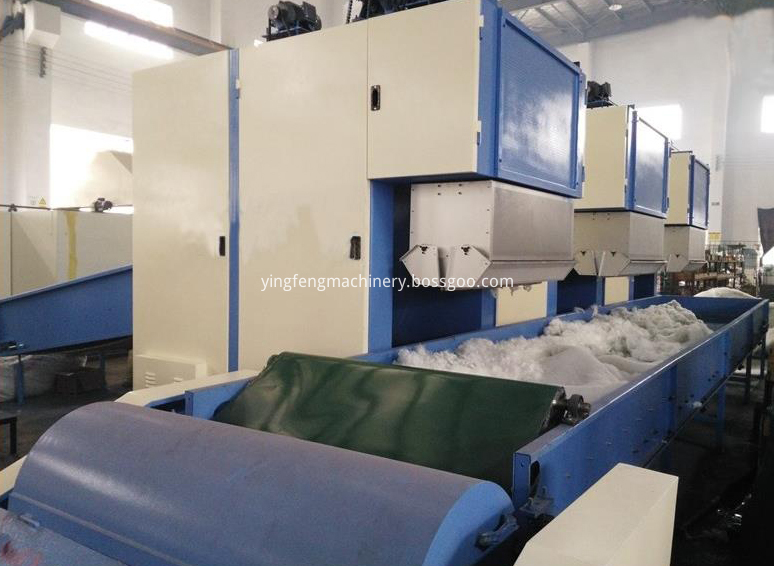

Name: Bale Opener

Width:1100mm 1200mm 1300mm 1400mm

Function: Open the fiber and weigh fiber electronically,it can be combined with sveral units together to mix different type of fibers.

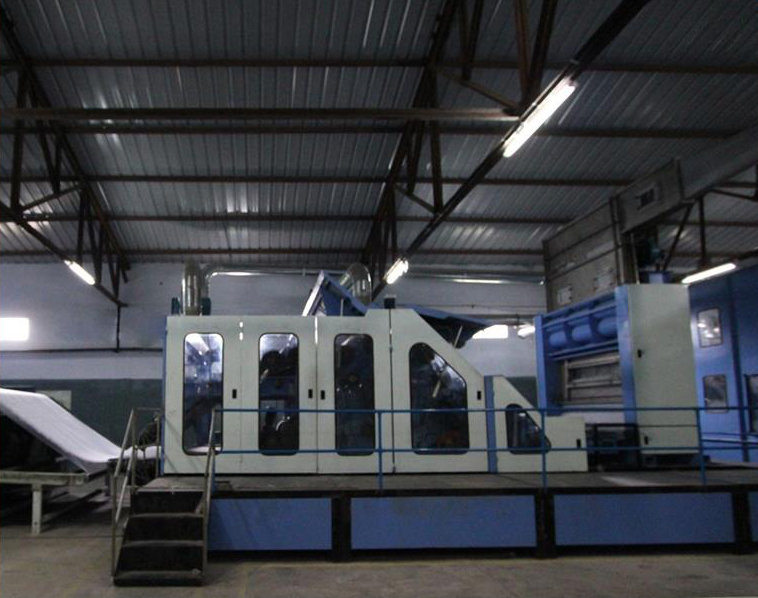

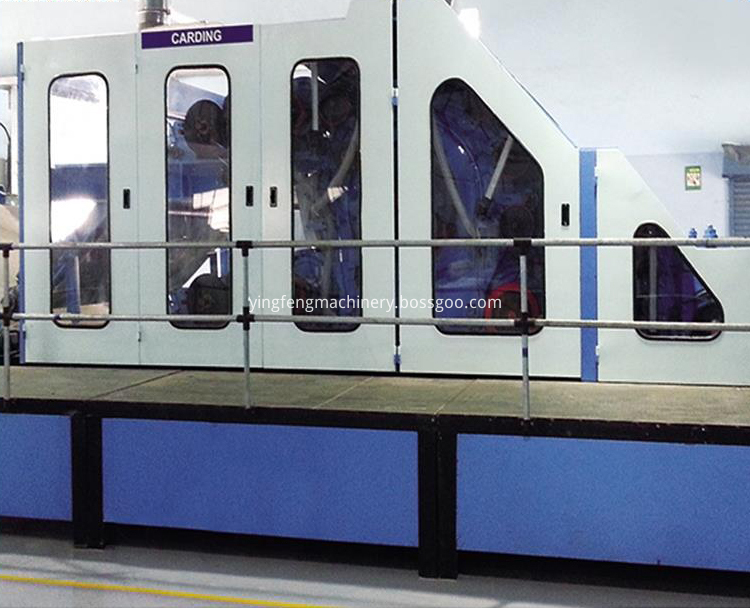

Name:single cylinder double doff carding machine.
double cylinder double doff carding machine.
Width:1850mm,2000mm,2200mm,2500mm
Capacity:200kg/h,250kg/h,300kg/h,350kg/h
Function:It is disigned with single cylinder or double cylinder and double doff,fiber is sent from front cylinder to middle doff and main cylinder through rollers,each cylinder have 4-5 sets of carding rollers,after many times of carding than feed to the curtain on the cross lapper.

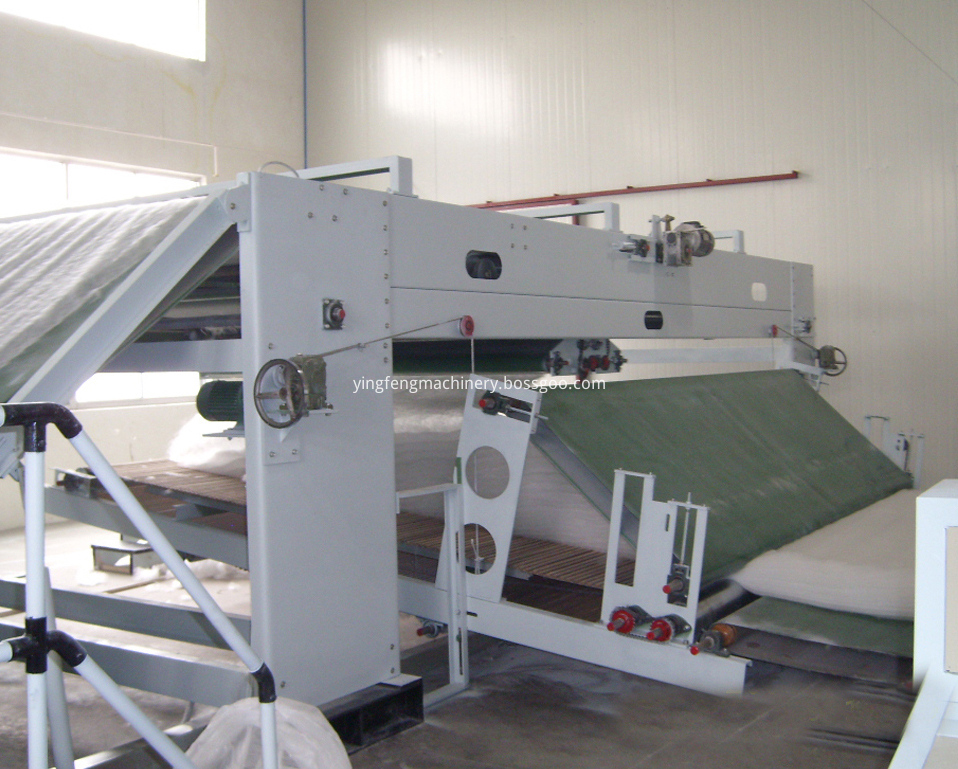

Name: Cross lapper machine
Feeding width: 1700mm-2700mm

Output width:1900mm-9000mm
Feeding speed:10m/min-50m/min

Output speed:1m/min-10m/min
Function:After carding,fiber net is sent to double-belts cross lapper through the non-skid curtain,it will be layered on the down-side curtain,than send to next equipment by adjustable moving curtain.

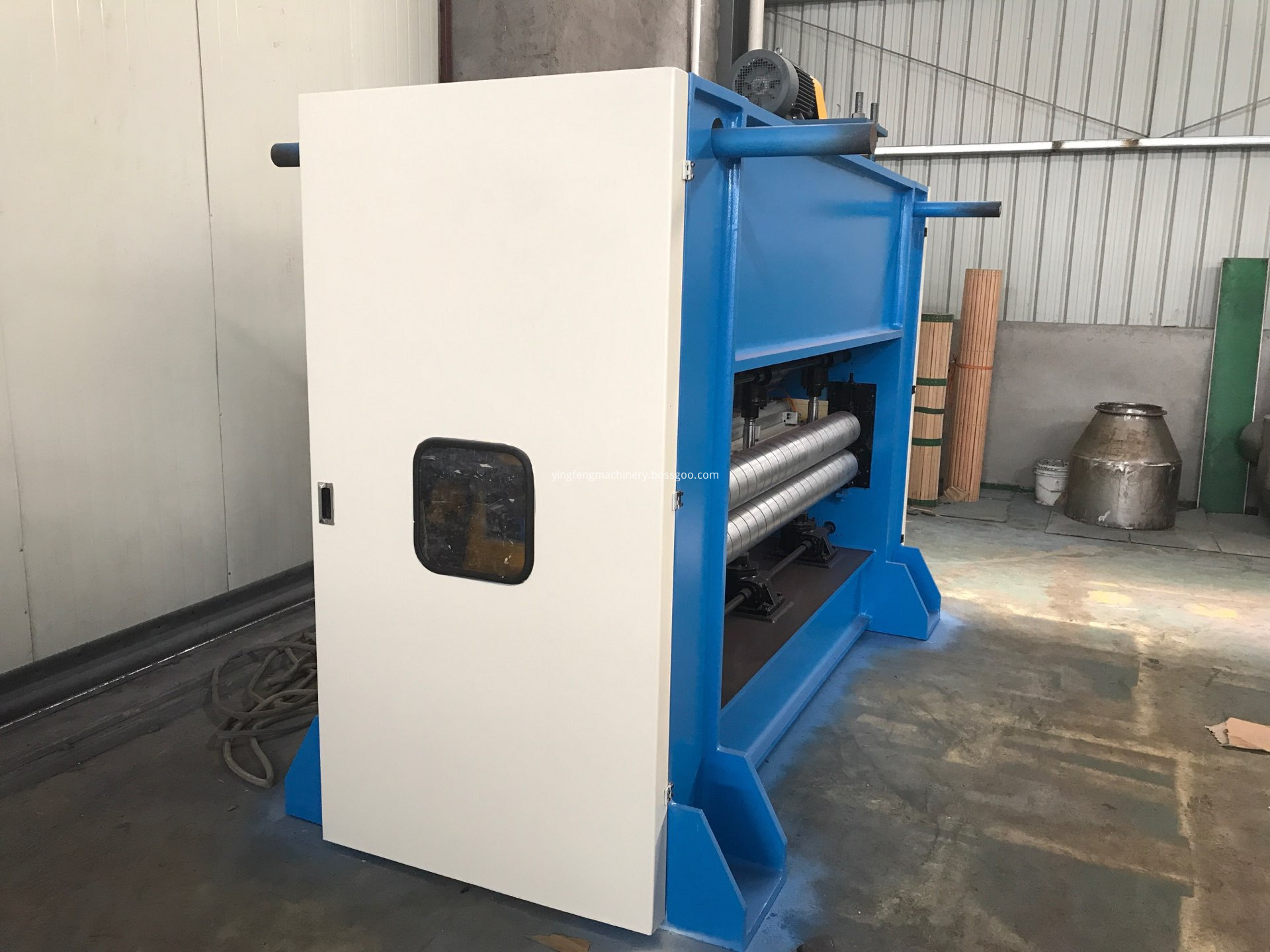

Name:Needle puching  machine
Working width:2200mm-8800mm

Punching frequency:100-720/min

Needle density:3500-4500n/m

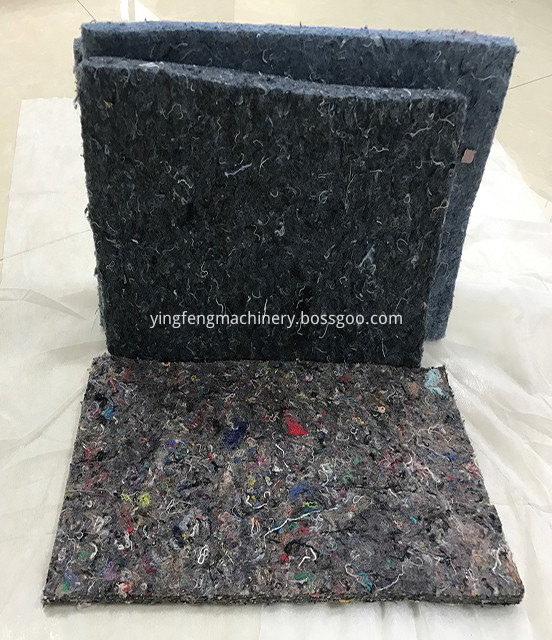

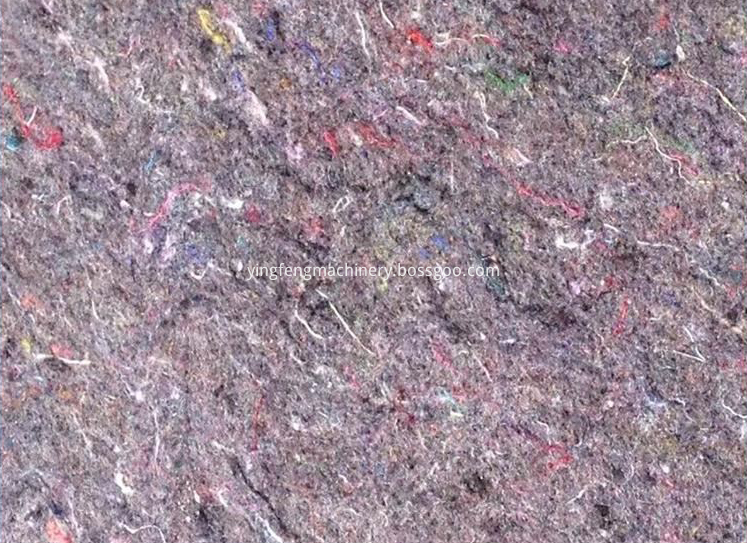

Function:It is used production of needle punching nonwoven fabrics like garments interlining,felts,carpet,geotextile etc,there are pre-needle punching,up needle punching and down needle punching.
