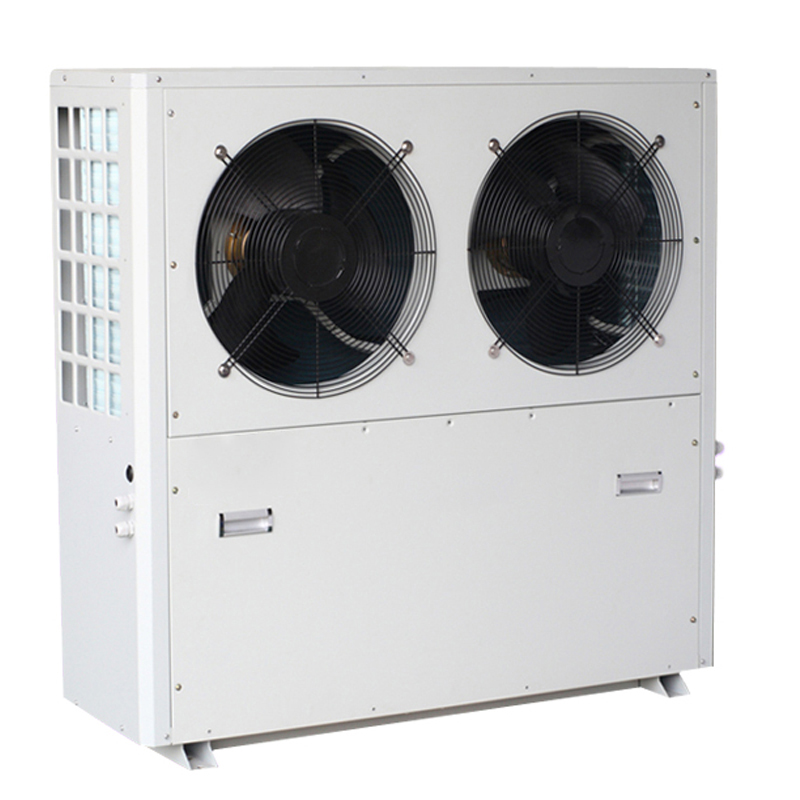

Product description:

1. It can be used in combination with the fan coil for heating the floor, cooling and heating for your house.

2. Air water heat pump water heater, max hot water up to 55℃.

3. Energy saving heat pump, offer 5 working modes like Heating,Cooling, DHW

    (domestic hot water), Heating+DHW, Cooling+DHW.

4. Multi function heat pump uses Environment-friendly refrigerant R410A.

5. Floor heat pump uses bigger tube-in-shell heat exchanger, with higher efficiency.

6. Air source heat pump uses world-known brand components, like Japanese famous

   brand compressor,  Wilo pump,high quality and reliability.

7. Perfect protection design such as anti-frost protection, high/ low pressure protection,

    water flow protection, high-temp protection, etc., and automatic defrost function, assuring

    the system to run safely and efficiently even in low temperature environment.

8. Blue Aluminum fins+copper tubes as condenser, double L shape, more bigger and efficiency.

Product details:

	Model		BY35-108S/P	Measuring conditions
	Power supply	V/Ph/Hz	380/3/50
Domestic hot water	DHW heating capacity	kw	17.5	Dry bulb:20℃ Wet bulb:15℃ Water inlet:40℃ Water outlet:45℃
		Btu	59700
	Input power	kw	4.4
	Running current	A	6.1*3
	COP	w/w	4
	Max outlet water temp	℃	60
Air heating	Rated heating capacity	kw	13	Dry bulb:7℃ Wet bulb:6℃ Water inlet:40℃ Water outlet:45℃
		Btu	44500
	Input power	kw	4
	Running current	A	6.1*3
	COP	w/w	3.2
	Max outlet water temp	℃	55
Air cooling	Rated cooling capacity	kw	12.6	Dry bulb:35℃ Wet bulb:24℃ Water inlet:12℃ Water outlet:7℃
		Btu	43000
	Input power	kw	4.3
	Running current	A	6.5*3
	EER	w/w	2.9
Domestic hot water  & Air cooling	DHW heating capacity	kw	17.9	Dry bulb:35℃ Wet bulb:24℃ Cooling: Water inlet:12℃ Water outlet:7℃ Hot water: Water inlet:40℃ Water outlet:45℃
		Btu	61000
	Rated cooling capacity	kw	12.6
		Btu	43000
	Running current	A	6.2*3
	Input power	kw	4.2
	COP+EER		7.2
Domestic hot water & Air heating	DHW heating capacity	kw	5.6	Dry bulb:7℃ Wet bulb:6℃ Water inlet:40℃ Water outlet:45℃
		Btu	19100
	Rated heating capacity	kw	8.7
		Btu	29700
	Running current	A	6.2*3
	Input power	kw	4.1
	COP		3.5

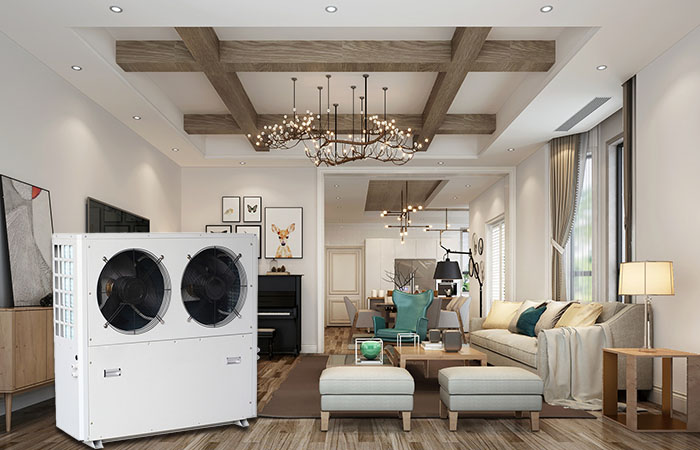

Product application:
