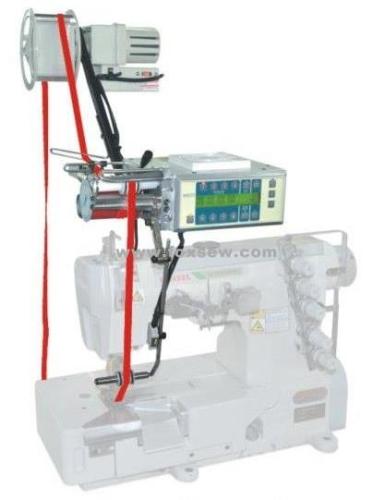

Computerized Metering Device, The main unit, control box and panel are all together as one.

Industrial CPU chipset and all new operating system make metering device work more stably and precisely.

Smart touch panel displays sensitivity according to changing tension.

It can feed eight different sensitivities and adjust elastic automatically by setting tension and stitch. With compact figuration, fashion appearance and easy-operation, it`s the best sewing supplement for underwear manufacturer.

Parts description

Free tape switch

This switch prevents elastic tape pulled backwards when the operation stops.

LED section display

It indicates the current section by LED display

LED display and manual section changing controller

This tiny display shows the current section and manual section changing controller allows operator change different section by finger.

Synchronizer

The part is fixed in the belt pulley. It`s used for stitch counting and section changing.

Suspended switch for free tape function

Specification:
