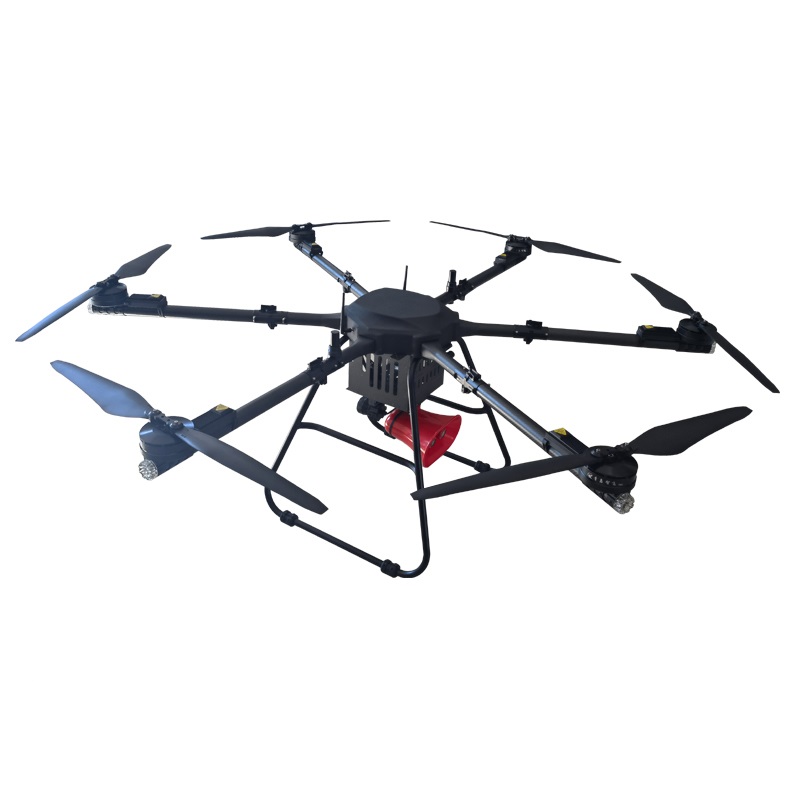

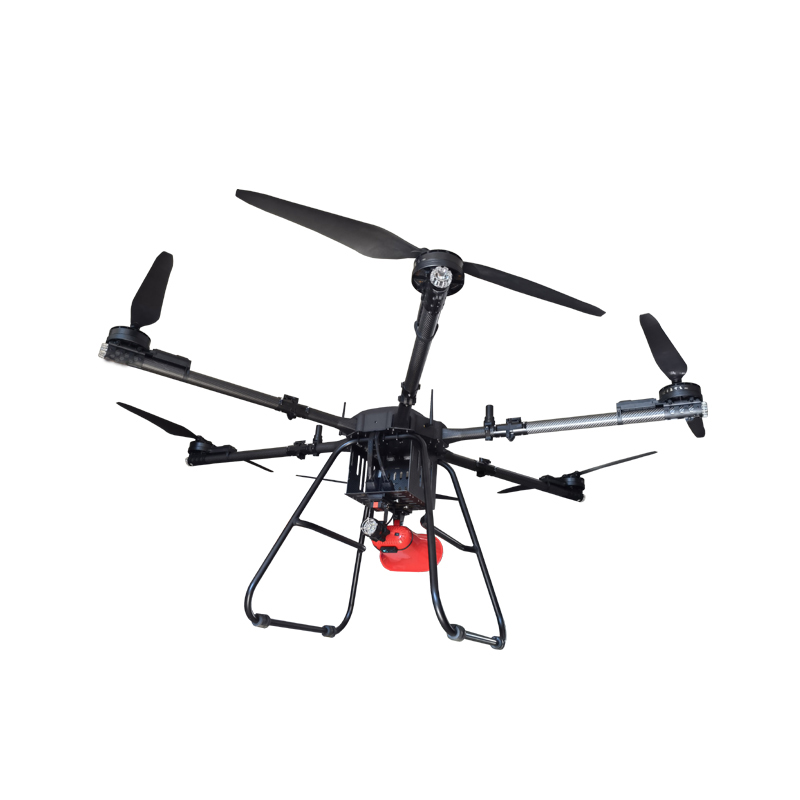

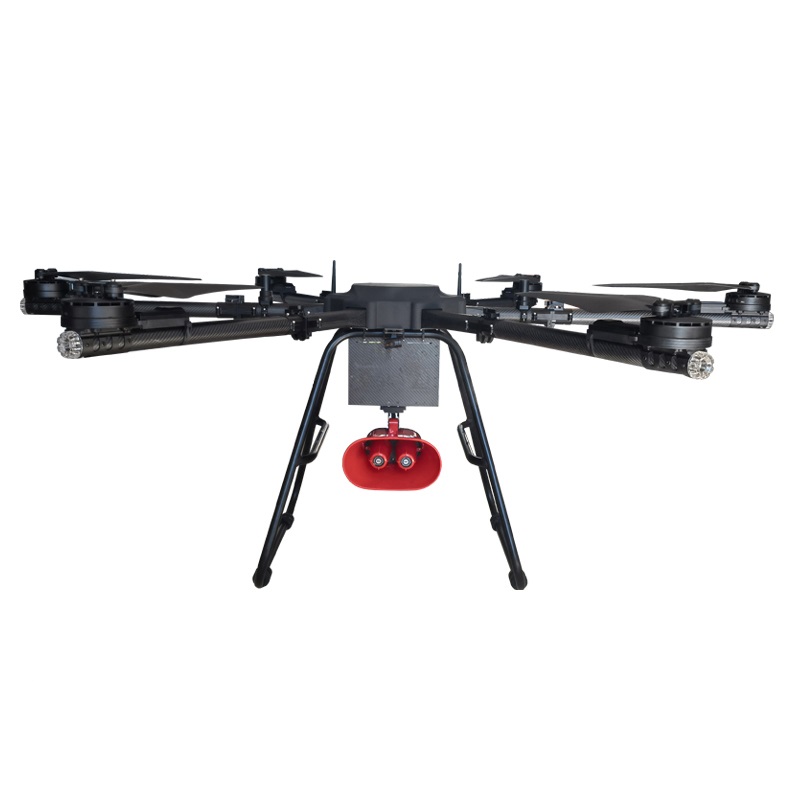

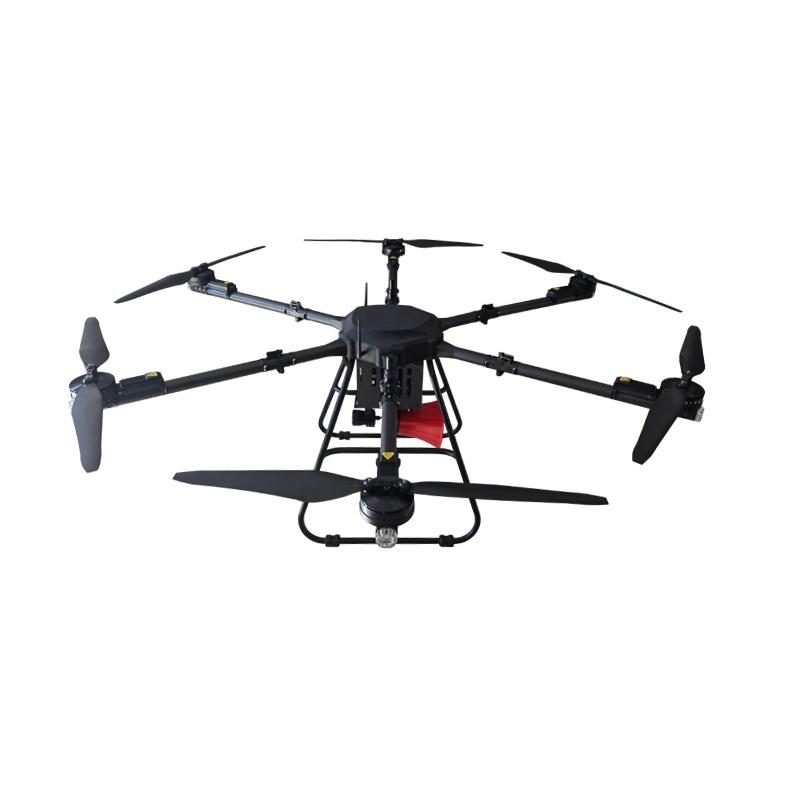

Multi-Function Customized Six-Rotor Firefighting UAV
Get Latest Price
You might also like
Basic Info
| Model No. | YNXC2323D |
|---|
Product description
Material and structure: Lange UAV Drone carbon fiber+aluminum alloy+engineering plastic composite material is adopted, and the six-rotor layout makes the flight stability full, which can resist strong winds of ≥8, and IP56 protection level can easily cope with complex environments such as rain, fog and dust.
?

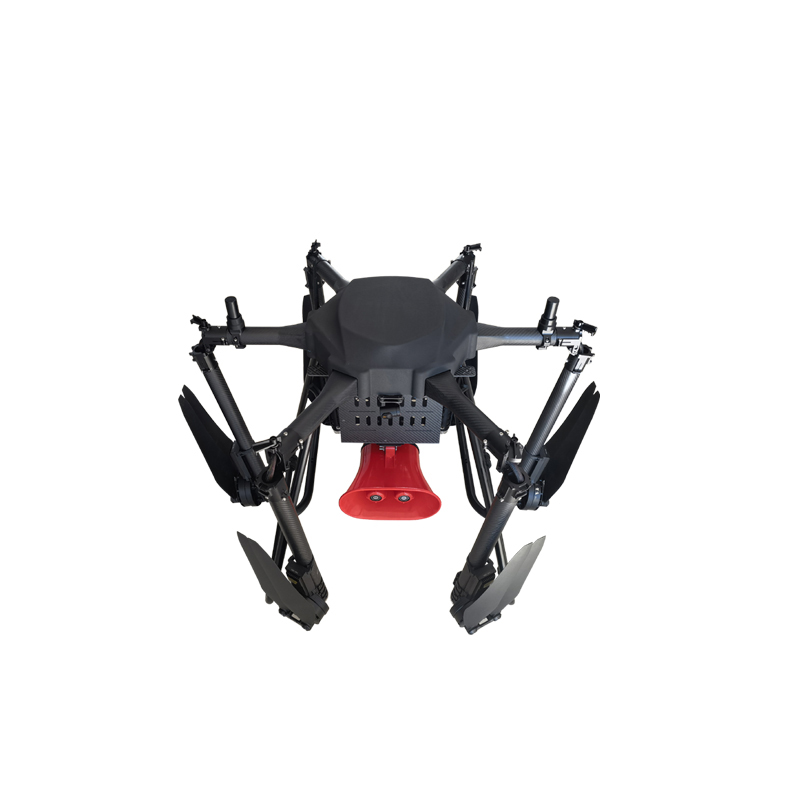

The unfolded size is 1950-950-720mm, and it is only 620-580-720mm after folding. The single-soldier backpack/pull-rod design realizes "both portability and performance"; The self-weight is 18.2KG, but it can achieve the maximum load of 30KG and the maximum take-off weight of 65KG, and the heavy load capacity is the best in the same level of products.
?
Positioning and endurance: differential positioning system can achieve 5 cm-level positioning accuracy, flight radius ≥10KM, maximum ceiling of 6,000 m, and flight speed of 0-20m/s can adapt to different operation rhythms; It can fly continuously for 60min at full charge, and the long-endurance guarantee task can be completed efficiently.
?
We provide one-to-one customized services: from model structure, task load (such as 120+ loads of fire-fighting bomb launchers, AI smart pods, material throwing boxes, etc.) to painting design, all-round adaptation to the individual needs of different countries and industries around the world. Independent research and development of more than 40 unmanned aerial vehicles, with a load of 5-200KG, can provide a "tailor-made" solution, whether it is high-altitude fire fighting in Europe and the United States or remote detection of security in the Middle East.
?
Fire rescue: equipped with forest fire prevention system and fire hose spraying device, Heavy Lift Drone can realize high-altitude fire fighting and material delivery; The broken window fire extinguisher launcher can quickly break through the fire obstacle.
?
AI intelligent identification and tracking pod (three-light/infrared/40x zoom optional) realizes all-weather accurate detection, and intelligent calling system+searchlight makes emergency command more efficient.
?
Logistics and transportation: the heavy-duty thrower and the material thrower box support the air delivery of emergency materials, and the robot arm can grab the articles in special scenes.
?
Special operations: loads such as flame spraying device, cable dropping device, and 24-hour mooring ground station, etc., to meet the minority but critical needs of industrial inspection and aerial work.
?
Flight intelligence: support autonomous flight, automatic take-off and landing, out of control/low-power return, with 5G interconnection, differential positioning and electronic fence technology, even in complex terrain, it can be "as stable as Mount Tai"; Omni-directional obstacle avoidance system (millimeter wave radar identifies obstacles ≥2.5cm) ensures the safe flight of urban environment.
?
50 km image transmission and remote control, the ground station can synchronize data to the command center in real time, realizing "global operation, one-click control";
?
?
What customized services are supported?
?
Provide one-to-one exclusive customization services, covering machine structure, task load (such as fire extinguisher launcher, AI smart pod and other 120+loads), painting design, etc., and fully adapt to the individual needs of different countries and industries around the world.
?
?
What are the applications in the field of fire rescue?
?
It can be equipped with forest fire prevention system and fire hose spraying device to realize high-altitude fire fighting and material delivery; The broken window fire-fighting bomb launcher can quickly break through the fire obstacles and help fire rescue.
?
What is the ability of security investigation?
?
Equipped with AI intelligent identification and tracking pod (three-light/infrared/40x zoom optional) to realize all-weather accurate detection; Intelligent call system+searchlight makes emergency command more efficient.
?
How to apply logistics and transportation scenarios?
?
Through the heavy-duty thrower and the material thrower box to support the air delivery of emergency materials, the mechanical arm can grasp the items in special scenes and improve the flexibility of logistics and transportation.
?
What are the solutions for special operation scenarios?
?
It can be equipped with loads such as flame spraying device, cable drop device and 24-hour mooring ground station to meet the key needs of small people such as industrial inspection and aerial work.
