Multi-Function Servo Tester: Comprehensive Tool for RC Drones, Helicopters, and Hobby Parts
$0.81
≥2 piece
$0.78
≥20 piece
$0.60
≥9999 piece
Options:
Basic Info
| Type | tester |
|---|---|
| Gender | Unisex |
| Age Range | 14 Years & up |
| Use | Vehicles & Remote Control Toys, Vehicles & Remote Control Toys |
| Place Of Origin | Hubei, China |
Product description

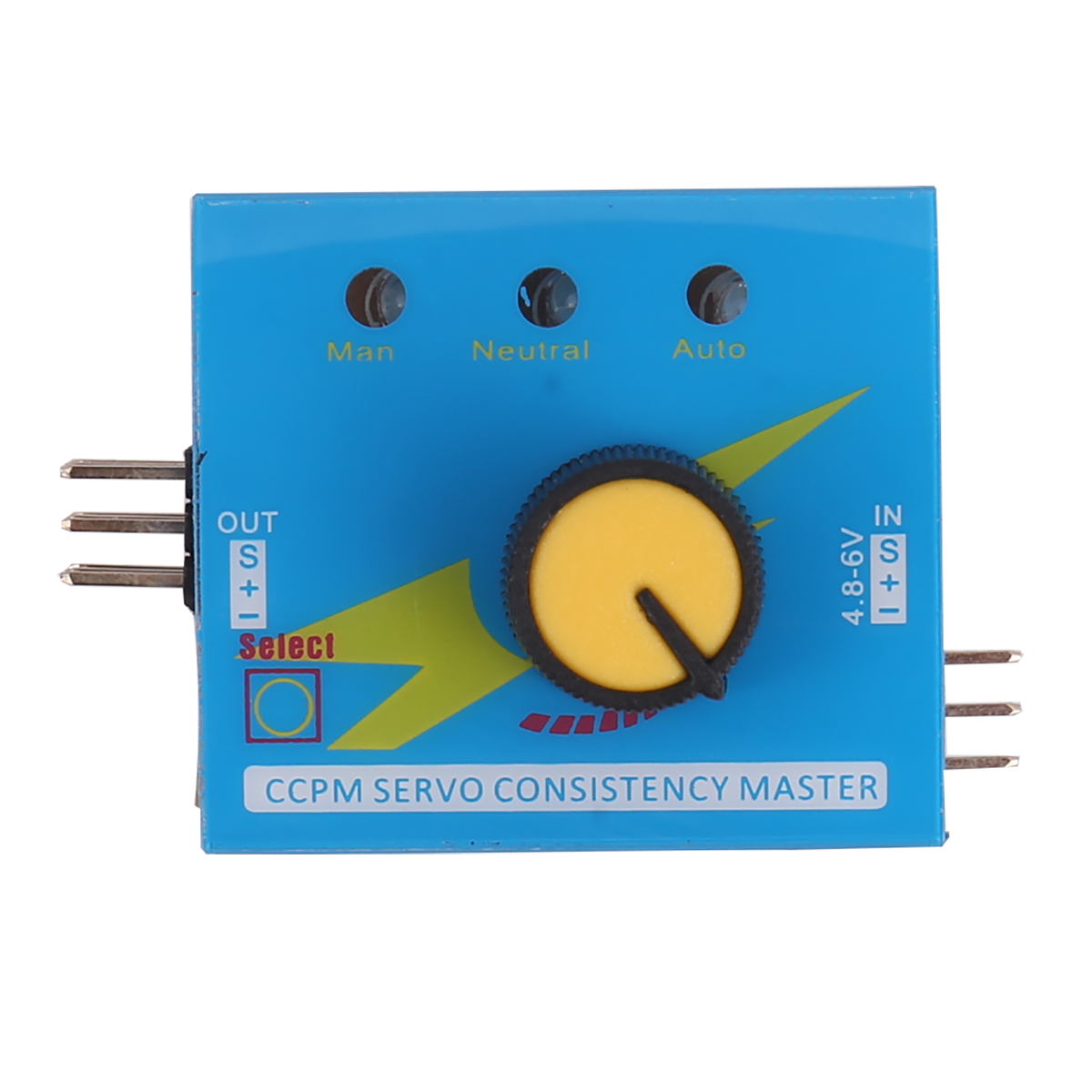

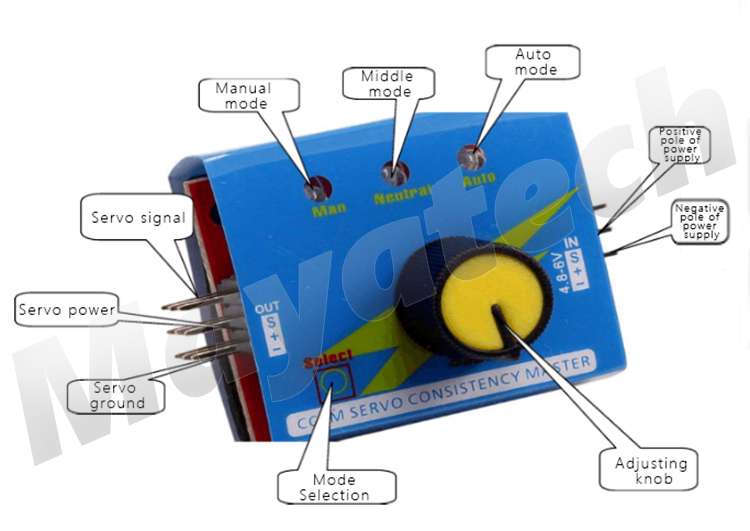

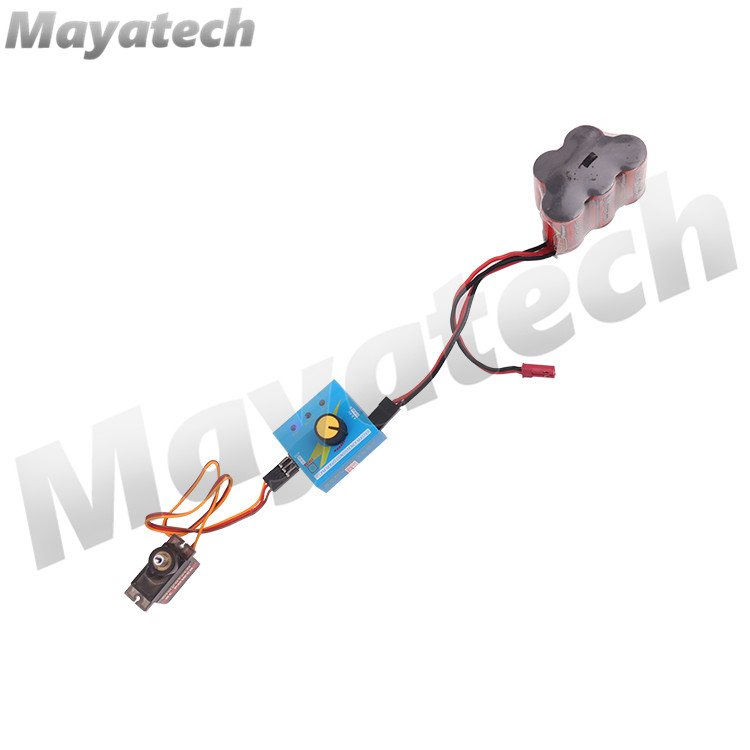

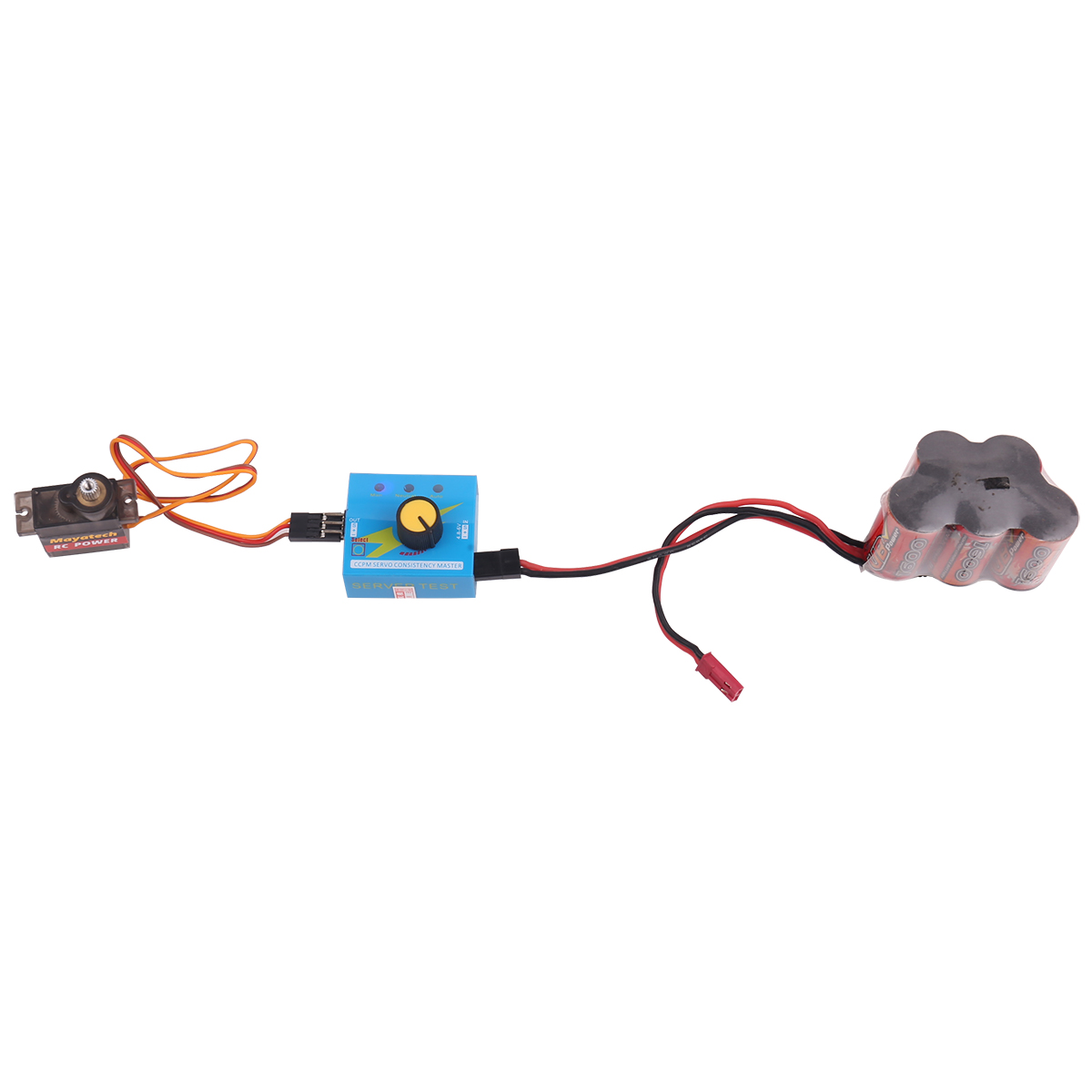

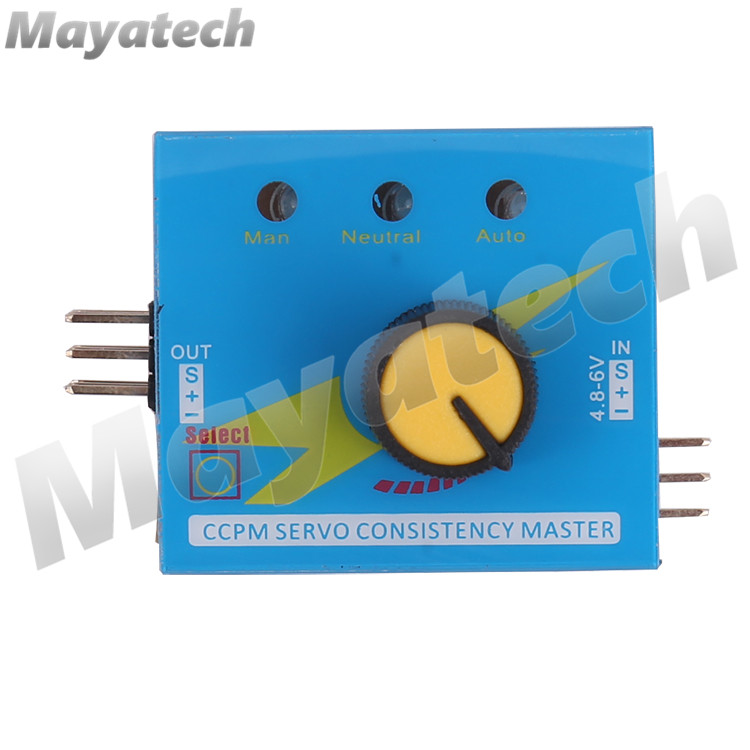

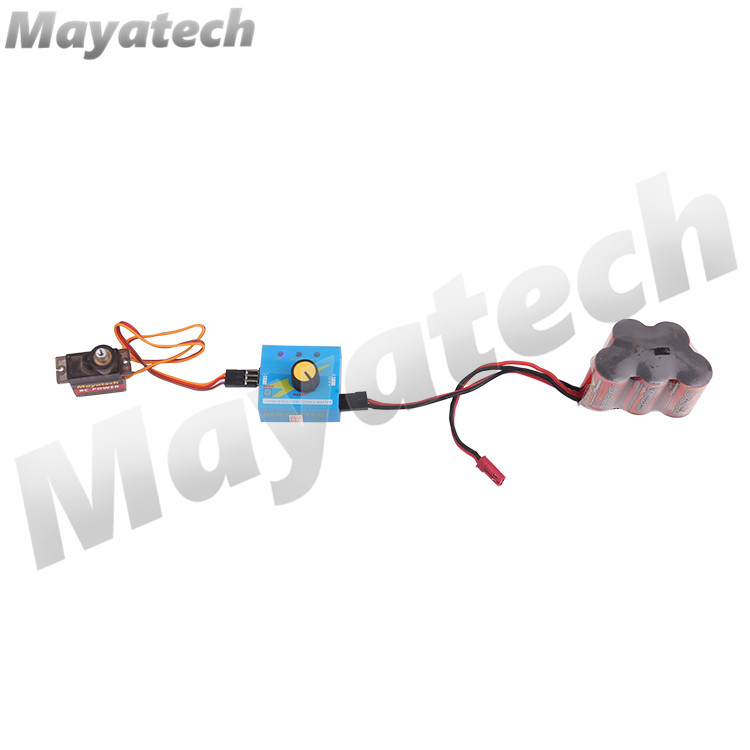

Refer to the following pictures: the left side is connected to the servo, divided into three groups of upper, middle and lower,

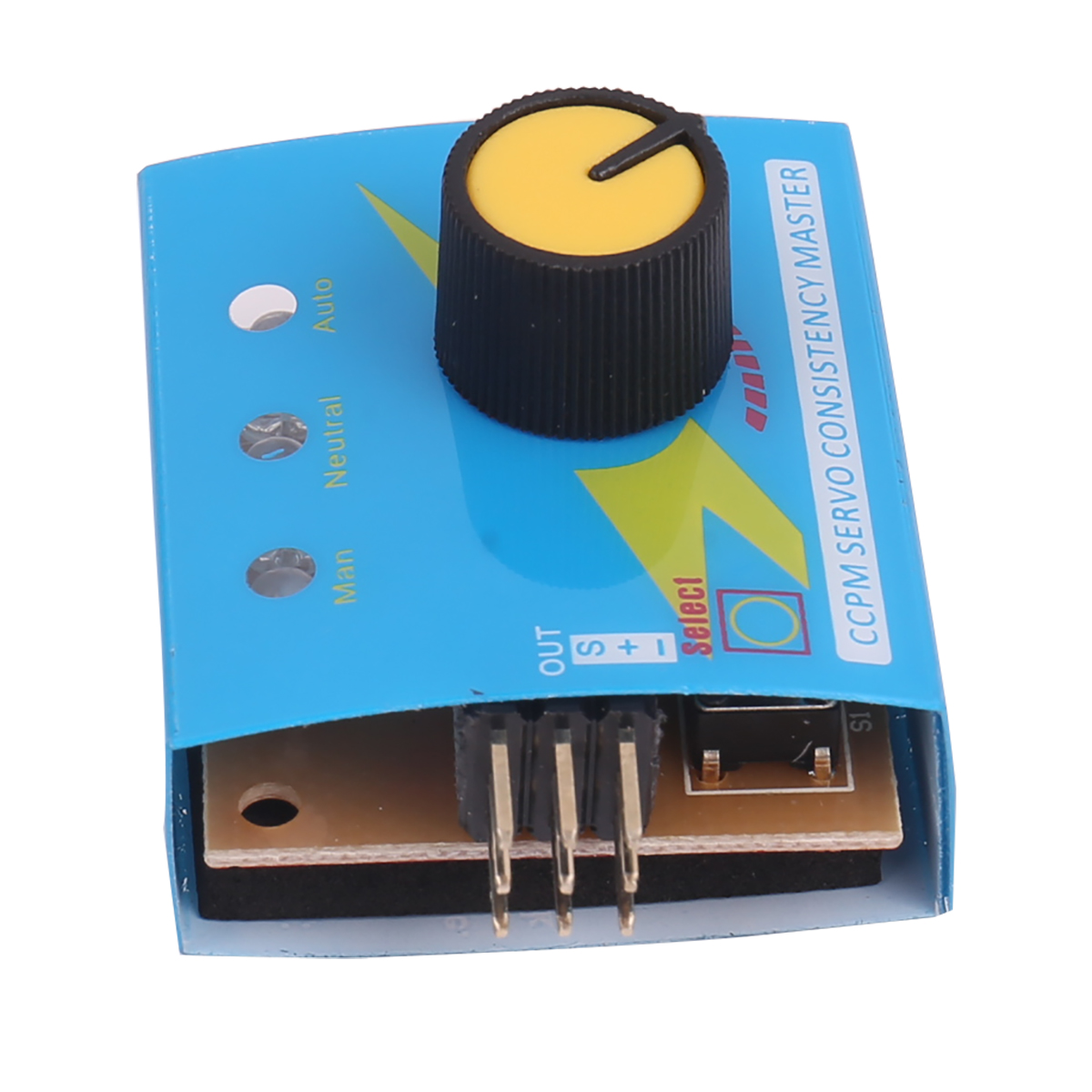

which can be connected to three servo; the right side is connected by a single pin, near the side is negative pole (see identifier number), connected to the battery negative pole, pay attention not to be reversed, if the power supply connection is reversed, the IC will be burned; neglect the pins corresponding to S identifier. Turn on the power supply, the blue light will be on at the same time, and then only the first on the left is on, it is the manual potentiometer test, press the button, the middle light is on, it is returning to the middle test; the third light is on, automatic test. The connection method of testing ESC is the same as that of the servo, but the input end should not be connected to the power supply. The test motor should be connected to the ESC first when testing motor, then it is just like testing ESC.
By turning the knob, you can test the servo, no need for remote controller and receiver anymore.

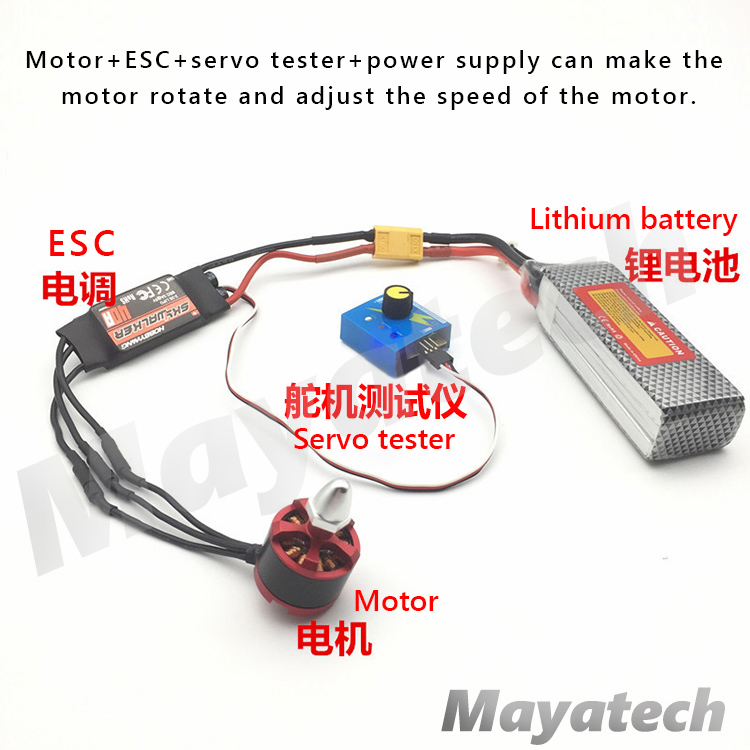

If connected to ESC (brush motor or brushless), it can get rid of the remote control equipment and adjust the speed manually. It can be used to test the ESC or motor performance.
It is just what you need, cheap and practical little thing.
No more tedious connections to remote controllers and receivers
It is equivalent to the function of a "manual receiver"
Simulate remote control output by manual knob

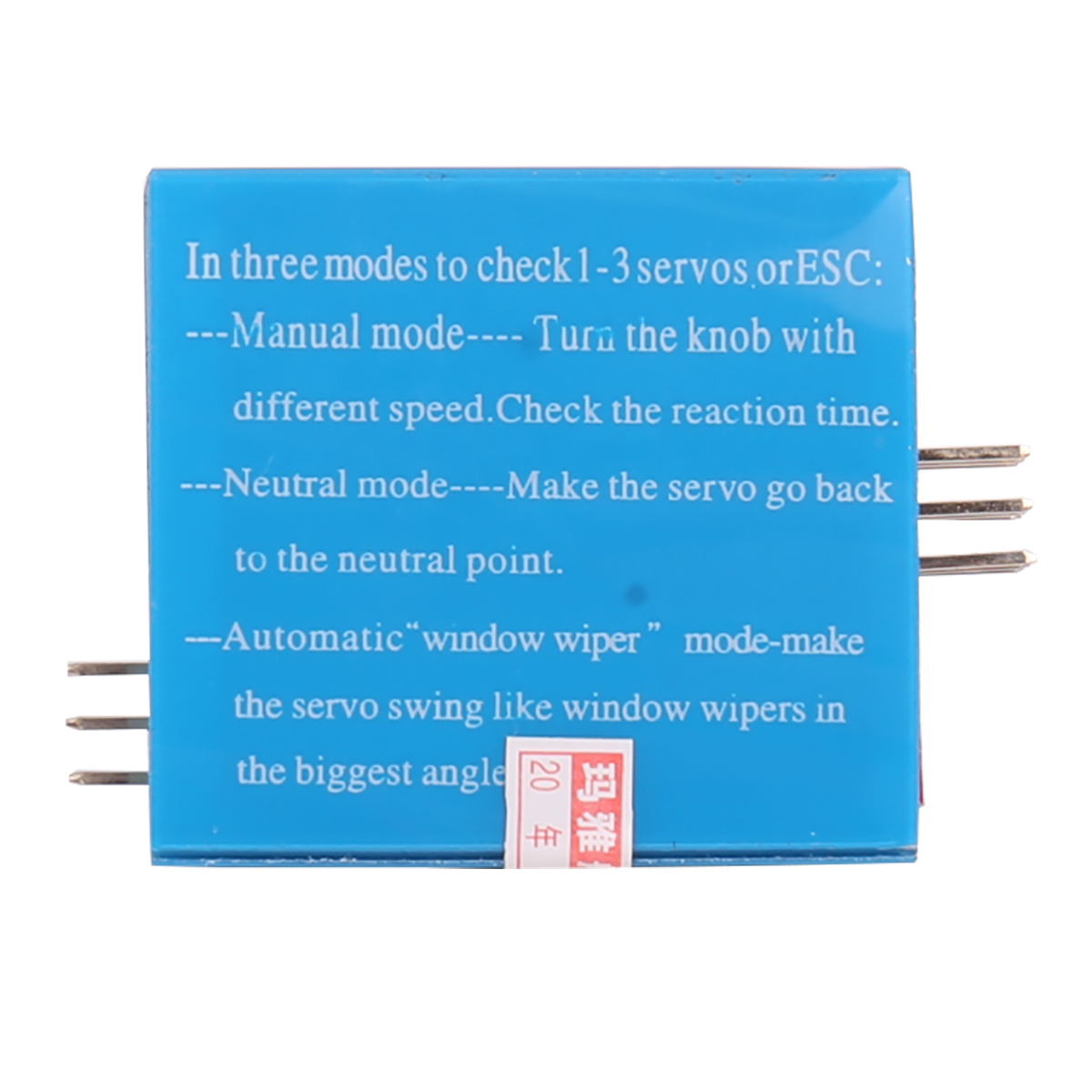

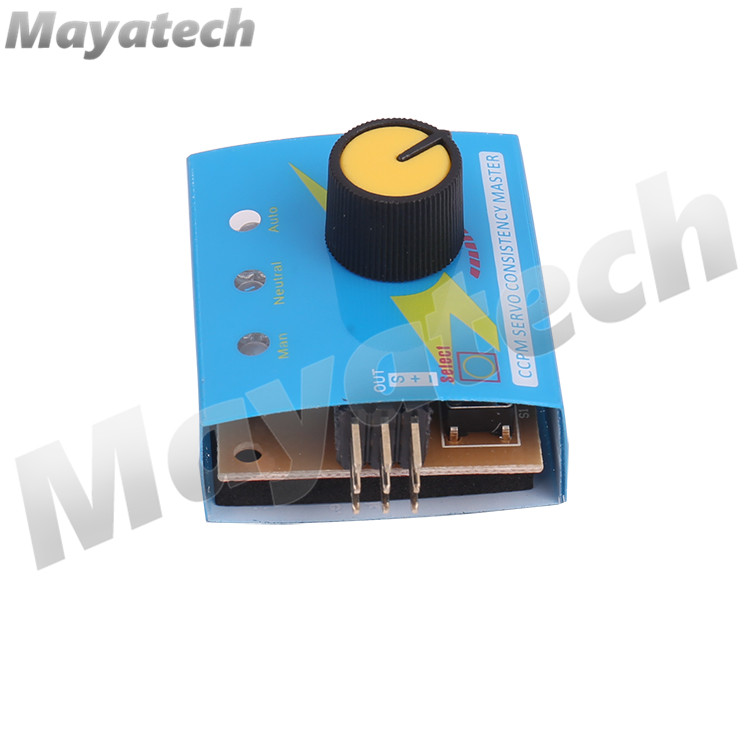

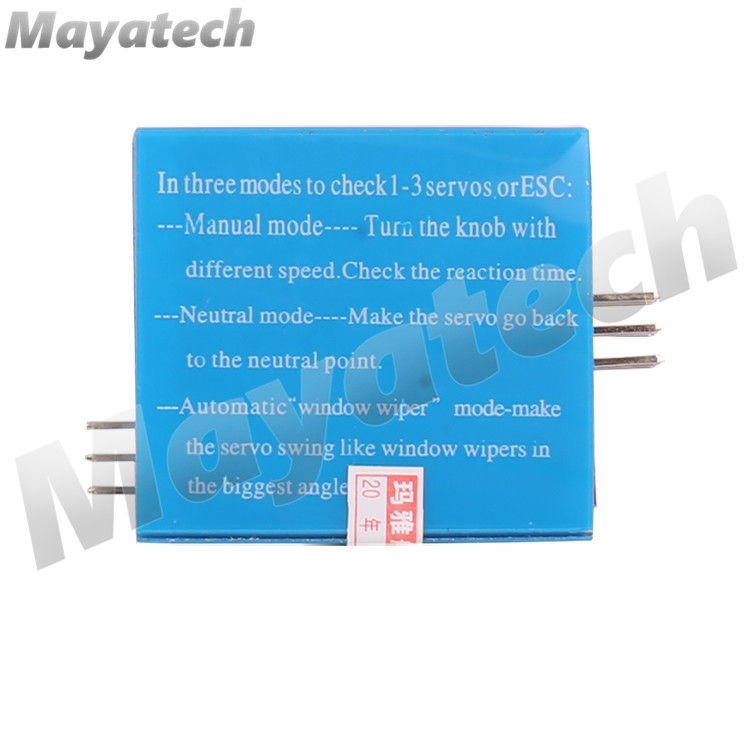

1. Testing the servo or ESC in three modes
- Manual mode: Reaction time can be measured by rotating potentiometers at different speeds.
-Look for neutral mode: let the servo return to neutral point.
-Automatic two-brush mode: make the servo swing at the maximum angle.
2. It can connect 1-3 servos at the same time and test the synchronization and consistency of 1-3 servos.
3. Can connect 1-3 ESCs at the same time, test and compare their reaction time.
4. Three servos of CCPM helicopter can be connected at the same time to debug the helicopter and servos by using neutral position and synchronization function.
5. It can connect the servo of fixed-wing aircraft and use neutral function to install and adjust the rudder.
Product Specification:
(1) Output: <15mA(5.0) Three actuator sockets
(2) Input: DC 4.5-6.0v
(3) Output signal: 1.5ms + 0.5ms
(4) Size: 35 x 32x 14mm

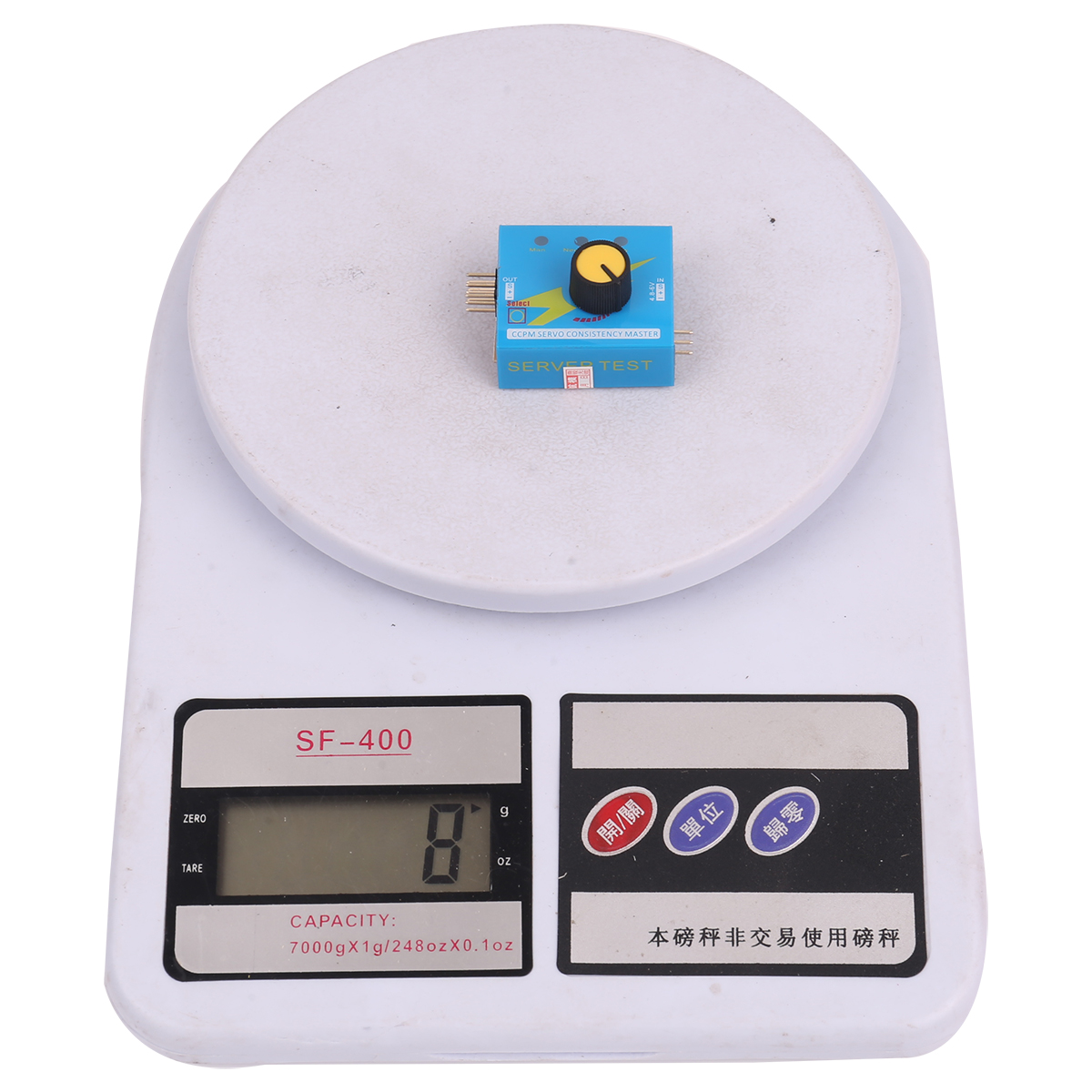

(5) Weight: 8g
(6) Adjustment mode: manual, automatic, median.
Easy to detect the virtual, jitter and set the median position of the servo
IN is input/OUT is output
