Multi-function Wheel Backhoe Loader Excavator

Model:

  • EX388H
Get Latest Price

Basic Info

Model No. EX388H
Brand Name Wenpeng
Applicable industry Building Material Shops, Machinery Repair Shops, Farms, Energy &Amp; Mining, Construction Works
Out-of-warranty service Video Technical Support, Online Support
place of origin China
status New
Exercise Wheel Excavator
warranty period 1 Year
Mechanical test report Provided
Video factory inspection Provided
Loader bucket capacity 1.2m3
Backhoe bucket capacity 0.3m3
Operating mass 10T
Show More

Product description

The multifunctional wheel backhoe loader excavator is a highly efficient engineering machinery that integrates excavation and loading. It has a compact design and flexible operation, and is widely used in many fields such as urban construction, municipal engineering, and landscaping.
Wenpeng Machinery manufacturer direct sales, compliant with CE and Euro 5 Standards, with 1 Year Warranty. We have 10 years of manufacturing experience and supply a variety of high-quality construction machinery, including crawler excavators, wheeled excavators, loaders, aerial work platforms, etc. Please contact us for more details and quotes.

Features
1. Multifunctional design
The wheel backhoe loader excavator integrates excavation and loading functions, and is equipped with a quick-change device to facilitate the replacement of working accessories, such as buckets, leveling shovels, grabs, forks, and breaker hammers, to meet different operating requirements; the optional telescopic arm increases the working range.
2. Efficient power system
Equipped with an efficient diesel engine, it provides powerful power output to ensure efficient operation.
The optimized hydraulic system improves the response speed and operating efficiency of the equipment.
3. Excellent stability
This backhoe loader excavator adopts a low center of gravity design and wide tires to improve the stability of the whole machine.
The sturdy chassis structure is used to adapt to various complex terrains.
4. Comfortable operating environment
The humanized high-end cab improves the comfort of the operating space, with a wide field of vision and high safety;
5. Strong durability
The integral frame has good stability of the whole machine and is more suitable for excavation operations;
The excavation working device is a side-shift type with high strength and good structural stability; the loading end working device adopts an eight-link mechanism.

Parameters
Model EX-388H
Loader Bucket Capacity 1.2m³
Loader Bucketout Force 47KN
Loader Lifting Capacity 2500KG
Loader Dumping Height 3050mm
Loader Dumping Reach 870mm
Loader Digging Depth 52mm
Bucketout Bucket Capacity  0.3m³
Bucketout Bucket Digging Force 50KN
Buckhoe Swing Angle 180°
Buckhoe Dumping Height 4050mm
Buckhoe Max.Digging Depth 3820mm
Max. Traction Force 86KN
Length*Width*Height 6450*2490*3120mm
Operating Weight 10050KG
Axle Base 2335mm
Wheel(track) Distance 2050mm
Min Ground Clearance 450mm
Model Yuchai YCAA106Z-T20
Rated Power 75KW
Rated Speed 2200 r/min
Min.Fuel Consumption 230 g/kw.h
Max.Torque 400 N.m
Displacement 4.8 L

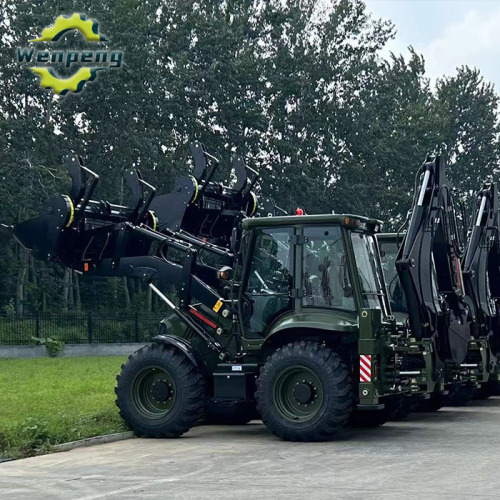

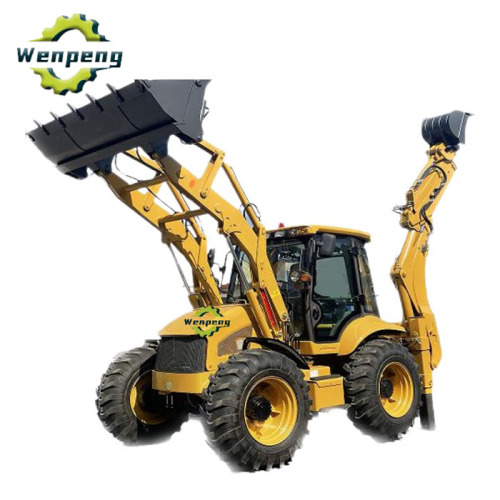

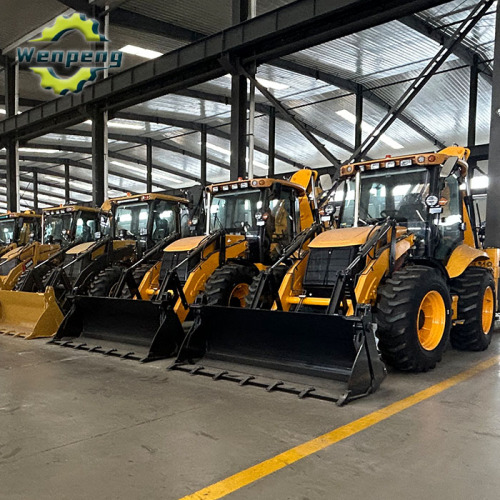

Wheel backhoe loader excavator photo
