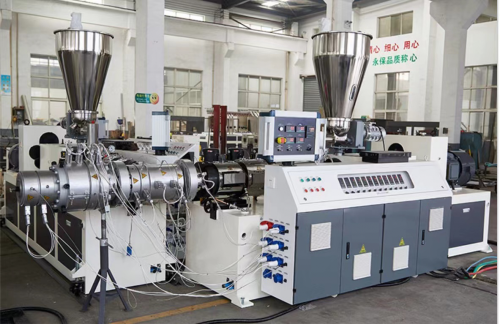

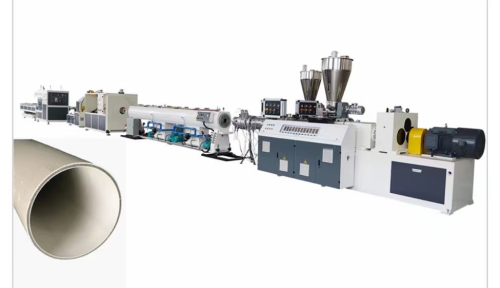

Multi-Layer Pipe Making Machine

IMPORTANT POINTS BEFORE STARTING CO-EXTRUSION:

-It is very important to select polymers that meet a host of performance requirements in the finished extrusion and will also bond to form a strong structure.

-It is necessary to use layers and additional extruders, if the polymers selected for the co-extrusion do not provide adequate bonding strength.

NOTE: All plastic cannot be extruded because some polymers will not adhere, but introducing a conductive middle layer can often solve this problem.

TYPICAL CO-EXTRUSION EXAMPLES:

Just keep in mind that most extrusion processes use co-extrusion in some form to produce products that cannot be made with just one resin source.

- In pvc pipe productions, co-extrusion is used to apply a stripe to one or more of the pipe sides, providing multi-layer pipes that may have one color material on the inside and another color or material on the outside.

TECHNICAL PARAMETERS:

Pipe diameter(mm) 50,75,90,110,160 75,90,110,160,200,250

Extruder(for middle layer) 65/132 80/156

Extruder (for outer& inner layer) 65/132 or 55/120 65/132

Length of vacuum tank(mm) 6000 6000

Haul-offs machine 3claw 3claw

Cutting machine planetary cutting planetary cutting
