Multi-Specification Tube Processing Cold Rolling Mill

Video

1 / 3

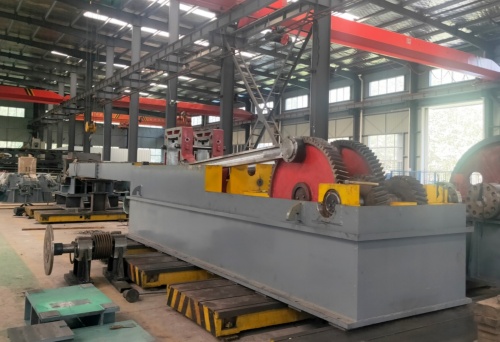

Multi-Specification Tube Processing Cold Rolling Mill

Get Latest Price

You might also like

Heavy Duty Cold Pilger Mill ZLG-30-HL

1 Set/Sets (MOQ)

High Precision LG-250-H Cold Pilger Mill

1 Set/Sets (MOQ)

Professional LG-150-H Cold Pilger Mill

1 Set/Sets (MOQ)

ZLG-30-HL Cold Rolling Machine

1 (MOQ)

Automatic LG Cold Pilger Tube Rolling Mill

1 Set/Sets (MOQ)

Cold Pilger Mill LG-90-H for Tube

1 Set/Sets (MOQ)

Long-Life LG-90-H Cold Rolling Mill

1 Set/Sets (MOQ)

Multi-Specification Tube Processing Cold Rolling Mill

1 Set/Sets (MOQ)

Energy-Efficient Tube Processing Cold Rolling Mill

1 Set/Sets (MOQ)

LG High-Yield Cold Rolling Tube Mill

1 Set/Sets (MOQ)

Basic Info

Model No.	LG-90-H
Brand Name
place of origin	China
status	New
Machine type	Pipe Rolling Machine
Video factory inspection	Provided
Mechanical test report	Provided
Marketing type	Ordinary Product
Core component warranty period	1 Year
Core components	Plc, Engine, Bearing, Gearbox, Motor, Gear
warranty period	1 Year
Core selling point	High Productivity
Out-of-warranty service	Video Technical Support, Online Support
Where to provide local services (in which countries are there overseas service outlets)	None
Applicable industry	Manufacturing Plant, Construction Works
Showroom location (in which countries are there sample rooms overseas)	None

Product description

Advantages of the LG-90-H Model

**Higher Production Efficiency:** Features large-diameter, heavy-wall single-pass forming capabilities, thereby reducing processing steps and delivering superior overall production capacity.

**High Product Precision:** Ensures superior quality; the rolled tubing exhibits high dimensional accuracy and minimal ovality, making it ideal for demanding applications such as precision seamless tubes and hydraulic tubing.

**Outstanding Cost-Effectiveness:** Among large-scale machines in its class, it boasts a compact structure, moderate energy consumption, and a rapid return on investment.

**High Versatility:** A multi-purpose machine capable of producing tubing in a wide range of specifications and materials, making it an excellent choice for tube manufacturers looking to expand production or upgrade their facilities.

No.	? ?Description		Unit	Tube Cold Rolling Machine Model
				LG-90-H
1	?Hollow size	Outside diameter	mm	φ75~130
		Wall thickness	mm	4~15
		Length	m	2.5~5
2	Tube size	Outside diameter	mm	φ60～115
		Wall thickness	mm	2.5~13
		Length	m	≤15
3	Max. elongation ratio of rolling		?	It depends on the material
4	Max. nominal rolling force		t	250
5	Stroke rate of roller carriage		str./min.	40～65
6	Stroke length of roller carriage		mm	1044.7
7	Length of hollow feed		mm	2~10
8	Rotating angle of hollow during feed		Deg.	45-75
9	Rotate-and-feed mechanism		?	Servos Or Direct current
10	Dia.of roller		mm	φ450
11	PCD of gear driving roller		mm	φ378、φ392、φ406
12	Length of connecting rod		mm	3000
13	Radius of crank		mm	520
14	Offset distance between crank and slider		mm	280
15	Center height of hollow		mm	850
16	Total transmission ratio		?	13
17	Power of main motor		KW	200

Our company has been deeply involved in Cold Pilger Mill for nearly 40 years and is a professional R&D and manufacturer of precision pipe making equipment in China.

The company independently develops two series of cold-rolled pipe machines with more than 30 specifications, covering the production needs of small to medium and large diameter precision pipes:

Cold Pilger Mill LG: suitable for rolling medium and large-sized pipes, with high production efficiency and strong stability.

Cold Pilger Mill LD: Specializes in small-diameter, high-precision pipe rolling. It can produce ultra-thin-walled precision pipes with a diameter of Φ4–8mm and a wall thickness of 0.1–1.0mm. It has excellent roundness, surface finish, and mechanical properties.
