Multi-Stations Large Size Thermoforming Machine: Positive and Negative Pressure Thermoforming Equipment

Video

1 / 7

Multi-Stations Large Size Thermoforming Machine: Positive and Negative Pressure Thermoforming Equipment

$300000.00

≥1 set
$185000.00

≥10 set

Options:

FSCT-820/650-2

Get Latest Price

You might also like

Hi-Efficient Multi-Station Automatic Plastic Thermoforming Egg Tray Making Machine

1 set (MOQ)

Multi-Stations Plastic Blowing Machines & Thermoforming Machines for Egg Trays, Seeding Trays, Fruit Containers, Cake Boxes, and Plates

1 set (MOQ)

Automatic Multi-Station Thermoforming Machine for Plastic Lid and Cake Box Production

1 set (MOQ)

Trade Multi-Station Plastic Fruit Tray Thermoforming Machines

1 set (MOQ)

Automatic Multi-Station Thermoforming Machine for Plastic Flower Pots

1 set (MOQ)

Multi-Stations Large Size Thermoforming Machine: Positive and Negative Pressure Thermoforming Equipment

1 set (MOQ)

Plastic Thermoforming Machine for Food Container and Lunch Box Production at Cheap Prices

1 set (MOQ)

Automatic Thermoforming Machine for Plastic Container Lid and Fruit Package Products

1 set (MOQ)

Automatic Thermoforming Machine for High-Performance Disposable Fruit Cake Boxes

1 set (MOQ)

China Supplier Thermoforming Machine for Seeding Trays and Transparent Egg Trays

$185000.00

1 set (MOQ)

Basic Info

Model No.
Brand Name
Processing type	Plastic Thermoforming Machine
Plastic type	Hips
Max.Forming Height(mm)	150 mm
Forming Width (mm)	650 mm
Forming Length (mm)	850 mm
Production Speed(Cycles/min)	65
Video outgoing-inspection	Provided
Machinery Test Report	Provided
Warranty of core components	1 Year
Core components	Plc
Air Pressure(MPa)	0.7 MPa
Sheet Thickness(mm)	0.15 - 2 mm
Heating Power (kW)	185 kW
Air Comsumption(L/min)	75 L/min
Water Comsumption(L/min)	100 L/min
Condition	New
Product Type	Plastic Cup
Place of Origin	Zhejiang, China
Voltage	380
Dimension(LWH)	L10000W2900H3150mm
Weight (T)	15 T
Power(KW)	185
Warranty	1 Year
Applicable Industries	Manufacturing Plant, Food & Beverage Factory, Food & Beverage Shops
Key Selling Points	Easy to Operate
Showroom Location	None
After-sales Service Provided	Engineers available to service machinery overseas
running speed	65 cycles/min
Sheet material	PP, PS, PVC, PET, HIPS, PLA, OPS, EPS, C-PET, C-PLA, ABS
Sheet Thickness	0.15-2 mm
Max.Forming Area	820*650 mm
Max.Pos/Neg depth	150/150 mm
Max.Plastic sheet width	860 mm
Max.Plastic Sheet Dia	1100 mm,1T

Product description

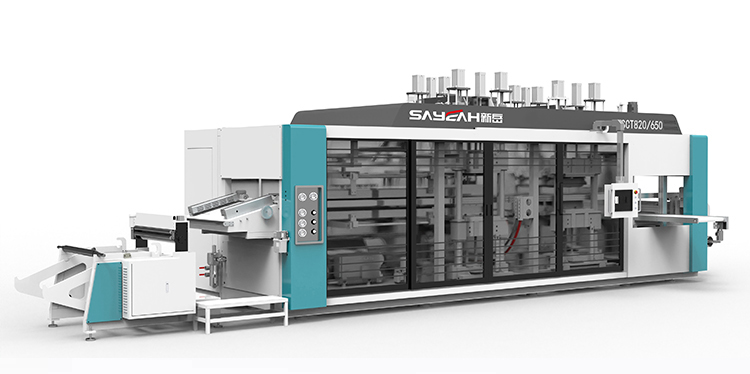

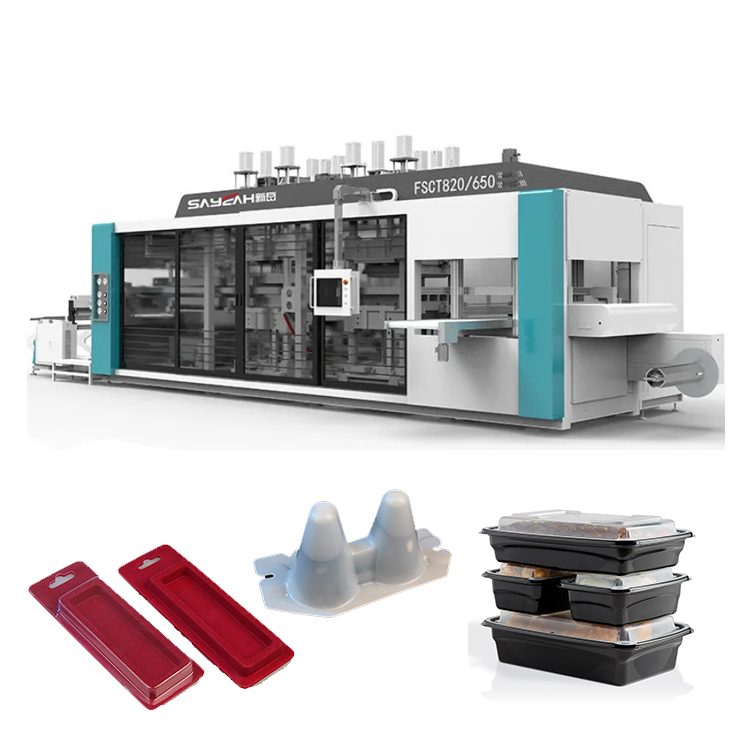

Product Display

Model	FSCT-820/650-2	FSCT-820/650-3	FSCT-820/650-4
Quantity Of Stations	2	3	4
Sheet Material	PP, PS, PVC, PET, HIPS, PLA, OPS, EPS, C-PET, C-PLA, ABS
Application	Plastic lid, container, egg tray, fruit box, cake box, box, plate, flower pot, etc
Forming Clamping Force	750KN
Punching Clamping Force	750KN
Max. Forming Area	820 X 650 mm
Max. Pos/Neg Depth	150/150mm
Max. Plastic Sheet Width	860mm
Max. Plastic Sheet Dia.	1100mm,1T
Thickness Of Plastic Sheet	0.15-2mm
Max. No-Load Speed	65Cycles/min
Air Consumption	4.5m3/min,0.6-0.8Mpa
Overall Power	185 KW	200 KW	215 KW
Dimension	L10000 x W2900 x H3150mm	L11200 x W2900 x H3150mm	L12500 x W2900 x H3150mm
Weight	15T	20T	25T
Power Supply	380v/50Hz Three Phase Four Wires

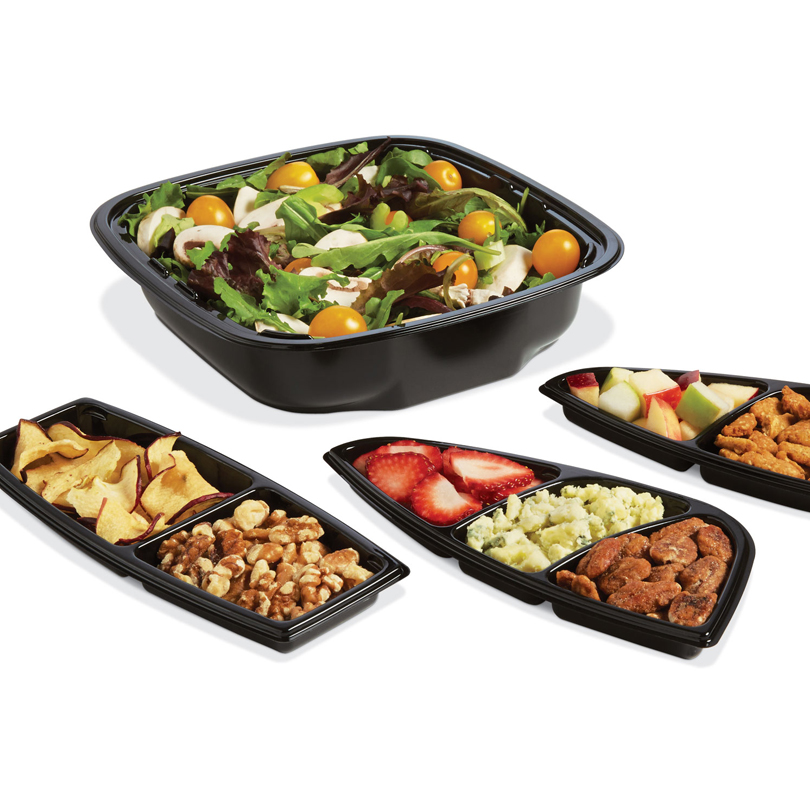

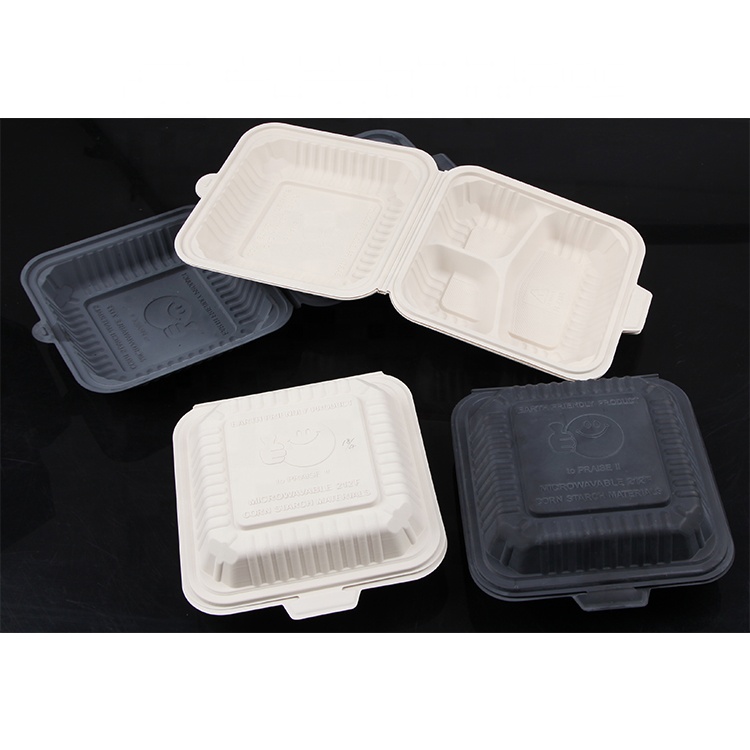

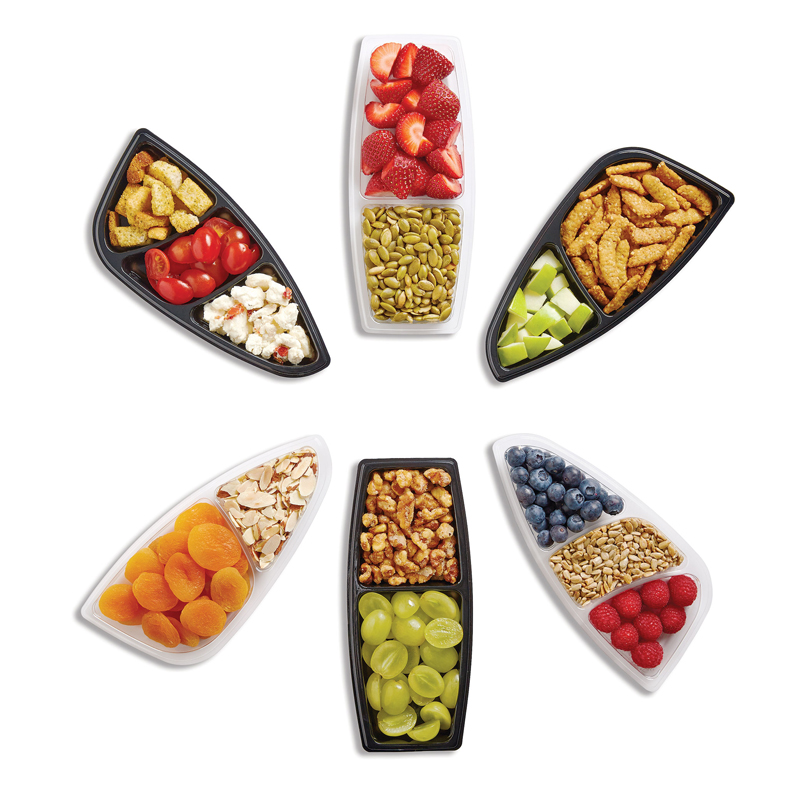

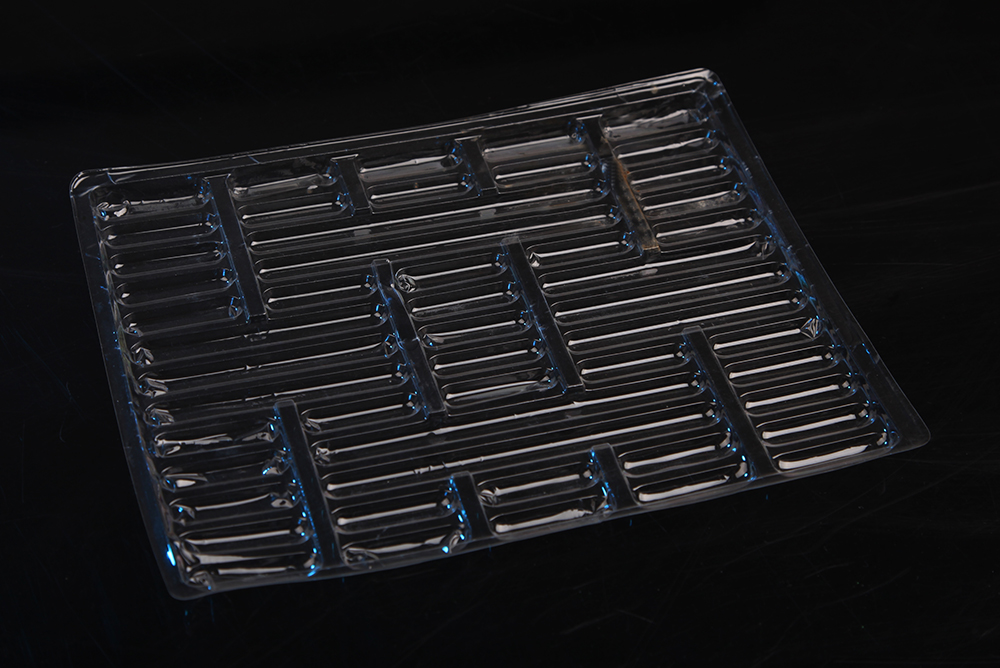

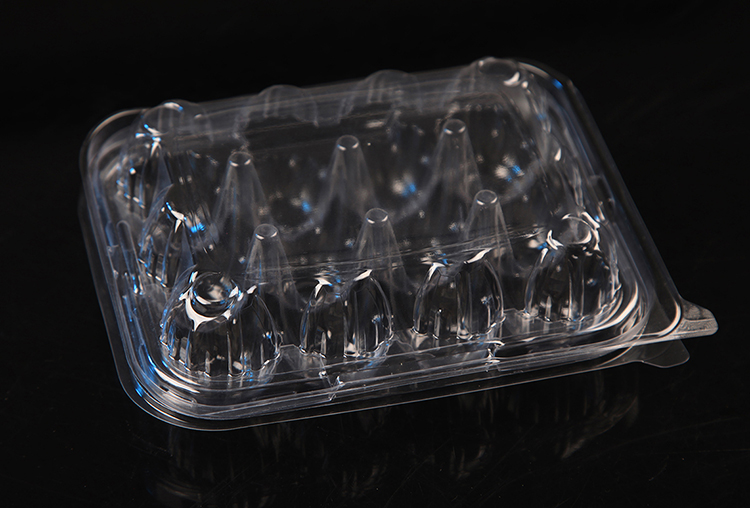

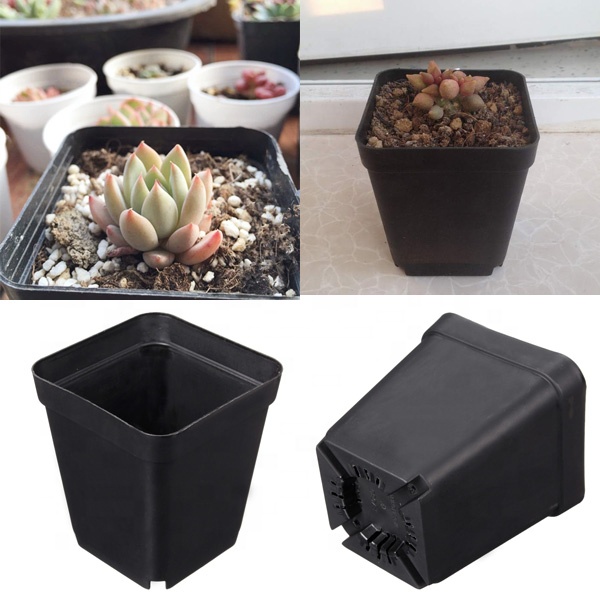

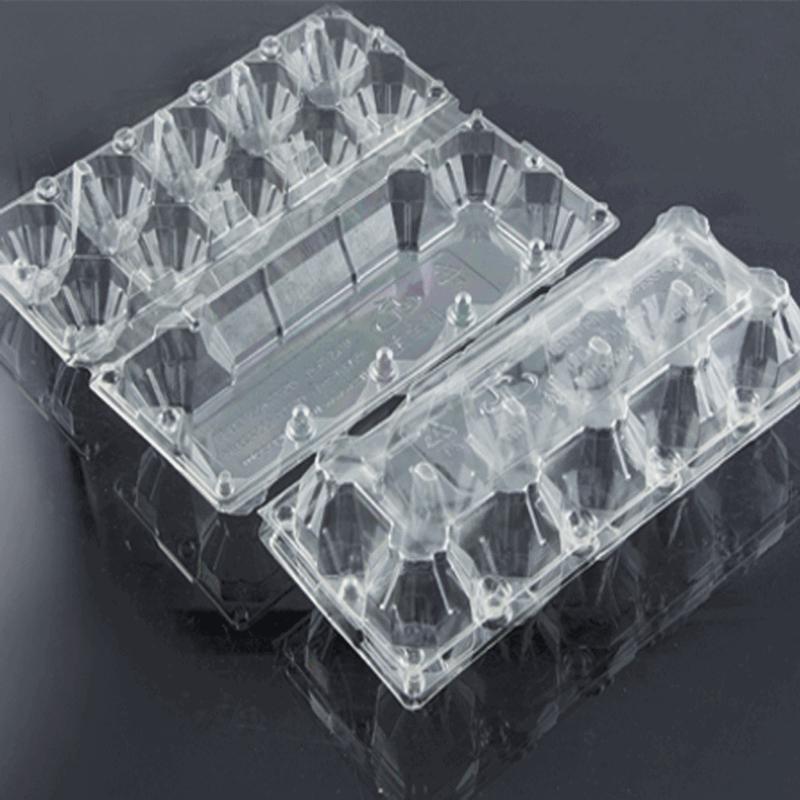

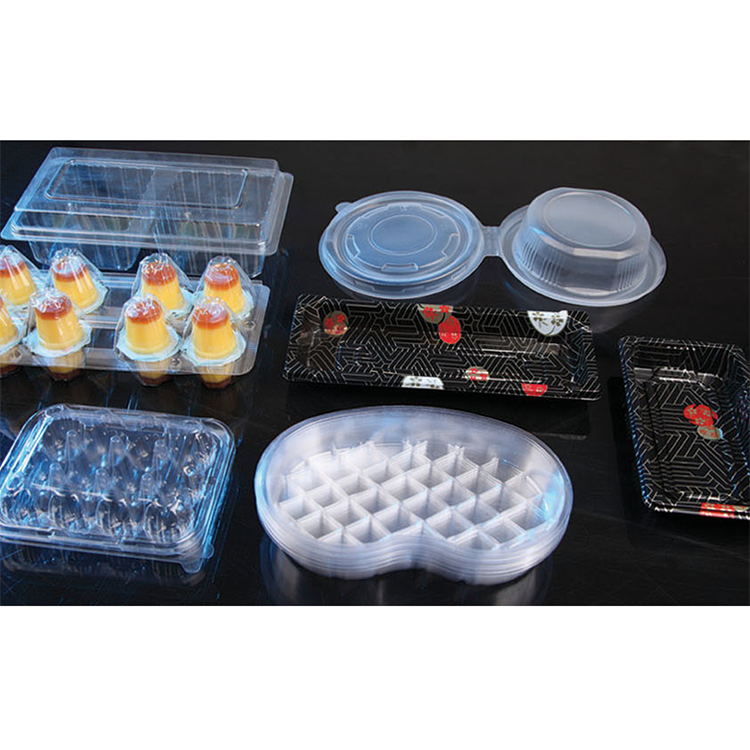

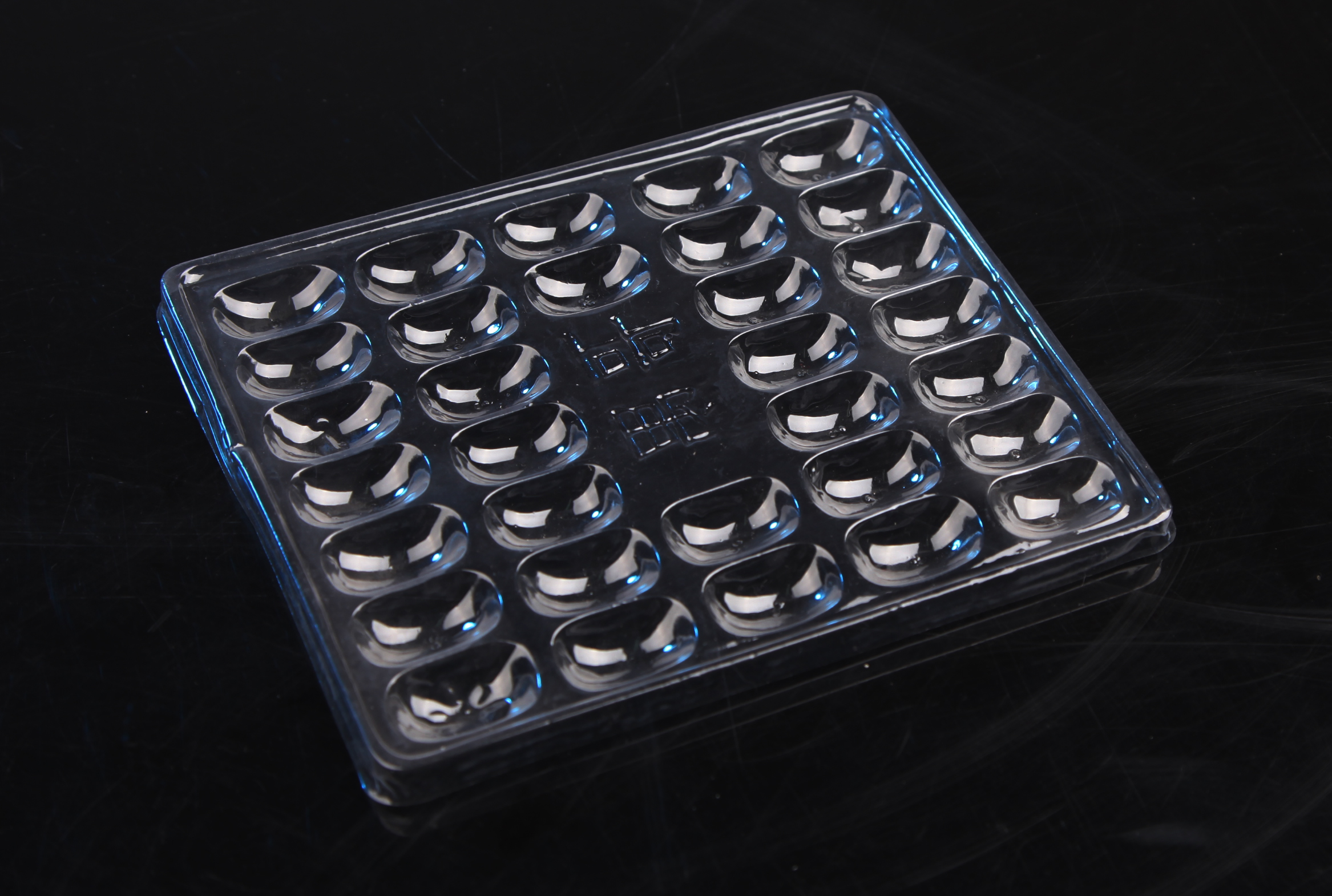

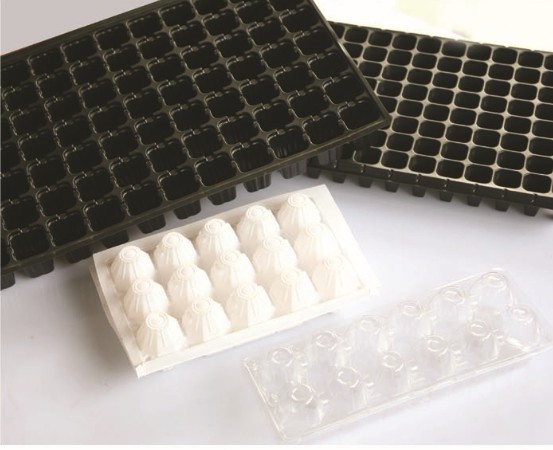

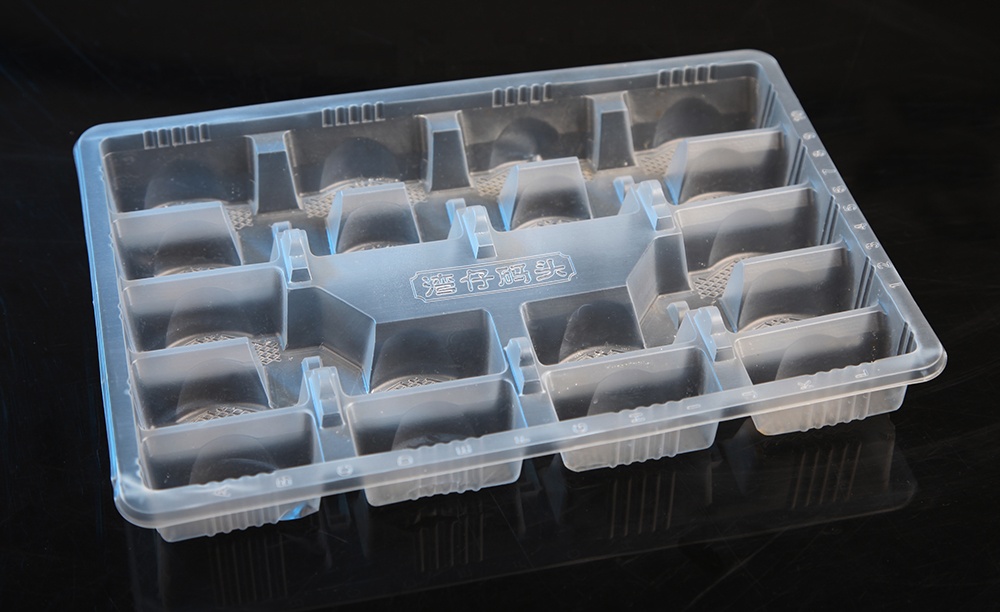

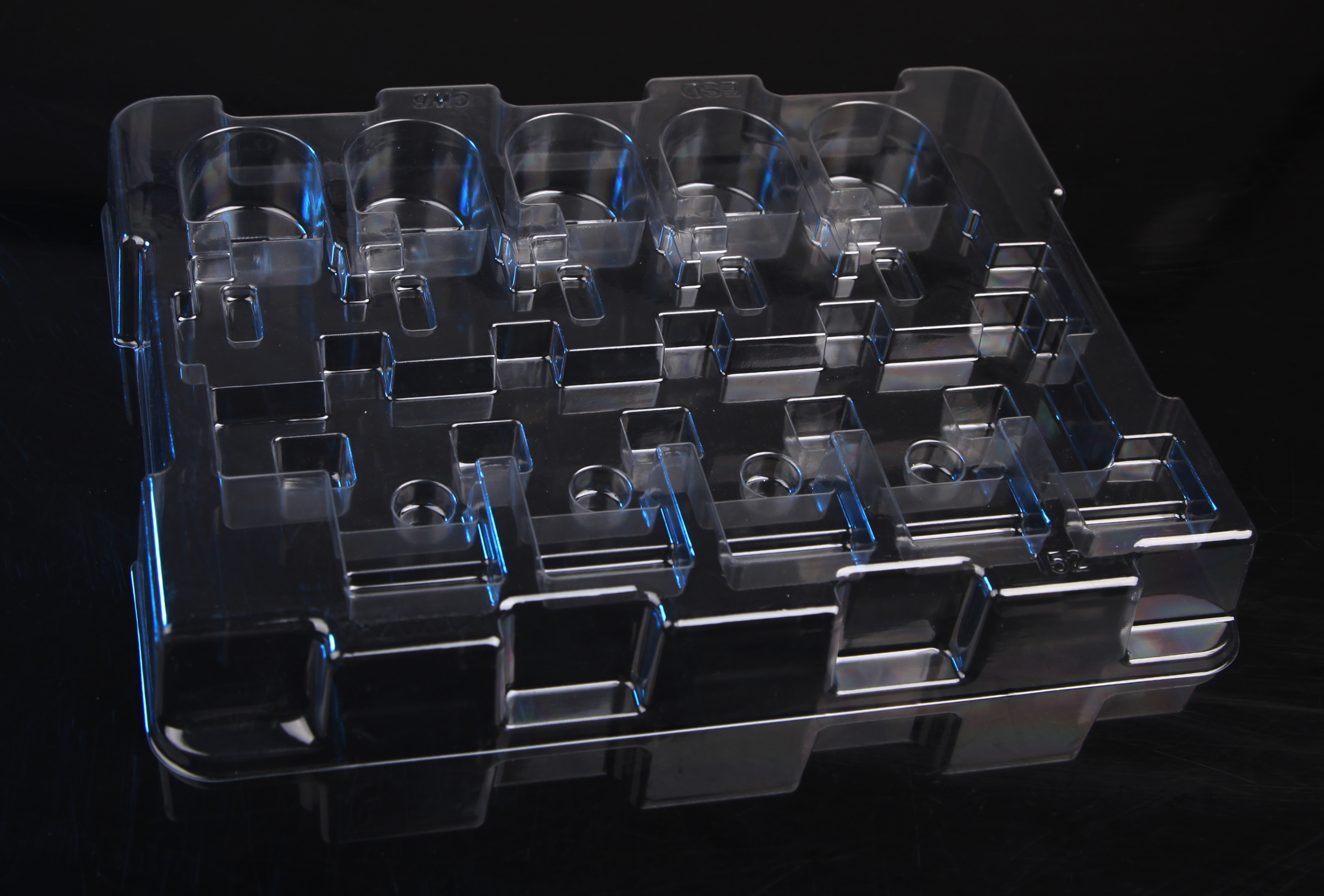

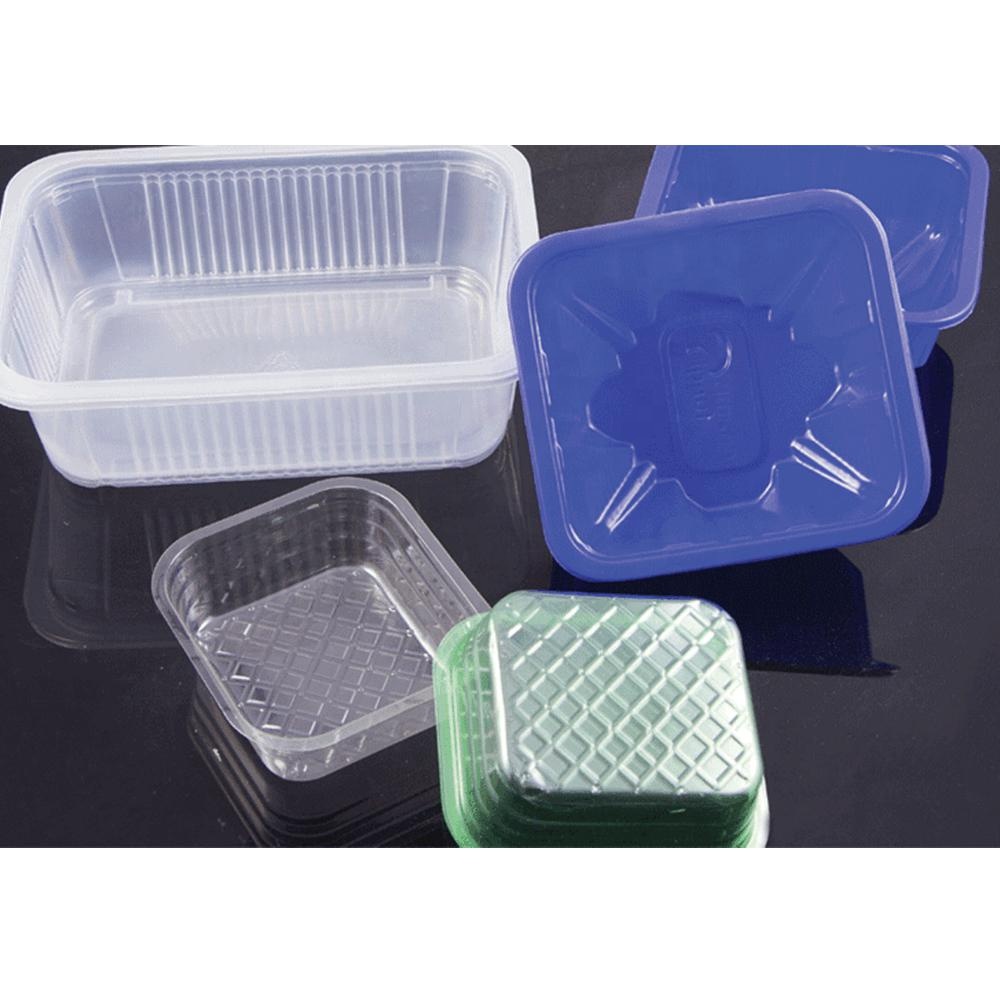

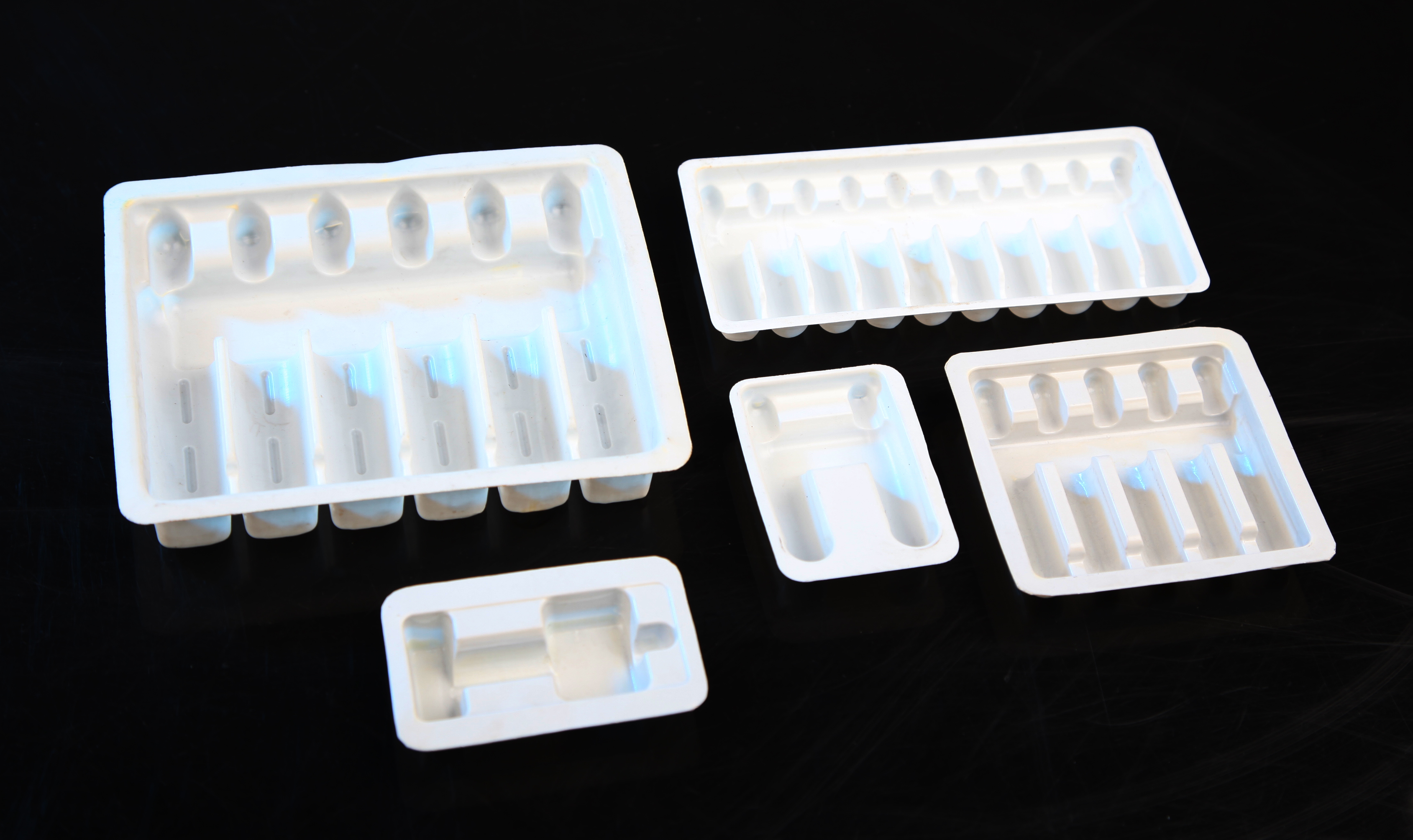

Production Product Display

Products Description

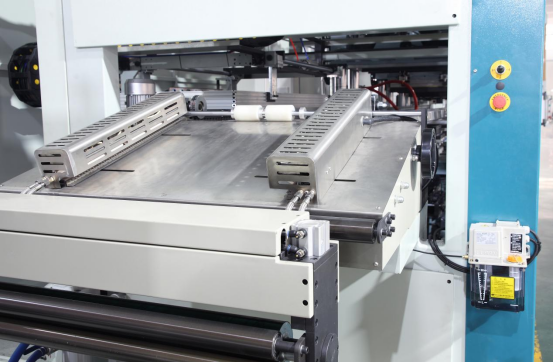

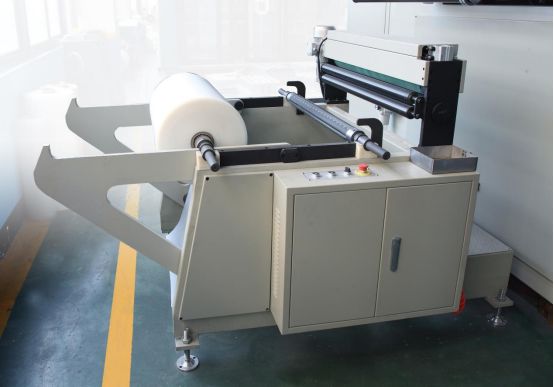

Sheet Loading& Feeding Station

Driving by motor. Max diameter 1M. with dust plate to make the clean sheet.

Preheater

Has the In-feed sheet edge pre-heater system before the sheet goes into the heater part,it reduces the defective percentage, keep dust-free environment to improve the quality of the product and prolong the life of conveying chain.

The Chain

The plastic sheet was sent by the sharp tooth, which was driven by the servo-motor. The width of the chain can be adjusted and wear cooling water, which can prolong the life of the chain and reduce the dust..

Ceramic Heater

Temperature is controlled precisely (the difference is within ±1℃). The working life of the ceramic heater is long and adopts the fully enclosed oven. The temperature controlling system is better and saves more energy..

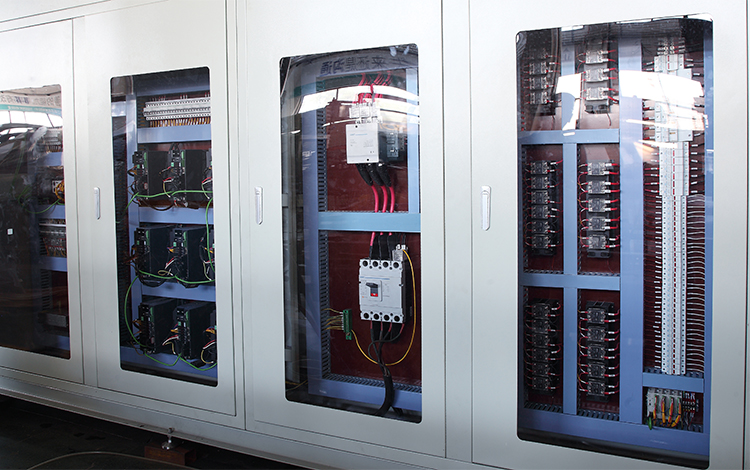

Electric Cabinet

The connection of the electric cabinet is easy. Equipping the air conditioner to prolong the life of the electric parts.

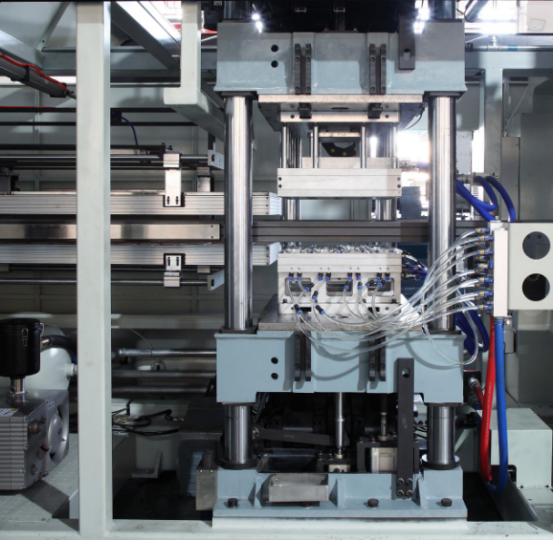

Forming Station

Driven by servo motor to close the mold, with cylinder clamping frame and servo stretching function at the same time.

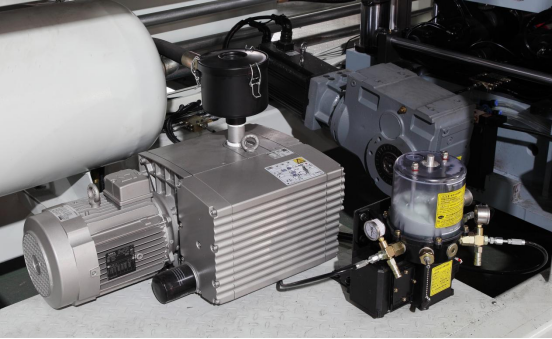

The vacuum pump is from German BECKER to meet all kinds of requirements for different products.

In addition, it also has automatic lubricator pump to prolong the life of the machine.

Punching Station

Has an automatic mold fixing system, which can be fixed after the installation and adjustment. Don’t need screws to fix the mold and can short the setting time of the mold. It can improve efficiency. And the cutter has heat functions.

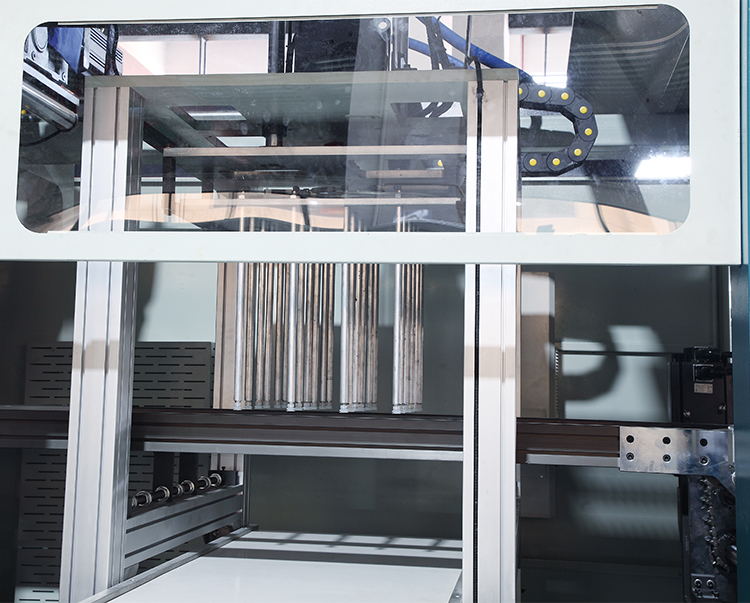

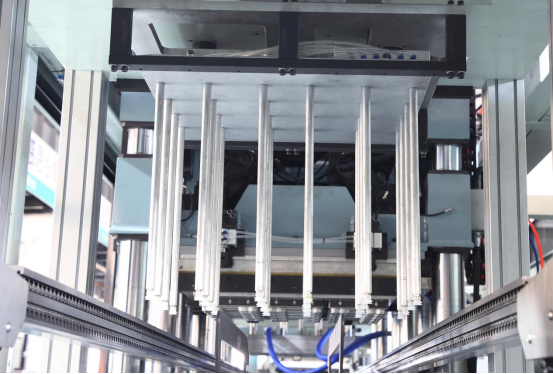

Stacking Station

Stacking station has many options to design that can meet more demands of packing.

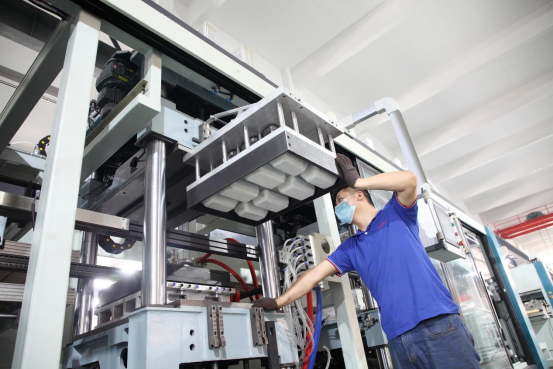

Mold Change Bracket

The installation of the mold is easy and safe, it can short the setting time of the mold.
Using the mold change bracket can improve the efficiency of changing mold, it has a double safety bolt to ensure safety.

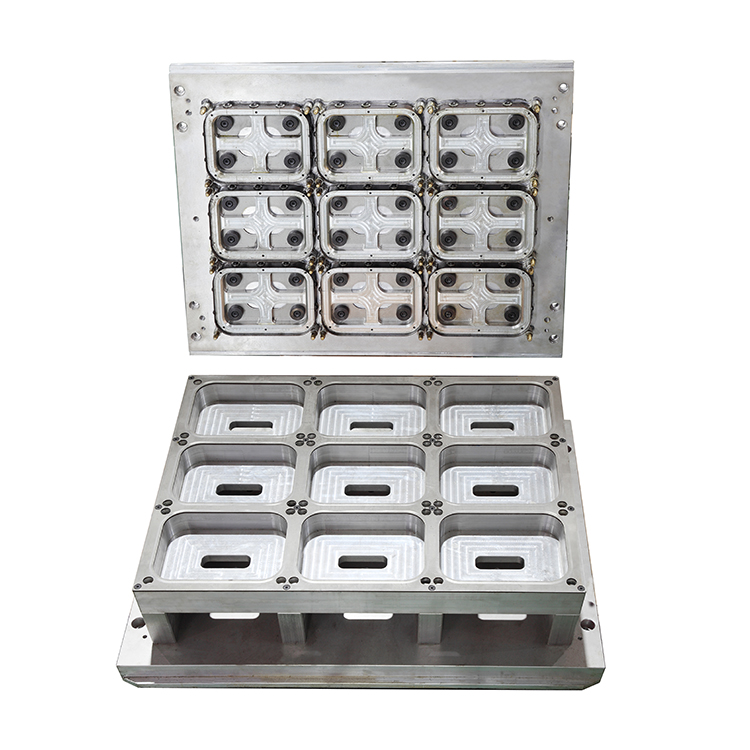

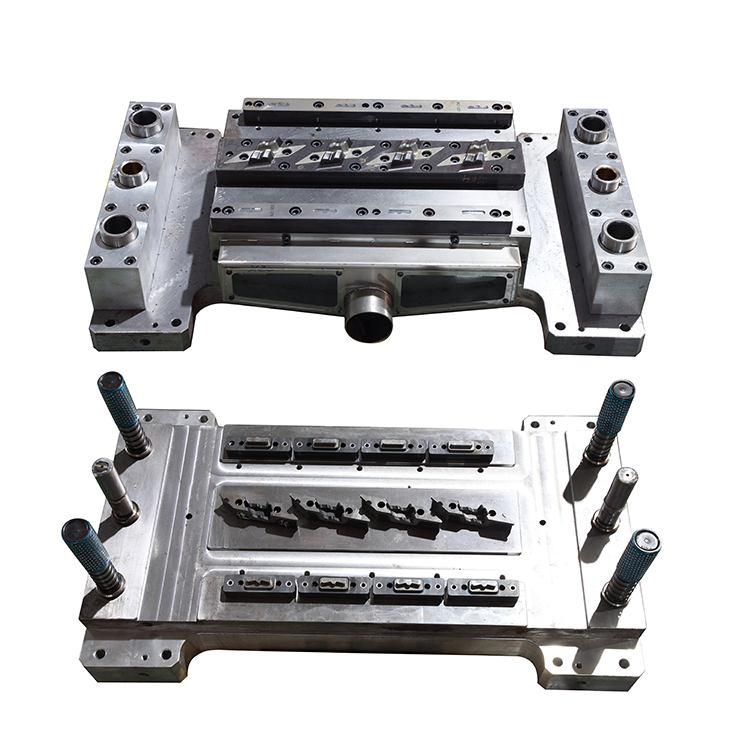

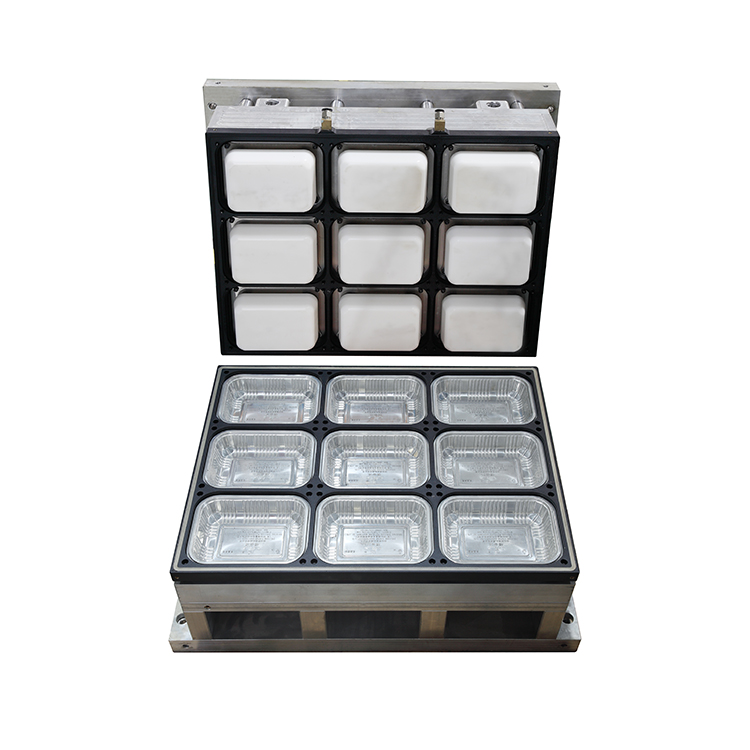

Mould Photos

For more details and more favorable prices

please click here to contact me！！

Recommend Products

Q1:Are you a factory or trading company?
A1:We are factory.

Q2:How does your factory do regarding quality control?
A2:We have a special QC department in charge of products'quality.

Q3: How long is the warranty period?
A3: All of our machine have one year warranty.

Q4: What's the main market of your company?
A4:We have customers all over the world.Now our products have been widely used in 62 countries.

Q5:Can we visit your machine operation in your factory?
A5:Yes, we have many customers near our factory .we can take you to see the machine operation.

Q6: Where is your factory located? How can we visit there?
A6:Our factory is located in Ruian City, Zhejiang Province, China, by high speed train to Ruian station,then 20 minutes by car.or by airplane to Wenzhou airport,then 1 hour by car.we provide free pick-up service from train station and airport.

Q7: Which payment can offer?
A7: We accept 30% payment in advance, the balance payment before shipping.We also accept UC according to the order amount.We can accept the payment by TIT, Western Union, Paypal, Private Account, Escrow,Cash,and others.

Q8:How&When can I get the price?
A8: Email us your inquiry or communicate online, state your specifications(product, material, size, quantity,output etc).We usually quote within 24 hours. Please call us or inform in your email when it is urgent, we will regard your inquiry priority.our service number is 0086-577-65572988
