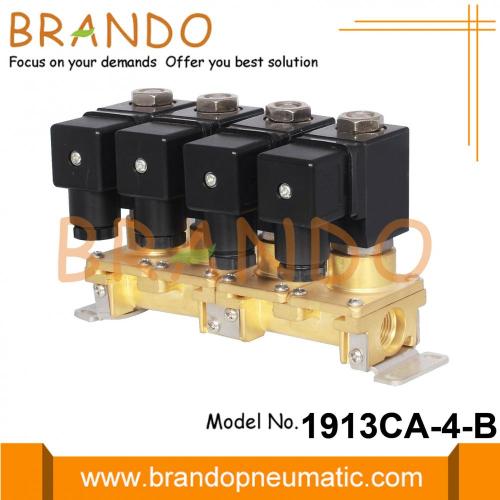

Multi Way Stackable 4 Group Brass Solenoid Valve
Basic Info
| Model No. | 1913CA-4-B |
|---|---|
| Brand Name | Brando |
| Voltages | 12vdc, 24vdc, 24vac, 110vac, 220vac |
| Pressure Range | 0 To 1.6 Mpa |
| Function | 2 Way, Normally Closed |
| Port Size | 1/8'', 1/4'' |
| Operation | Direct Acting |
Product description
Multi Way Stackable 4 Group Brass Solenoid Valve
Product Features of Brass Solenoid Valve:
1. Working Medium: Air, Water, Steam, Oil etc.
2. Working Pressure Range: 0 to 1.6 MPa (See the parameter table below for details)
3. Medium Temperature Range: NBR (-10 to +80℃), EPDM (-30 to +120℃), FKM (-30 to +150℃)
4. Port Size: 1/8'', 1/4''
5. Orifice Size: 1.6mm, 2.5mm, 3mm, 3.5mm, 4mm
6. Body Material: Brass, Stainless Steel
7. Seal Material: NBR, EPDM, FKM
8. Function: 2 Way Normally Closed
9. Operation: Direct Acting
10. Voltage Option: 12VDC, 24VDC, 24VAC, 110VAC, 220VAC (50/60Hz)
Technical Data of Brass Solenoid Valve:
|
Model
|
Port Size
|
Orifice Size
|
Cv
|
Min Pressure
|
Max Pressure
|
Seal Material
|
Body Material
|
|
|
AC
|
DC
|
|||||||
|
1913CA161
|
1/8''
|
1.6mm
|
0.11
|
0MPa
|
1.6MPa
|
1.6MPa
|
NBR
EPDM
FKM
|
Brass
Stainless Steel
|
|
1913CA251
|
1/8''
|
2.5mm
|
0.18
|
1.2MPa
|
1.2MPa
|
|||
|
1913CA301
|
1/8''
|
3.0mm
|
0.3
|
1.0MPa
|
1.0MPa
|
|||
|
1913CA252
|
1/4''
|
2.5mm
|
0.18
|
1.2MPa
|
1.2MPa
|
|||
|
1913CA302
|
1/4''
|
3.0mm
|
0.3
|
1.0MPa
|
1.0MPa
|
|||
|
1913CA352
|
1/4''
|
3.5mm
|
0.34
|
0.8MPa
|
0.8MPa
|
|||
|
1913CA402
|
1/4''
|
4.0mm
|
0.5
|
0.6MPa
|
0.6MPa
|
|||

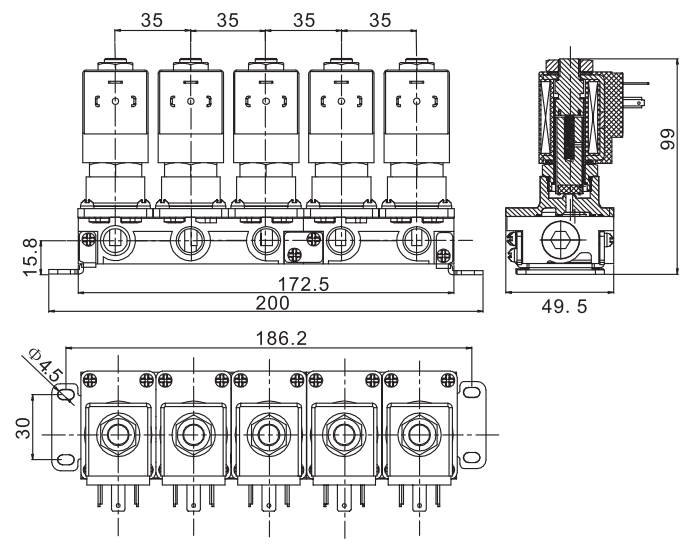

Dimension of Brass Solenoid Valve Combination:
| 4 Group Solenoid Valve |
|
|
5 Group Solenoid Valve |
|
Brando Factory Solenoid Valve Production Video:
BRANDO Factory Production Picture of Solenoid Valves:
Packaging and Shiping of Brando Solenoid Valves:
|
|
|
| Internal Box | Carton | Pallet |
Focus on your demands, Offer you best solution:
√ Contact us if some points you have doubt
√ Contact us if somewhere need to change
√ Contact us if not the one you are looking for
√ Contact us if you are doing designing
Welcome to your any question and inquiry!
