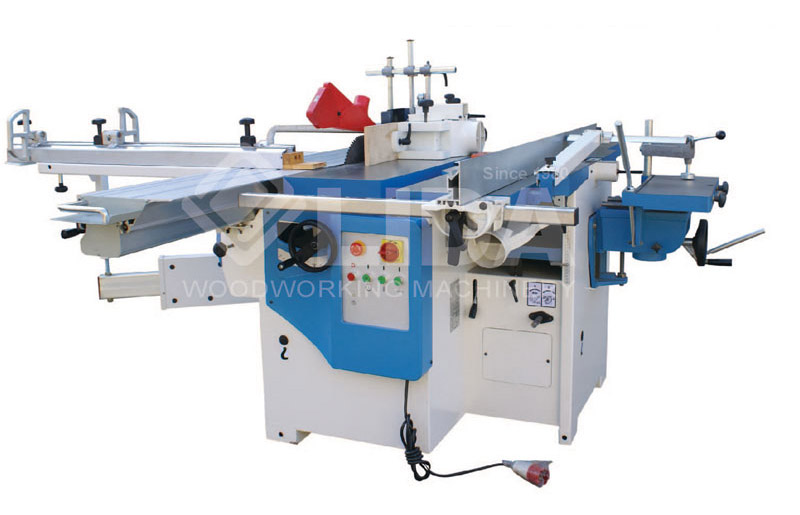

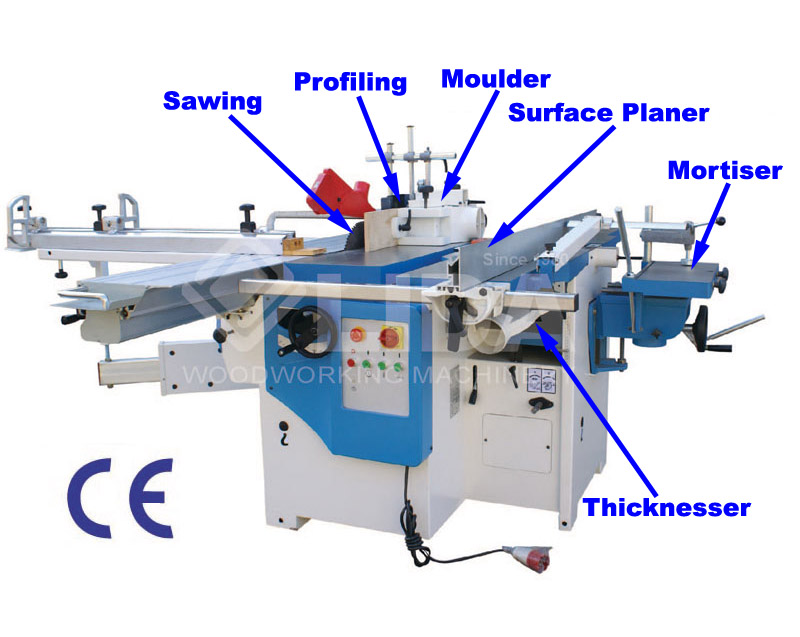

Multiple function machine ML410H
Basic Info
| Model No. | ML410H |
|---|---|
| Brand Name | LIDA |
Product description
1. *Combination machine for the demanding craftsmen and carpentries looking for a compact machine,but requiring a top quality finished product
2. *The machine offer you the finest machine technology, exceptional performance and a great deal of precision
| Technical Specification | |
| 1.1 Surface planning | |
| Cutterblock(with 3 blades) | Φ72mm |
| 3 cutters | 310x30x3mm |
| Max. planing width | 300mm |
| Max. removal | 4mm |
| Fence tilting | 90°,45° |
| Motor power | 3KW 220V(380V) 50HZ |
| 1.2 Thickness planing | |
| Max. planing width | 300mm |
| Work height | 3~230mm |
| Driving speed | 7m/min |
| Max. removal | 4mm |
| Motor power | 3KW 220V(380V) 50HZ |
| 1.3 Saw | |
| Saw blade dia | Φ305mm |
| Hole dia | Φ30mm |
| Shaft stop time | ≤9sec |
| Max. cross cut width | 820mm |
| Motor power | 2.2KW 220V(380V) 50HZ |
| 1.4 Scorer assembly | |
| Scorer blade dia | Φ80mm |
| Hole dia | Φ20mm |
| Rotation speed | 8000rpm |
| 1.5 Moulder | |
| Router spindle Dia. | Φ30mm(OPT) Φ35-Φ40-Φ50 |
| Max. shaft protrusion from table | 155mm |
| Spindle rotation speed | |
| Motor power | 2.2kW 220V(380V)50Hz |
| 1.6 Drilling | |
| Drilling Dia. | Φ3~16mm |
| Max. Drilling depth | 80mm |
