Basic Info

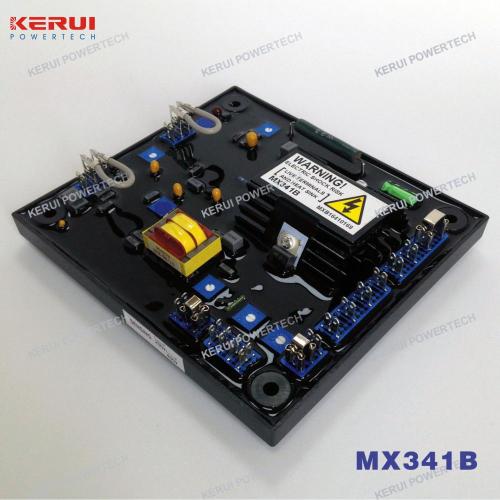

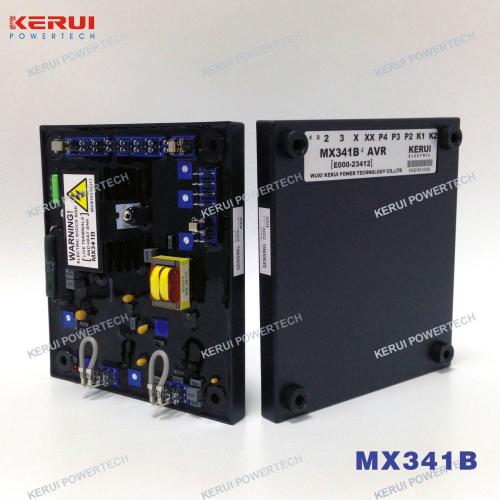

| Model No. | MX341B |
|---|
Product description
|
TECHNICAL SPECIFICATIONS |
||
|
Sensing Input |
Voltage |
170-264Vac, 340-528Vac Selectable |
|
Frequency |
50-60Hz nominal |
|
|
Phase |
2 |
|
|
Wire |
2 |
|
|
Power Input |
Voltage |
140-220Vac |
|
Current |
3A/Phase |
|
|
Frequency |
100-120 Hz |
|
|
Phase |
3 |
|
|
Wire |
3 |
|
|
Power Output |
Voltage |
Max.120Vdc |
|
Current |
Continuous 4A Transient 6Afor 10secs. |
|
|
Field Resistance |
Min. 15 ohms |
|
|
Regulation |
±1.0% (with 4% engine governing) |
|
|
Thermal Drift |
1 % for 40°C change in AVR ambient |
|
|
Soft Start Ramp Time |
3 sec. |
|
|
Typical System Response |
Field current to 90% |
80ms |
|
Machine Volts to 97% |
300ms |
|
|
External Voltage Adjustment |
>±6% with 1Kohm 1 watt trimmer |
|
|
Under Frequency Protection |
Set point 95% rated frequency U/f slop 30Hz down to 100-300% |
|
|
Analogue Input |
Sensitivity |
±1Vfor ±13% Generator Volts |
|
Quadrature Droop Input |
10 ohms burden |
|
|
Max. sensitivity |
0.07Afor 5% droop (PF=0 ) |
|
|
Over Excitation Protection |
Set point |
75Vdc |
|
Time delay |
10 seconds (fixed) |
|
|
Environment |
Vibration |
20-100Hz 50mm/sec 100Hz-2kHz 3.3g |
|
Relative Humidity |
0-60 °C 95% |
|
|
Operating Temperature |
-40°C to +70°C |
|
|
Storage Temperature |
-55°C to +80°C |
|
|
Dimensions |
Outline Dimensions |
140(W)x155(H)x39(D) (mm) |
|
Installation Size |
115(W)x130(H) (mm) *0)5-4 |
|
|
Weight |
435g |
|
|
Color |
Black |
|
