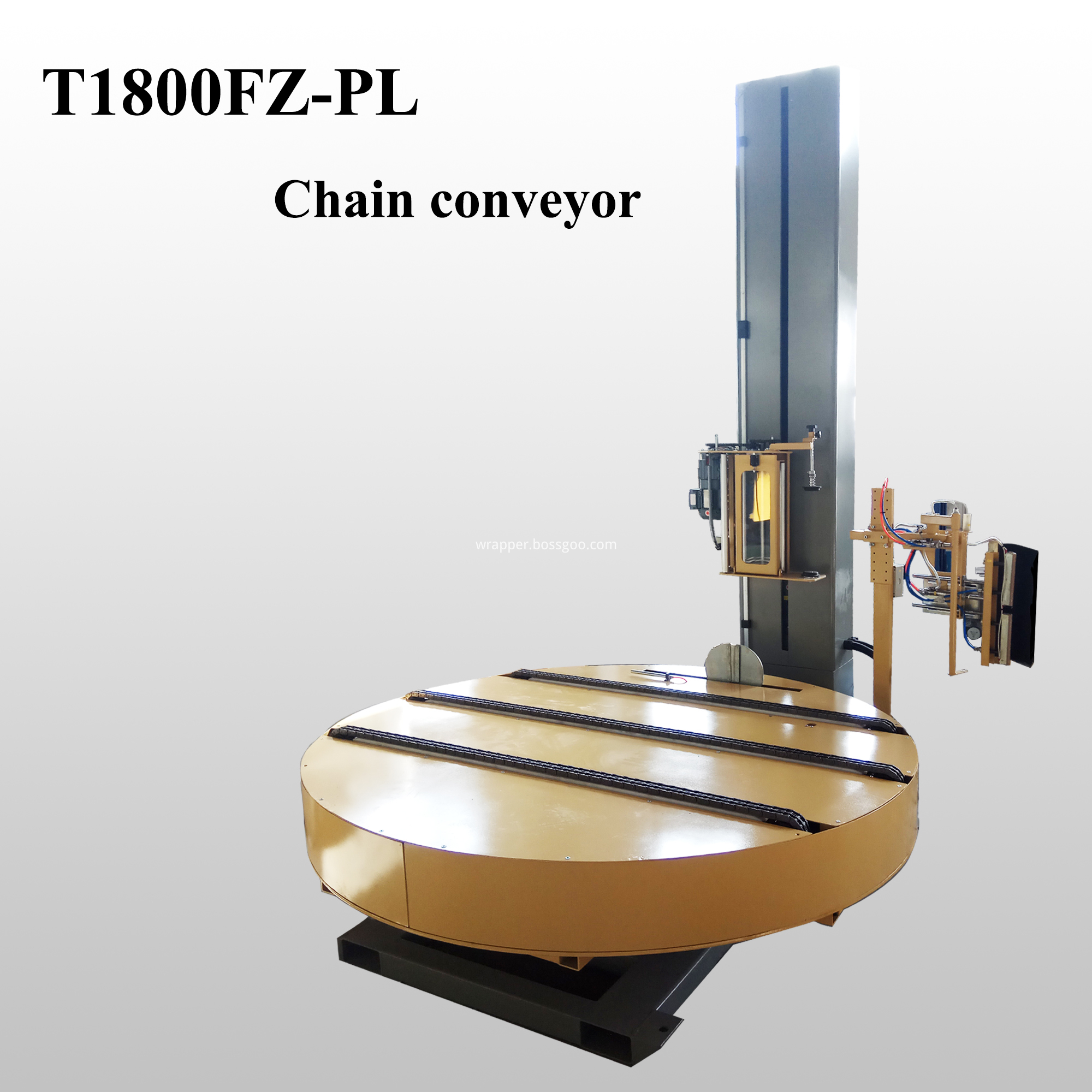

New Automatic Pallet Packing Machine
Basic Info
| Model No. | T1800FZ-PL |
|---|---|
| Brand Name | Sinolion |
| Applicable Industry | Apparel |
| Packaging Type | Cartons |
| Type | Prestretching Wrapping Machine |
| Driven Type | Electric |
| Application | Milk |
Product description
Automatic Stretch Wrapper, packing Machine
Partner with Global Top equipment supplier, ensure system running safely
Attention to innovation, achieved many kinds of national patent
Established by a rich experience and skillful team
Providing one-stop service suited with digram design, making, installation, debugging and aftersales for home and overseas clients
| Wrapping size | 500-1100mm(L)*500-1100mm(W) |
| Packaging height | 1800mm-2800mm available |
| Work efficiency | 20-40 loads/H |
| Turntablespeed | 0-15RPM (adjustable, soft start&stop) |
| Bearing | Max. 2000kgs |
| Turntable size | D=1800mm, H from 490mm |
| Film carriage | Driven pre-stretch carriage, stretch ratio up to 300%. Auto film feeding, cutting and pressing |
| Tower | Double chain design. Lifting speed adjustable |
| Control system | PLC |
| Weight | 1000kgs |
| Dimension | 300mm*200mm*2650-3650mm |
| Power | Turntable 1.1kw; Film carriage 0.37kw; Tower 0.37kw; Conveyor 0.55kw 380V 50HZ 3Phase |
| Pneumatic system | 0.6-0.8 Mpa 1000ml/min |
New Automatic Pallet Packing Machine
