New Function: Load Cell Testing Instrument and Sensor Testing Tools
Basic Info
| Mounting Type | simple |
|---|---|
| Description | other |
| Model Number | HY-LCT |
| place of origin | China |
| Brand Name | YEAHEVER |
Product description
?
| NAME | NEW functionLoad cell |
| TYPE | HY-LCT |
?
(Stop production)
1.Overview
Test instrument is a universal portable test device,mainly for various types of analog load cells,digital load cells,analog weighing indicators, big screen display and on-site troubleshooting for some interfaces.
Suitable for the weighing service person at the scene to solve the problems,suitable for weighing sensor manufactures to make factory inspection
?
2.Main features

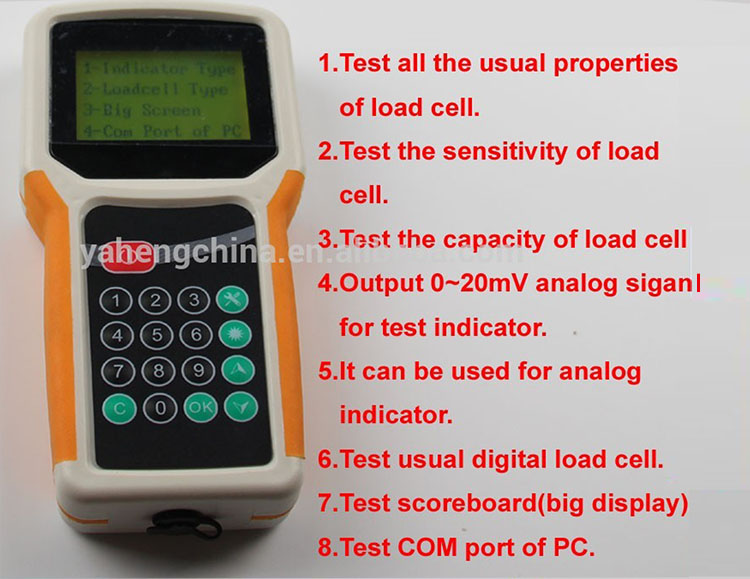

??Test the capacity ,sensitivity and output signal of analog sensor? (in
microvolt).And conversion to display the current actual weight, used to
judge the performance of analog sensor;
?
For example, zero output, stability,linearity and others parameters.More
accurate, more intuitive, eliminated the traditional by multimeter to?
measure? the input and output resistance method;
?
??Check the digital sensors AD code,and conversion display the current
actual weight,used to judge the relative performance of digital sensors,
such as the over output,stability,linearity and others parameters;
?
? It can automatically read or set the digital sensor address,zero setting and
calibration operation for full capacity.(calibration function for VIP users);
??Decimal point can be set and display the division value and filtering parameters, used as a conventional analog instrumentation;
??It can output 0-20mv analog signal,1/4000 precision.For detecting or ?calibration traditional analog indicators.
??Through RS232 to test the big screen display is normal or not.compatible with a variety of the communication protocol of big screen display from different manufactures(Yaohua and Qiuhao) and continuous improvement
??Test the computer serial port is damaged or not.
?
3.Instrument ?Appearance
External Dimension:???????????????? 210mm×100mm×35mm
Weight:?????????????????????????????? ??? 550g

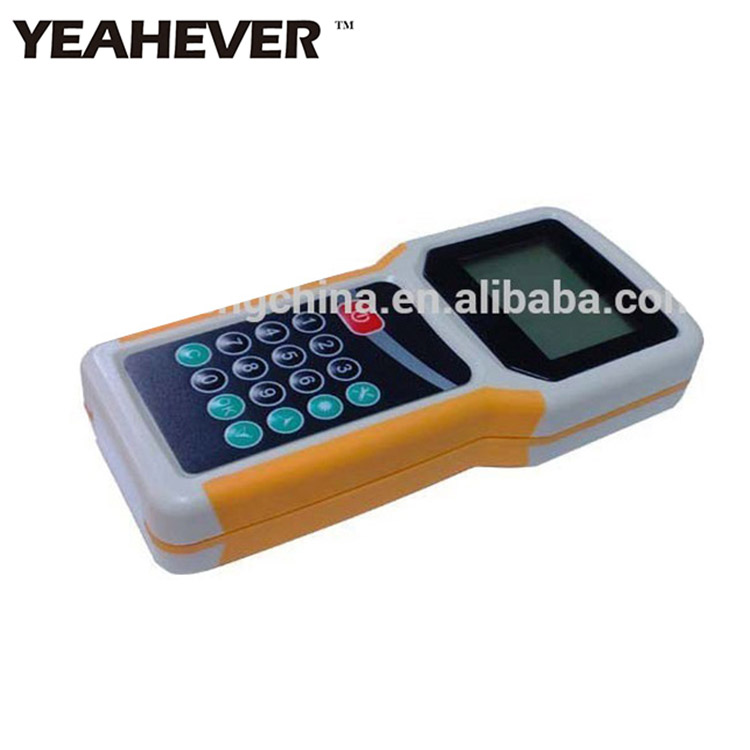

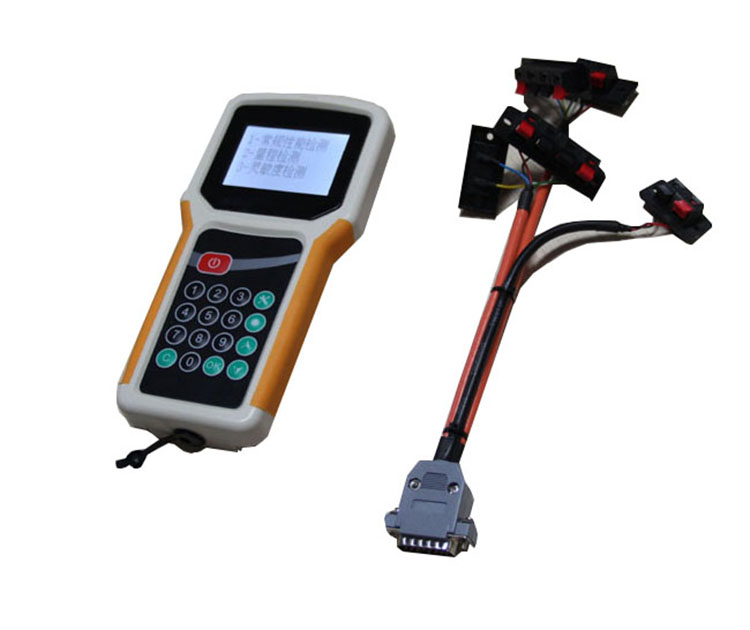

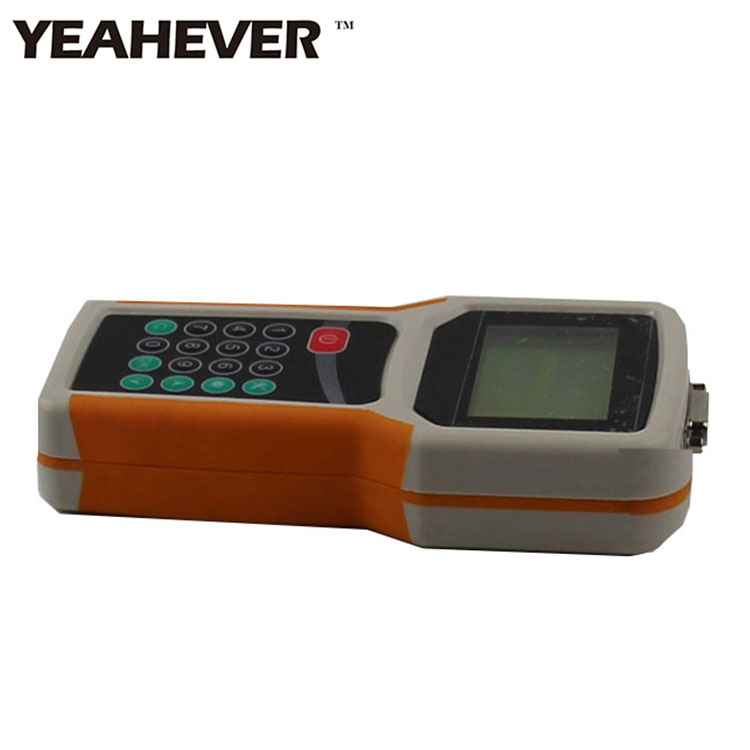

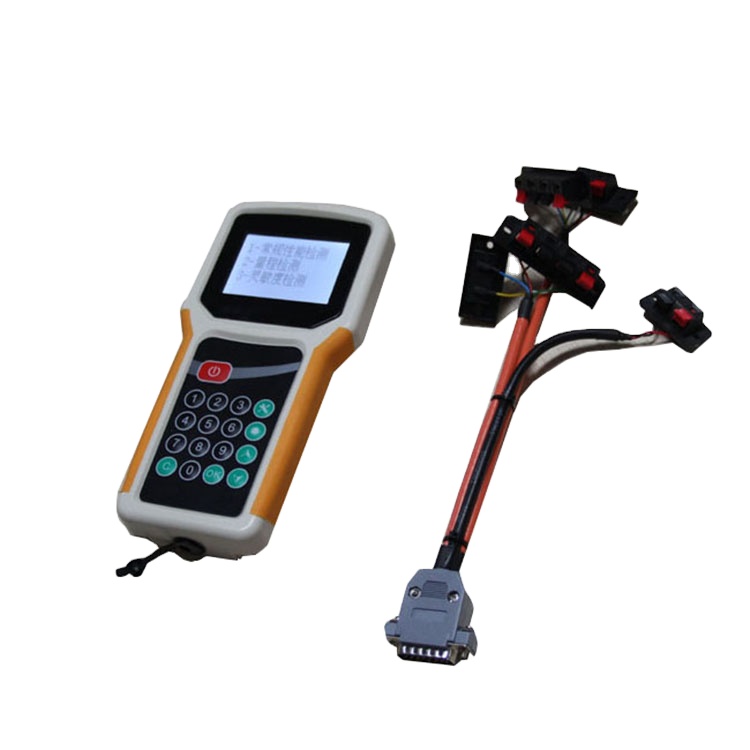

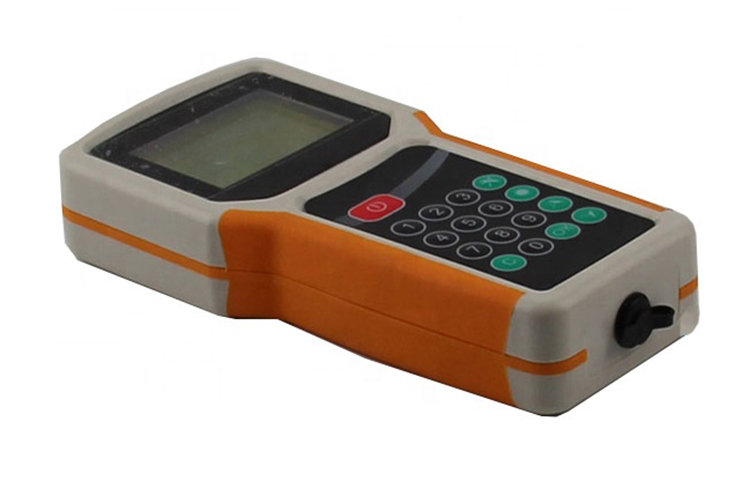

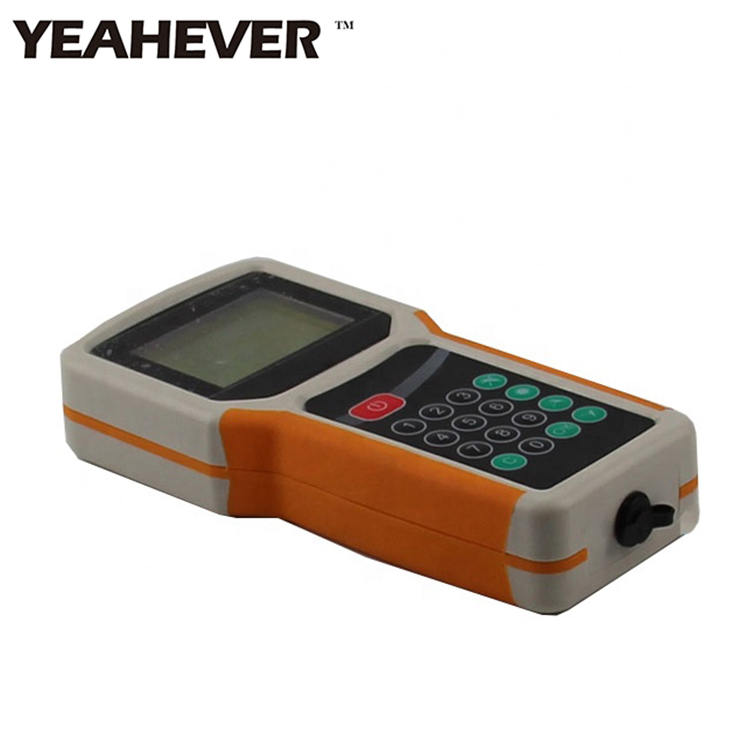

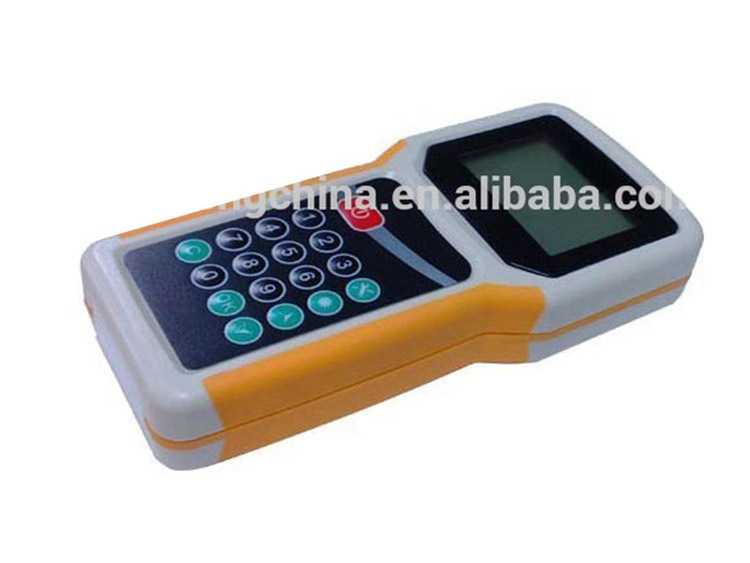

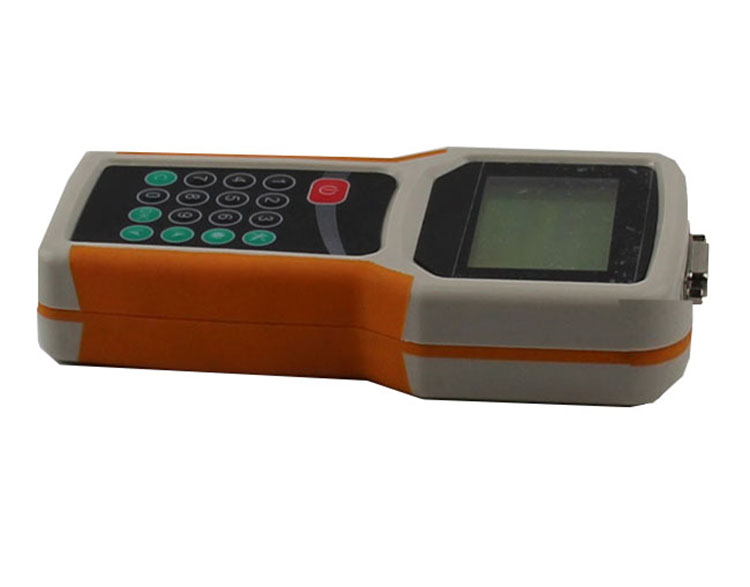

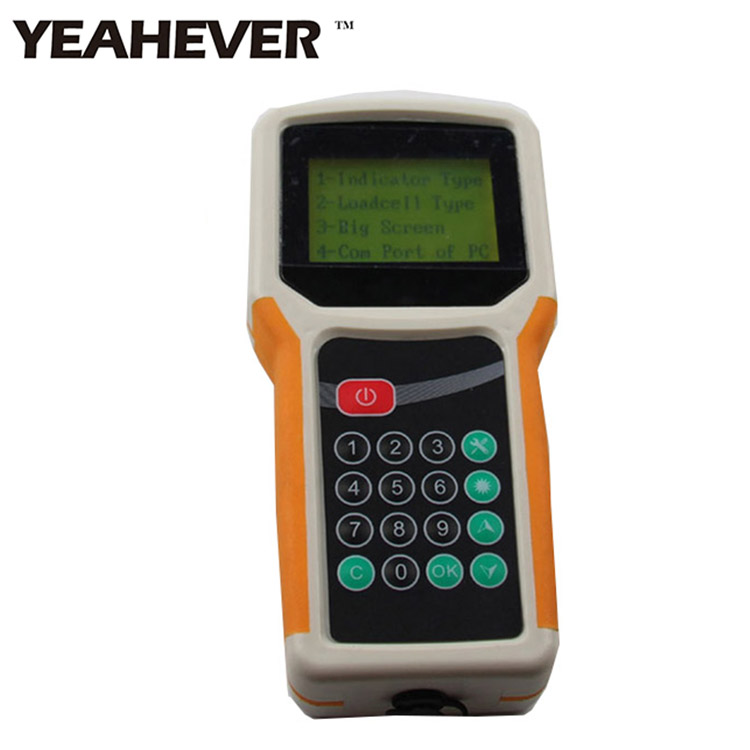

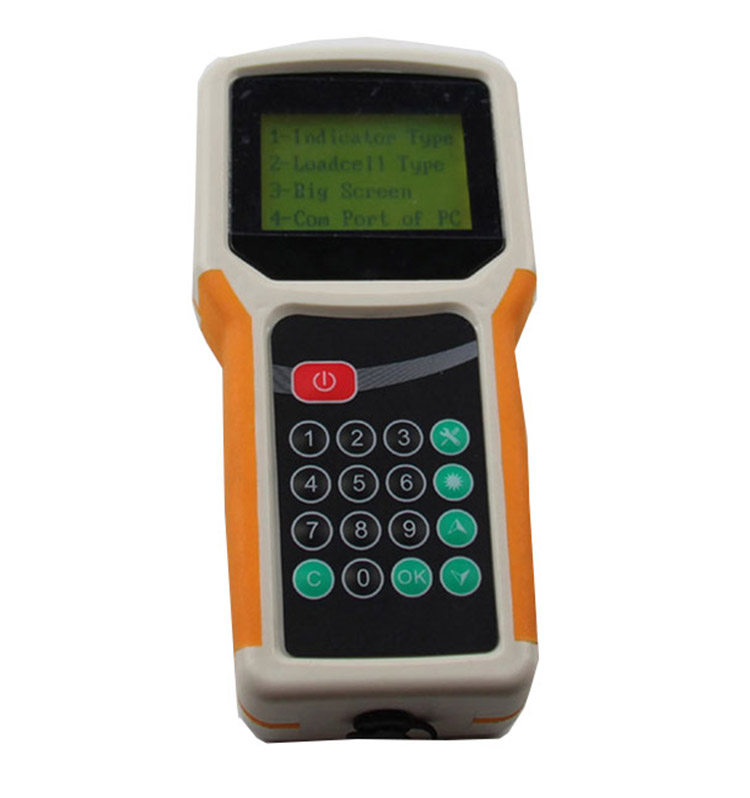

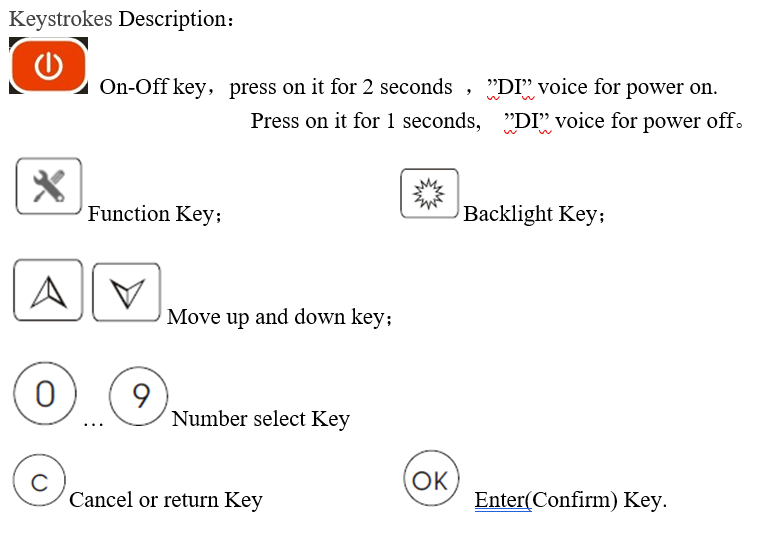

Exterior photo:????????????????? ??? see? picture 1
?
Interface:???(DB15 wire interface)
?
| ? | Signal | Instruction |
| 1 | VCC7.4V | Digital load ? cells Power+ |
| 2 | R- | R-,connect 6 ? wire digital load cells’s T- |
| 3 | R+ | R+,connect 6 ? wire digital load cells’s T+ |
| 4 | T+ (485A) | T+,connect 6 ? wire digital load cells’s R+ |
| Or 4 wire digital load cells’s 485A | ||
| 5 | T- (485B) | T-,connect 6 wire digital load cells’s ? R- |
| Or 4 wire digital load cells’s 485B | ||
| 6 | RXD | RS232 receive,connect to TXD port of PC |
| 7 | TXD | RS232 send,connect to PC or RXD port of big ? screen display. |
| 8 | GND | Digital load ? cell power-/GND |
| 9 | E- | E-,test for ? analog load cells/GND |
| 10 | S+ | S+,test for ? analog load cells |
| 11 | S- | S-,test for ? analog load cells |
| 12 | E+ | E+,test for analog load cells |
| 13 | Output V+ | 0-20mV signal ? output+( A model) |
| 14 | Output V- | 0-20mV signal ? output-( A model) |
| 15 | GND | GND (A model) |
?
?
1.Plastic box for weighing indicators;Standard carton for load cells;or request by client.
2.Delivery time according to the order quantity.
??
Do not use the wireless load cell in explosive and unsafe place. The wireless range will be effective when in different weather .
?
????Company main products: wireless communication module , wireless , wireless loadometer weighing instrument / platform scale weighing system , direct explicit electronic crane scale , wireless electronic crane scale , wireless infrared remote control dynamometer , axle load scales , sensor detecting instrument , intelligent weighing control software , unattended weighing system and other products
?
?
