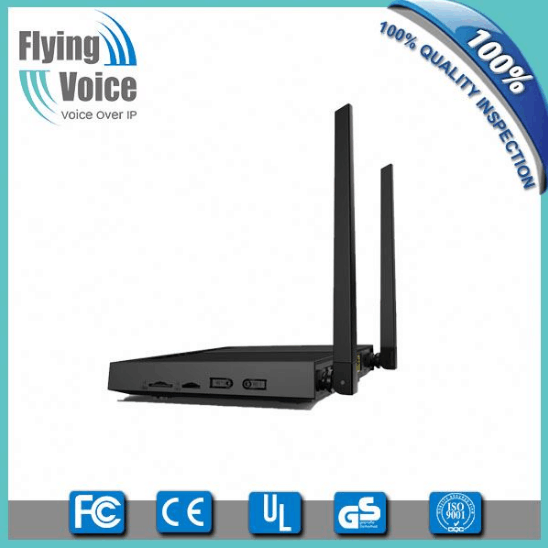

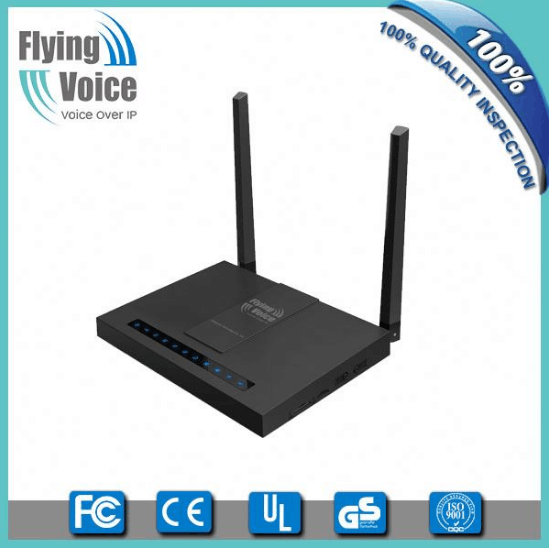

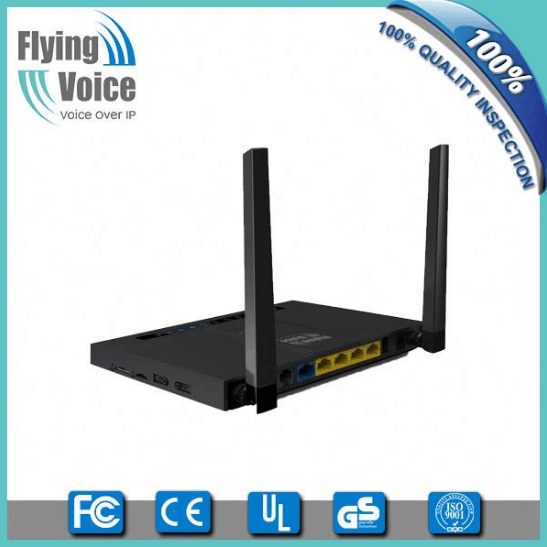

newest!4-G LTE sip proxy wifi gateway /server voip gateway with openvpn FWR7202
Basic Info
| Model No. | FWR7202 |
|---|---|
| Type | Wireless |
| Network Site | Border Router |
| Transfer Rate | 10/100Mbps |
| Firewall | Firewall |
| Application | SOHO |
Product description
Product Description
? 4G-LTE
? 5 10/100M RJ45 ports, 2 FXS RJ11 ports
? 5dBi external antenna
? 2.4GHz 300Mbps Wi-Fi
? Hardware NAT (HNAT) engine with 100Mbps NAT/NAPT speed
? Rich QoS capability in wired and wireless
? Real time FAX over IP via T.38 and T.30 FAX with G.711
? PESQ is above 4.3 in G.711, PESQ is above 3.7 in G.729
? Auto-Provisioning TFTP/HTTP/HTTPS, TR069, SNMP
|
Hardware Features
|
|
| Interface |
1 RJ-45 for WAN port (Ethernet 100 Base-T) 4 RJ-45 for LAN port (Ethernet 100 Base-T) 2 RJ-11 for FXS port 2.4GHz(IEEE802.11 b/g/n) SIM Card 4G -LTE |
| Antenna |
1 internal LTE antenna 1 exposed LTE antenna 1 internal wireless antenna 1 exposed wireless antenna |
| Power Supply | AC Input : 100-240v, 50-60Hz; DC Output: 12V, 1.5A |
| Environmental |
Operation Temperature: -5~45 Degree C Storage Temperature: -25~85 Degree C Relatively Humidity: 10%~90% No Condensing Shock: Up to 75cm Drop upon package |
| Dimension | (L)188×(W)136×(H)26mm |
| Unit Weight | 340g(without package) |
|
Software Features
|
|
| Audio Codec Features |
G.711 (A-Law, u-Law) with PESQ above 4.3 G.729 with PESQ above 3.7 Adaptive Jitter Buffer Management Voice Activity Detection Comfort Noise Generation Echo Cancellation T.30 FAX with G.711 Real time FAX over IP via T.38 |
| Protocols |
SIP V2.0 (RFC 3261, 3262, 3263, 3264) Backward compatible with RFC2543 Session timer (RFC4028) SDP (RFC2327) RTP/RTCP (RFC823/903) NAPTR for SIP URI lookup (RFC2915) STUN (RFC2030) ARP/RARP (RFC 826/903) SNTP (RFC 2030) DHCP/PPPoE HTTP Server for Web Management TFTP/HTTP for Auto Provisioning Message Waiting Indicator (RFC3842) DHCP Option Codes for SIP (RFC3361) DNS/DNS SRV (RFC1706 and RFC 2782) IEEE802.1Q VLAN/802.1p and IP DSCP |
| Management |
Firmware Upgrade Web Management Interface IVR-driven Management Interface Local and Remote Syslog (RFC3164) Auto Provisioning SNTP Time Synchronization Multi User Level SNMP v2 Telnet TR069 System Log: local log and remote log |
| Wireless |
802.11 b/g/n 4 SSID per Radio Static WEP(64/128bit) Dynamic WEP(64/128bit) AES(CCMP/TKIP) MAC certification WEP certification WPA-PAK/WPA-PSK(2.0) WPA/WPA2 AP Isolation and MBSSID AP Isolation WMM WDS WPS Station list Radius certification and billing MAC Filter(different from wired MAC Filter) |
| Call Features |
3-way conference Call hold Call forwarding Call Transfer Call waiting Caller ID and CWCID DTMF Relay: In-band, Out-band and SIP INFO QoS Layer 3 Call Log CID/CWCID Dial Plan DTMF Mode: Inband, outband and SIP Info |
