NM Medium Duty Slurry Pump

  • $3500.00

    ≥1 Piece/Pieces

Options:

  • Drvie Type: ZVz/CRz/CV/DC
  • Power: Motor / Diesel
  • Discharge Size: 8 inch
  • Capacity: 540-1228m3/h
  • Head: 15-61m
Get Latest Price
You might also like
8/6 high capacity Slurry Pump
8/6 high capacity Slurry Pump

$10000.00

1 Piece/Pieces (MOQ)

AH metal pump parts
AH metal pump parts

1 Piece/Pieces (MOQ)

NM Medium Duty Slurry Pump
NM Medium Duty Slurry Pump

1 Piece/Pieces (MOQ)

NP series WN Dredging Pumps
NP series WN Dredging Pumps

1 Piece/Pieces (MOQ)

NP 2500 S Drilling Pump
NP 2500 S Drilling Pump

1 Piece/Pieces (MOQ)

NP series Master Mud Pumps
NP series Master Mud Pumps

1 Piece/Pieces (MOQ)

Basic Info

Model No.
Brand Name NAIPU
Applicable industry Energy &Amp; Mining, Manufacturing Plant, Food &Amp; Beverage Factory, Construction Works

Product description

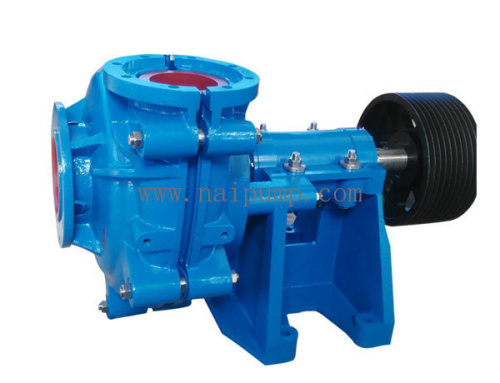

Naipump® NM Pumps are cantilevered, horizontal and centrifugal slurry pumps with double casing. They are designed for pumping medium concentration slurrie, widely used in coal washer processing, handling with the fine ore and tailings in metalmine, handing combined bottom and fly ash in a thermal power station etc.

Design Features
1.Heavy duty structure with through-bolt design, easy maintenance and short downtime
2.All impellers and liners are available in alloy or elastomer materials.
3.Interchangeability of seal arrangements – Packing, Centrifugal or Mechanical seals may be fitted to any sized pump
4.Cartridge-style bearing assembly can be maintained in a clean environment without disassembling the pump for reliable operation and extended bearing life
5.The discharge direction can be oriented to any eight positions at the interval of 45 degrees;
6.This pump can be motor or  diesel driven.

Typical Applications
Iron Ore Dressing Plant
Copper Concentration Plant
Gold Mine Concentration Plant
Molybdenum Concentration Plant
Potash Fertilizer Plant
Other Mineral Processing Plants
Alumina Industry
Coal Washery
Power Plant
Sand Excavation
Building Material Industry
Chemical Industry
Other industries

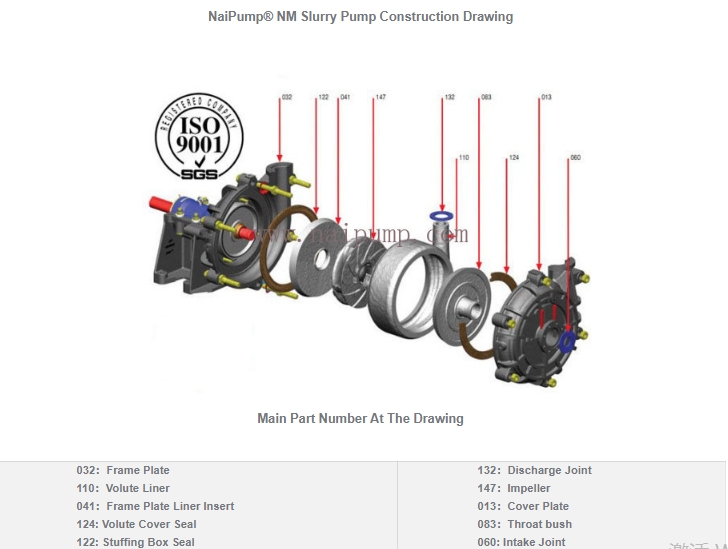

Construction Drawing

NM Medium Duty Slurry pump-construction drawi
Certification

Quality Management System Certificate-2024Environmental Management System Certificate-2024

Naipu® History

1981~1999  Shijiazhuang Pump Work Factory got license produce Warman Pumps,KSB KWP, RITZ,Kubota,coordinate produce OEM Goulds,Magnum,Russia ZSP

2002~ Shijiazhuang Pump Work Factory was closed down and the brands production license expires at the same time.After,workers build new factory called Naipu® Pump,and design new Naipu® NA,VS,VF,NE,NF,NH,NL,NM etc series slurry pumps.

2003~2005  Naipu® Pump take part in some important projects in the national economy,such as Ti-Ni ore Taiyuan,Gold Mine Heihe,Power Station Beijing,etc.

2005~2015  Naipu® Pump develop and devoted to be a highly responsible and qualified supplier to service Global Customers.Successful design OEM produce Naipu® NC,NI,N2500,NX,N3175 mud and chemical pumps,hydrocyclone,water pumps.

2015~2020  Naipu® Pump bulid new environmentally friendly factory which workshop 60,000 m2,prefessional workers 200,manufacturing equipments 110 sets,Annual production capacity 8,000 set pumps,8,000 tons spares.

2021~ Naipu® Pump will continue to be pragmatic and enterprising,and serve every customer well.
