OADM(Optical Add Drop Multiplexer) Module
Basic Info
| Model No. | FR-6000S-OADM |
|---|---|
| Brand Name | Fiberroad |
Product description
Optical add/drop Multiplexer are available on ITU channel spacing of 100GHz ,20nm they are based on thin film filtertechnology and flexible integration of taps and detectors for acomplete dense wavelength division multiplexing solution.It can be used for CWDM and DWDM optical network.
Key Feature:
- ITU channel spcaing
- Low insertion loss
- Wide pass band
- High Channel Isolation
- High Stability and reliability
- Epoxy-free on Optical Path
Application :
- Channel Add/Drop
- DWDM Network
- Wavelength Routing
- Fiber Optical amplifier
- CATV fiberoptic System
Specification :
|
Parameter |
4 Channel |
8 Channel |
|
|
Channel Wavelength (nm) |
ITU Grid |
||
|
Channel Spacing (GHz) |
100 |
CWDM |
|
|
Center wavelength Accuracy (nm) |
±0.11 |
±6.5 |
|
|
Add/Drop Channel Ripple (dB) |
<0.3 |
||
|
Drop Channel |
Adjacent |
>25 |
>30 |
|
Non-adjacent |
>45 |
>45 |
|
|
Inertion Loss Temperature Sensitivity (dB/℃) |
<0.005 |
||
|
Wavelength Temperature Shifting (nm/℃) |
<0.002 |
||
|
Polarization Dependent Loss (dB) |
<0.1 |
||
|
Polarization Mode Dispersion (ps) |
<0.1 |
||
|
Directivity (dB) (Input to add, Output to drop, add to drop |
>50 |
||
|
Return Loss (dB) |
>45 |
||
|
Maximum Power Handling (mW) |
500 |
||
|
Opterating Temperature (℃) |
-10~+75 |
||
|
Storage Temperature (℃) |
-40~+85 |
||
|
Package dimension (mm) |
ABS Box |
L100 x W80x H10.5 |
L140 x W115 x 18 |
|

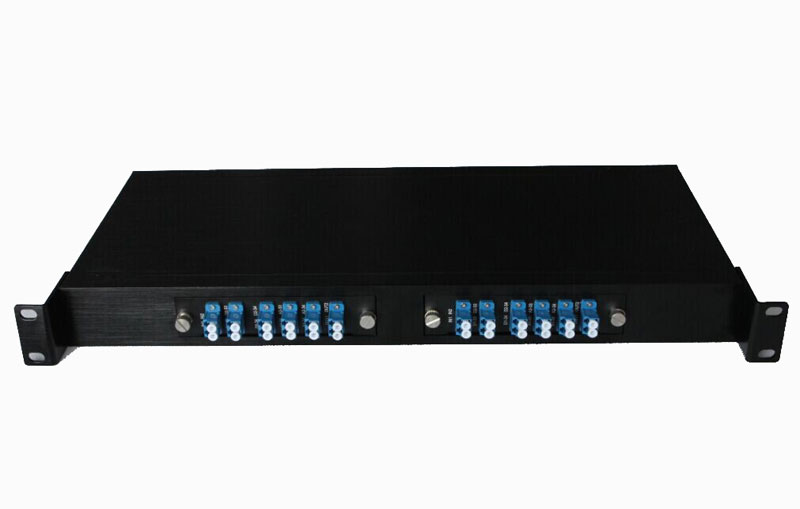

1U Chassis |
440(W)× 44(H)×340(D) |
||
