Product Description

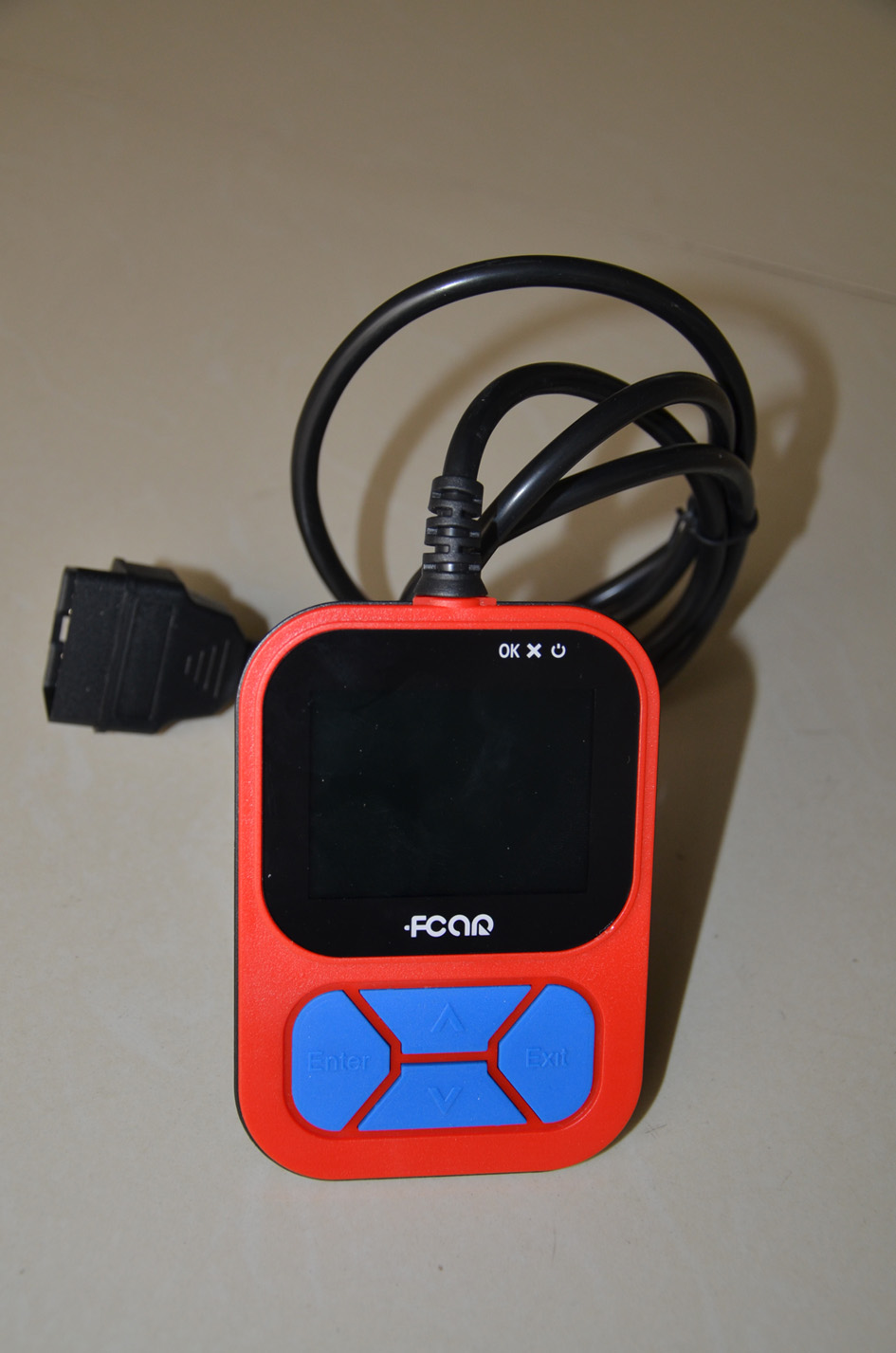

Fcar F501 EOBD/ OBDII Code Reader is an ergonomic designed device to provide quick and easy diagnosis of vehicle engine system. It can easily display Diagnostic Trouble Codes (DTC) definitions and determine the cause of [Check Engine Light ( MIL)" when used to diagnose OBDII/EOBD compliant vehicles, which enables vehicle owners or technicians to enjoy easier diagnosis experience.
Features
◆Support gasoline cars (1996~2013) which have OBDⅡ/EOBD and are used in areas like America, Europe and Asia;
◆Check fault code general (P0.P2.P3.U0) and particular cars (P1.P3.U1);
◆Display definitions of real-time data and storage and confirm [check the reasons of Malfunction Indicator Lamp (MIL) of the engine;
◆Clear malfunction fault code and reset historical storage, and turn off the MIL of the engine;
◆Display freeze frame data;
◆Retrieve vehicle information (VIN.CIN.CVN)

Functions


◆ Read Stored Codes
◆ Read Pending Codes
◆ Erase Codes
◆Read Freeze Frame
◆Current Data
◆I/M Readiness
◆ O2 Monitor Test
◆On-Board Monitor Test
◆Component Test
◆ Vehicle Information
◆ DTC Lookup


Product Parameters

Screen size
2.8 inch 320×240 LCD
Work voltage
8V ~ 32V
Work current
Typical value <100mA
Connection method

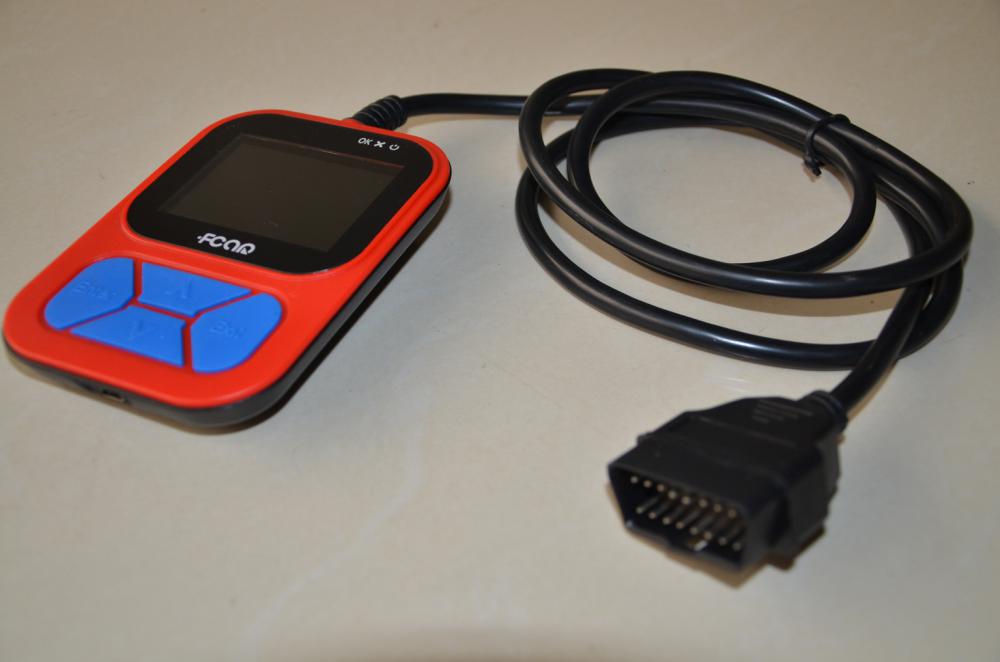

Standard 16-PIN OBD diagnostic connector
Working temperature
0℃~ 50℃
Storage environment temperature
-20℃~70℃
Relative humidity
60%
Product size(mm)
123×88×27
Weight of the main unit
280g
