A 21.5-inch waterproof panel PC is a computer system that is designed to operate in wet or damp environments where water or moisture is present. Industrial panel PC primary function is to provide computing power and display capabilities in areas where traditional computers would be damaged by water or moisture. These panel PCs are commonly used in industrial settings, such as manufacturing plants, food processing facilities, and outdoor locations where weather conditions are harsh. They are also used in marine environments, such as on ships and oil rigs, where water and salt can damage electronics. The waterproof feature of the panel PC ensures that it can withstand exposure to water and moisture without malfunctioning or being damaged.

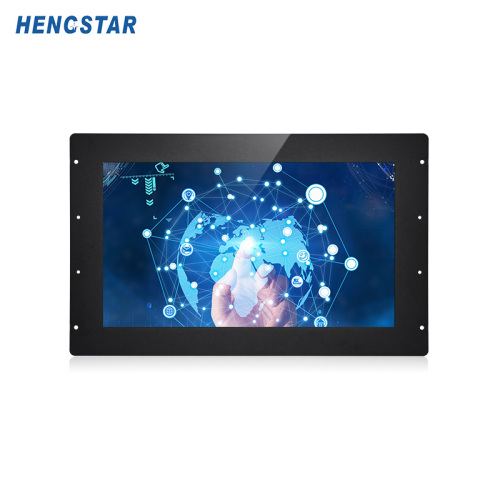

Hengstar 21.5 inch Industrial Windows PC

Key Features:

—— Integrated with low power Intel? Core? i5-4210U Processor, 2.10 GHz,10W

—— Fanless design.

—— 4GB DDR2 RAM.

—— 120GB SSD.

—— 10 Points Capacitance Touch Screen

—— Tempered glass for front panel, rugged and low profile design.

—— Stainless steel front bezel.

—— Wide operational temperature range, -10°C to +50°C.

—— RoHS compliant.

Operation 5ms Quickly Response

Use original capacitive touch screen, touch times reach to thirty five hundred million .high speed transport response high stable,

 touch speed quick and sensitive, Anti high temperature , anti interference, long time lifetime.

Industrial Quality LCD Panel

We use the HD industrial A+ screen, 3D digital noise reduction, picture stable, display color is pure and ture

Wide Temperature

Adapt to the working temperature -10°C 60°C Support when power ups open monitor,

it equip with 365 days stand by all the day working at any place stablely.

Waterproof interface

All connectors adopt IP65 design and Support MIL-STD-810G NENA4 / DB38999 standard,easily connectmounted the Rugged display signale , avoid dust, waterproof,avoid vibration.

Specifications

Item No.	HSPC-2155-ATPC
LCD Screen	Size	21.5’
	Aspect Ratio	16:09
	Pixel Pitch	0.24795*0.24795 mm
	Resolution	1920*1080 (WSUVGA)
	View Angle	170° (H)/160° (V)
	Brightness	450/1000 nits (Optional)
	Contrast Ratio	1500:01:00
	Colors	16.7M(8Bit)
Touch Screen	Screen	10 point Capacitance Touch
	Active Area	479.84*271.30 mm
	Viewing Area	477.60*269.20 mm
	Screen Thickness	3. 95mm
	Resolution	16384*9600
	Response Time	Below 10ms
	Light Transmission	>80%
	Touch Media	Finger
	Durability	More than 10,000,000 single touch
	MTBF	>60,000 hours
PC System	Intel? Core? i5-4210U Processor, 2.10 GHz	Quad Core Quad thread 2.1GHz (Optional)
		2M L2 cache
		35W low TDP
	Chipset	Intel? Core? i5-4210U Processor, 2.10 GHz
	Memory	4GB DDR3L
	I/O Interface	2 *USB 2.0, 2 *USB 3.0, 2*(RS232)
		1*4PIN 12VCD
		2*FAN
		1*MINI-SATA
		1*MINI-PCIE
		1*SATA
		1*SIM
		1*LVDS/eDP
	Sound Card	ALC662  chip,  6-channel sound card,front Audio pin
	Hardware Detect	ITE8712, CPU detect Fan, system fan,voltage, temperature, etc.
	Net Card	10~100~1000M adaptive network card
	H.D.D	SSD 32GB / 64GB / 128 GB
	Power requirement	+12V,24V
	Rear Panel I/O	1*RJ-45
		2*2.0USB, 2*3.0USB ports
		1*DC (in)
		1*HDMI AUDIO-OUT
		AUDIO-MIC
	s Speaker	Power: 5W*2
Quality  Approval	Fire-resistance	UL-94HB
	Chemical-resistance	Active area of Touch is resistant for acetone, toluene,  butanone, acetylacetone,  methanol, acetic acid, gas, coal oil, and Vinegar.
	Certificate	RoHS, FCC (Part 15) CE (EN55022 and EN55024)
Environments	Temperature	Operation: -10°C ~ 60°C
		Storage: -20°C ~ 70°C
	Humidity	Operation:10%~90% RH
		Storage: 5%~95% RH
Power Supply	Power Input	12/24V DC (Optional)
	Power Consumption	Approx. 65 Watts
Mount	VESA mount
Accessories	AC Adapter, Power Cord

A Variety of Installation Methods

The standard VESA hole supports rack-mounted, embedded, panel, and wall-mounted installations.

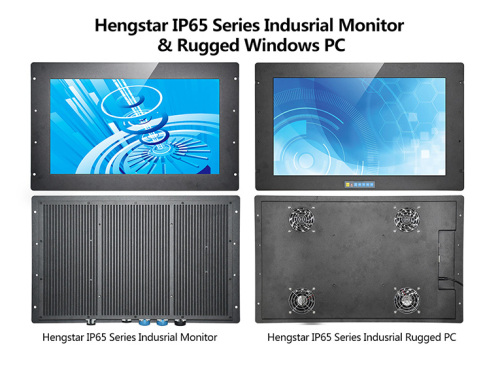

IP65 Series Indusrial Monitor
& Rugged Windows PC

It supports complete machine waterproof and panel waterproof, and the size can be option.

Application

panel pc, industrial panel pc, industrial panel pc ip65, industrial, touch panel pc, rack mount panel pc, rugged panel pc, all in one panel pc
