Open frame touch panel Pc 32 to 55"
screen size:
- 32"
- 43"
- 49"
- 55"
Basic Info
| Model No. | GT-TC2C |
|---|---|
| place of origin | China |
| product status | New |
| Panel type | Tft |
| Warranty period (years) | 1-Year |
| Graphics card type | Integrated Card |
Product description
GreenTouch's touch panel PCs combine advanced computing power with a range of hardened displays,providing a rugged
solution for human/machine interface (HMI),industrial control,factory automation,kiosk systems,retail terminal,IoT applicat
-ions,transit inquiry and medical intelligent control. These 2C series(9.7” to 55”) industrial touchscreen all-in-one adopts 10-
point projection capacitive touch technology and modular design,both powerful functions and multiple configuration options
are availableand,has cross-environmental use the versatility,can meet the needs of continuous public use.They have passed
CE,FCC,RoHS,CCC,UL(power adapter),HDMI certifications,etc.
Features
■ 9.7" to 55" available for different applications;
■ Supported OS:Windows,Linux,Android;
■ Intel Core Motherboard,optional I3,I5,I7 processors;
■ Pure flat front panel,adopt A+grade industrial screen;
■ Capacitive Touch Screen,10-point multi touch;
■ IP65 waterproof and dustproof,IK08 explosion-proof compliant front panel;
■ Dense ventilation holes on the back,efficient heat dissipation;
■ Embedded,wall-mounted and desktop installation available.

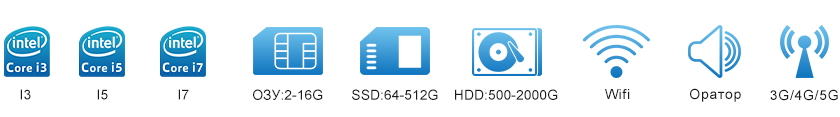

Configuration
CPU: Storage: Module:

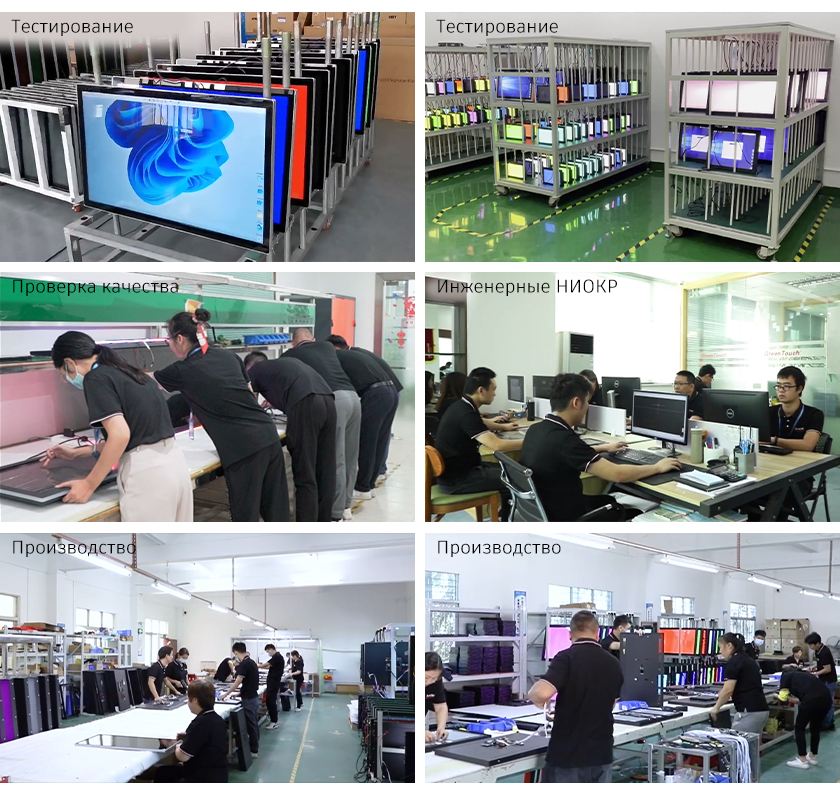

10,000 square meters of production workshop,15 years of experience in factory manufacturing touch screen displays.
Specifications
| Size / Panel Type | 32”,43",49",55" Open frame touch all-in-one |
| Display Size(W*H*T) | 749.1x452.7x65mm;1007.3x595.6x69mm;1141.9x672.2x71mm;1277.7x748.5x70mm |
| Resolution | 1920 x 1080 |
| Brightness | 380~400cd/m² (Option: 1000cd/m²) |
| Contrast Ratio | 1200 : 1 |
| Response Time | 8 ms |
| Backlight | LED Backlight Unit |
| Colors | 16.7M colors |
| Viewing Angles | 178°/178° |
System
| Motherboard | Intel Core ,Optional I3,I5,I7 |
| Wifi | Built-in 802.11b / g / n wireless, external two 3DB omnidirectional antenna |
| Sound Card | Onboard Realtek ALC662HD audio decoding |
| RAM | Optional 2-16G |
| MSTAT SSD | Optional 64-512G |
| HDD | Optional Addition of 500G, 1T HDD |
| Graphics | Onboard Intel HD graphics |
| Speakers | Built-in 2*3W Speakers |
| Network Card | 1 Road Onboard Realtek 8111e Gigabit |

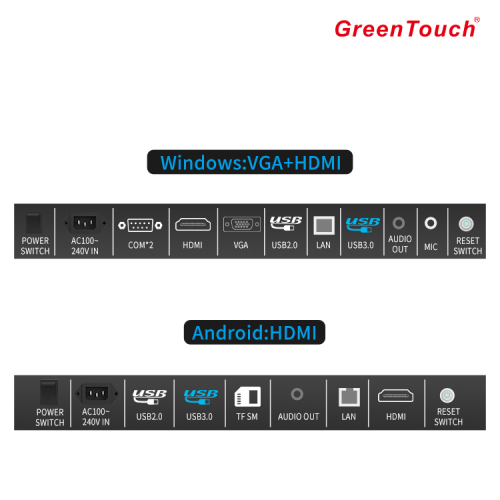

| Display Ports |
VGA,HDMI,4*USB,Audio input,Audio output,2*RS232 |
| Supported OS |
Windows OS(suggest Windows7 up );Linux;Android x86 |
Environment
| Temperature | Operating: 0℃ to 50℃; Storage: -20℃to 60℃ |
| Humidity(non-condensing) | Operating: 20% to 80%; Storage: 5% to 95% |
| Water and dust protection/Explosion-proof | IP65(front)/IK08(front) |
| Mounting options |
200x100MM(32")400x400MM(43"~55") installation,open bracket mounting |
| Agency Approvals | CE,FCC,RoHS,CCC |

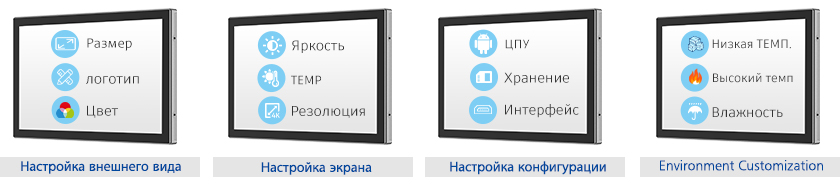

Customization

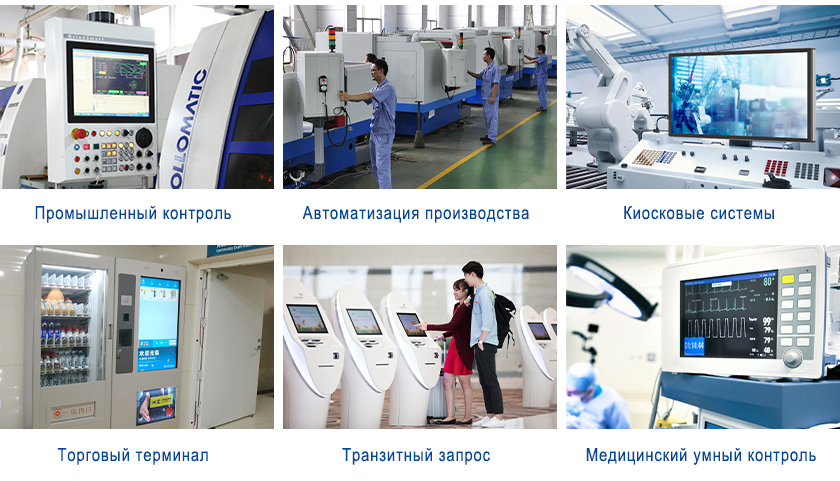

Applications
Open frame touch panel Pc 32 to 55"
screen size:
- 32"
- 43"
- 49"
- 55"
