Open loop Hall current sensor
Options:
Basic Info
| Model No. | THK_ES5S6L-51S |
|---|---|
| place of origin | China |
| use | Electronic |
| Coil structure | Toroidal |

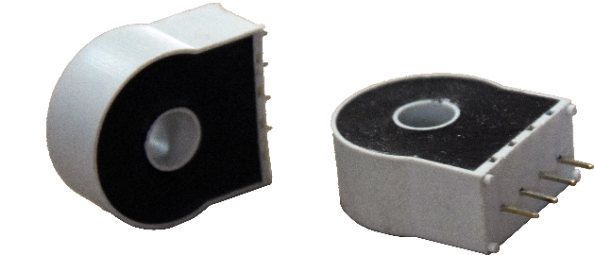

Product description
|
Product introduction： |
Application： |
|
? Power supply: +5v DC ? Hall effect principle - open loop current sensor; ? The primary and secondary of the current sensor are insulated and can measure DC, AC, pulse, etc; |
? Application on Inverter ? AC/DC variable speed drive ? Switching power supply (SMPS) ? UPS uninterruptible power supply ? Photovoltaic current detection application |
Electrical characteristics：
|
Parameter |
Symbol |
THK15ES 5S6L-51S |
THK20ES 5S6L-51S |
THK25ES 5S6L-51S |
THK50ES 5S6L-51S |
THK100ES 5S6L-51S |
|
Rated current |
IPN(A) |
15 |
20 |
25 |
50 |
100 |
|
Measuring range |
IP(A) |
0～±48 |
0～±64 |
0～±80 |
0～±160 |
0～±250 |
|
Overload current |
IPM(A) |
300 |
||||
|
Output voltage |
VO(V) |
2.5±0.625*(IP/IPN) |
||||
|
Offset voltage |
VOE(mV) |
＜±10 |
||||
|
Working power supply |
VC(V) |
±5V DC±5% |
||||
|
Insulation voltage |
VD(V) |
50/60Hz，1min，4kV；RMS |
||||
|
Insulation impedance |
RIS(M?) |
500VDC,＞1000 |
||||
General parameters：
|
Project |
Condition |
Date |
Unit |
|
Accuracy XG |
@ IPN,T=25℃ |
<±1.0 |
% |
|
Voltage offset temperature drift VOT |
@ IP=0,-40～+85℃ |
<±0.07 |
mV/℃ |
|
Amplitude temperature drift VOS |
@ IP= IPN,-40～+85℃ |
<±2.0 |
mV/℃ |
|
Linearity εr |
|
≤0.5 |
%FS |
|
Follow accuracy di/dt |
|
＞50 |
A/μs |
|
Response time tra |
@ 90% of IPN |
<1.0 |
ms |
|
Operating bandwidth BW |
-3dB |
DC-50 |
kHZ |
|
Working temperature TA |
|
-40～+125 |
℃ |
|
Storage temperature TS |
|
-55～+150 |
℃ |
|
Static power consumption IC |
|
12+Is |
mA |
|
Product weight m |
|
12 |
g |
|
Shell material |
PBT material containing 30% glass fiber, flame retardant grade: UL94- V0; |
||
|
Standard |
IEC60950-1:2001 EN50178:1998 SJ20790-2000 |
||

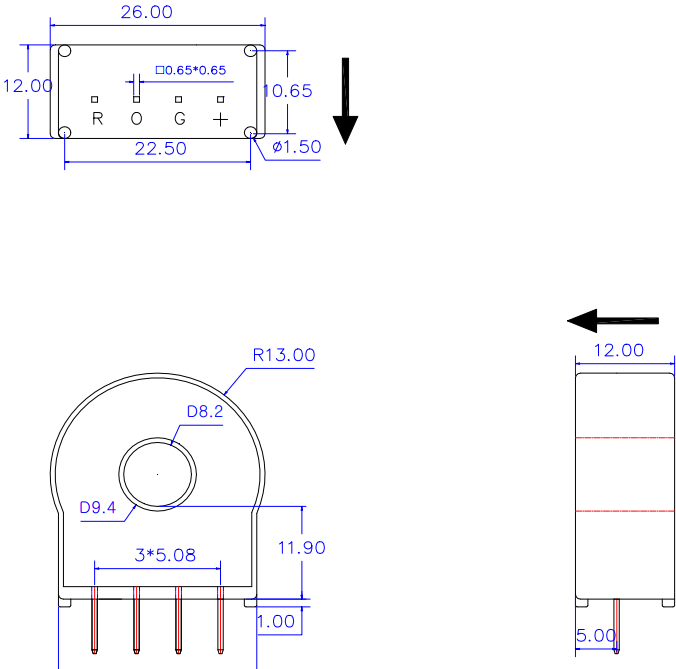

Structural drawing: (mm)

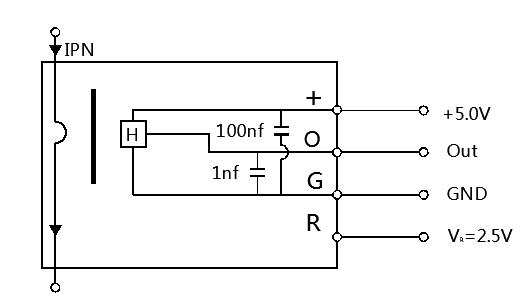

Connection diagram:
Remarks:
1. When the measured current passes through the primary pin of the sensor, there is a corresponding voltage signal output at the output end;(Note: wrong wiring may damage the sensor)
2. Products with different rated current can be designed according to the requirements of customers, and the output voltage of the sensor can be selected;
3. When the busbar is fully filled with holes, the dynamic performance is the best;
4. The temperature of primary conductor shall not exceed 100℃;
