Open Loop Hall-effect Voltage Sensor
Options:
Basic Info
| Model No. | THV_AS5S6 |
|---|---|
| place of origin | China |
| use | Electronic |
| Coil structure | Toroidal |

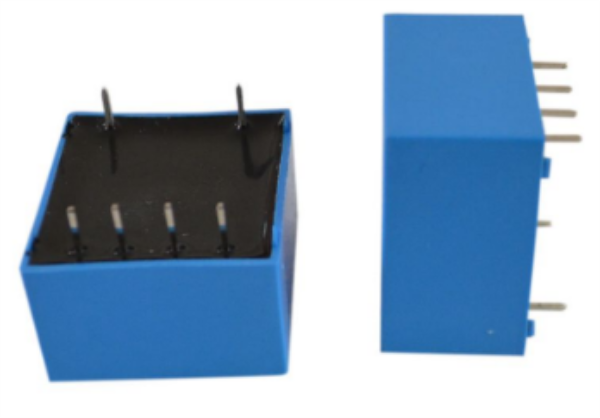

Product description
|
Product introduction： |
Application： |
|
? Power supply: +5V DC ? Hall effect principle - closed loop current sensor; ? The primary and secondary of the current sensor are insulated, which can measure DC and AC voltage; |
? AC/DC variable speed drive ? Switching power supply (SMPS) ? UPS uninterruptible power supply ? Current monitoring and application of induction cooker |
Electrical characteristics：
Parameter
Symbol
THV05AS5S6
THV10AS5S6
Rated current
IPN(A)
5
10
Measuring range
IP(A)
0～±10
0～±20
Measure voltage
VPN(V)
5～±1200
10～±500
Coil turn ratio
Np/NS(T)
2500:1000
1250:1000
Primary coil internal resistance
Rp(Ω)
170
80
Secondary coil internal
resistance
RS(Ω)
60
60
Measure resistance
RM(Ω)
50±0.1%
Output voltage
VO(V)
2.5±0.625*(IP/IPN)
Working power supply
VC(V)
+5V DC±5%
Insulation voltage
VD(V)
50/60Hz，1min，2.5kV；RMS
General parameters：
Project
Condition
Date
Unit
Accuracy XG
@ IPN,T=25℃
<±0.5
%
Offset voltage VOE
@ IP=0,T=25℃
<±20
mV
Voltage offset temperature
drift VOT
@ IP=0,-40～+85℃
<±1.0
mV/℃
Linearity εr
≤0.1
%FS
Response time tra
@ 90% of IPN
<40
μs
Working temperature TA
-40～+85
℃
Storage temperature TS
-55～+125
℃
Static power consumption IC
15+Is
mA
Product weight m
22
g
Shell material
PBT material containing
30% glass fiber, flame retardant grade: UL94- V0;
Standard
IEC60950-1:2001 EN50178:1998 SJ20790-2000

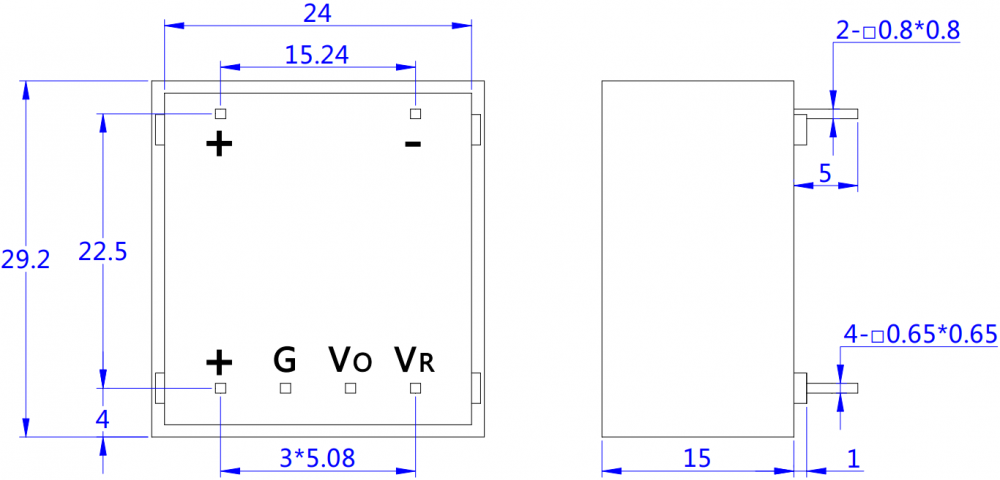

Structural drawing: (mm)

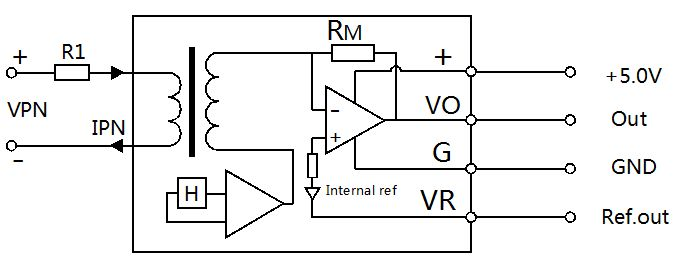

Connection diagram:
Instructions
Primary sampling resistance R1: when testing the rated current, the accuracy of the sensor is the best; Therefore, when selecting the resistance value of resistance, select the resistance value of R1 as much as possible, just so that the primary current after rated voltage conversion is 10mA
For example, the measured rated voltage is VPN=250V
Measurement range (recommended): considering the resistance of the primary coil (in order to reduce the measurement deviation as much as possible, the resistance of the primary coil must be far less than R1) and insulation, the sensor is suitable for measuring the rated voltage of 10 ~ 500V;
Remarks:
When the measured current passes through the primary pin of the sensor, there is a corresponding voltage signal output at the output end;(Note: wrong wiring may damage the sensor)
