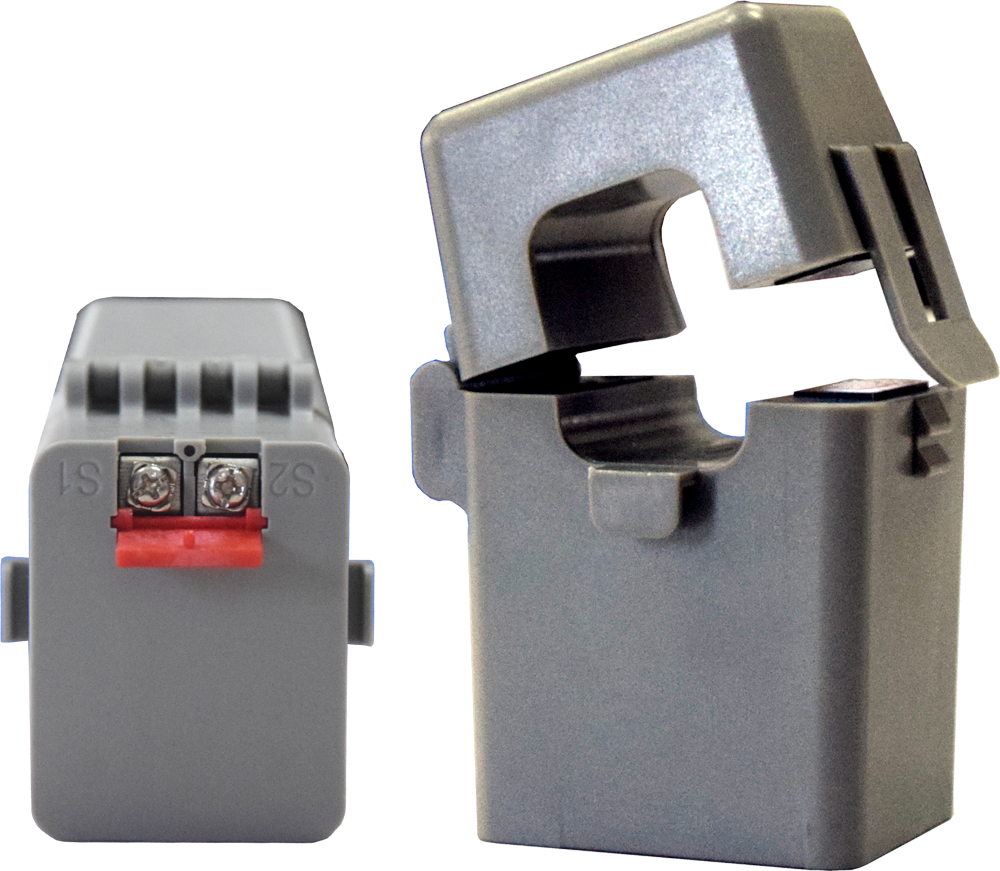

Product features

?　Beautiful appearance and small size；

?　Terminal output, flexible wiring;

?　Beautiful appearance and small size;

?　Split core design, small core loss and high precision;

?　There is no need to disconnect the bus, and the installation is convenient;

?　Snap type opening and closing structure, convenient opening and closing。

Electrical characteristics

?　Maximum voltage of equipment：0.66kV

?　Rated input：0~300A

?　Rated output：5A/1A/mA/mV

?　working frequency：50Hz~60Hz

?　working temperature：-40℃~+85℃

?　Relative humidity: ≤90% at 40℃

?　Power frequency withstand voltage：3000V/1mA/1min(50Hz)

?　Insulation resistance：DC500V/1000MΩ

Overall dimension

Current output type                                                Voltage output type

Technical parameter

(rated secondary current 5A/1A)

Product model	Primary current（A）	load（VA)
		Level 0.5S	Level 0.5	Level 1.0
TYKCT-YJ25	50	/	/	1
	100	/	1	2.5
	150	1	1.5	2.5
	200	1.5	2.5	5
	250	2.5	3.75	5
	300	3.75	5	7.5

(rated secondary current mA/mV)

Product model	TYKCT-YJ25
Rated primary current	0~300A
Maximum continuous current	360A
Rated secondary current	0~100mA
Rated secondary voltage	0~1V
Load resistance	0~10Ω
Accuracy class	0.5s/0.5 Level
