OPS Computer Module Touch

Resolution:

1920*1080
3840*2160

Options:

Special size can be customized

Get Latest Price

You might also like

OPS Computer Module Touch

1 Set/Sets (MOQ)

Basic Info

Model No.
Brand Name	qilong
Warranty period (years)	1-Year
Certification	Rohs, Ccc, Iso9001, Iso 9001:2000, Ce, Fcc
colour	Black
Is there a package	Yes
series	For Business
After-sales service	Call Center And On-Line Technical Support, Free Spare Parts, Repair, Return And Replacement
product status	New
Interface Type	D-Sub, Dvi, Serial, Usb
place of origin	China
Interface Type	Type-c,HDMI,VGA, touch, USB, T-USB and so on
color	Black and silver border optional

Product description

Core features

Dual-mode interface configuration

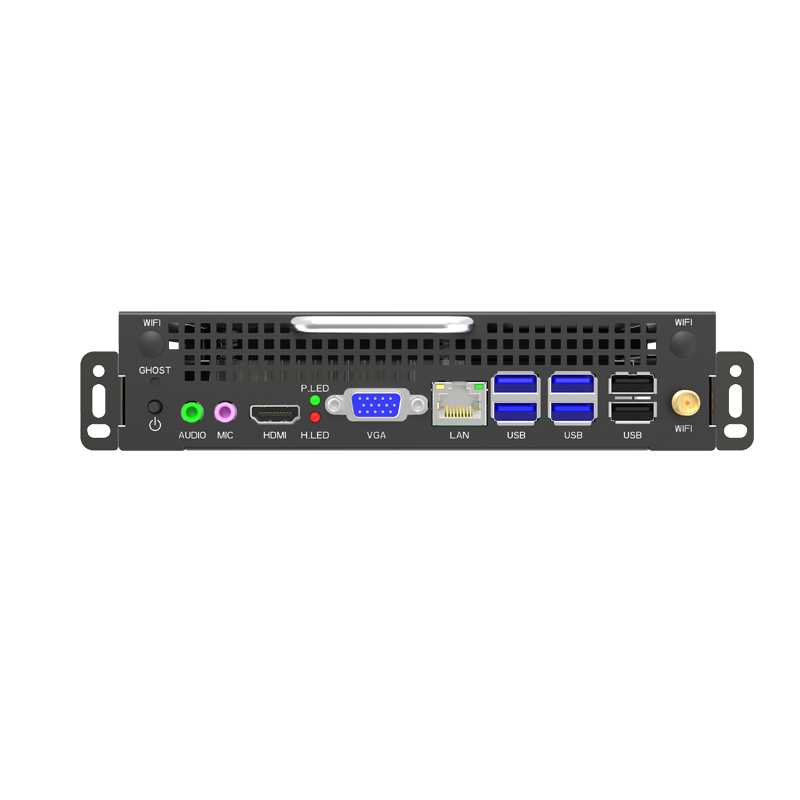

Front VGA+HDMI: compatible with traditional devices (such as old computers, projectors) and high-definition devices, plug and play.

Rear HDMI supports 4K@30Hz: native output of 4K ultra-high-definition picture quality, adapted to 4K monitors/TVs, and uncompressed picture details.

Onboard antenna enhancement solution

Built-in high-gain onboard antenna, optimizes WiFi signal transmission power, maintains network stability in complex environments (multiple devices connected to the Internet, wall barriers), and online video/conferences are not stuck.

Two-level system recovery mechanism

Pre-hard recovery: Actively back up the underlying system driver and key configuration, warn before failure and quickly restore the basic environment.

Healthy recovery: One-click repair of system file damage, virus invasion and other problems, no need to reinstall the system, and restore to factory status within 10 minutes.

Deep adaptation of Intel processors

Support Intel ? Core? series (i3/i5/i7): multi-core performance release optimization, adapted to 4K video editing, multi-tasking office (such as running PPT presentation + real-time annotation + video conferencing at the same time).

Compatible with Intel ? Celeron processor: low power consumption optimization design, suitable for lightweight teaching/conference scenarios (such as PPT playback, web browsing, basic whiteboard writing), energy efficiency ratio increased by 30%.

Processor	System Chipset	Intel? HM87
Processor	CPU Model	I3-4000M<Primary Frequency-2.4GHz> 2 Core 4 Threads I5-4200M<Primary Frequency-2.5GHz> 2 Core 4 Threads I7-4600M<Primary Frequency-2.9GHz> 2 Core 4 Threads
Memory	Technology	1 x SODIMMs DDR3
Memory	Memory	DDR3-4G;DDR3-8G
Display	Front End Output	VGA 1920 x 1080 HDMI 3840 x 2160
Display	JAE End	HDMI 3840 x 2160 4K30Hz
Processor graphics card	Model	CPU integrated graphics
Hard Disk	?SSD	MINI-SATA Solid State Hard Disk Interface
WIFI	Interface	M.2 PCIe 2230
WIFI	Support	Standard 2.4G (optional 2.4+5g dual frequency)
I/O Interface	JAE Connector	1(JAE TX25 80-PIN)
	VGA	VGA 1920 x 1080
	HDMI	3840 x 2160 4K30Hz
	LAN	1x10/100/1000Mbps(RJ45)
	USB	2 x USB3.0 & 4 x USB2.0
	Audio frequency	1 x AUDIO OUT + 1 x MIN IN
Extension Interface	Mini-PCLe(Built-in)	1 x Mini-Pcle 1 x Msata
Power requirements	Input voltage	DC-IN 12-19V Complete machine calculation with CPU power
Physical characteristics	Size	180x 195x 30MM （180x 195x 33MM,180x 195x 42MM-Optional）
Physical characteristics	Shell material	Iron sheet
Dissipate heat	Cooling mode	All aluminum double fan
?	Working temperature	85℃ - -40℃
Environmental	Relative humidity	5% @95℃(non-condensing)
Sdk	Operating system	Windows?7 Windows?10

Jiangsu Qilong Electronic Technology Co.,LTD.is a factory located in China. Specialized in producing Education Interactive Board, such as Interactive conference board, Memory blackboard, Smart blackboard,Training Interactive Board，etc.
