Basic Info
| Model Number | SF |
|---|---|
| Type | ROTARY ENCODER |
| Place Of Origin | Jilin, China |
| Brand Name | ccsanfeng |
| Use | measurement |
Product description

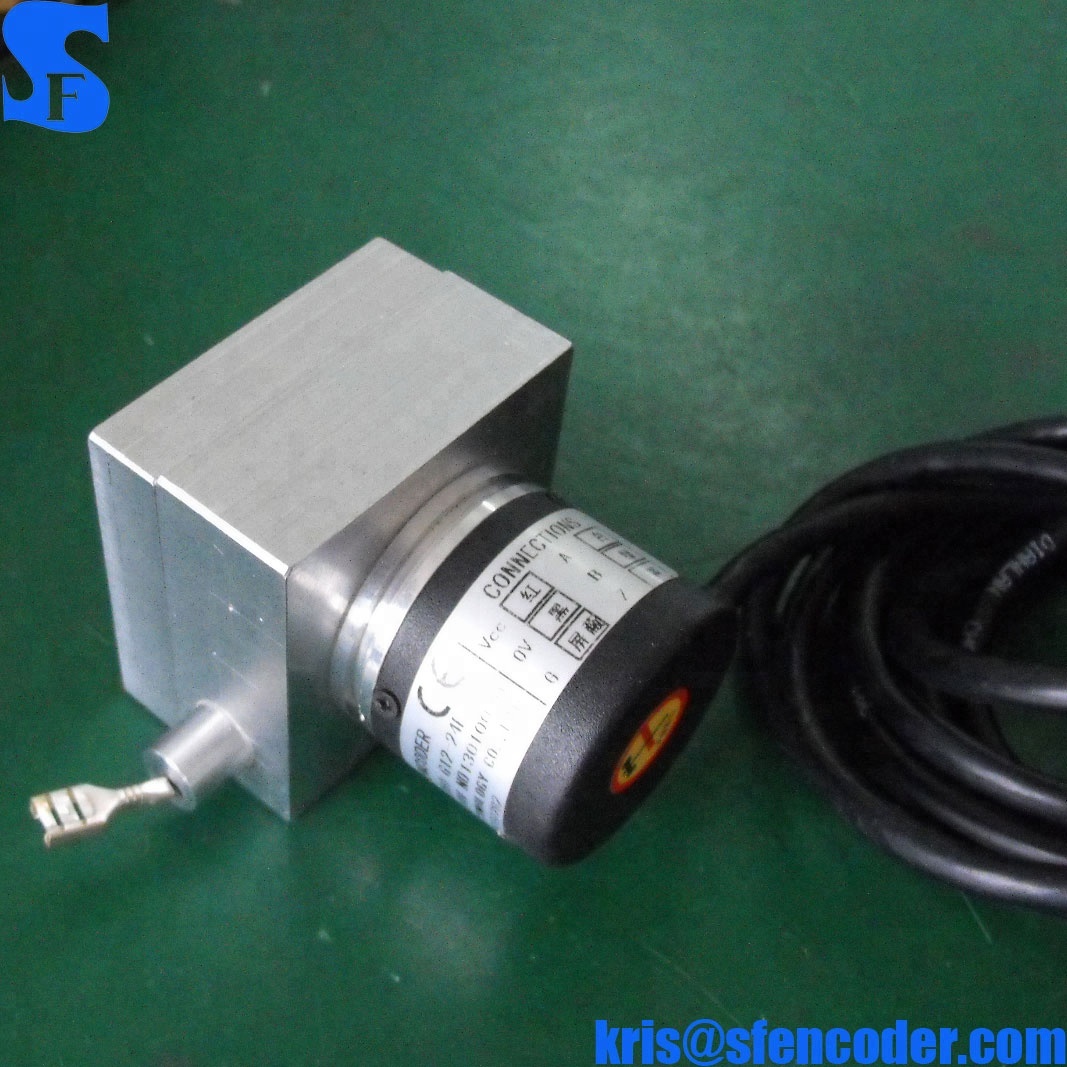

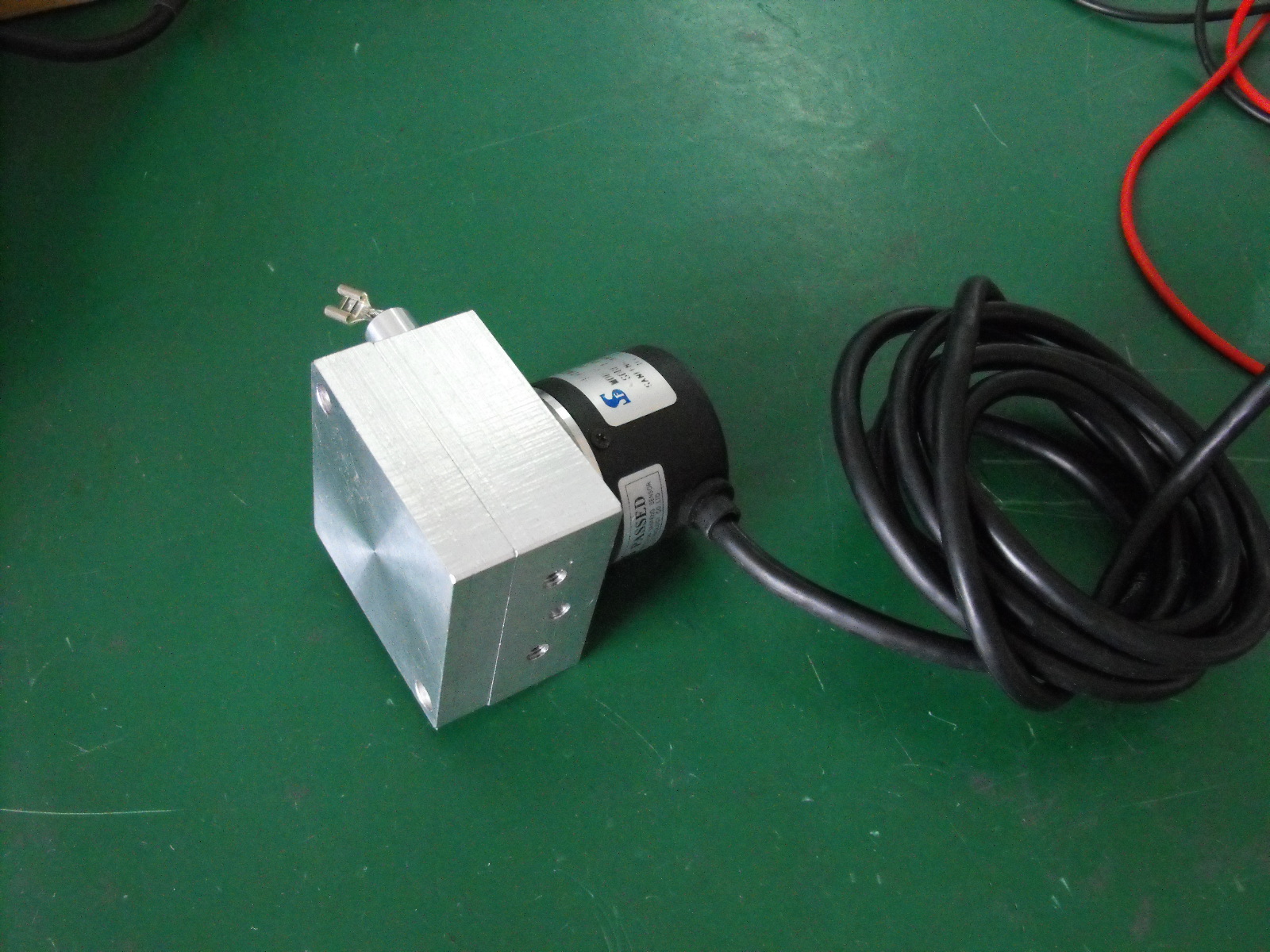

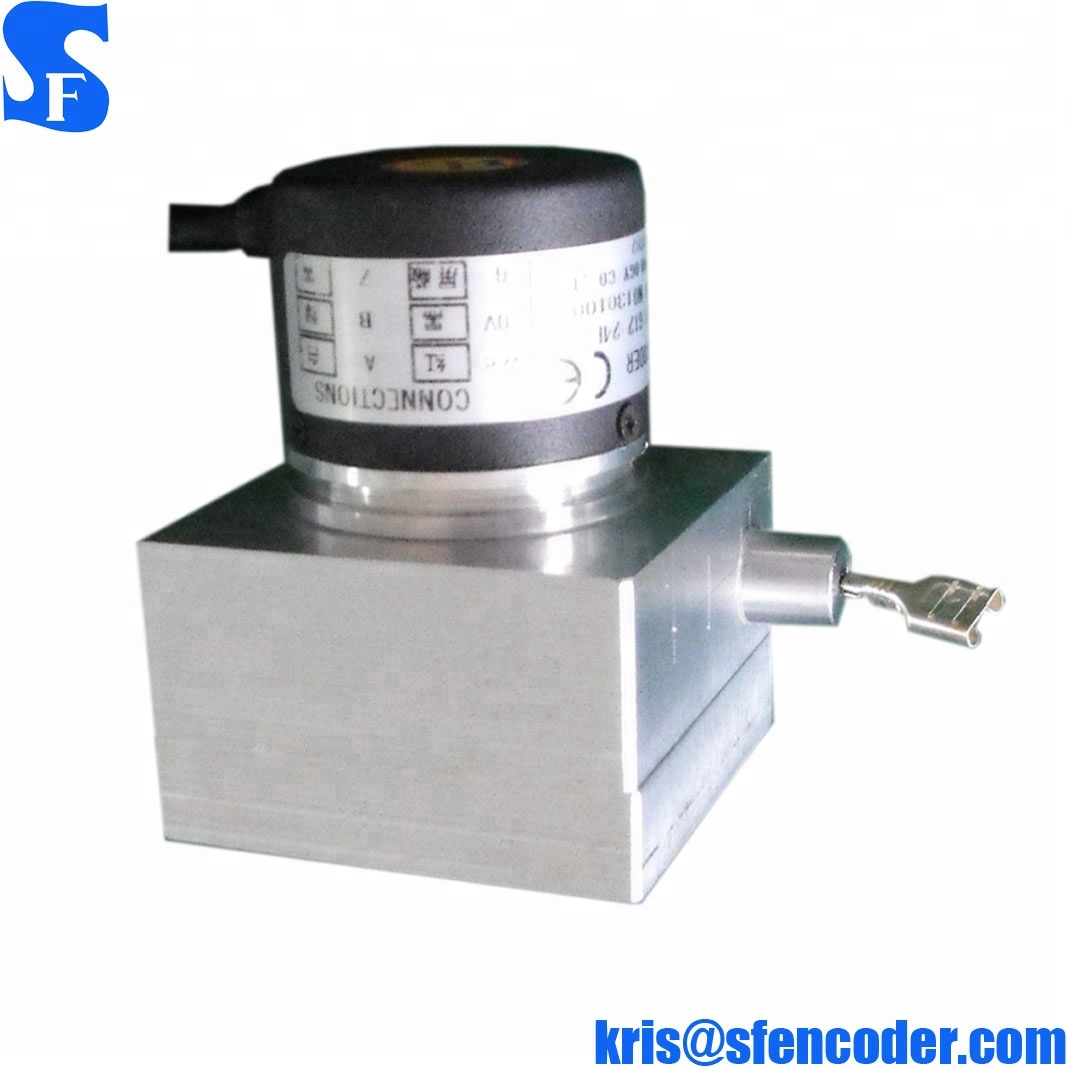

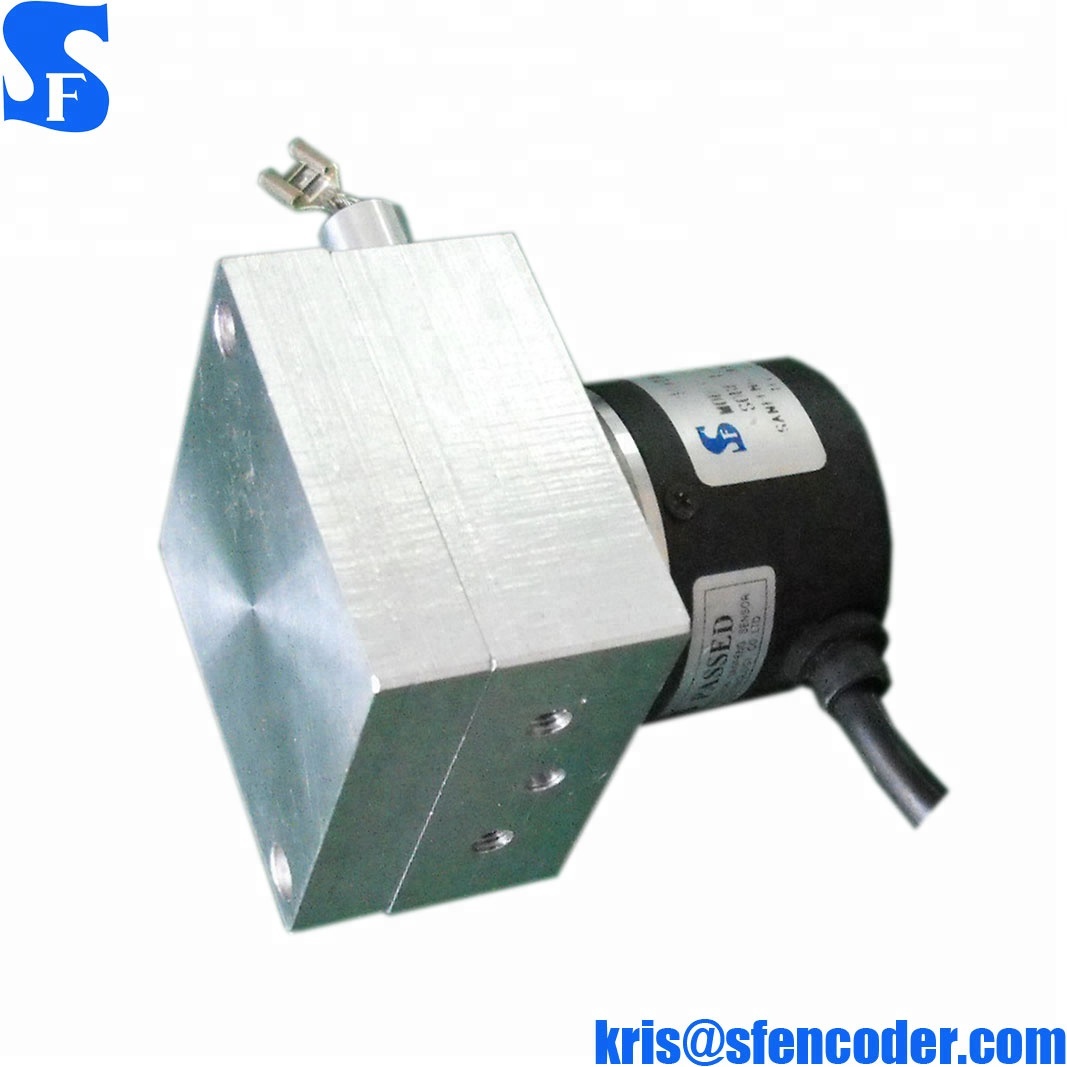

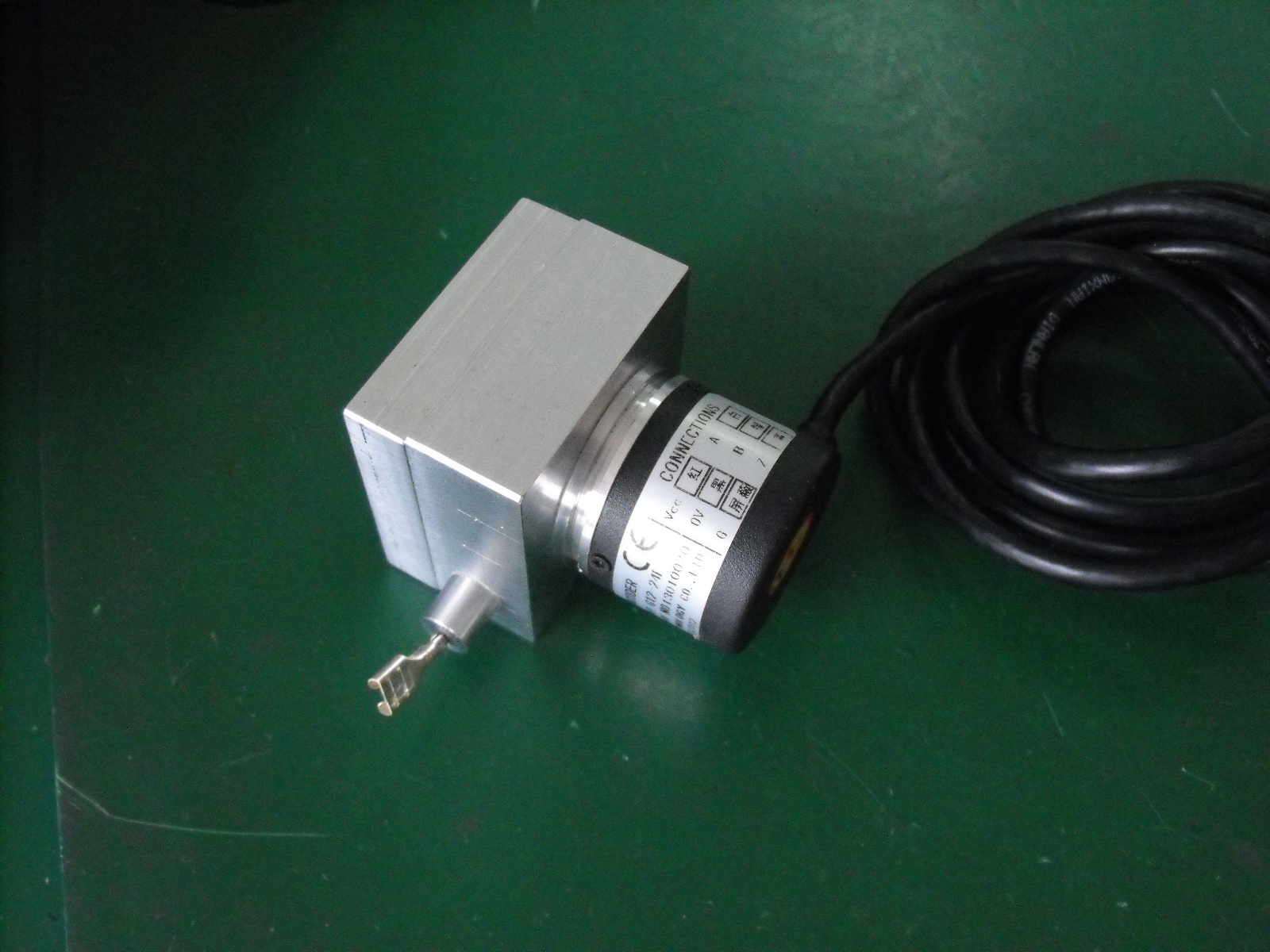

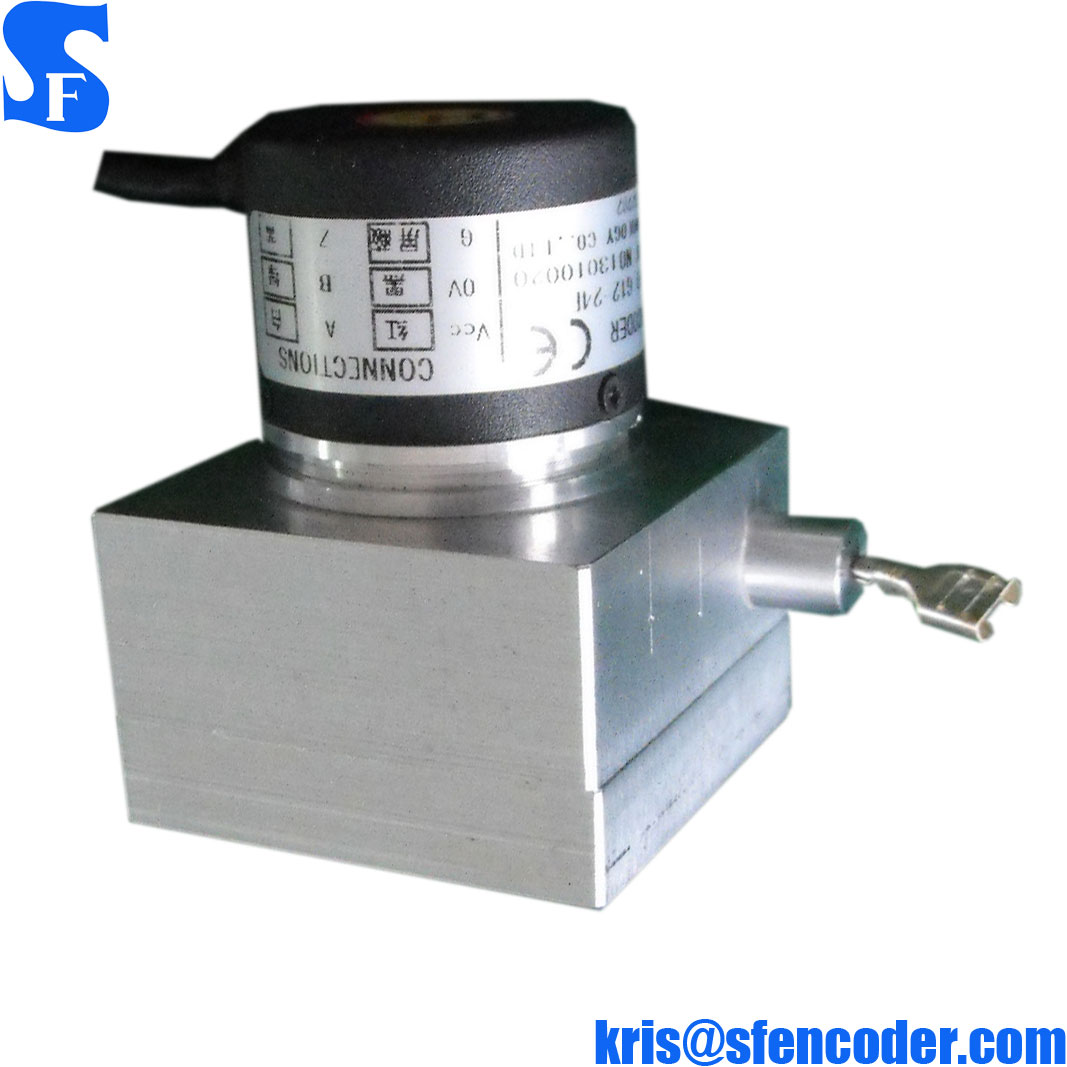

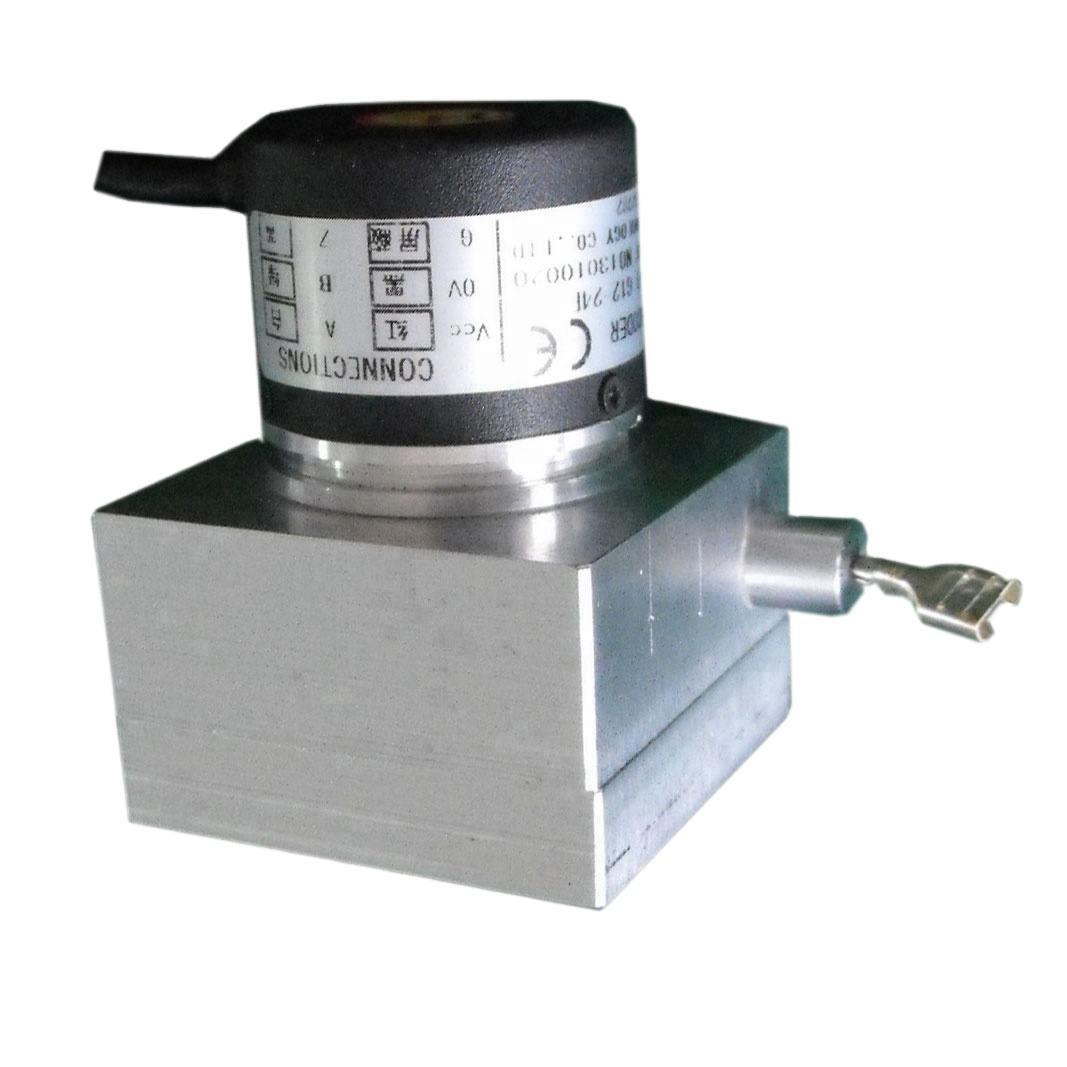

length measurement optical incremental draw wire encoder sensor
?
| Model | Body Dimension | Measuring Range(mm) | Resolution | linearity | Output Signal | Operating Voltage | Protection Class |
| SF115D | 115*115 | 0-6000 | 1000-5000 ppr | 0.05%FS | C,E,F,L,A | 5V/8-26V | IP54 |
| SF79D | 79*79 | 0-3000 | 1000-5000 ppr | 0.05%FS | C,E,F,L,A | 5V/8-26V | IP54 |
| SF63D | 63*63 | 0-2500 | 1000-5000 ppr | 0.05%FS | C,E,F,L,A | 5V/8-26V | IP54 |
| SF43D | 43*43 | 0-1500 | 1000-5000 ppr | 0.05%FS | C,E,F,L,A | 5V/8-26V | IP54 |
?


?

?
?
Video
Optical Incremental Draw Wire Encoder Sensor for Length Measurement1
Optical Incremental Draw Wire Encoder Sensor for Length Measurement1
Optical Incremental Draw Wire Encoder Sensor for Length Measurement1
