Optical Linear Scale Encoder Replacement for Fagor Press Brakes and Shears Machines
Options:
- BSD-270
$400.00
1 piece (MOQ)
Basic Info
| Model Number | BSD |
|---|---|
| Type | Incremental Encoder |
| Place Of Origin | Guangdong, China |
| Brand Name | REICHEN |
| Use | Machine distance measurement |
Product description
?
?
?
?
?

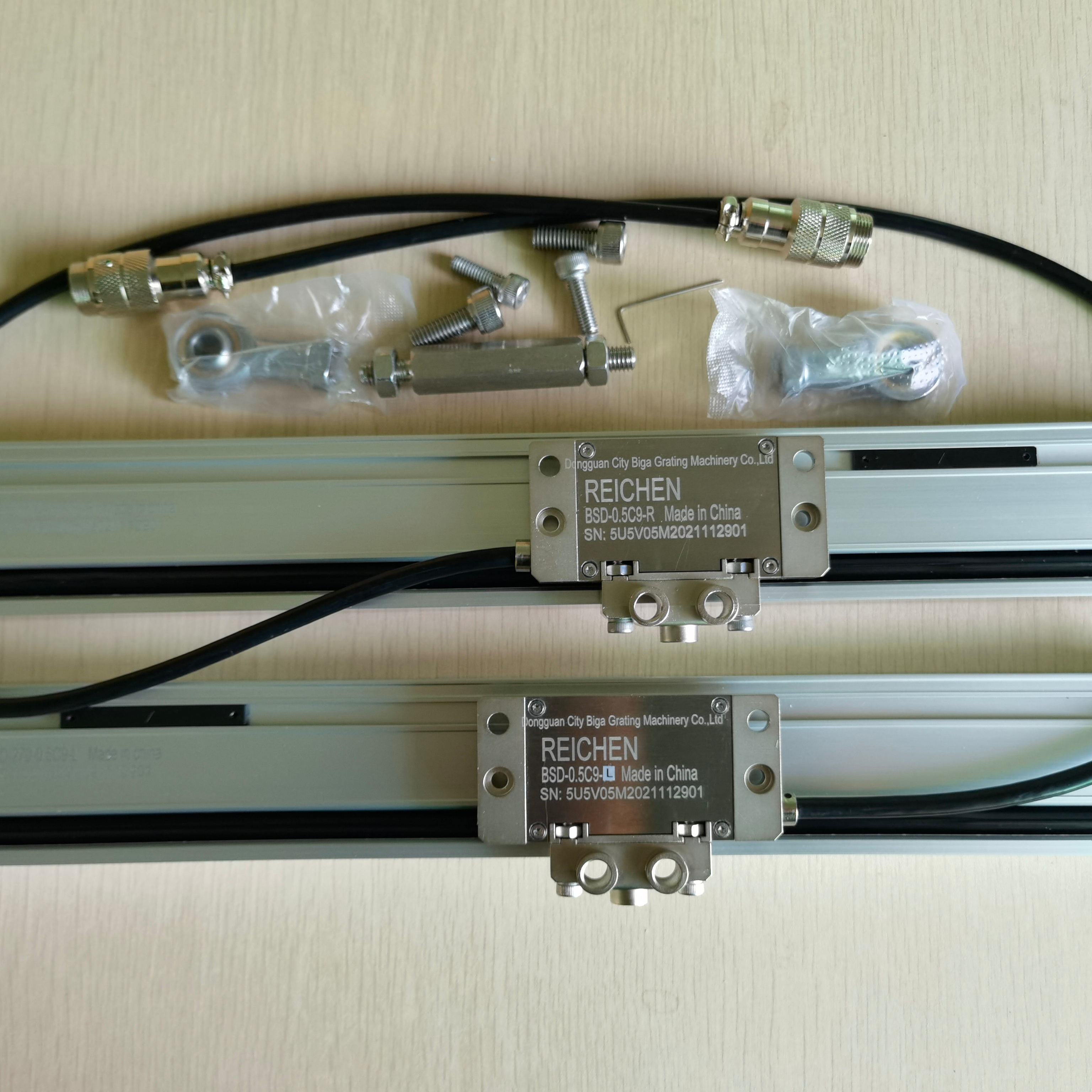

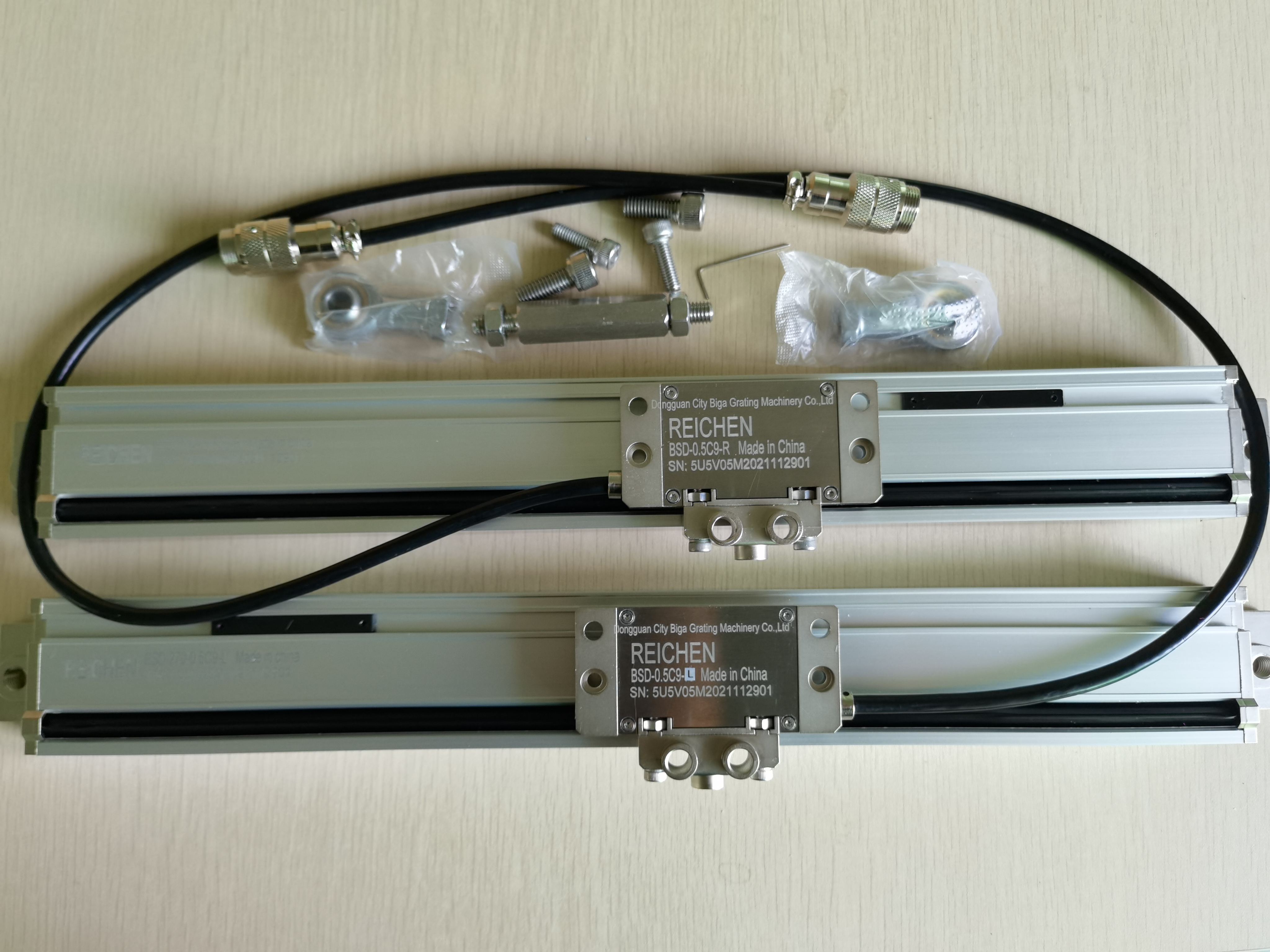

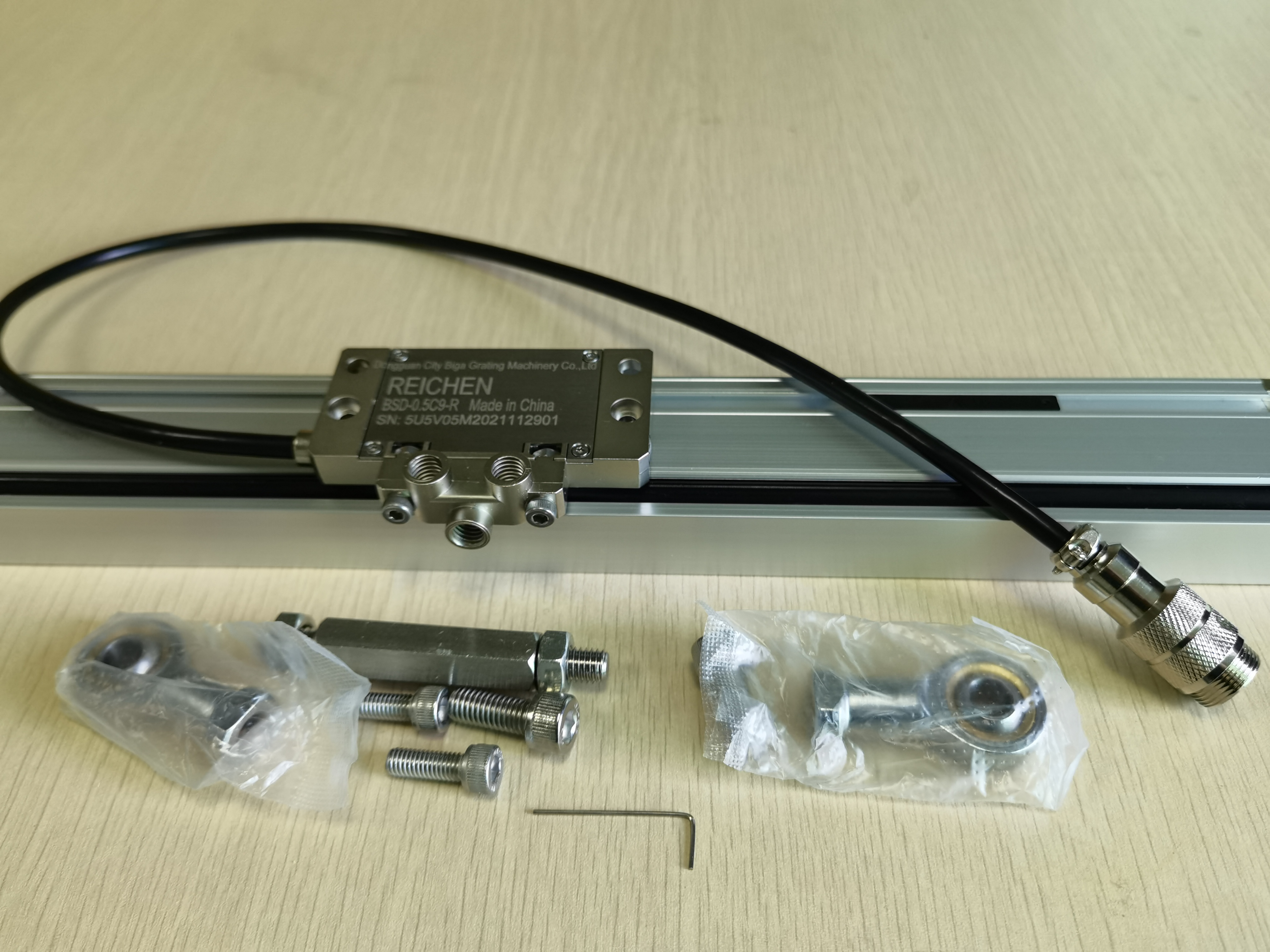

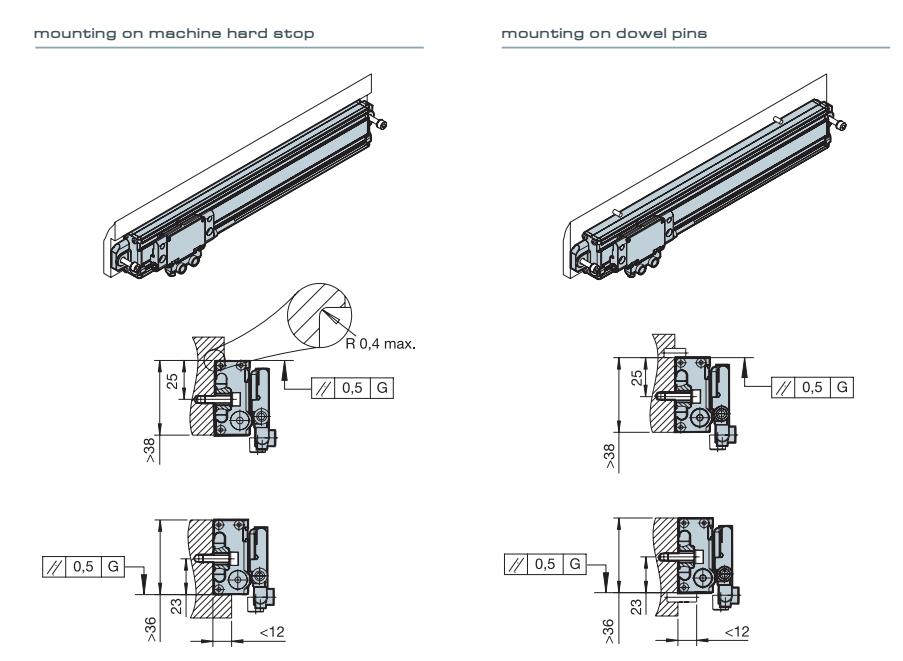

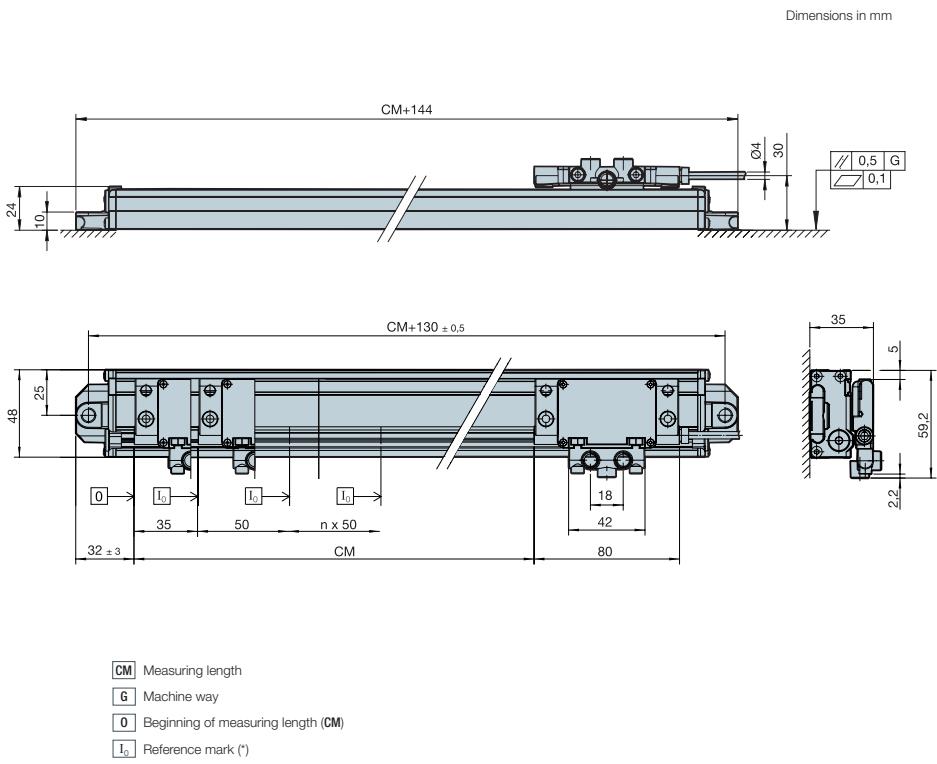

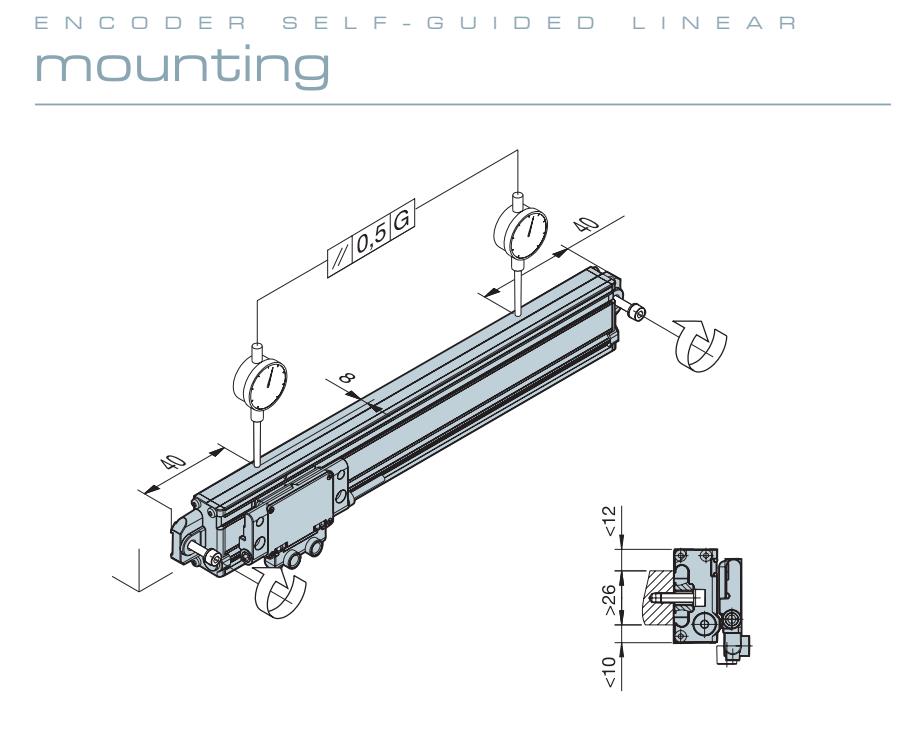

replacement for Fagor linear encoder
Introduction of? self-guided linear encoder:
New self-guided optical linear encoder with integrated
bearings. Mainly intended, although not only, for press brakesand shears.The linear encoder especially designed with aresolution of up to 1 um, with a user-selectable referenceposition and with cable exit at either end of the reader headfor a more versatile machine design.
The robust design, the mentioned characteristics togetherwith both types of couplings (rod and flexible) offer the perfectsolution to manufacturers of machines, forming equipmentand cutting with the best quality-price ratio on the market.
| Characteristics | ||
| ? | BSD | BST |
| Measurement | By means of a 100 um-pitch graduated glass | |
| Glass thermal expansion coefficient | αtherm: 8 ppm/K aprox. | |
| Measurement resolution | 5um | 1um |
| Output signals | l_l????? TTL differential | |
| lncremental signal period | 20um | 4um |
| Limit frequency | 50kHz | 250kHz |
| Minimum distance between flanks | 1.2us | 0.6us |
| Reference marks lo | May be selected with a magnet every 50 mm | |
| Maximum cable length | 50m | |
| Supply voltage | 5V+-5%,<175 mA | |
| Accuracy | +-10um/m | |
| Maximum speed | 60m/min | |
| Maximum vibration | 150 m/s2 | |
| Maximum shock | 300 m/s2 | |
| Maximum acceleration | 30 m/s2 | |
| Required moving force | <5N | |
| Operating temperature | 0 ℃-50℃ | |
| Storage temperature | -20 ℃-70℃ | |
| Weight | 0.5 kg + 1.3 kg/m Measuring length | |
| Relative humidity | 20-80% | |
| Protection | IP53 | |
| Reader head | Leftward or rightward incorporated cable of 1 or 3 meters* | |

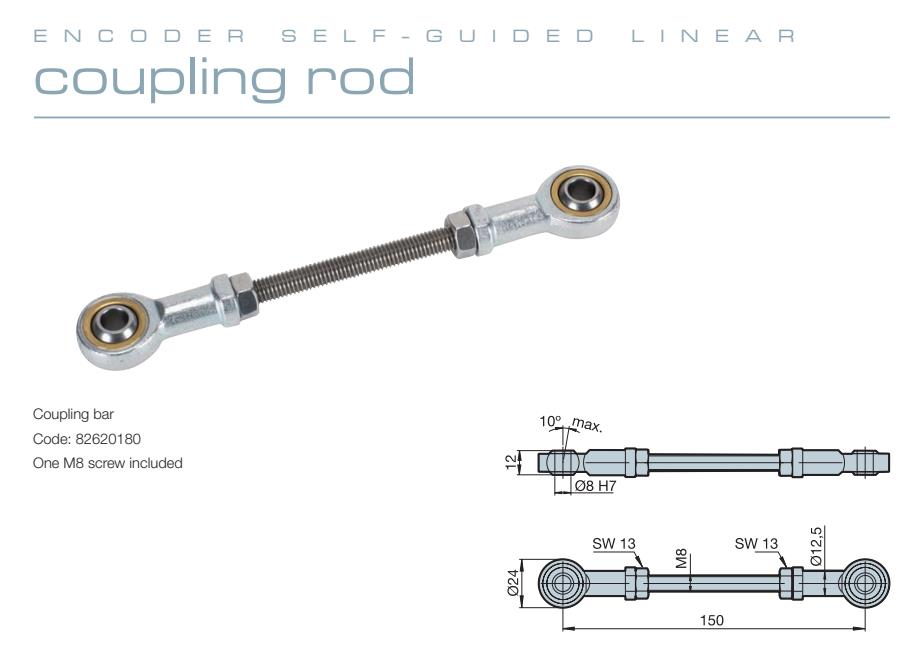

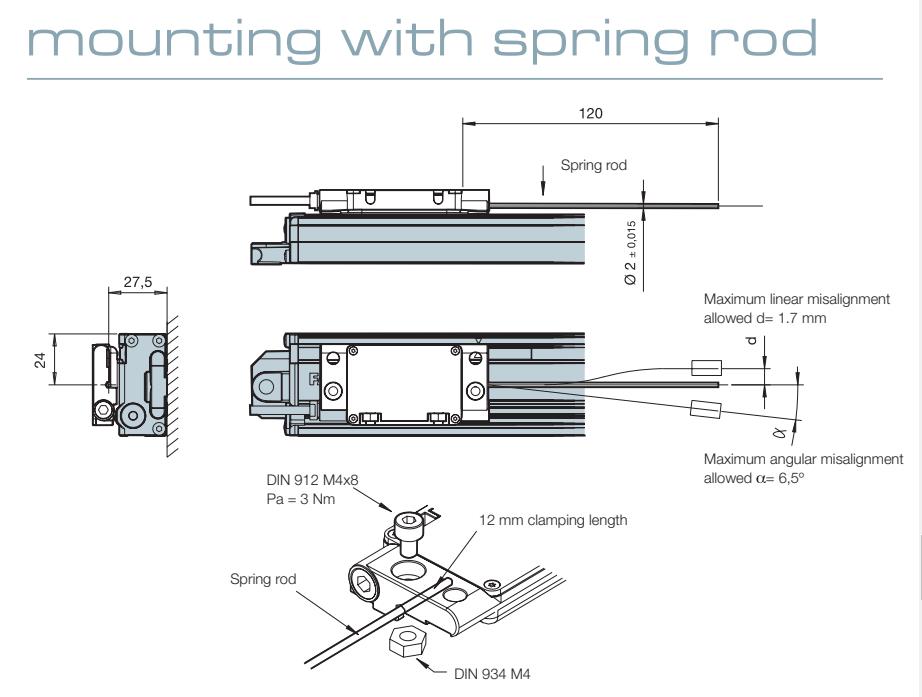

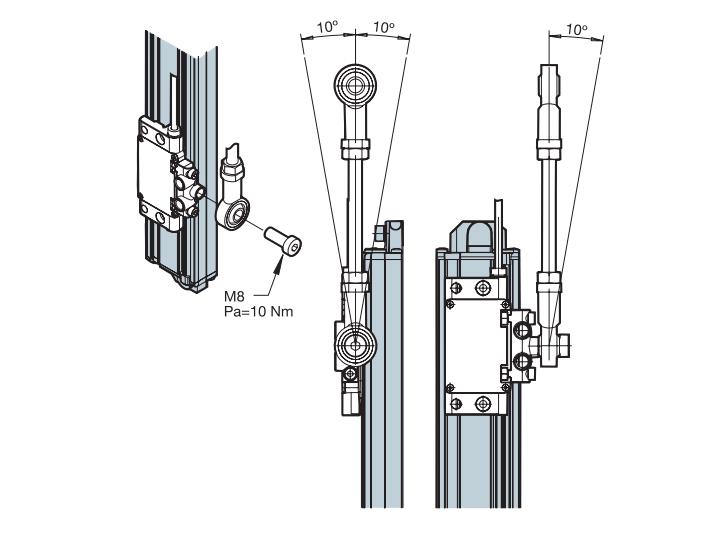

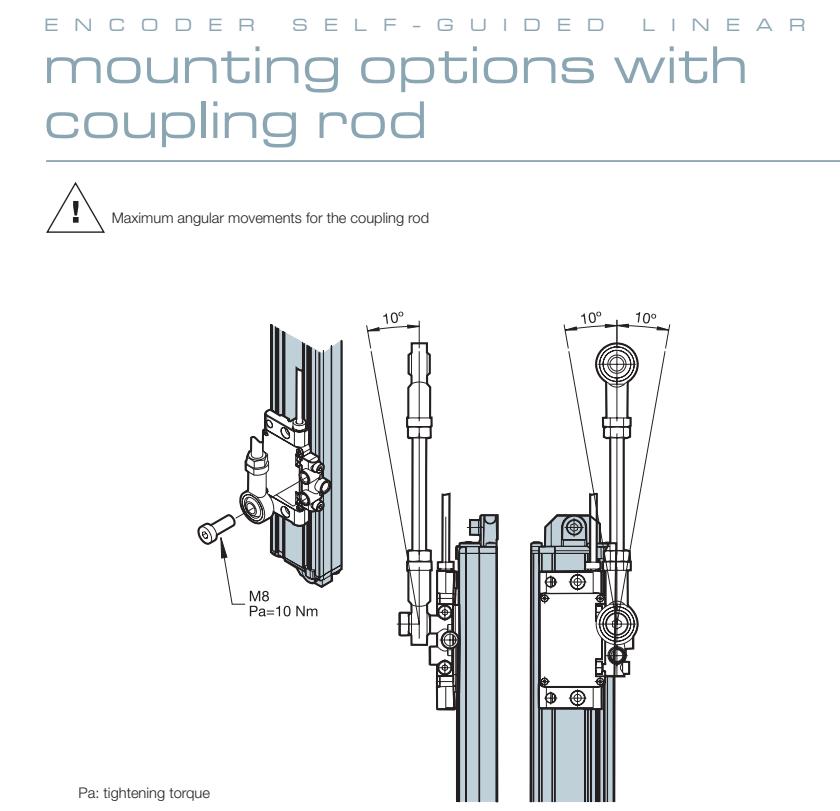

| Coupling | Coupling rod Spring rod | |
?
?
?
?
?
