Orange5 Memory and Microcontrollers Programming Device
Get Latest Price
You might also like
Basic Info
| Model No. | OS1268 |
|---|---|
| Testing Equipment Type | Car Fault Detector |
| Diagnostic Tool Type | Automotive Fault Diagnostic |
| Certification | CE |
| Condition | New |
| Standard | Standard |
Product description
OEM Orange5 Professional Memory and Microcontrollers Programming Device Full packages
Software Version: V1.34, Software Does not Support Update.
Language: English and Russian
Systems: XP WIN7 WIN8
Language: English and Russian
Systems: XP WIN7 WIN8
Software Licenses:
MTRK (Included in Orange-5 base)
TMS (Included in Orange-5 base)
M08V NEW
Immo HPX 9V0
NEC V850ES/SJ3 V850ES/SG3 UART
NEC V850E2 NEW
TMS (Included in Orange-5 base)
M08V NEW
Immo HPX 9V0
NEC V850ES/SJ3 V850ES/SG3 UART
NEC V850E2 NEW
Orange5 Technical Info:
* USB power supply (USB2.0/3.0)
* Universal easy to plug panel ZIF16 for EEPROM
* Control of contacts in the sockets
* Two expansions compatible with Orange4 and Omega MTRK
* Protection against overcurrent
* Overload voltage protection
* Two types of power supply: Standart (USB) and enhanced (USB + external power supply)
* Three 3 adjustable voltage and current control: Voltage of power supply ( 2.0...5.0V ), programming voltage (2.0...21.0V), additional static 10V for microcontrollers
* High-speed bidirectional pin drivers with adjustable voltage (2.0...5.0V)
* Wave cycle generator with frequency ( up to 24 Mhz) and out voltage(2.0...5.0V) adjustment
* Capability of functional emulation of class CDC USB devices
* Built-in 32-bit virtual machine
* Supported interface: I2C, SPI, MicroWire, JTAG, UART, BDM, ISO7816, K-LINE (via adapter), CAN (via adapter)
* Programmer is encolsed in a functional box. Supported working under Windows XP/7 32bit. [*Win8.1]
- Installation and Work with Orange-5 under Windwos 7 and Windows 8.1
CnCterm - Terminal program for work with COM ports.
Feature:
Supports any COM ports, incuding virtual ones from 1 to 20
Works with text (ASCII) and HEX mode
Creating a list of commands that allows editing and fast sending
Fine-tuning the exchange rate
Saving files including command and port settings.
Saving incoming data in binary files
File transfer via serial port.
Delay settings for bytes and blocks
"Echo" mode
Delay settings between incoming data
Managment of DTR, RTS chains, visualising DSR, CTS, CD, RI
Program doesn't need to be installed
Supports Orange5 programmer in emulation mode.

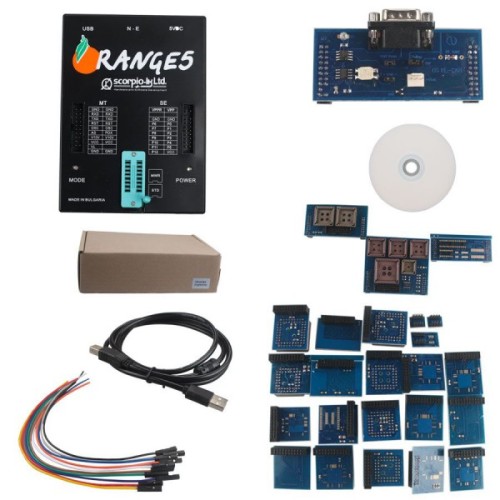

Packiage List:
| Orange-5 programmer | 1 |
| Power adapter | 1 |
| USBcable | 1 |

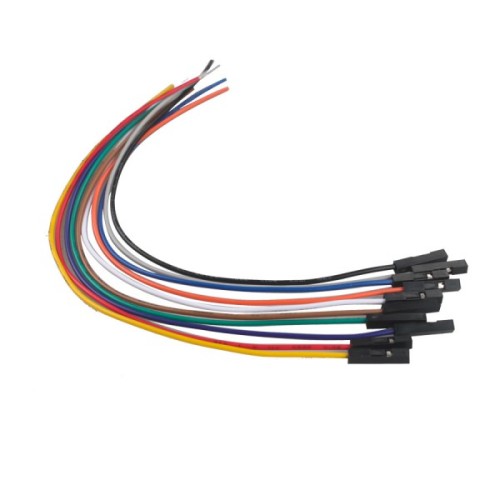

| Incircuit wire | 10 |
| SOIC8/DIP8 Expert adapter | 1 |
| SOIC8/DIP8 adapter | 1 |
| SOIC8_14_93Cxx adapter | 1 |
| SSOP8/DIP8 | 1 |
| Lead with clips SOIC8 & DIP8 | 1 |
| Adapter 05L28/05B | 1 |
| Adapter 908AS60/AZ60 QFP64 | 1 |
| Adapter 68HC(7)05P3/E6 | 1 |
| Adapter 05B/X_705B/X QFP64 V2 | 1 |
| Adapter 11PA8/11E9 QFP64 | 1 |
| Adapter 68HC05H12 | 1 |
| Adapter 68HC11EA9 | 1 |
| Adapter 908AS60 | 1 |
| Adapter 9S12Dxx | 1 |
| Adapter 912Dxx | 1 |
| Adapter 9S12X | 1 |
| Adapter 912B32 QFP80 | 1 |
| Adapter 68HC11F1 | 1 |
| Adapter 68HC11L6 | 1 |
| Adapter 68HC11KA4 | 1 |
| Lead 11E9(20) with power | 1 |
| Lead for EWS3 mask 0D46J | 1 |
| Adapter TMS374C003A | 1 |
| Adapter MSP430F | 1 |
| Adapter 68HC11KA4 PLCC68 | 1 |
| Adapter 908JL | 1 |
| Adapter PCF7941 | 1 |
| Adapter 9S12XE | 1 |
Orange-5 Chip list v1.34 [November 2015]
Immo HPX 9V0
PCF
PCF7941 Reset
Alfa Romeo
BSI
147
Audi
BCM2
Ver.1 uPD70F3239
Ver.1 uPD70F3380
Ver.2 uPD70F3380
Ver.1 uPD70F3634
Dash
A2 VDO crypto 93C86
A3 UKNSI 93C56
A3 VDO '97/99 93C66
A3 VDO crypto 93C86
A3 MM 912DG128
A4 UKNSI 0012-003 93C56
A4 UKNSI 0014-001 93C56
A4 UKNSI 0016-001 93C56
A4 UKNSI '97/98 93C56
A4 VDO '97/99 93C66
A4 VDO '99/01 93C86
A4 MM 912DG128
A6 UKNSI 0012-001 93C56
A6 UKNSI 0014-001 93C56
A6 UKNSI 0016-001 93C56
A6 VDO '97/99 93C66
A6 VDO '99/01 93C86
A6 VDO crypto 93C86
A6 MM 912DG128
S3/S6 MM 912DG128
TT MM 912DG128
Immo
'94/97 4A0 953 234 93C46
Delphi 8D0 953 234 93C46
ECU
'00/04 ECU EDC15 24C04
A3 1.8T 0261204678 24C02
A4 1.8T 0261204778 24C02
A4 '02 8E0 909 xxx 95040
ELV
MC68HC908GR16A[4L35K]
MC68HC908GR16A[0M76Z]
BMW
Dash
Dash with M35080
Immo
EWS-3 HC11EA9 clips [0D46J]
EWS-3 HC11EA9 wires [0D46J]
EWS-3 HC11EA9 adap [2D47J]
EWS-3+ HC11EA9 clip [0D46J]
EWS-3+ HC11EA9 adap [2D47J]
Chery
All Chery with 0L72A
All Chery with 0L59X
Chevrolet
Immo
Captiva MC9S08DZ60 [3M05C]
Chrysler
Immo
SKIM immobox 24C02
Ram uPD70F3626
Citroen
BSI
Berlingo 03/06 BSI v1 95160
Berlingo 03/06 BSI v2 95160
Berlingo 03/09 BSI v3 95160
C2 '03/04 BSI 95160
C3 '02/04 BSI v1 95160
C3 '02/04 BSI v2 95160
C5 '01/04 BSI 912DG128
C5 '02/04 BSI 95160
C8 '03/04 BSI 912DG128
Picasso '03/04 BSI 95160
Xsara II '01/03 BSI 95040
Immo
Berlingo Valeo 93C46
Jumper '99/06 Delphi 93C56
Jumpy 705E6 [F82B]
Relay Delphi 93C56
ECU
Xsara ECU EDC15C2 95P08
DAF
Immo
MC68HC908AZ60 [2J74Y]
MC68HC08AZ32A [2L52H]
etc.
