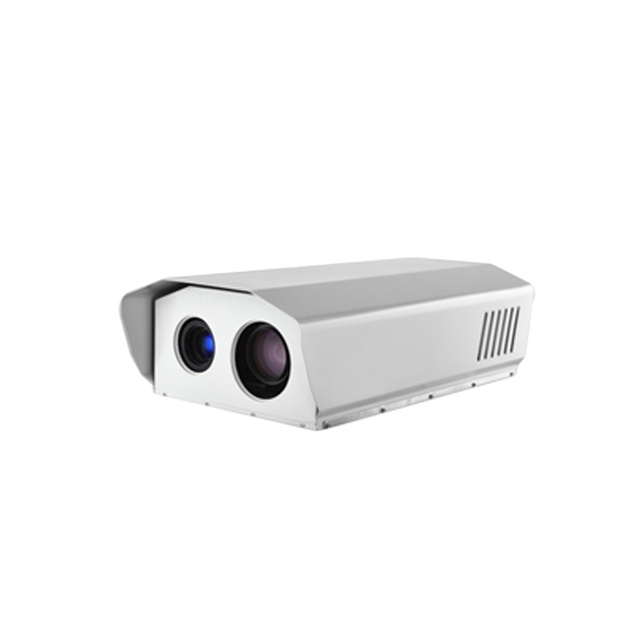

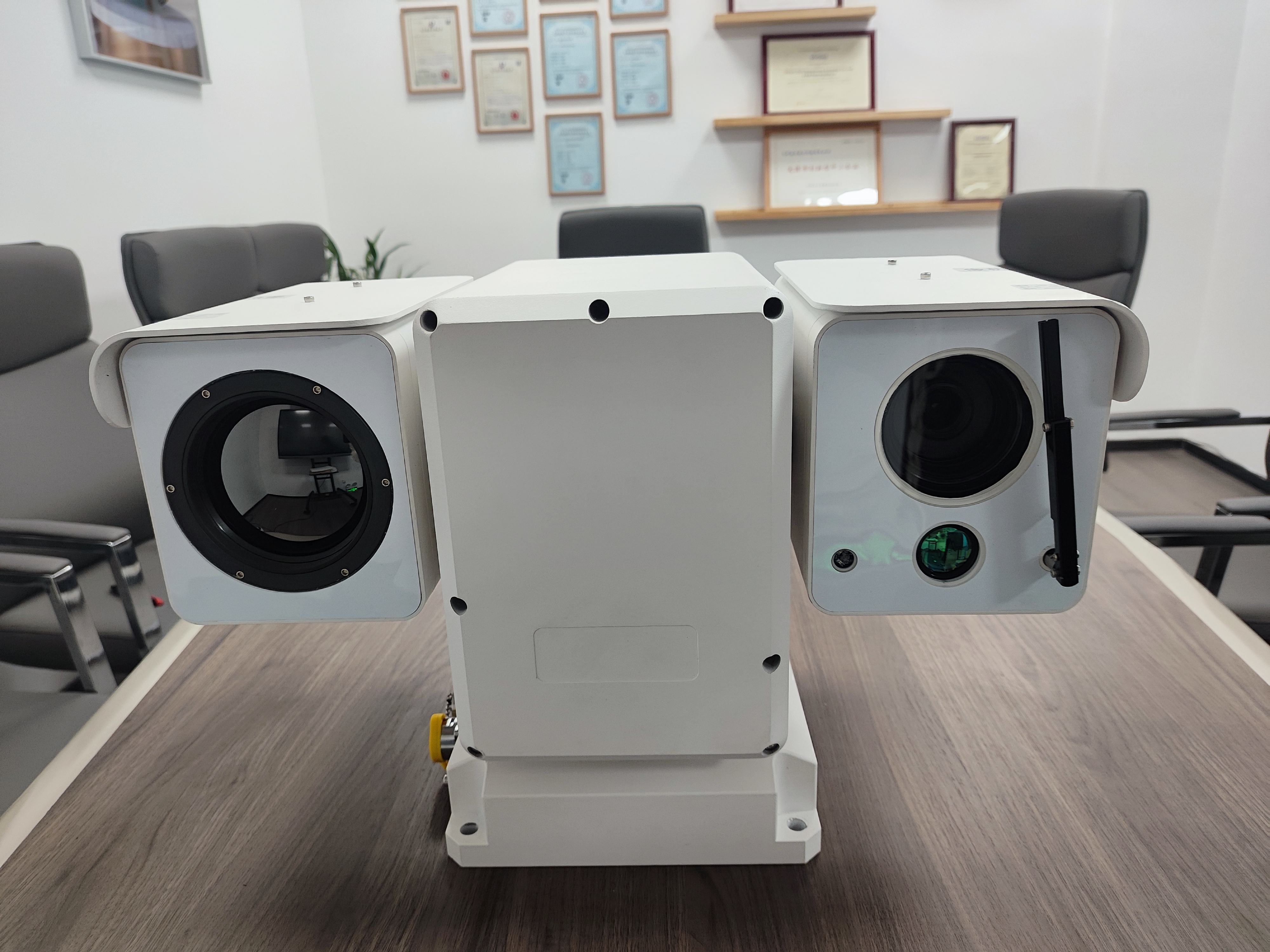

Outdoor Security Camera Systems with PTZ Pan Tilt Features
$450.00
≥2 set
$420.00
≥10 set
Options:
- camera housing outdoor
Get Latest Price
You might also like
Basic Info
| Place of Origin | Guangdong, China |
|---|---|
| Brand Name | JEC |
Product description
Products Description
VR
mini/light/middle/heavy-load integrated PTZ
* Bearing load body and overhead load form. Compact structure and durable
* Large carrying capacity, max overhead load 1.5kg/5kg/10kg/20kg/35kg/50kg
* DC brushless motor drive, low power consumption, long life, fast response speed, no hysteresis and flexible operation
* Full metal precision worm gear without side backlash drive, high precision, wear resistance, long life and no transmission gap
* The shell is made of high strength aluminum alloy material die-casting, waterproof, high temperature resistance, aging resistance, corrosion resistance
* High precision digital absolute position encoder, no need to power on self-test, no preset bit accumulation deviation
* Multi-preset bit, high preset bit precision and group inspection function
* With automatic pan scanning, sector scanning and stereo scanning functions
* With real-time angle return function, zero setting function, coordinate response function, and other guidance equipment synchronous linkage
* Match multiple load forms and can carry out a variety of functional module expansion
* All-weather environment design, protection level IP66
* Large carrying capacity, max overhead load 1.5kg/5kg/10kg/20kg/35kg/50kg
* DC brushless motor drive, low power consumption, long life, fast response speed, no hysteresis and flexible operation
* Full metal precision worm gear without side backlash drive, high precision, wear resistance, long life and no transmission gap
* The shell is made of high strength aluminum alloy material die-casting, waterproof, high temperature resistance, aging resistance, corrosion resistance
* High precision digital absolute position encoder, no need to power on self-test, no preset bit accumulation deviation
* Multi-preset bit, high preset bit precision and group inspection function
* With automatic pan scanning, sector scanning and stereo scanning functions
* With real-time angle return function, zero setting function, coordinate response function, and other guidance equipment synchronous linkage
* Match multiple load forms and can carry out a variety of functional module expansion
* All-weather environment design, protection level IP66
* The EMC system can be customized in special environments, and the electromagnetic compatibility has reached the high-level requirements of the national standard GB/T 17626.2 level 3, GB/T 17626.3 level 3, GB/T 17626.4 level 4, GB/T 17626.8 level 4
Specification
The hardware part | ||
Load bearing form top | Top load/Two sides load | |
Transmission form | Long - life worm gear worm drive | |
Self-locking load | 1.5kg/5kg/10kg/20kg/35kg/50kg | |
Installation method | Upright installation, base fixed at four points | |
Supply voltage | 12V/24V/48V±20%(Customizable) | |
Camera communication port | Reserved 100Mbps( 1000Mbps is optional) | |
Horizontal slip ring life | 3 million revolutions | |
Power protection | TVS 8000V lightning-proof, surge proof, in line with GB/T17626.5 Level 4 | |
Rotation range | Pan 360° continuous rotation, tilt -55°~+60° | |
Speed range | Pan 0.22°~30°/s, tilt 0.3°~13°/s (Customizabled) | |
Power consumption | ≤5W（Standby） ≤100W（Operation） | |
Angular resolution | 0.01° | |
Repeated positioning accuracy | P1 level ≤ 0.24°, P2 level ≤ 0.1° | |
Shield power supply voltage | 12V/24V/12+24 Options | |
Body material | Aluminum alloy | |
Operating temperature and humidity | -40℃~65℃, < 90% RH | |
Protection level | IP66 | |
The software Part | ||
Control communication interface | 485/422 | |
Communication protocol | PELCO-D | |
Baud rate | 9600bps | |
Speed control mode | Closed-loop speed control mode | |
Position control mode | Closed-loop position control mode, power off position is not lost | |
Self-check | No self-check is required. It will start working within 5 seconds after power-on | |
Basic motion function | Manual control 64 level speed adjustable, proportional variable speed (camera support required) | |
Number of preset bits | 199 | |
Positioning function | Absolute angle positioning (adjustable positioning speed) 3D positioning (It needs to be done with the camera) | |
PanScanning mode | Preset bit point by point scanning (adjustable preset bit dwell time, preset bit scan speed) Pan two-point scanning(adjustable scanning speed and scanning dwell time) | |
Watch position | Watch position on or off (can be adjusted back to position time) | |
Special functions | Pan-tilt?and camera coordinate query or real-time return | |
Product packaging
Q1: Are you trading company or manufacturer ?
A1: We are manufacturer.
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.
Q5: How’s the package?
A5: Normally are cartons, but also we can pack it according to your requirements.
Q6: How’s the delivery time?
A6: It depends on the quantity you need.
A1: We are manufacturer.
Q2: Do you have your own R&D team?
A2: Yes, we can customize products as your requirements.
Q3: How about the quality?
A3: We have the best professional engineer and strict QA and QC system.
Q4: Can we be your distributor?
A4: We are looking for distributor and agent all over the world.
Q5: How’s the package?
A5: Normally are cartons, but also we can pack it according to your requirements.
Q6: How’s the delivery time?
A6: It depends on the quantity you need.
