Parcel Sorting Conveyor System Logistics Sorting System Wheel Sorter
$4399.00
≥1 set
$4299.00
≥3 set
$4199.00
≥5 set
load capacity:
- 60kg
Options:
- Other
- wheel sorter
Get Latest Price
You might also like
$6500.00
1 set (MOQ)
Basic Info
| Applicable Industries | logistic, warehouse, e-commerce, express |
|---|---|
| Showroom Location | United Kingdom, Malaysia |
| Condition | New |
| structure | Conveyor System |
| Place Of Origin | Shanghai, China |
Show More
Product description
Products Description

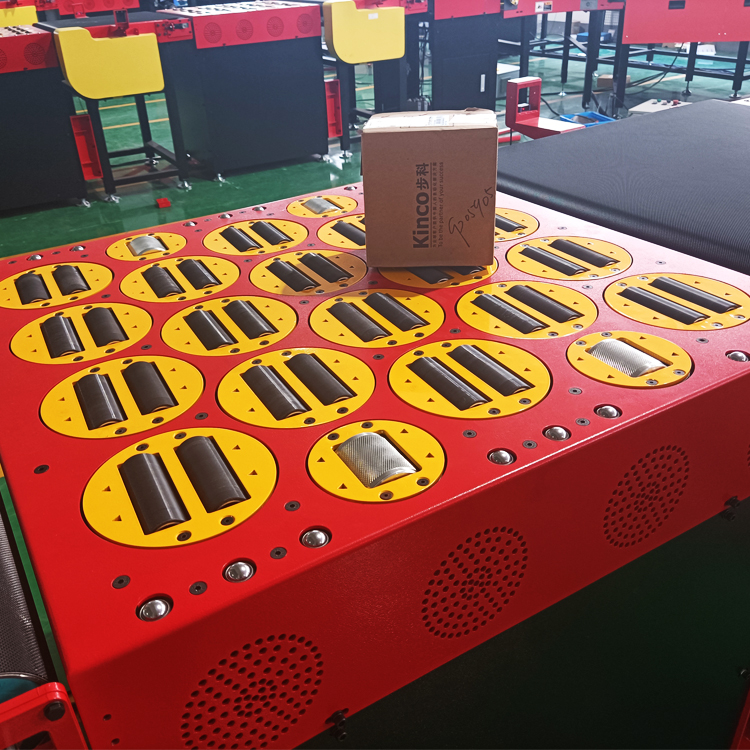

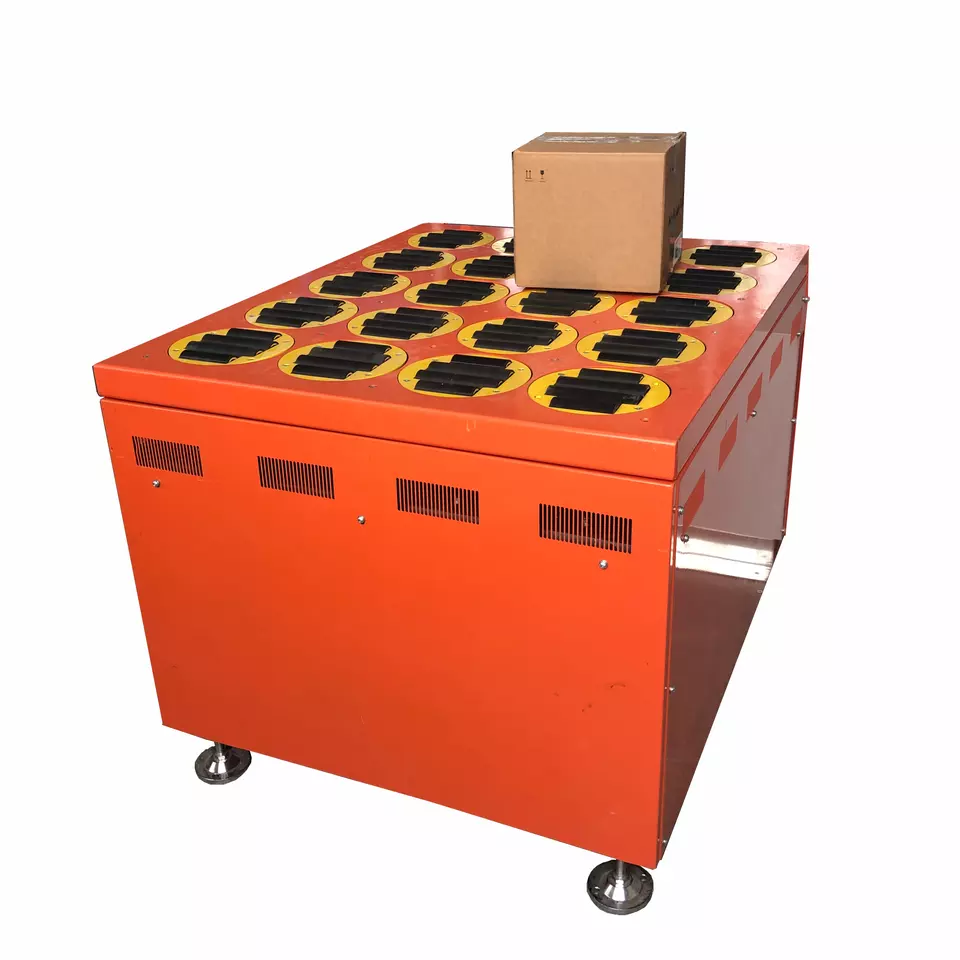

It is an important part of the logistics conveying automatic sorting system. Wheel sorter is mainly composed of conveying rollers, synchronous steering controller, transmission, and frame. During operation, the steering controller changes the direction of the conveyor rollers according to the instructions and information recognition issued by the management system, enabling multi-angle and multi-sided sorting of items on the left and right, and moving the items to the sorting conveyor. Wheel sorter automatic sorter can be used for product sorting, merging, positioning, rotation, separation, interval control, edge transport, etc. It is the most powerful sorting equipment used in the express industry today.
main advantage：
1. It is suitable for use in small and medium-sized sorting sites, and the cost-effectiveness is easy to control
2. Gentle handling of packages: flexible transfer angle selection
2. Gentle handling of packages: flexible transfer angle selection
3. High sorting efficiency: easily meet the needs of high throughput
4. Operating environment: quiet, low noise
5. Durable: stable and reliable
6. Easy maintenance, less downtime for
maintenance, low maintenance and high uptime
maintenance, low maintenance and high uptime
Product Paramenters
Performance parameters | Oblique guide wheel K-02 | ||
Maximum sorting capacity | 7500 PPH (Note: Cargo 400*400mm ) | ||
Running speed ( m/s ) | 1.5m/s-2.5m/s ( adjustable) | ||
Handling package weight range | ≤30kg | ||
bag size | Maximum L600*600*600mm | ||
Sorting direction | Sorting on both sides |
Sorting module arrangement | 3434 |
Height adjustable range | -20/+50 mm |
power | 1.5kw |
System noise level | ≤72dB |
transfer method | Electric roller friction drive |
Swing angle | MAX-80 ° — 80 ° |
Swing speed | Single 60 ° swing speed: ≤200ms |
Device processing power | Bilateral efficiency 4000 pieces /H |
Sorting Accuracy | ≥99 % |
voltage fluctuation | ± 10% |
package type | Carton, soft bag, snakeskin bag, and other types of packages |
Product Details
__________
__________
__________

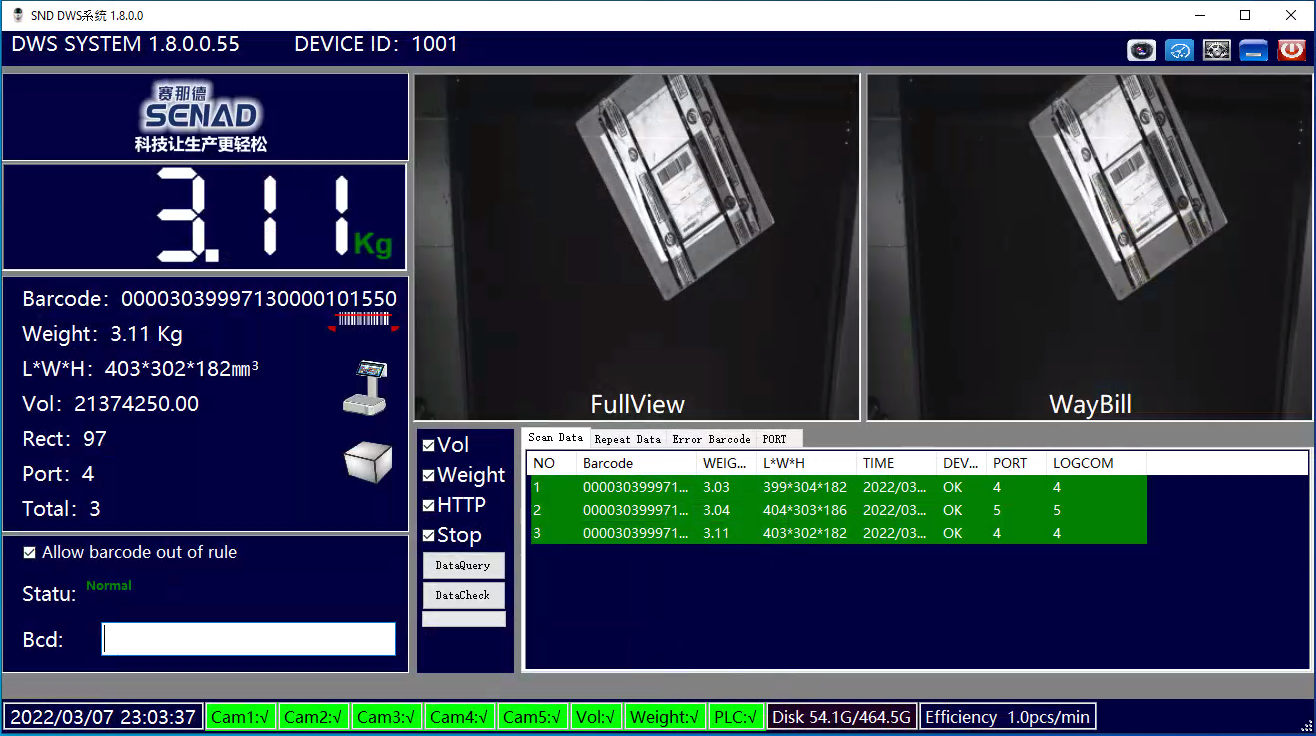

Clear record interface
__________
The operation interface displays the size, weight and bar code information, the language can be customized, docking with the customer system, and automatically outputting the form information

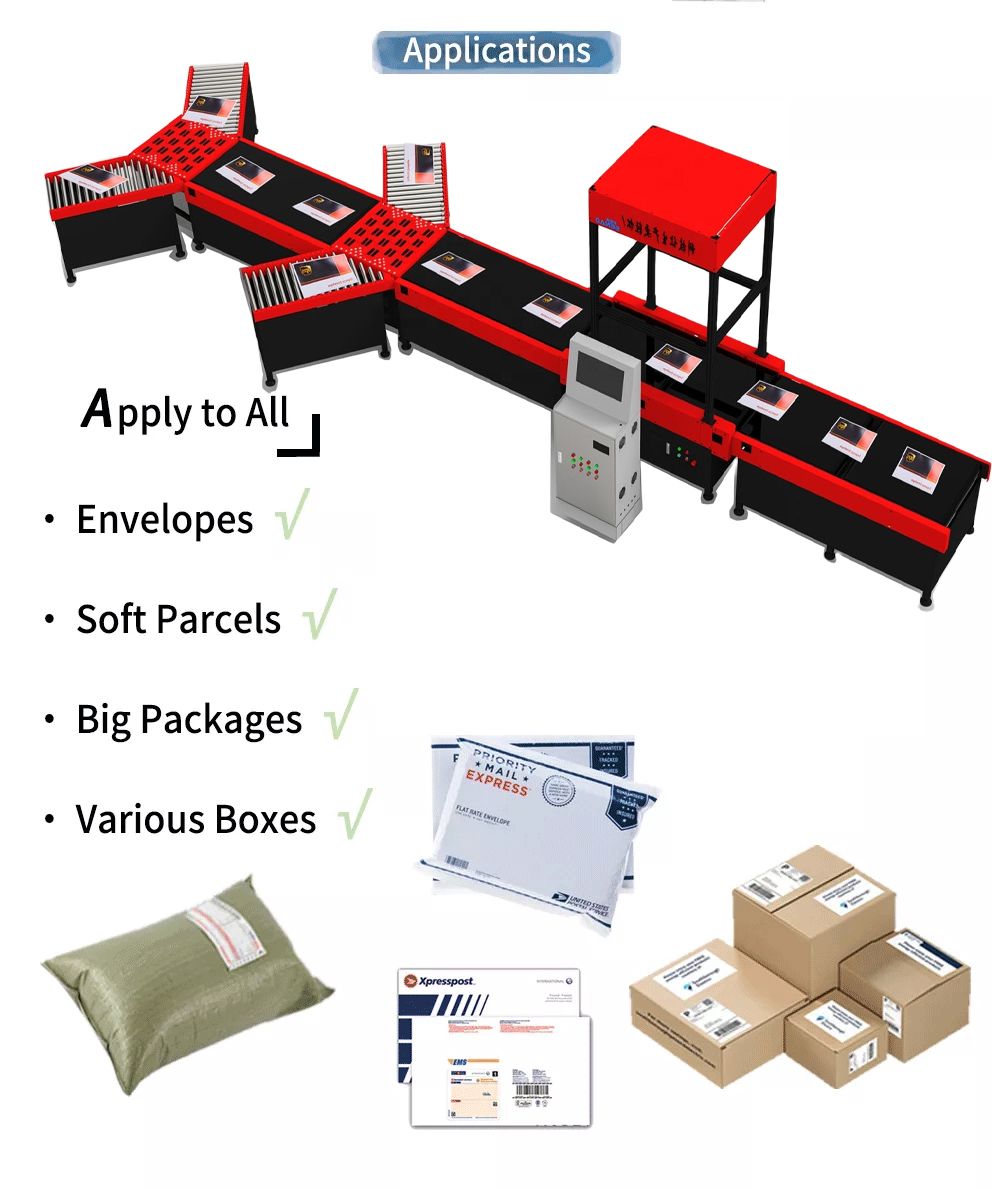

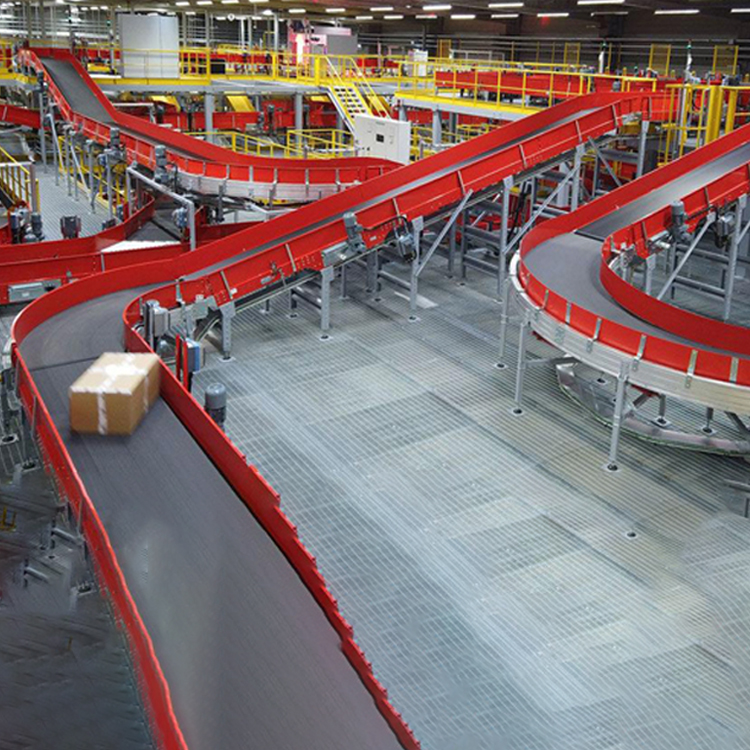

Application
Recommend Products
OUR Service
Our services
__________
1. Assemble and debug before delivery
2. Respond within 24 hours and proceed to deal with the problem.
3. 1 year free repair service (no-human damage only).
4. Overall warehousing solution provided
Why Choose Senad
◆ High-tech manufacturer with research anddesign capacity
◆ Concentrated on DWS equipment and sorting warehousing system overall solution
◆ Related software and system are with patents
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(16-20 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Top quality sense, customers' requests come first
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, maintenance not affect production
◆ Concentrated on DWS equipment and sorting warehousing system overall solution
◆ Related software and system are with patents
◆ Stable and mature supplying system
◆ Young active sales and engineers for instant services(16-20 hours online)
◆ Upgrading on mechanism according to ergonomics and easy maintenance
◆ Top quality sense, customers' requests come first
◆ Our structure design principle: easy maintenance & installation, low cost maintenance, maintenance not affect production
About Us
welcome to visit us
Senad Robot(Shanghai)Co.,LTD.
Founded in 2012,sanad is a national high-tech enterprise,with machine vision technology as the core,through deep learning algorithm,image processing algorithm,pattern recognition algorithm,video analysis algorithm,arm/FPGA/DSP embedded software and hardware development .industrial visual positioning .visual tracking,visual detection,multi-sensor information fusion and other technical means,in the field of smart logistics,we have found a suitable application scenario of machine vision to realize “machine generation”reduce costs and increase efficiency for enterprises ,and empower the smart logistics industry.Continue R&D and innovation in the fields of smart factory and smart storage,so that the logistics industry and manufacturing industry all over the world can enjoy the achievements of Chinese science and technology!

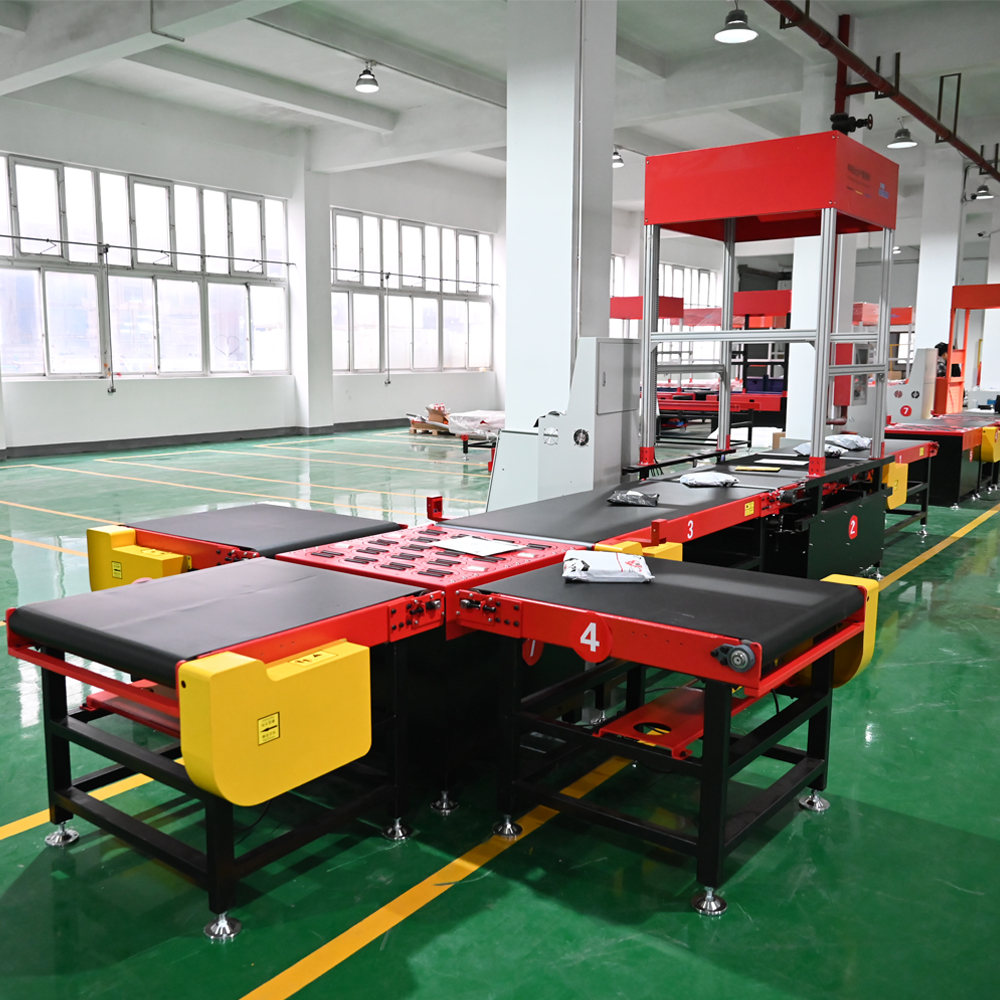

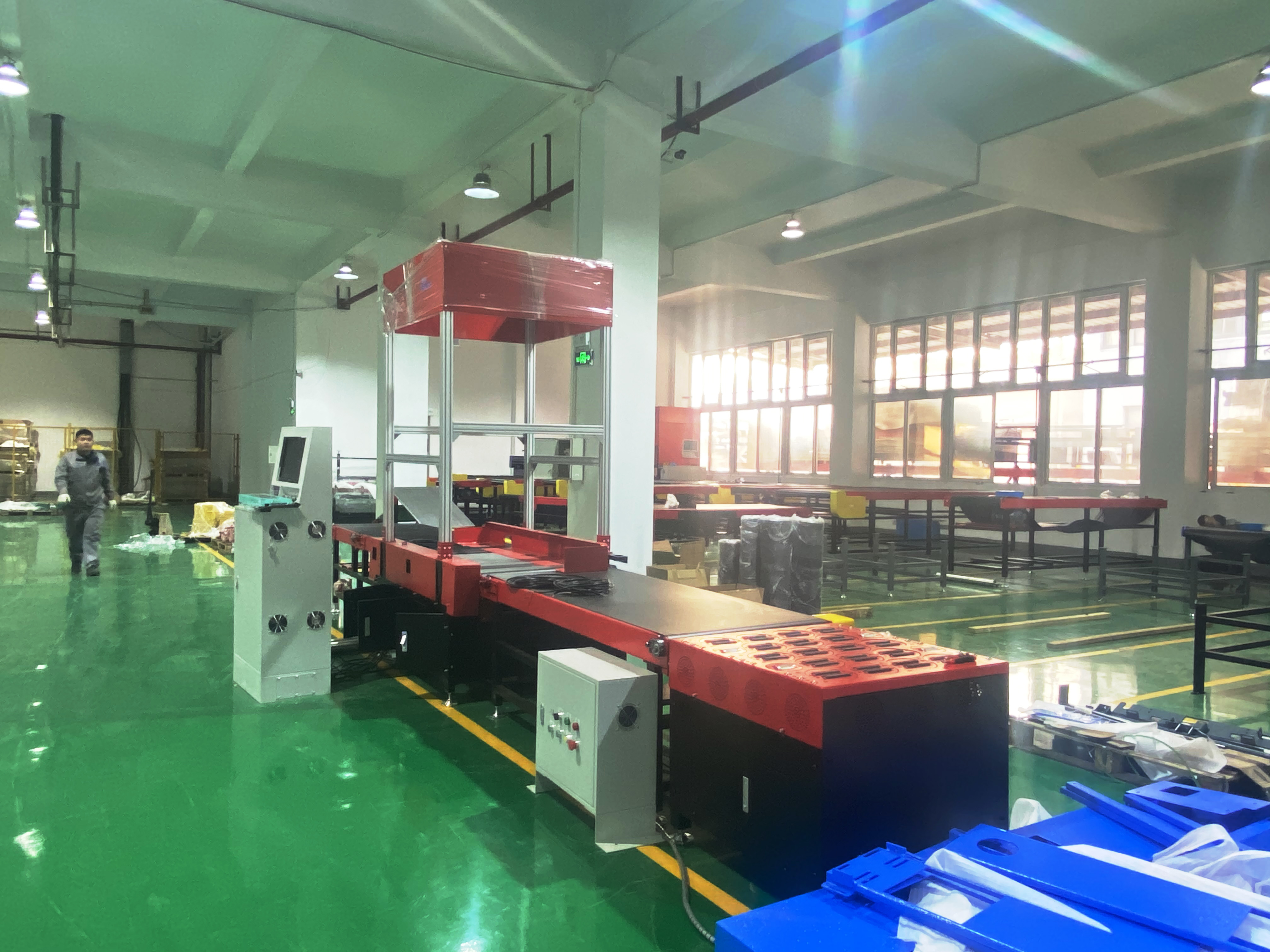

Our Factory
Development history
Our Certifications
Partners

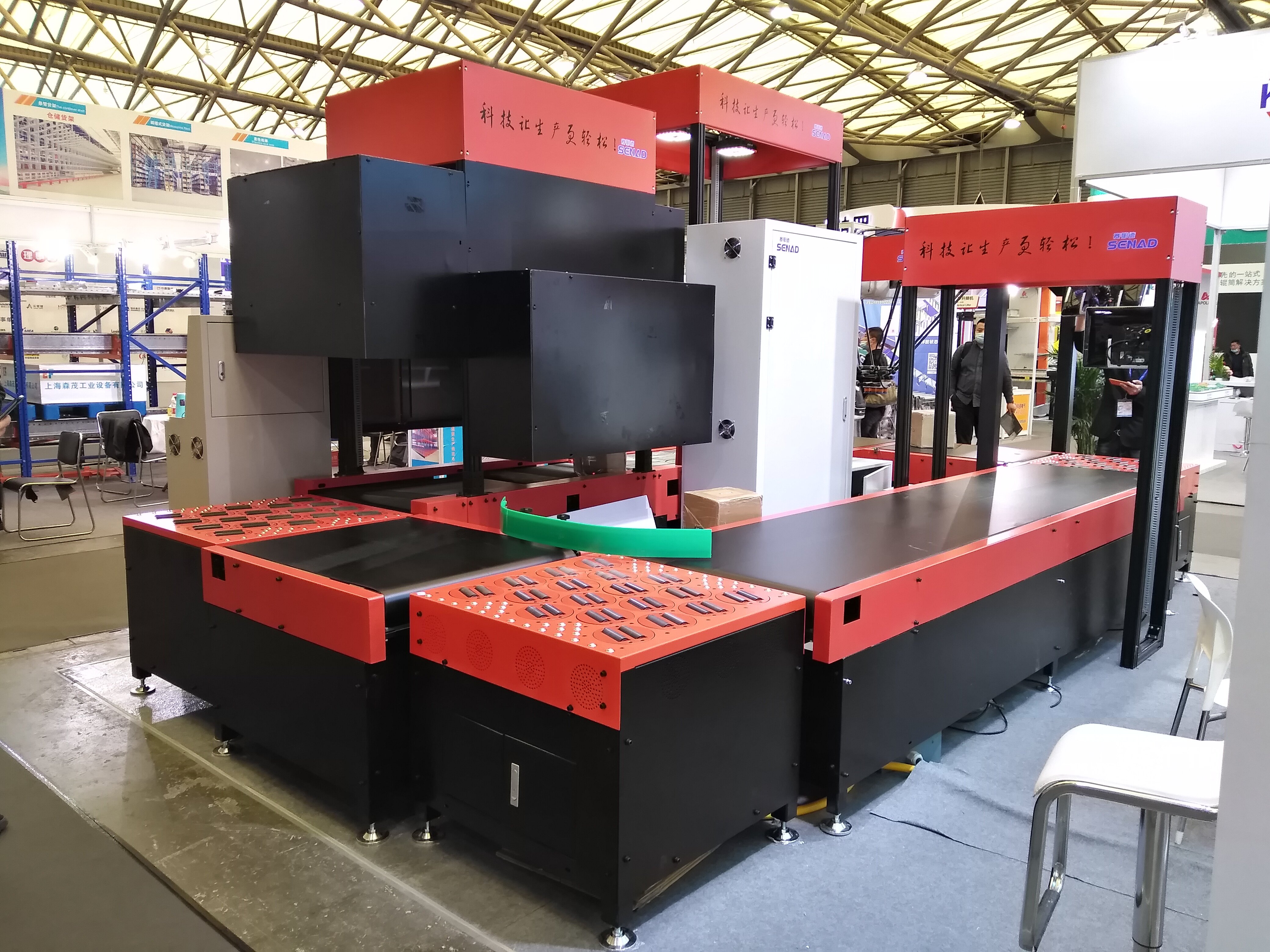

Exhibition
Packaging & Delivery
Q1. Are you a trade company or manufacturing company?
We are a manufacturing company.
Q2. What's your advantage?
Senad is a national high-tech enterprise,has its own software development team with complete,fast and efficient R&D capabilities .
Q3. What is the services?
Q4. How long is the product warranty period?
One year warranty except the consuming spare parts.
Q5. What is your payment terms?
Normally T/T, L/C, D/P, D/A， Western Union, Money Gram and Alibaba.If you have other payment,please contact me.
Q6. Where does your company located?
Both our company and factory are located in Shanghai.
We are a manufacturing company.
Q2. What's your advantage?
Senad is a national high-tech enterprise,has its own software development team with complete,fast and efficient R&D capabilities .
We support OEM and ODM services.
Device color support customization.
Q3. What is the services?
Pr-sales:Customized solutions, planning and design;One-to-one service
After sales:7 days 24 hours on line service, Remote guidance of installation, docking with customer software system
Q4. How long is the product warranty period?
One year warranty except the consuming spare parts.
Q5. What is your payment terms?
Normally T/T, L/C, D/P, D/A， Western Union, Money Gram and Alibaba.If you have other payment,please contact me.
Q6. Where does your company located?
Both our company and factory are located in Shanghai.
