 PCB and PCBA Assembly

1. Design and Prototyping:

   • Schematic Design: Using software tools to create circuit diagrams.
   • PCB Layout: Designing the physical layout of the PCB, including component placement and routing of electrical connections.
   • Prototyping: Producing a prototype PCB for testing and validation.

2. PCB Fabrication:

   • Material Selection: Choosing suitable materials (like FR-4) based on the application requirements.
   • Manufacturing Process: Processes include etching, drilling, plating, and applying surface finishes.

3. Component Sourcing:

   • Procurement: Sourcing high-quality electronic components from reliable suppliers to ensure performance and longevity.

4. Assembly Processes:

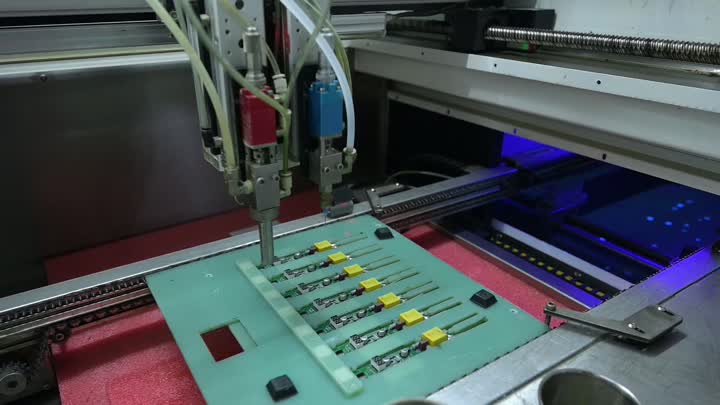

   • Surface Mount Technology (SMT): Components are mounted directly onto the surface of the PCB using automated pick-and-place machines.
   • Through-Hole Technology: Components with leads are inserted into holes drilled in the PCB and soldered on the opposite side.
   • Mixed Technology: Combining both SMT and through-hole methods for optimal design flexibility.

5. Soldering:

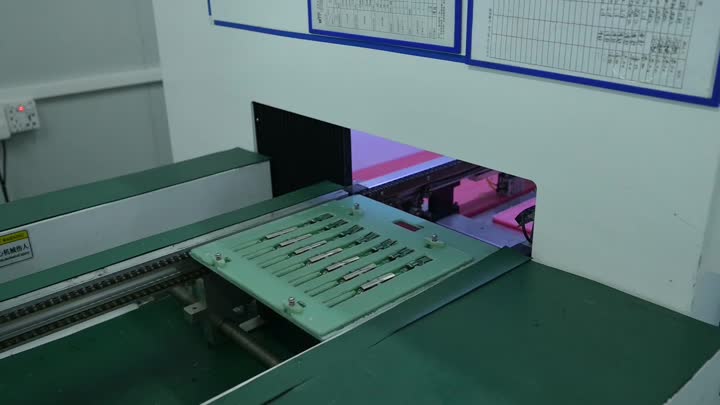

   • Reflow Soldering: Used primarily for SMT; solder paste is applied, components are placed, and the board is heated to melt the solder.
   • Wave Soldering: Used for through-hole components; the PCB is passed over a wave of molten solder.

6. Inspection and Testing:

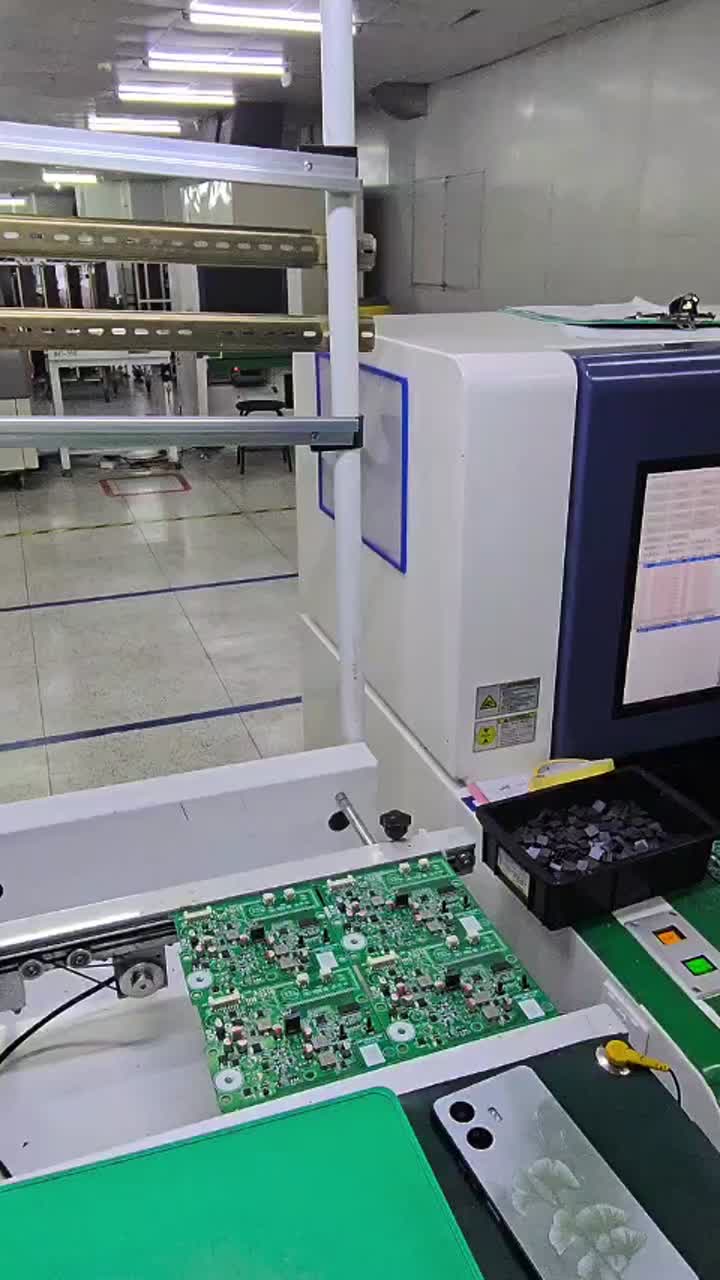

   • Automated Optical Inspection (AOI): Checks for visual defects in soldering and component placement.
   • Functional Testing: Ensures the assembled board operates as intended under various conditions.
   • In-Circuit Testing (ICT): Tests individual components for functionality and identifies faults.

7. Final Assembly and Packaging:

   • Integration: Assembled PCBs are integrated into final products, such as consumer electronics, medical devices, or automotive systems.

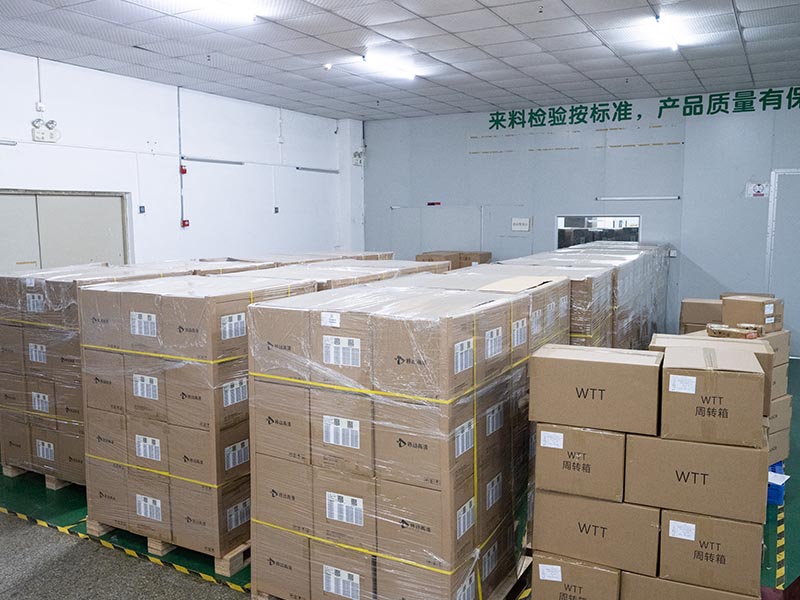

   • Packaging: Proper packaging to protect the product during shipping and handling.
