a new superhard composite, which is made from a carbide substrate and diamond?grit synthesizing at one-time under high temperature and high pressure conditions. It develops base on the development of?polycrystalline diamond and has the high impact and wear resistance characters of diamonds.
Search
Sign In Join Free
Video
1 / 7

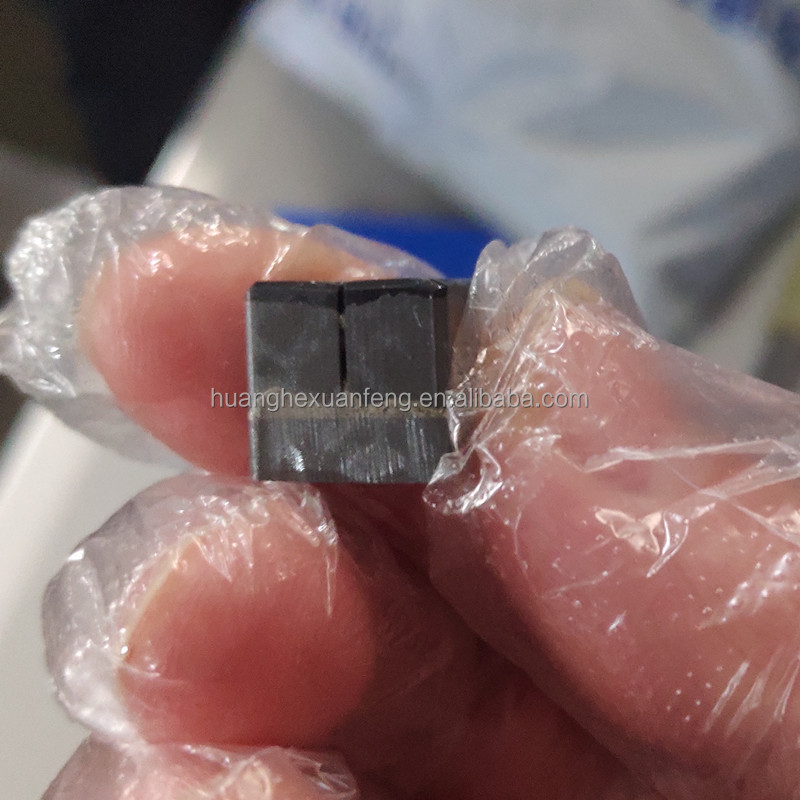

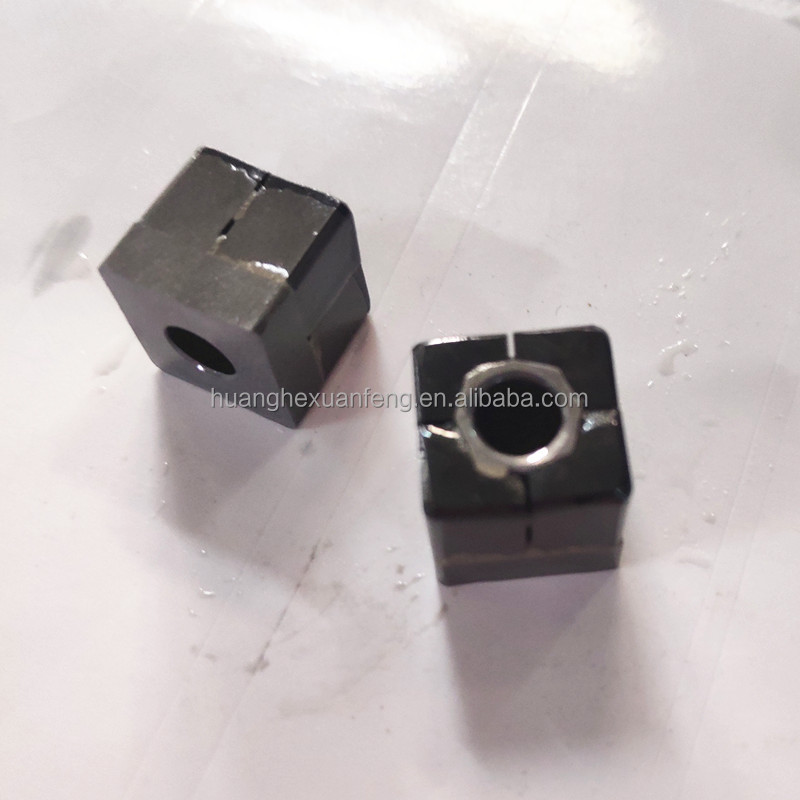

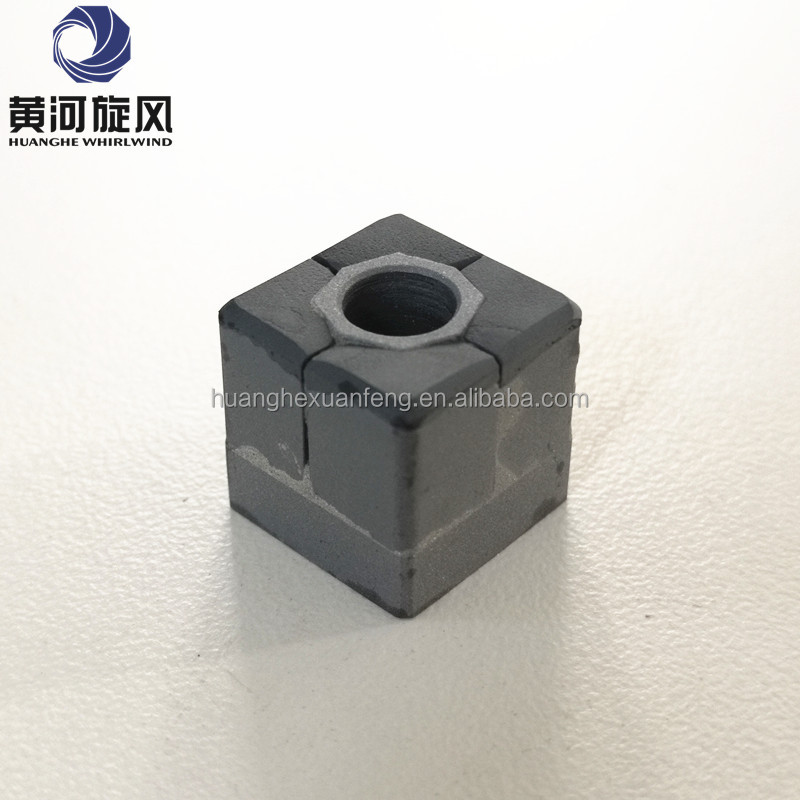

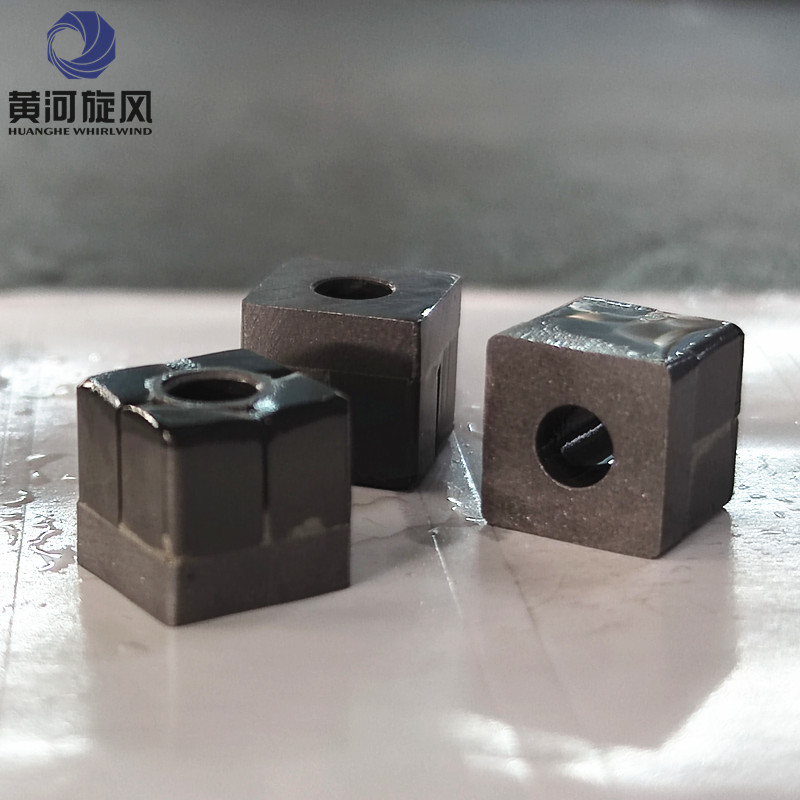

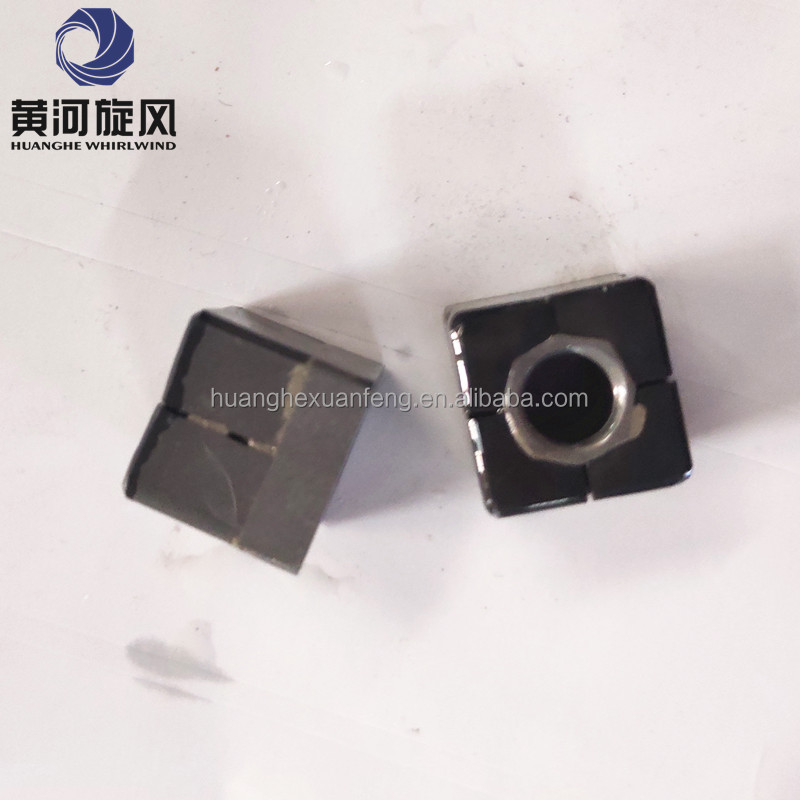

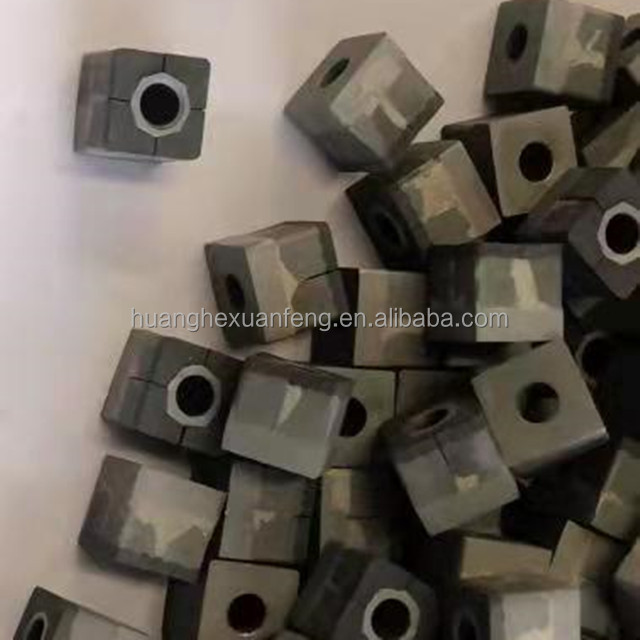

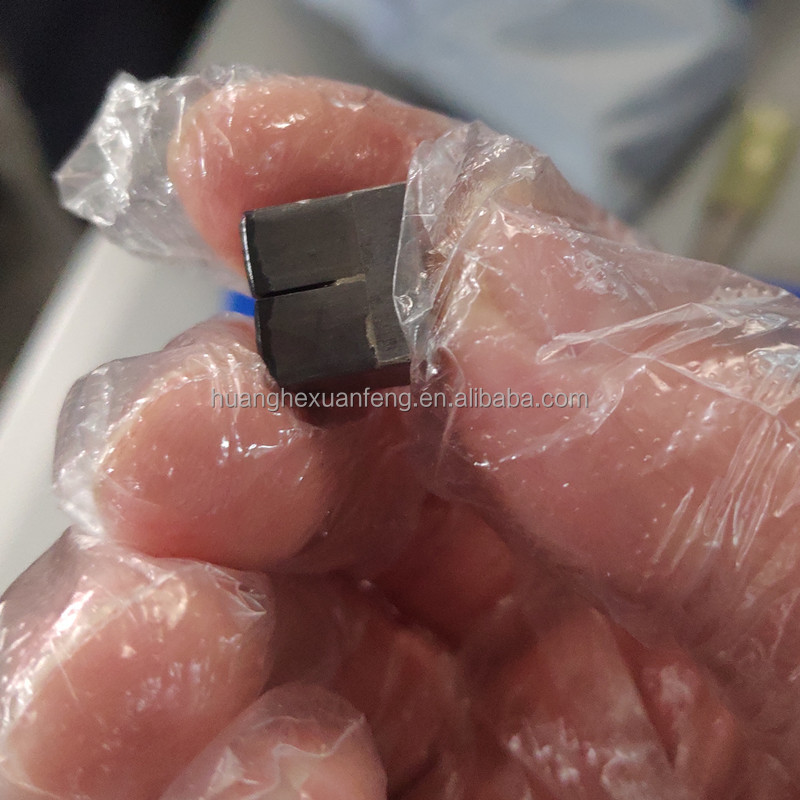

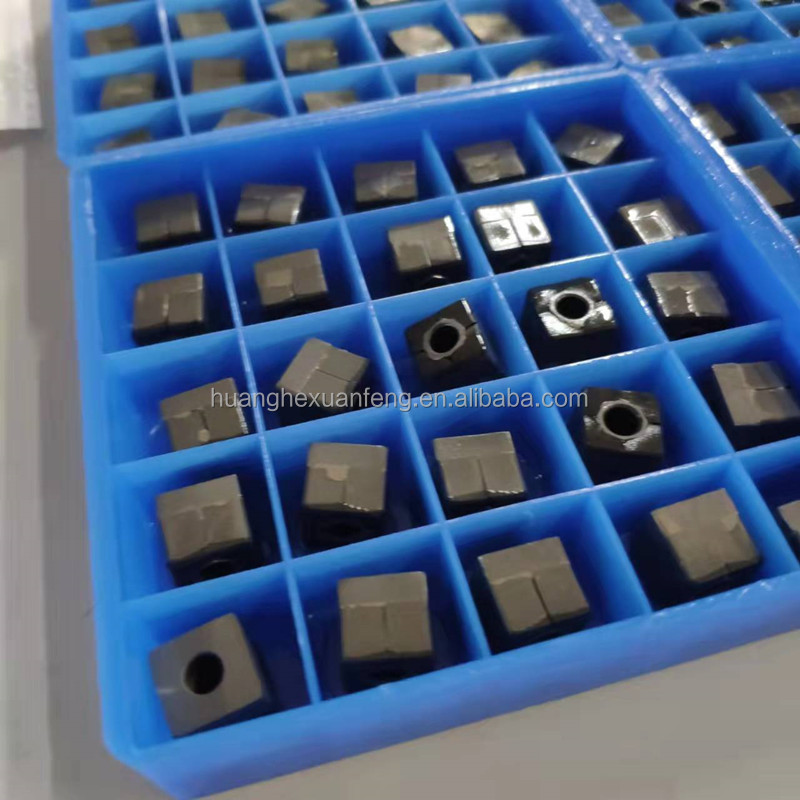

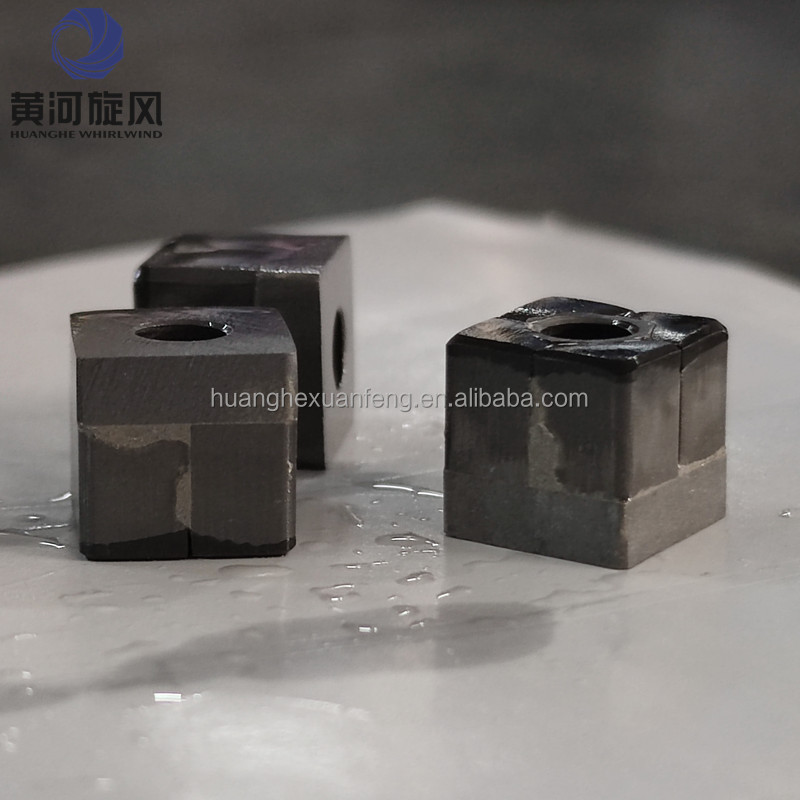

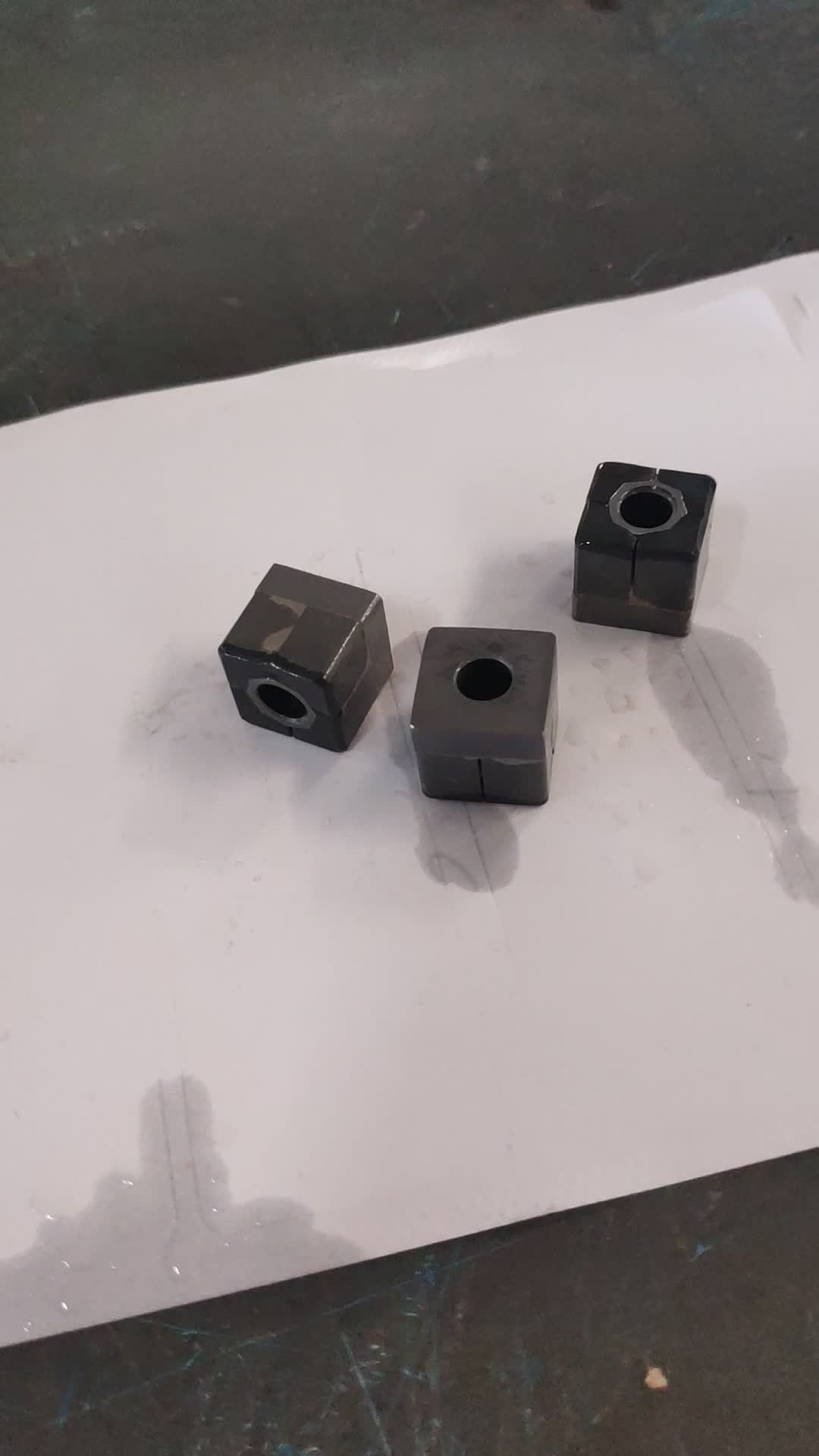

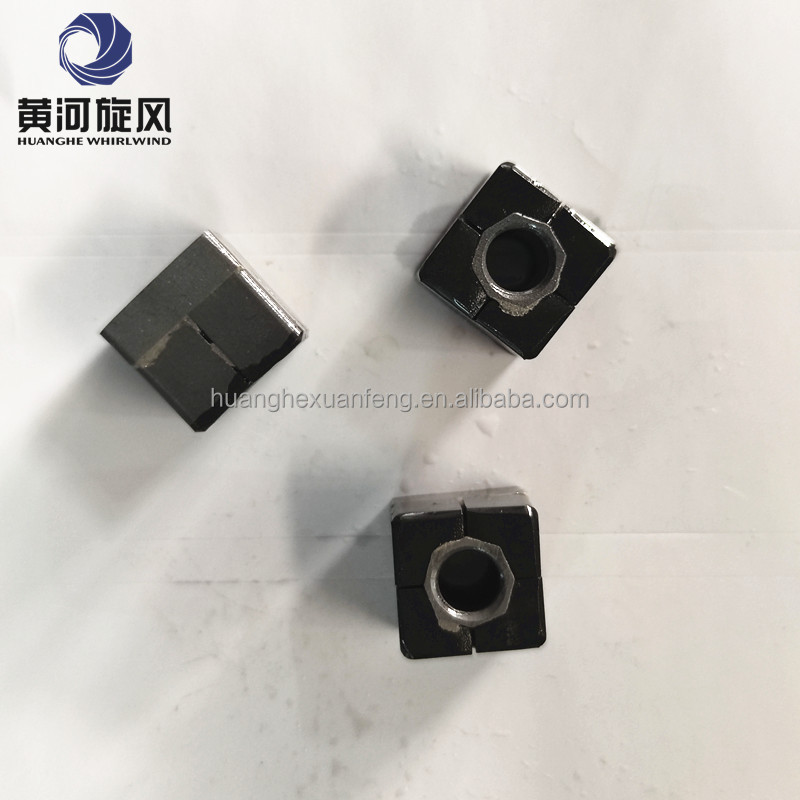

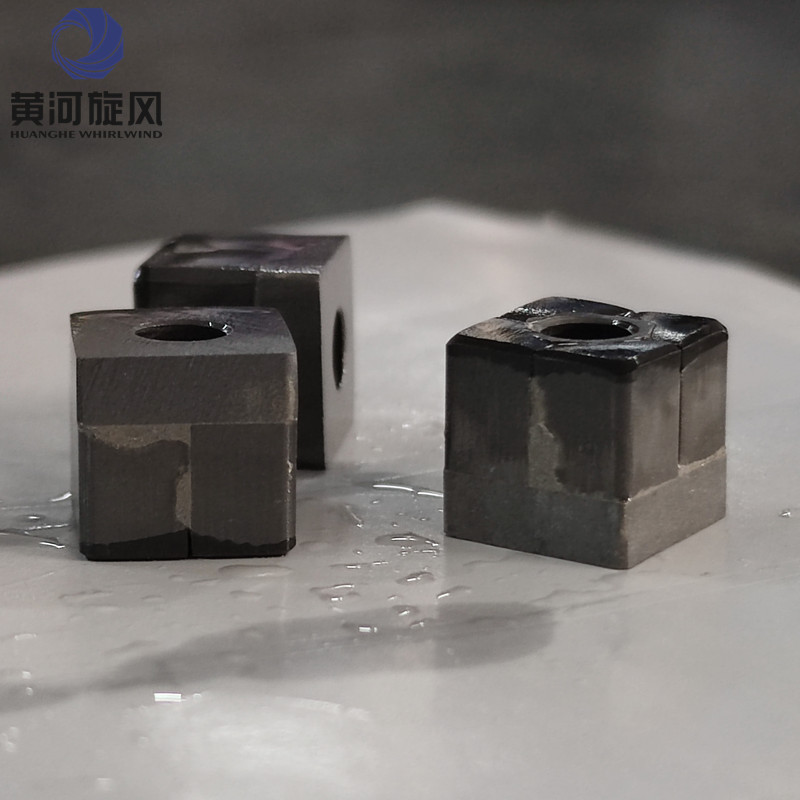

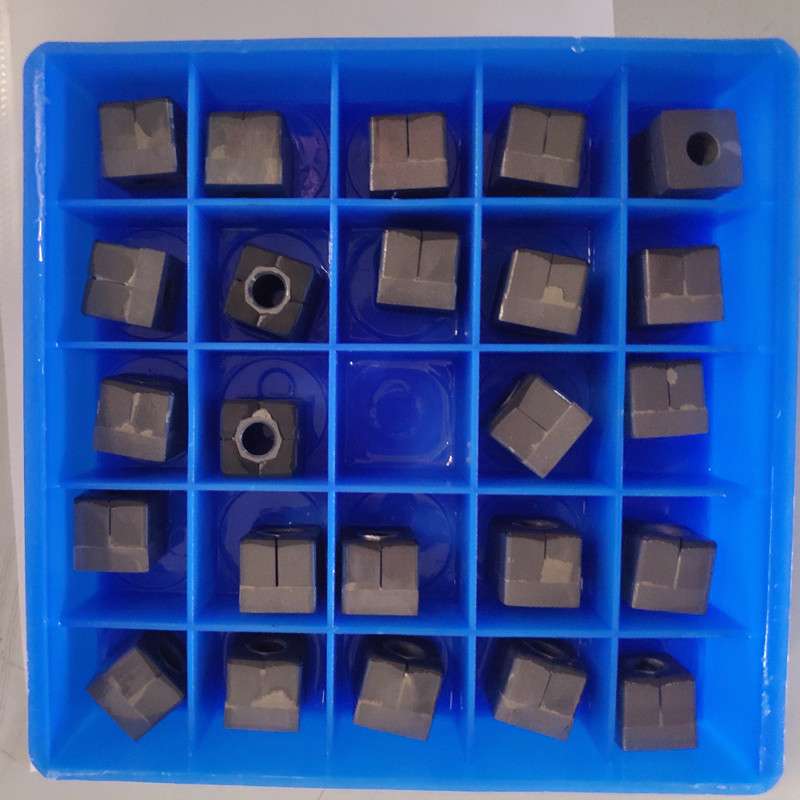

PDC cutters for marble and limestone quarrying cutting laterite stone - Square PDC Cutters
$18.00
≥100 Piece/Pieces
$17.50
≥500 Piece/Pieces
$17.00
≥1000 Piece/Pieces
Options:
- 13*13
- 8.7*8.7
- 12.7*12.7
- 9.4*9.4
Get Latest Price
You might also like
1 Piece/Pieces (MOQ)
1 Piece/Pieces (MOQ)
Basic Info
| Condition | New |
|---|---|
| warranty | 6 months, Unavailable |
| Applicable Industries | Building Material Shops, Construction works?, Energy & Mining |
| Weight (KG) | 10 |
| Showroom Location | None |
Show More
Product description

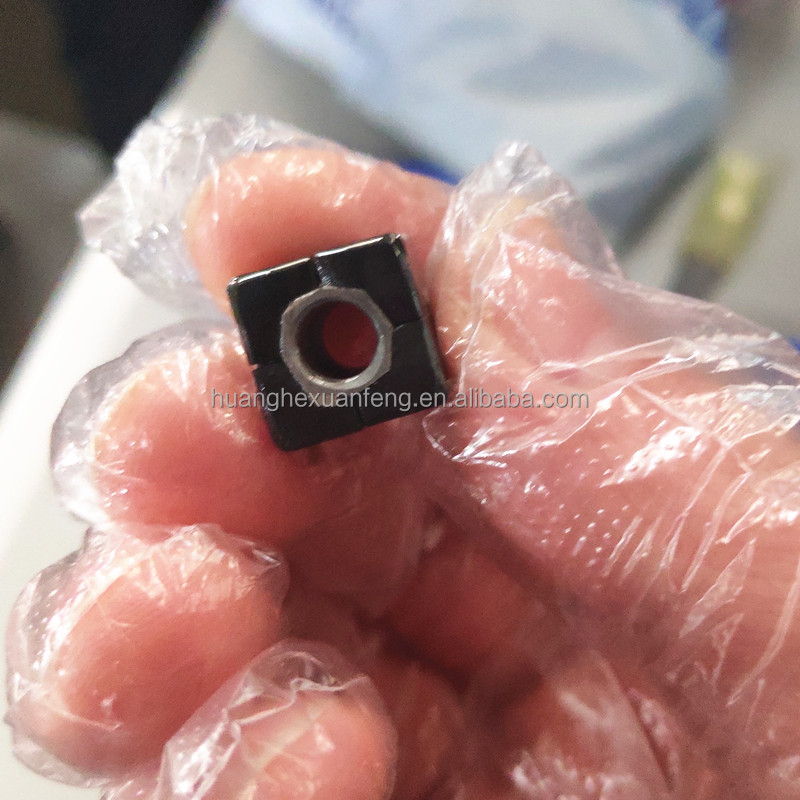

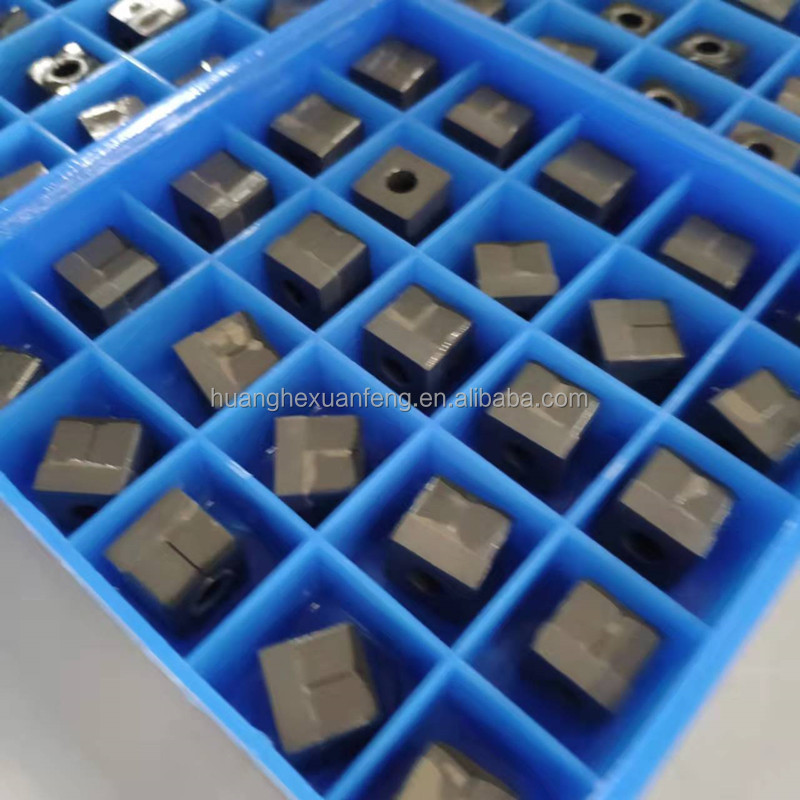

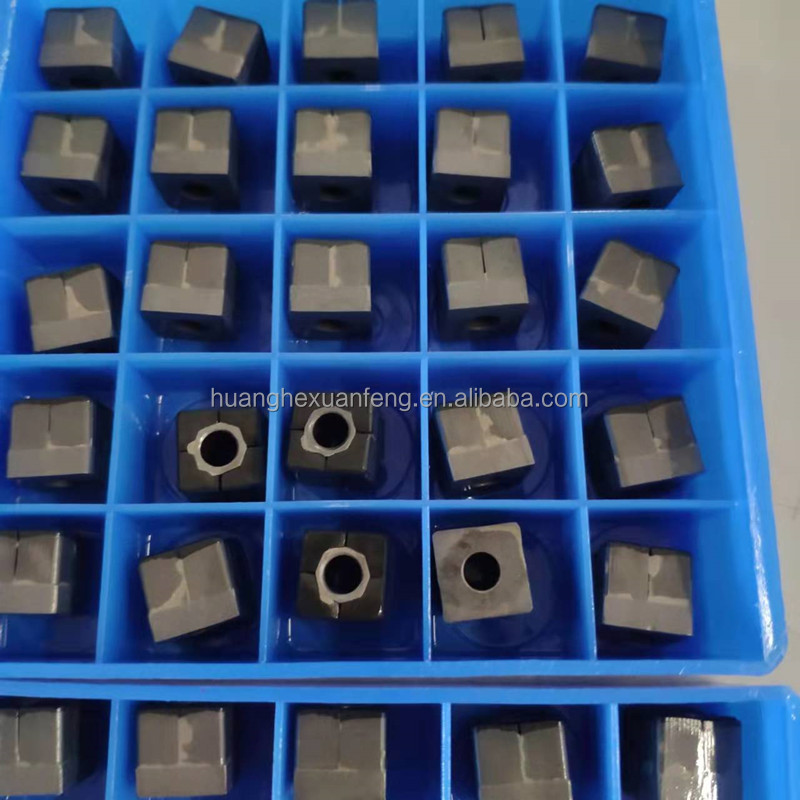

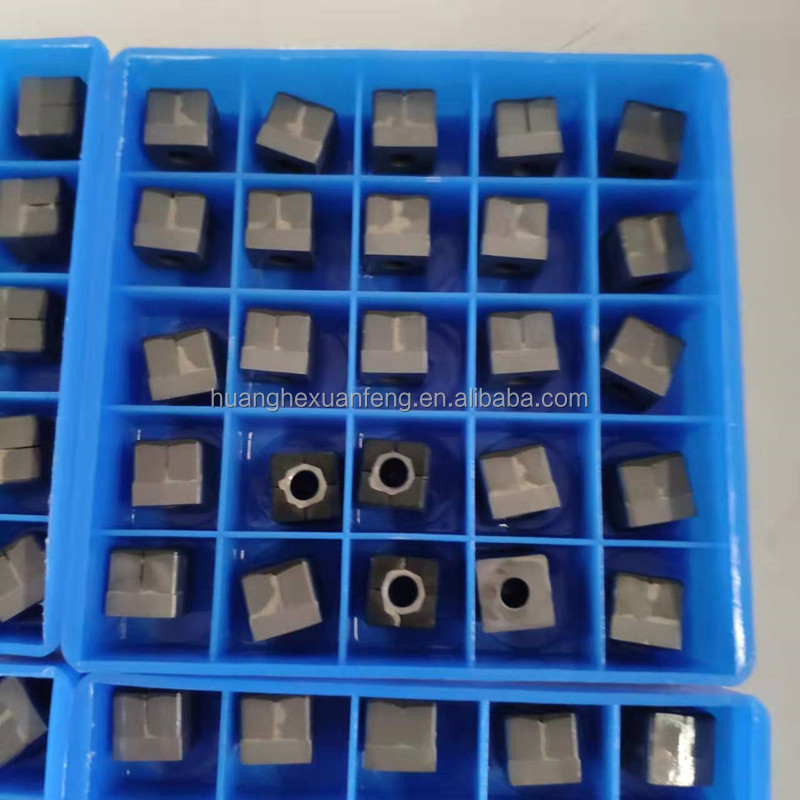

Detailed Images
Why Choose Us

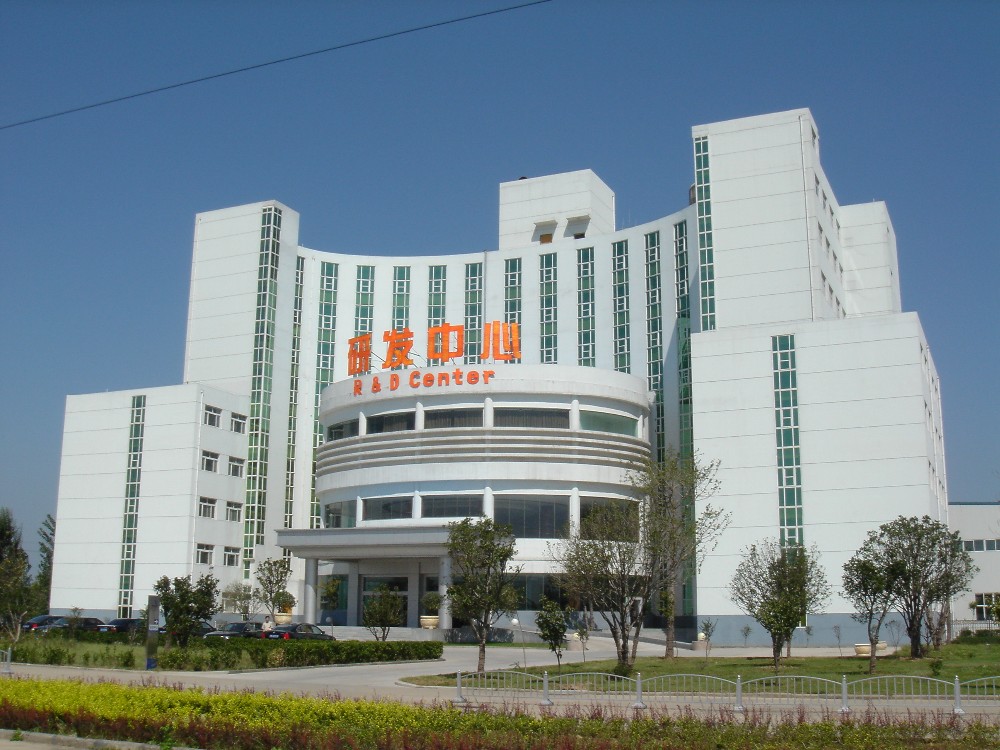

R&D
?The division staff has 2 doctors and 2 post graduates, relays on the R&D strength of Central South University.
Captial
Huanghe Whirlwind is a public listed company, which has strong capital and money raising ability, supply capital assurance.
Product
Have rich experience in manufacturing of coal picks, headroader picks , rotary picks and other contruction tools.

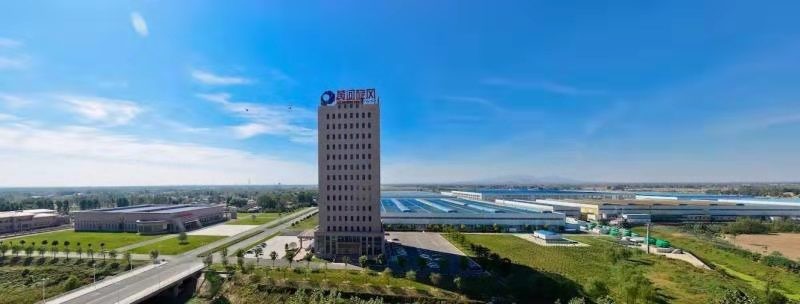

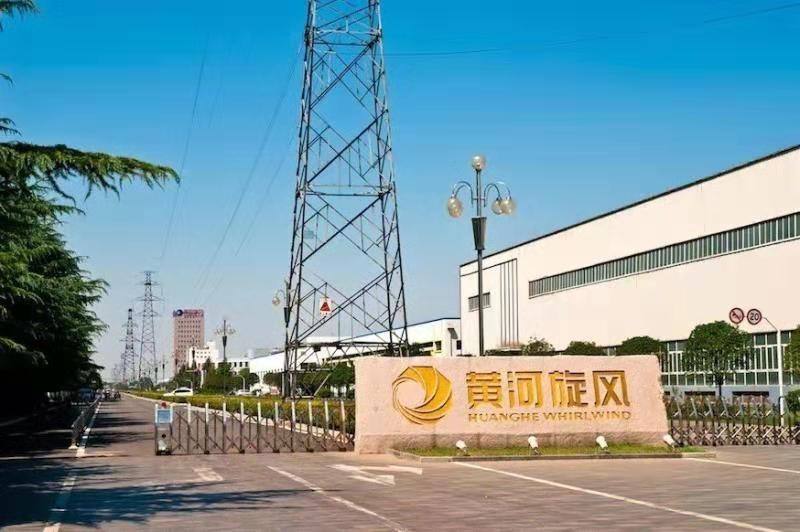

Henan Huanghe Whirlwind Co.,Ltd
Established in 1976, Henan Huanghe Whirlwind Co.,Ltd is a professional high and new technical enterprise specialized in R&D, manufacturing and sales of diamond tools, which provides related technology and services for modern mining drilling industry.
As an ISO 9001:2015 certified company, Henan Huanghe Whirlwind Co.,Ltd mainly research and produce the following range of drilling tools:
1. PDC cutter insert 1304, 1305,1306,1308.1310,1313,1613,1616,1916...etc;
2. PDC non-core bit/PDC core bit diameter 60mm/65mm/75mm/89mm/94mm/113mm/133mm/153mm...etc;
3. PDC anchor bit for roof bolting diameter 27mm/28mm/29mm/30mm/32mm/42mm/43mm...etc;
As an ISO 9001:2015 certified company, Henan Huanghe Whirlwind Co.,Ltd mainly research and produce the following range of drilling tools:
1. PDC cutter insert 1304, 1305,1306,1308.1310,1313,1613,1616,1916...etc;
2. PDC non-core bit/PDC core bit diameter 60mm/65mm/75mm/89mm/94mm/113mm/133mm/153mm...etc;
3. PDC anchor bit for roof bolting diameter 27mm/28mm/29mm/30mm/32mm/42mm/43mm...etc;
4. Diamond core drill bit:impregnated diamond core bit AQ BQ NQ HQ PQ...etc;
5. Tungsten carbide drill bit:twin-wing coal bit, chisel bit, cross bit, button bit...etc.
6. Tungsten carbide conical bullet teeth, drilling picks for contruction and mining;
5. Tungsten carbide drill bit:twin-wing coal bit, chisel bit, cross bit, button bit...etc.
6. Tungsten carbide conical bullet teeth, drilling picks for contruction and mining;
1. PDC cutter for Coal mining,Geological exploration,Stone processing | ||||||
Model | 0808, 1004, 1008, 1204, 1304, 1308, 1313, 1608, 1613, 1616, 1908, 1913,1916, 1919 | 1306, 1308 | 1305, 1308 | |||
Application | Making geological and coalmine drill bits for medium-hard rocks | Making geological&coalmine drill bits for soft rocks | Makinggeological&coalmine drill bit for hard rocks | |||
Advantages | High wear resistance and impact resistance. | Faster rock breaking speed in soft rocks | Longer useful life, and High impact resistance in hard rocks | |||
2. PDC cutters for oil/gas drilling | ||
Model | 0808, 1008, 1308, 1313,1608,1613, 1616,1908, 1913,1916, 1919 | |
Application | Mainly used for oil or gas drilling bits | |
3. PDC cutters for other PDC tools | ||||

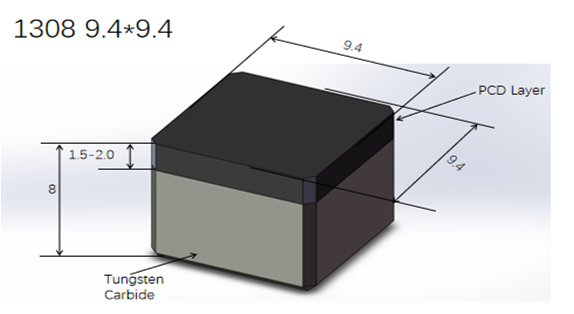

Model | 9.4*9.4*8mm12*12*4.5/8mm 12.7*12.7*8mm 1304,1308 | |||
Application | For chain saw cutting For concrete cutting pad | |||
Remark | Other sizes can also supplied according to your requirements! | |||
Product Advantage
Polycrystalline Diamond Composite,?short for PDC,
Product Formation

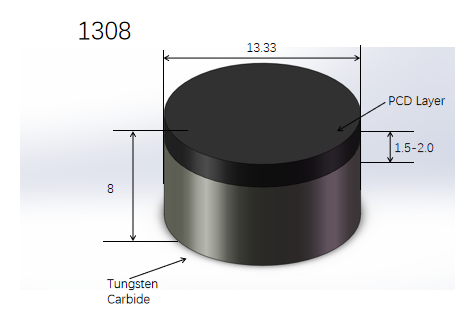

- Diameter standard：8.0/10.0/13.4±0.05mm，height ：4.5/5.0/8.0±0.1mm
- Diamond layer height 1304：1.0/1.2/1.4±0.1；1308：1.7/2.0/2.5±0.1mm, the binding surface shapes between diamond and carbide are straight line and wave-like line; diamond layer chamfer with national common standard 0.4-0.5*45°，abroad standard is 0.2-0.3*45°，the carbide chamfer national standard is 0.4-0.5*45°， abroad standard is 0.6-0.7*45°.
Laser cutting machining precision:±0.05mm

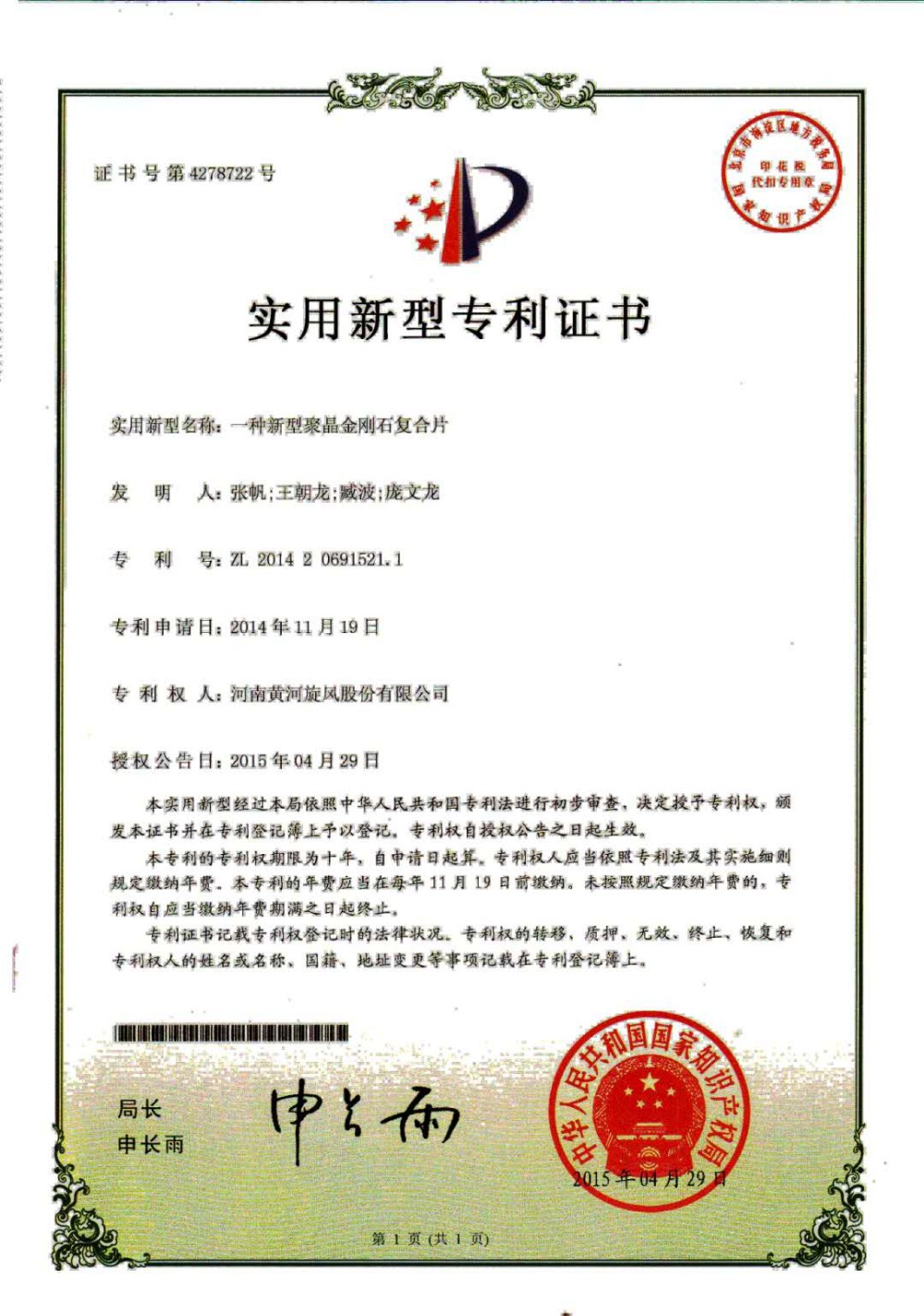

Certifications
Exhibitation

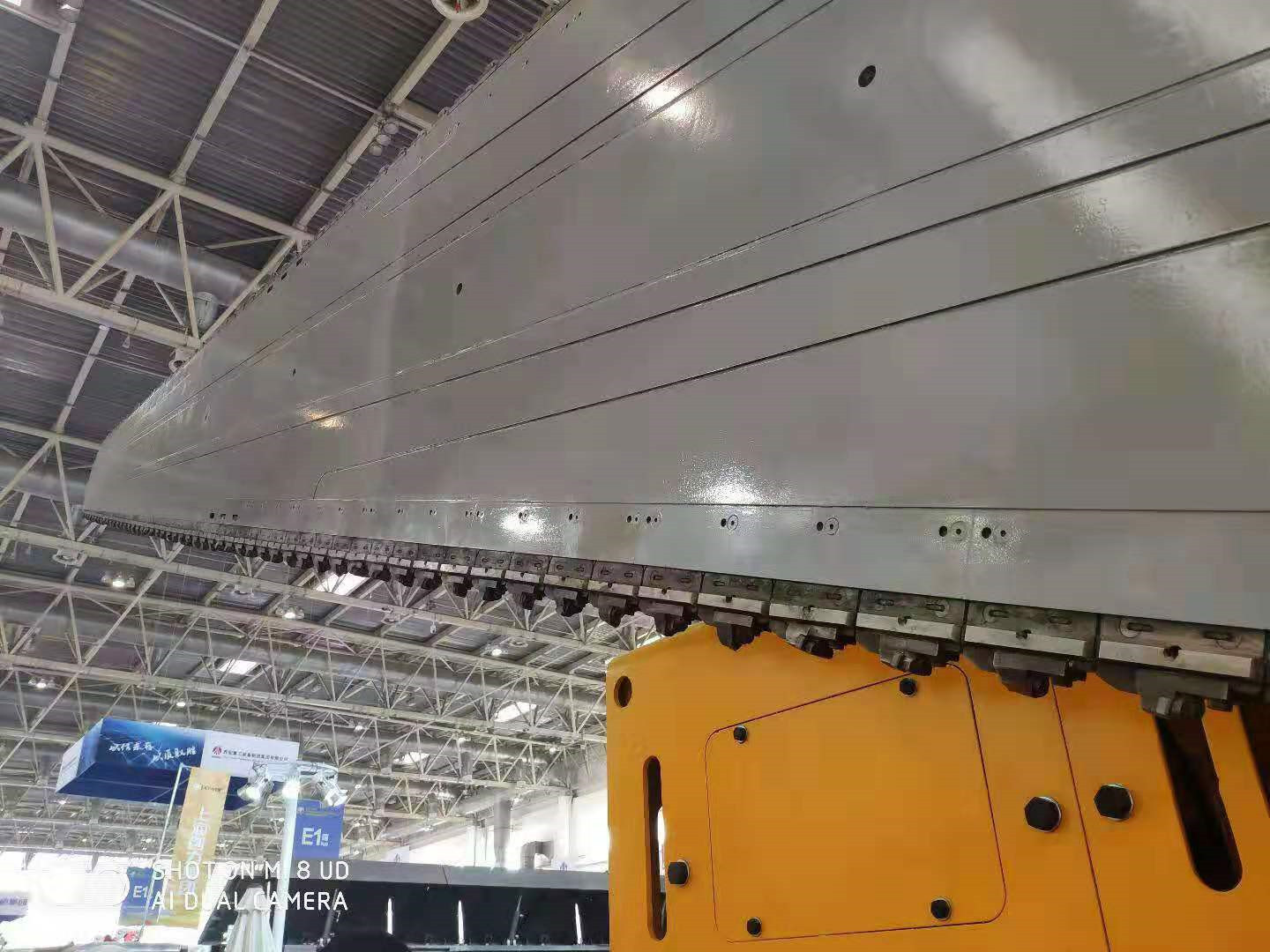

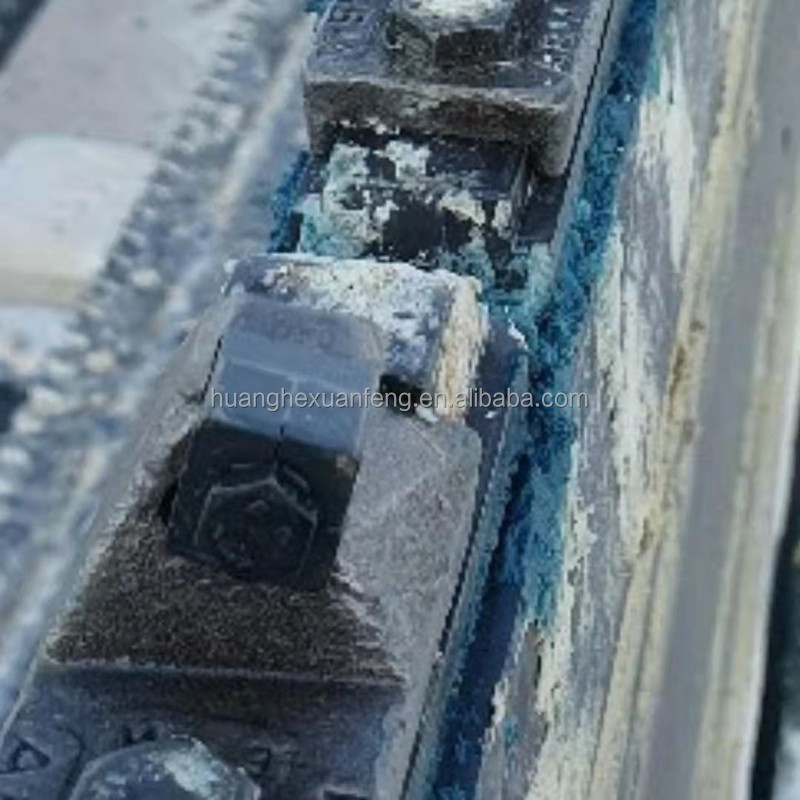

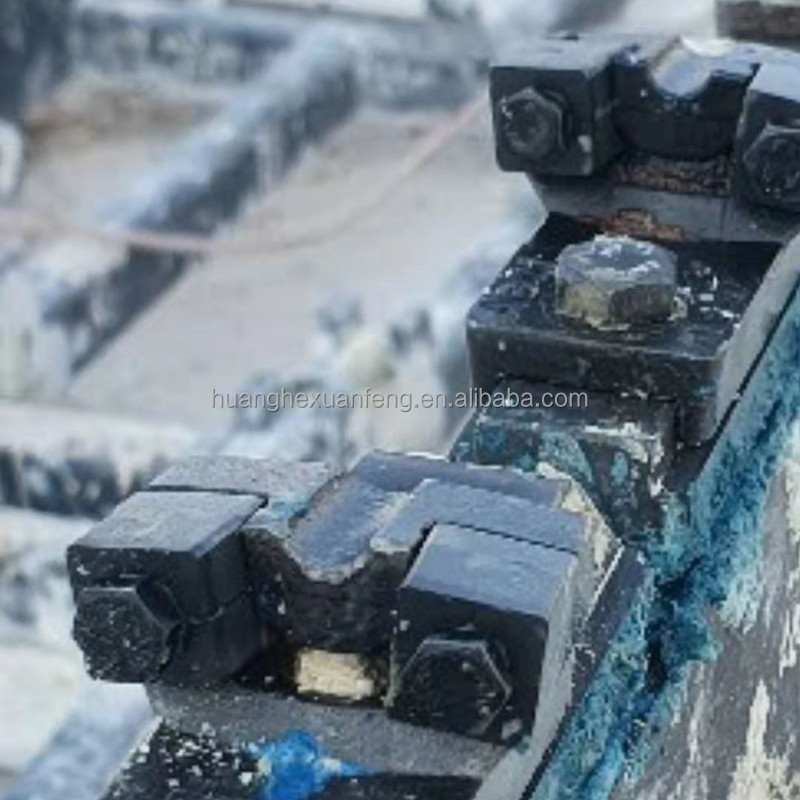

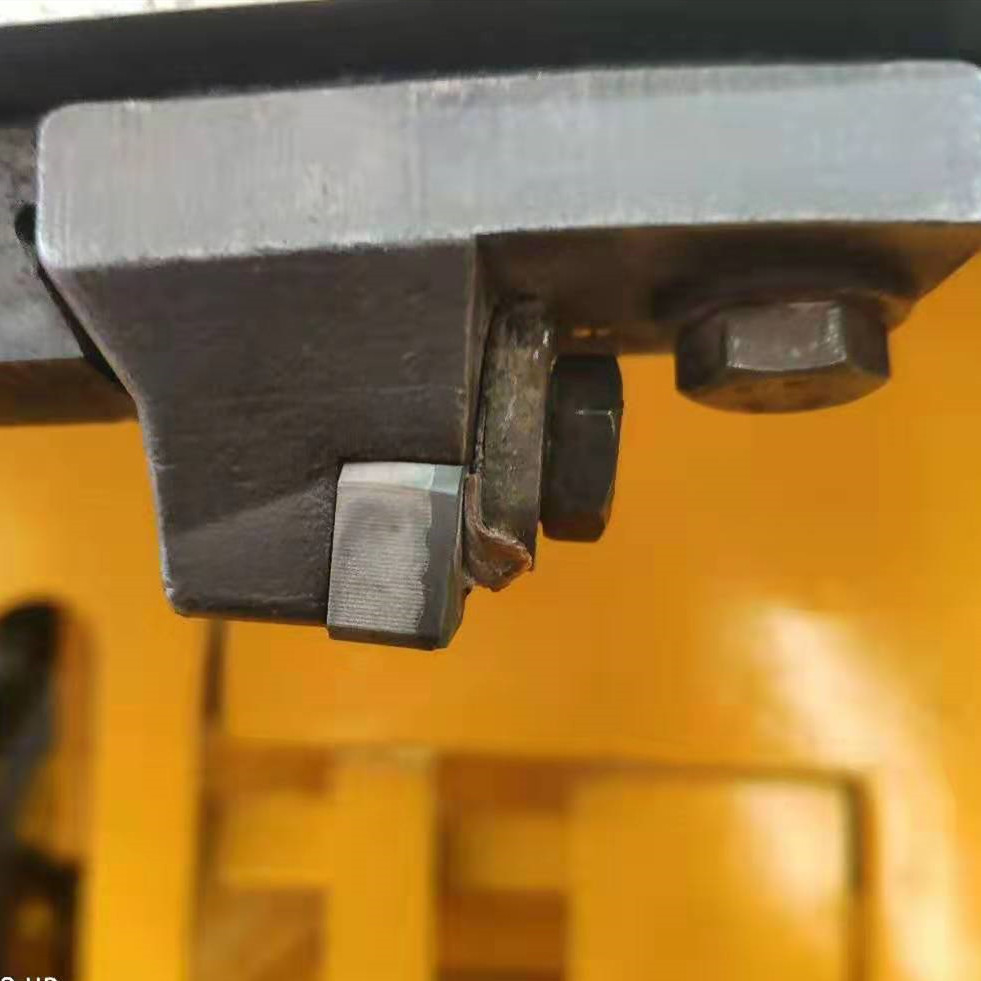

Application case
