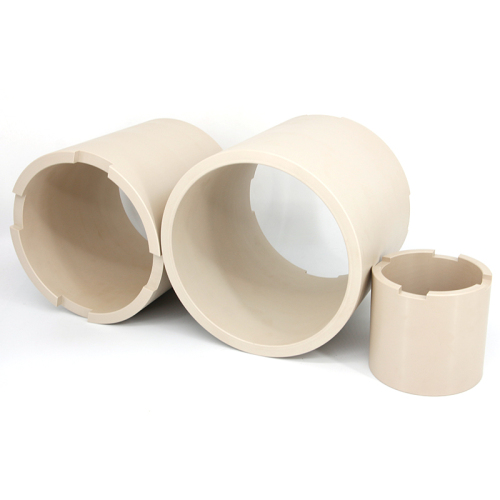

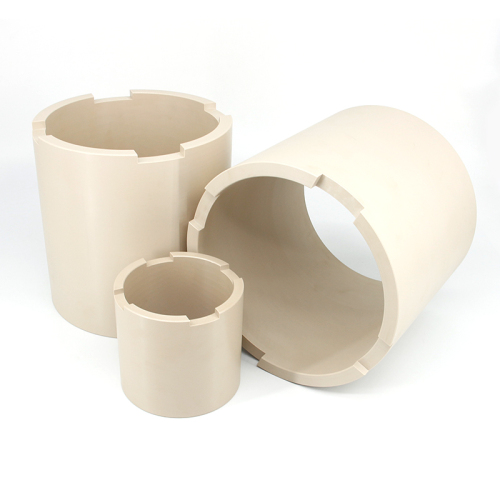

Peek Bushing Self lubricating plastic sleeve

Product parameters

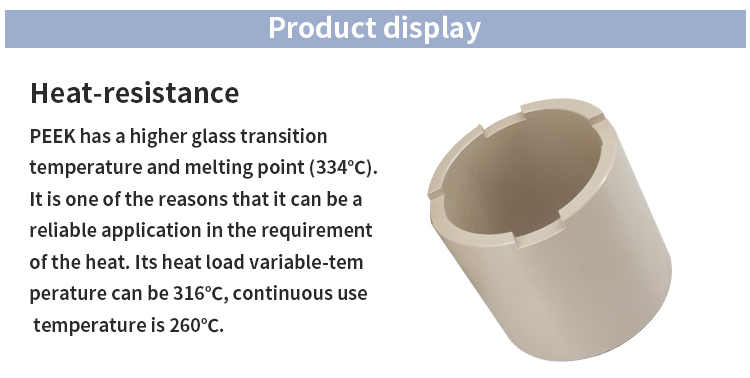

PEEK is a high temperature resistant, high performance thermoplastic

special engineering plastic.It has good mechanical properties and chemical

resistance, wear resistance, hydrolysis resistance and other properties;

It has light specific gravity, good self-lubrication performance, because of

its very good processing performance, can be filled with carbon fiber,

disulfide and so on to further improve the lubrication performance and

mechanical strength.

Property	Item No.	Unit	PEEK-1000	PEEK-CA30	PEEK-GF30
1	Density	g/cm3	1.31	1.41	1.51
2	Water absorption(23℃ in air)	%	0.20	0.14	0.14
3	Tensile strength	MPa	110	130	90
4	Tensile strain at break	％	20	5	5
5	Compressive stress(at 2%nominal strain)	MPa	57	97	81
6	Charpy impact strength (unnotched)	KJ/m2	KJ/m2	35	35
7	Charpy impact strength (notched)	KJ/m2	3.5	4	4
8	Tensile modulus of elasticity	MPA	4400	7700	6300
9	Ball indentation hardness	N2	230	235	270
10	Rockwell hardness	--	M105	M102	M99

The Chinese name of PEEK is polyether ether ketone, which belongs to

semi-crystalline plastic and is a special engineering plastic with

outstanding comprehensive performance.

The main advantages are manifested in its excellent mechanical strength,

electrical insulation, corrosion resistance and other comprehensive

properties.For details, please consult the PEEK processor or PEEK

material supplier.Plastic peek bushing: which wear-resistant nylon bushing

or peek bushing

Many years of industry experience we are trustworthy
PEEK Material - Model number
Peek-1000 (natural color):PEEK-1000 is made of pure polyetherketone resin
Toughness and impact resistance in all PEEK grades.

Peek-1000 can be sterilized with convenient disinfection methods (steam, dry

heat, ethanol, and Y radiation), and the raw materials used to manufacture

peEK-1000 comply with eu and US FDA regulations on food compliance. These characteristics make it very popular in the medical, pharmaceutical, and food processing industries.

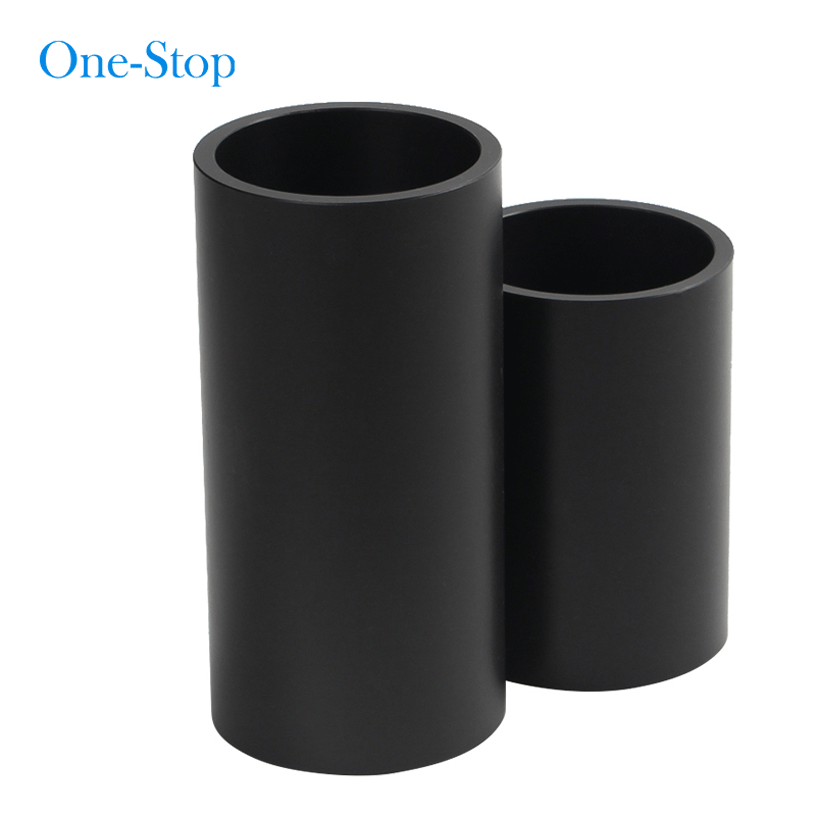

Peek-hpv (Black): The result of the addition of PTFE, graphite and carbon fiber

makes peEK-HPV a bearing grade plastic whose superior friction properties

(low coefficient of friction, wear resistance, high peak pressure limit) make this

 grade an ideal material for friction applications.

Peek-gf30: This material is filled with 30% glass fiber reinforced grade stage

material, more than peEK-1000. It has better rigidity and creep resistance and

 better dimensional stability.

It is ideal for manufacturing structural parts that can withstand fixed loads for

 long periods of time at temperature.

If peEK-GF30 is used as a sliding piece, its suitability should be carefully

checked as the glass fiber scratches the mating surface.

Peek-ca30: This material is filled with 30% carbon fiber reinforced and has an

 advantage over peEK-GF30.

Mechanical properties (higher elastic modulus, mechanical strength, and creep)

 and wear resistance, and the plastic reinforced with carbon fiber is 3.5 times

more thermally conductive than the unreinforced PEEK material -- it dissipates

 from the bearing surface faster.

For CNC machining, the products will be sent for 3 days. And we support OEM and ODM.
