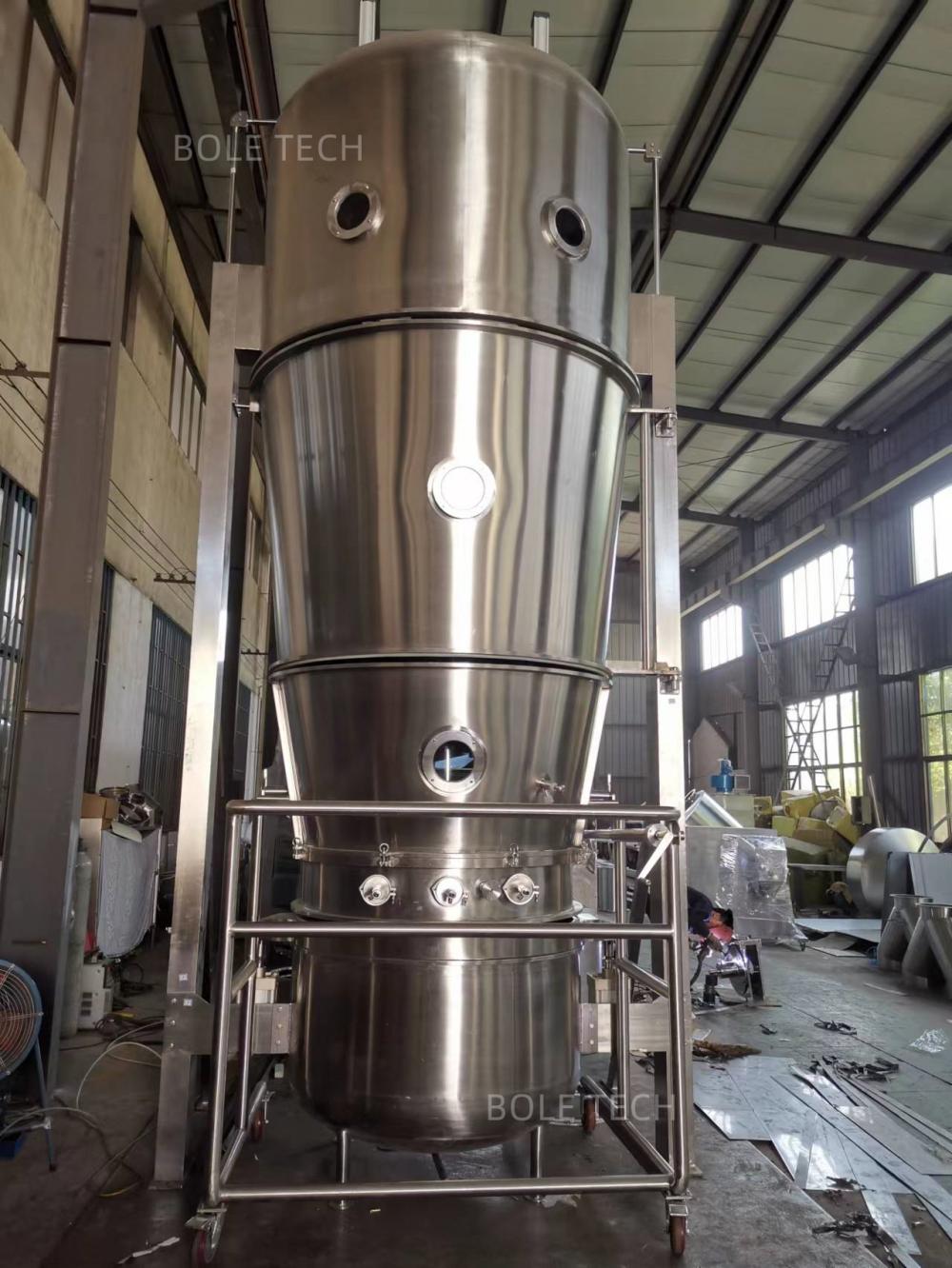

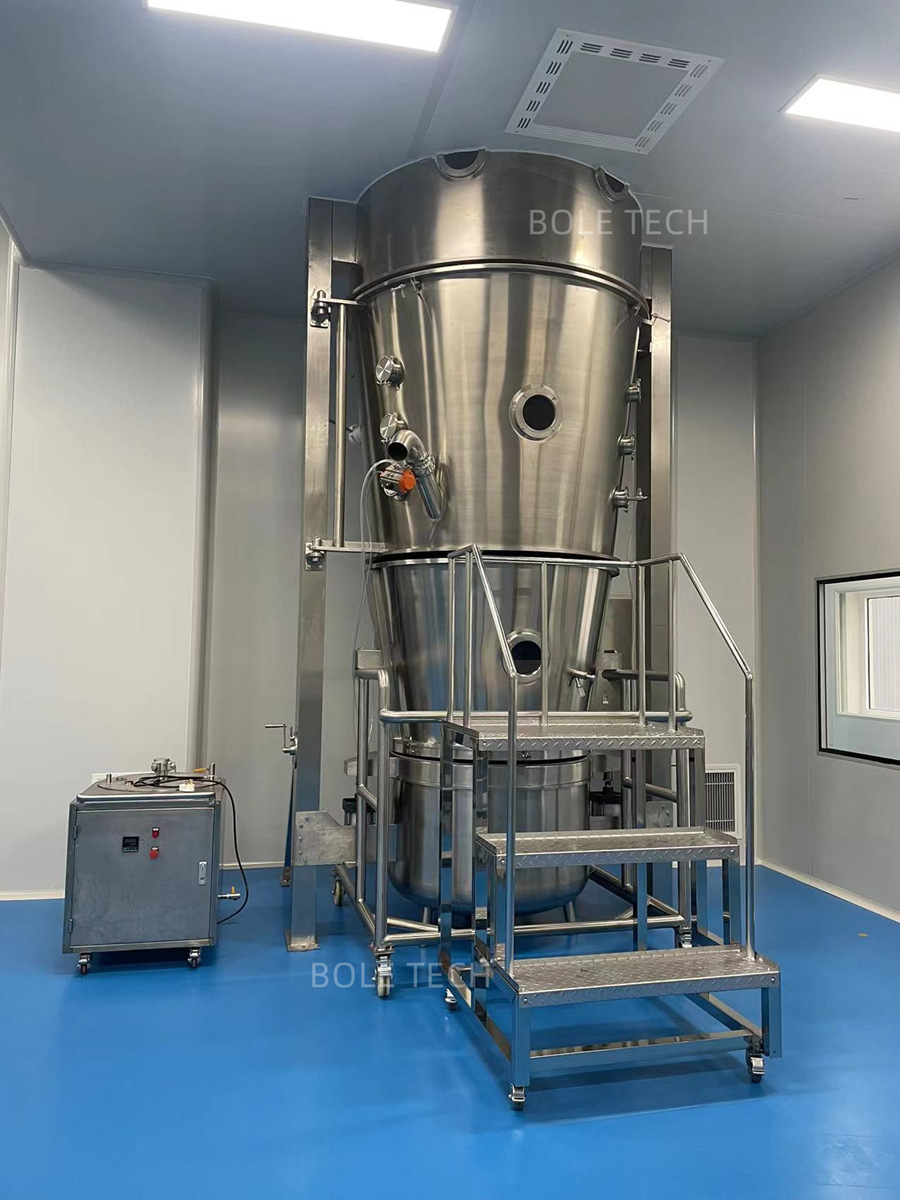

Description of fluid bed coater:

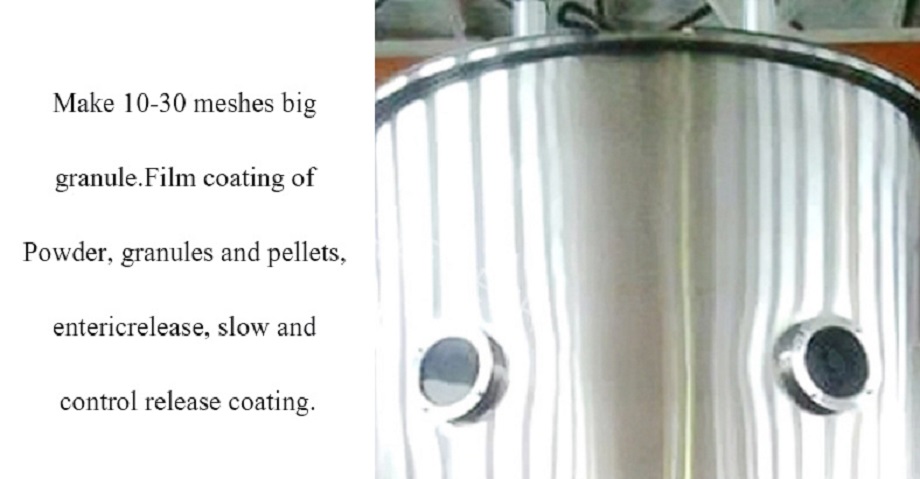

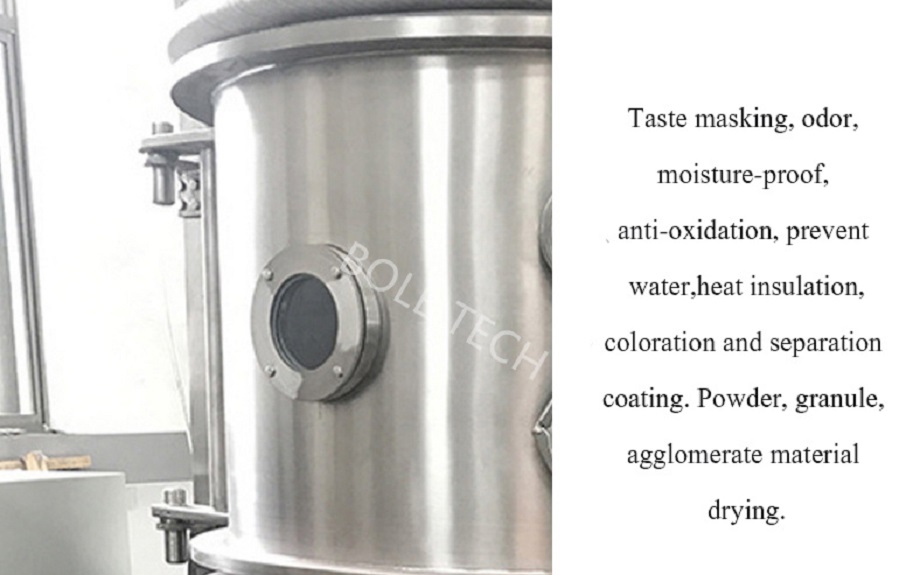

Fluid bed coater is a new style coating equipment that combined fluid-bed spraying technology and coating well. It is widely used for ilm slow and control releasing coating, framework slow and control releasing capsule, pellet coating, granule, powder coating, etc.

It is widely used for many products such as Omeprazole enteric release coating, Complex vitamin and amino acid coating, Aspirin coating, Compound fertilizer slow releasing coating, fertilizer coating.

Features of fluid bed coater:

1. INLET AHU
The inlet AHU consists of G4, F8, H13 filter and heater with accurate temperature control. The inlet air flow is variable controlled by the exhaust air fan motor VFD from the HMI.
2. MAIN BODY STRUCTURE
The main body structure consists of lower bowl, movable product bowl, fluidized chamber, expansion chamber/filter housing. The lower bowl, product container and fluidized chamber are inflatable silicon gasket sealed with compress air inspection sensor to assure the reliable sealing.
3. PRODUCT FILTER
The double structured bag filter in two pieces (in case request, stainless steel filter available) is inflatable silicon gasket sealed between the expansion chamber inner surfaces with compress air inspection sensor to assure the reliable sealing. A dust sensor is mounted on the exhaust piping and interlocked from control sys to secure the product safety during processing stage.
4. EXHAUST AHU
The exhaust dust collection filter is optionally designed for protect environment.
5. 2Bar &10Bar POWDER EXPLOSION
The 2bar and 10 bar powder explosion proof design is selectable to ensure the operator, equipment and environment safety with reliable grounding device.
6. FLUIDZED GRANULATION
In case of fluidized granulation is requested, the binder solution tank and spray sys with peristaltic pump would be designed and offered. The binder is sprayed from the peristaltic pump through the spray gun into the chamber onto the product surfaces. The product coheres together by the binder which forms the binder bridge for form the core granules and grows up and formed. The binder bridge is evaporated away by the hot air and the evenly dried granules formed.
7. UNLOADING SYS
The lifting tipping with on-line dry cone mill sys or, vacuum loading mounted on lifter with on-line dry cone mill sys is designed and offered to form the dust free material unloading from fluid bed sys to assure the dry sizing and clean production requirement according to current GMP regulation.
