The versatility of Pick-to-Light offers itself to many effective applications including order picking, parts picking, sortation, kitting, consolidation, and assembly. Most Pick to Light device can also be integrated with other automated systems and manufacturing tasks.

• Retail
• Direct Selling
• Ecommerce & Catalog
• Pharmaceutical & Medical Products
• Health & Beauty, Cosmetics
• Automotive Kitting & Assembly
• Grocery & Meal Delivery
• 3^rd Party Fulfillment Companies
• General Kitting

Pick-to-Light Process:

1.          Start a picklist (list of inventory items to pick in order to fill one or more orders–typically started with a barcode scan)

2.          Pick-to-Light hardware lights up with the SKU and quantity to pick

3.          order picking by light presses the button or scans a barcode to acknowledge each pick

4.          Picker repeats the process until the picklist is complete

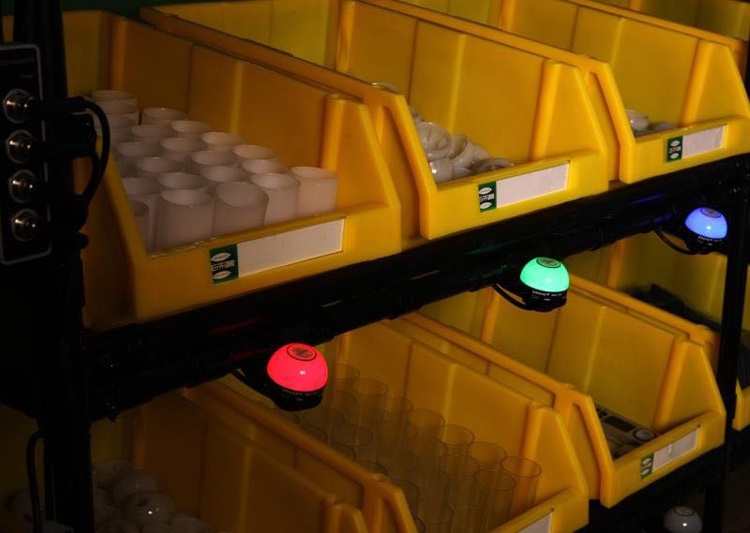

pick to light LED, consisting of storage compartment displays, belongs to the paperless order picking methods, supports the order picker with light during order picking. The picking quantity is displayed directly at the storage compartment and confirmed at the acknowledgement button.

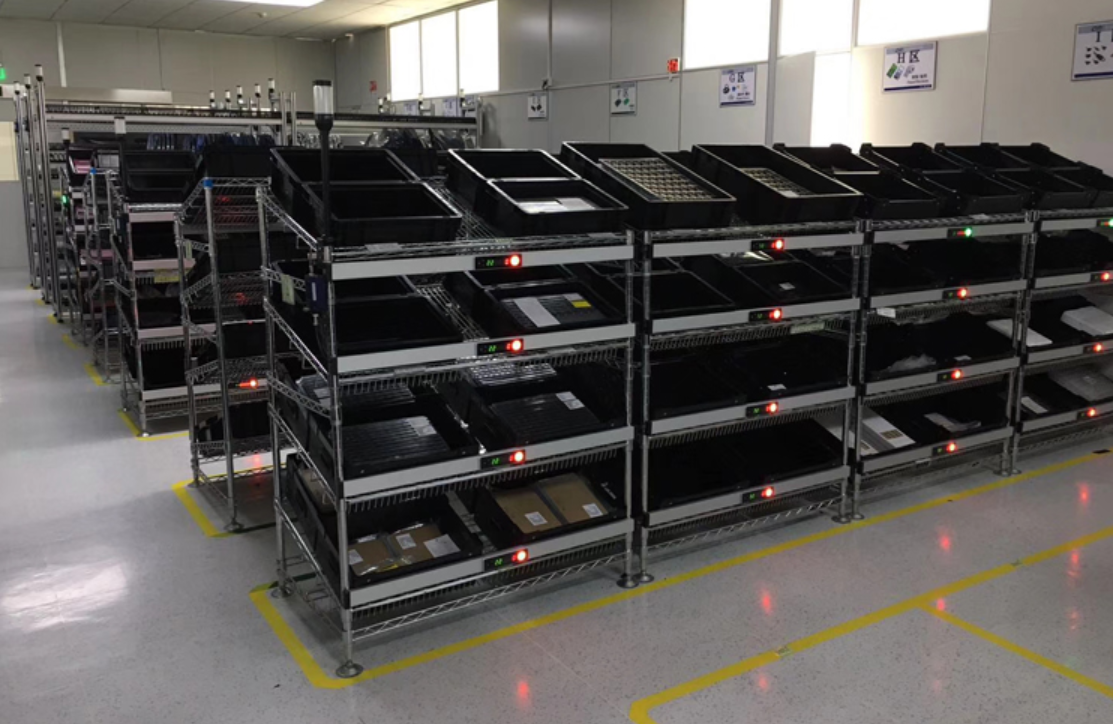

Light Directed Picking system used in automation, pharmacy, hospital, WMS system , supermarket .

Pick to light deviice with Anti-fall,dust-proof,long life lasting

Power: Less 5W;
Input: DC12V-30V;

Supply current:

Red, Green, Blue<75mA(12VDC); <40mA(30VDC);

Yellow, Cyan, Pink<140mA(12VDC); <70mA(30VDC);

White<205mA(12VDC); <100mA(30VDC)
IO type: Job light: Gree; Job+Sense: Yellow; Mis-picking(Sense but no job): Red.

IB intelligent bus: Indicator color customized and controlled by instruction.

Item No.	TW-P3N3
Supply Voltage	12V-30Vdc
Supply Current	Red, Green, Blue:<75mA@12Vdc; <40mA@30Vdc
Output Rating:
a, Maximum Load	150mA
b, On-State Saturation Voltage	<2V(10mA dc); <2.5V(150mA)
c, Off-State Leakage Current	<10uA(30Vdc)
Indicators	7 colors available: red, green, yellow, blue white etc
I/O Type	Job light: Green, Sense+Job light: Yellow, Mis-picking(Sense, but no job):Red
IB intelligent bus	7 colors controlled by instruction
Electronic Protection	Protected against reverse polarity and over current
Output Response Time	25 milliseconds(max.) On and Off
Connections	M12 QD wth 0.3m cable, or 1m cable
Working temperature (℃)	-40℃~50℃
Humidity	95% at 50℃
IP rating	IP69K

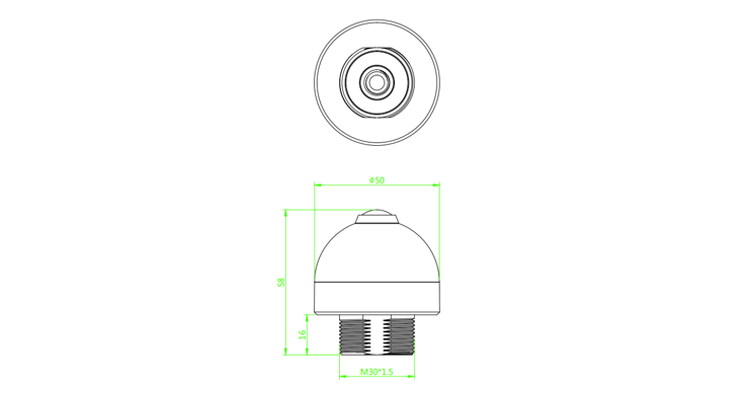

Dimension	50mmx50mm(ODxH)
Mounting thread	M30x1.5mm
Material	ABS and Polycarbonate
Approval	CE    FCC
Feature	Interactive touch button; Actuated with work gloves; Rugged, fully encapsulated IP69K construction; 7 colors available Price is much cheaper than international brand
