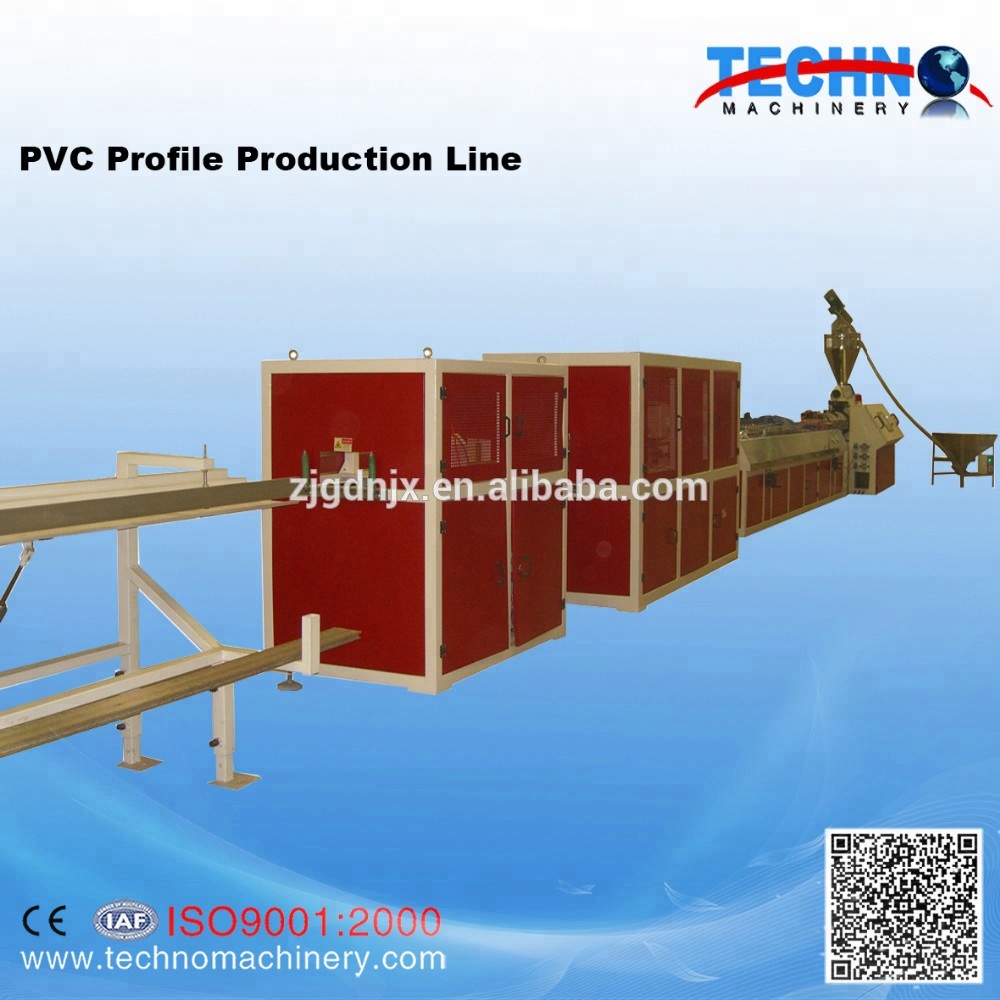

Plastic Wood Composite Sawdust Board and Door Production Line Machinery
Options:
- TECWPC
$30000.00
1 set (MOQ)
Basic Info
| Plastic Processed | Pvc |
|---|---|
| application | Profile |
| Screw design | Double-Screw |
| Place of Origin | Jiangsu, China |
| Brand Name | Techno |
Product description

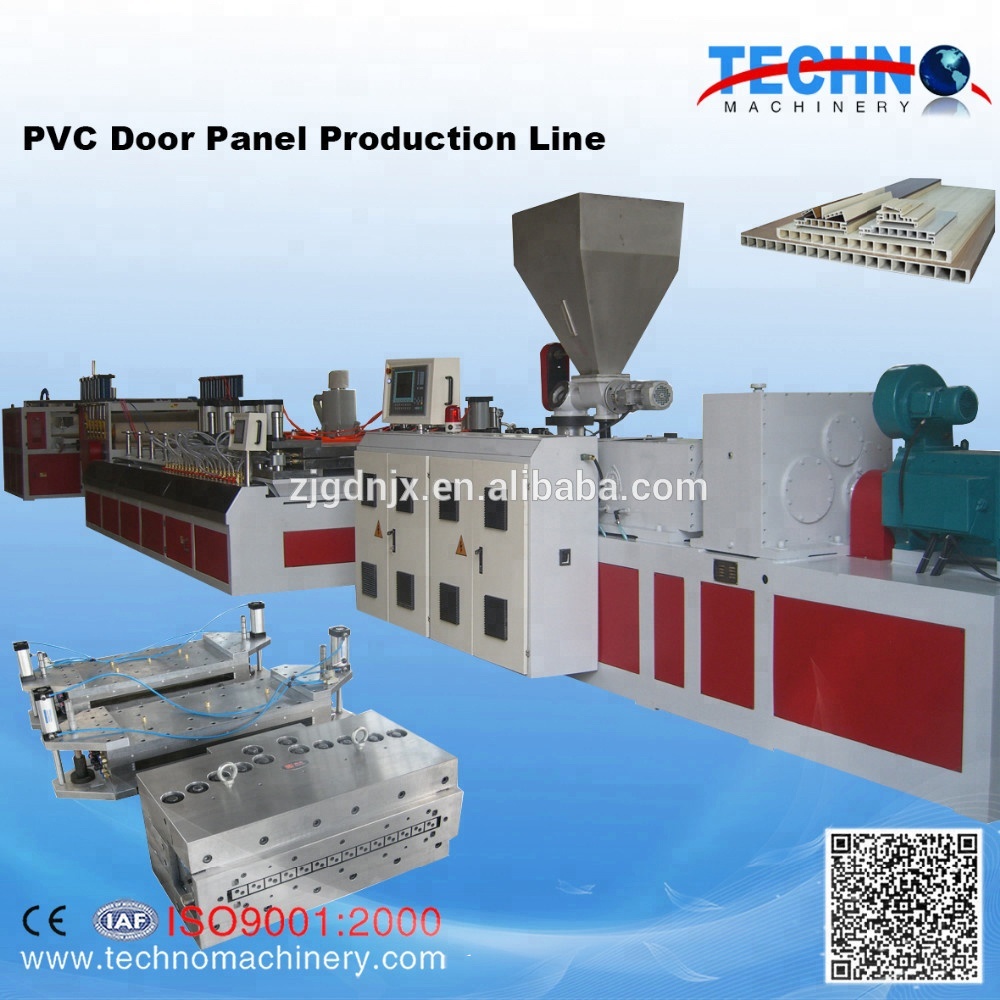

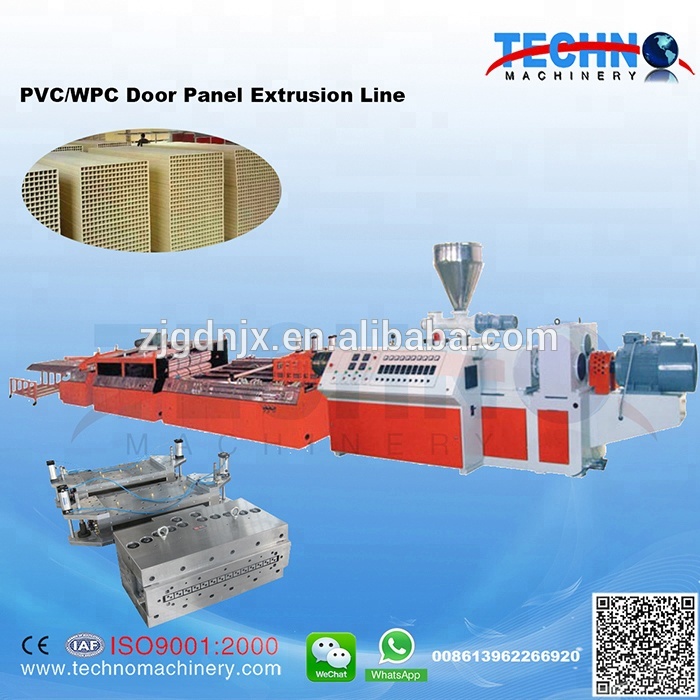

Plastic Wood Sawdust board making machine/WPC PVC door production line
Processing Flow
Raw material+Wood powder+Additive -?Mixing? -?Conical twin screw extruder -?Profile extrusion mould -?Cooling molding die -?Vacuum calibration support -?Belt haul off -?Cutter -?Rack -?Finished product inspecting and packing
??
Features of Plastic+Wood Sawdust board making machine/WPC PVC door production line
1. WPC profile production line uses specially designed screw and controlling system ensure excellent plasticization and stable extruding.??
?

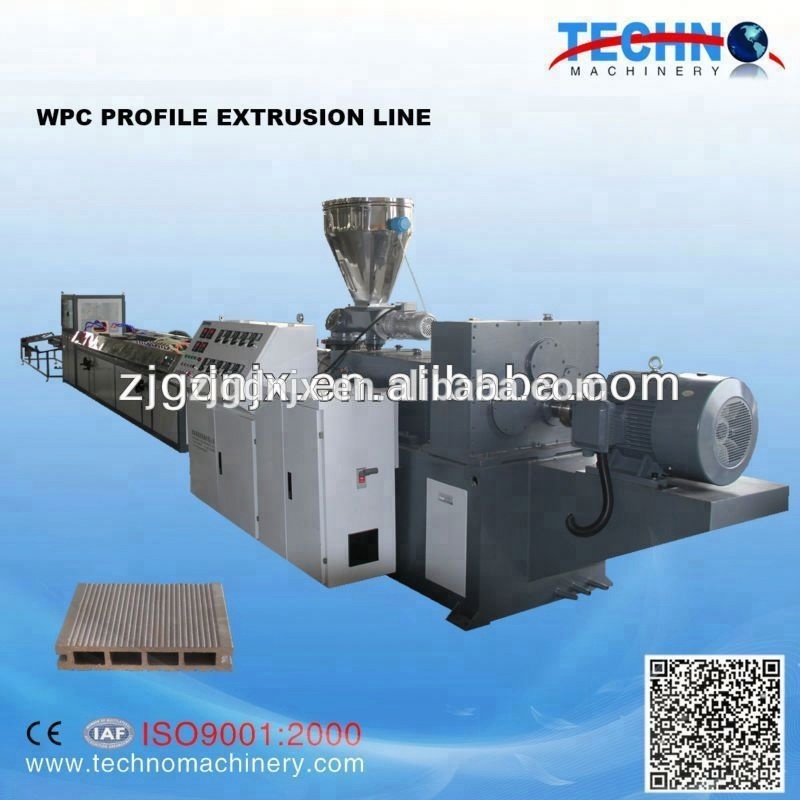

2. This WPC?profile extrusion line?is mainly used in WPC (PVC?or PE ) floor, WPC auxiliary profile for the decorative door and small profiles.
?
3. Chaging the moulds,this wood plastic profile production line can manufacture many different kinds of profiles according to your requrest.
?
4.?The new wood plastic composite functions same as natural wood,but with better performance.Resistant to water,corrosion and mildew.WPC is a very promising and sustainable green material to achieve durability without using toxic chemicals.Ideal for applications in high moisture environments.Recyclable to meet environmental protection requirements.
?
?
Technical?Parameters of Plastic+Wood Sawdust board making machine/WPC PVC door production line
Extruder?model | SJZ55/110M | SJZ65/132M | SJZ80/156M | SJZ92/188M | |||
Main?motor Power?(Kw) | 22 | 37 | 55 | 110 | |||
Auxiliary?Equipment | YF240S | YF240A | YF300A | YF600 | YF900 | YF1200 | |
Production?Width?(mm) | Max240 | Max240 | Max300 | Max600 | Max900 | Max1200 | |
Vacuum?Pump(Kw) | 2*5.5 | 4*5.5 | 4*5.5 | 4*5.5 | 1*7.5 2*11 | 1*7.5 2*11 | |
Water?Pump(Kw) | 1.5 | 4 | 4 | 7.5 | 7.5 | 7.5 | |
Hauling?Speed | 0-5 | 0-5 | 0-5 | 0-3 | 0-2.5 | 0-2.5 | |
Auxiliary?Equipment?Power? | 22 | 35 | 35 | 44 | 52 | 62 | |
Output(kg/h) | 70 | 120 | 120 | 180 | 400 | 400 | |
?
Referenced Pictures of Plastic+Wood Sawdust board making machine/WPC PVC door production line

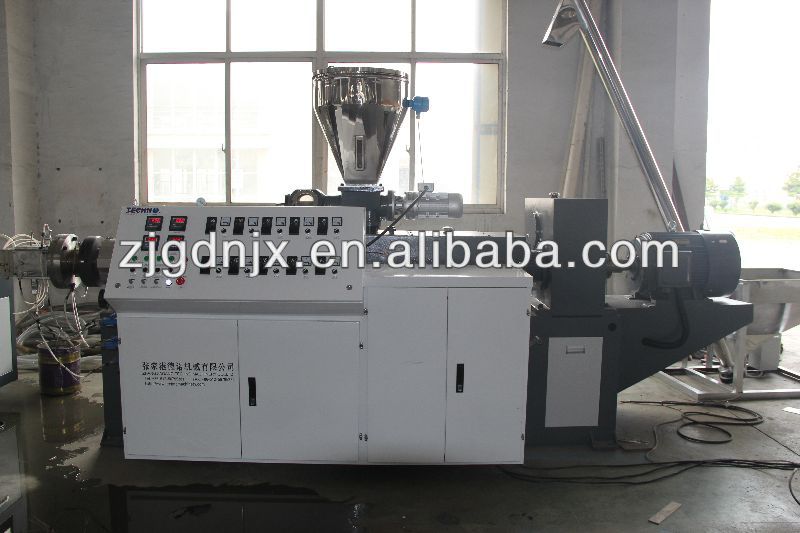

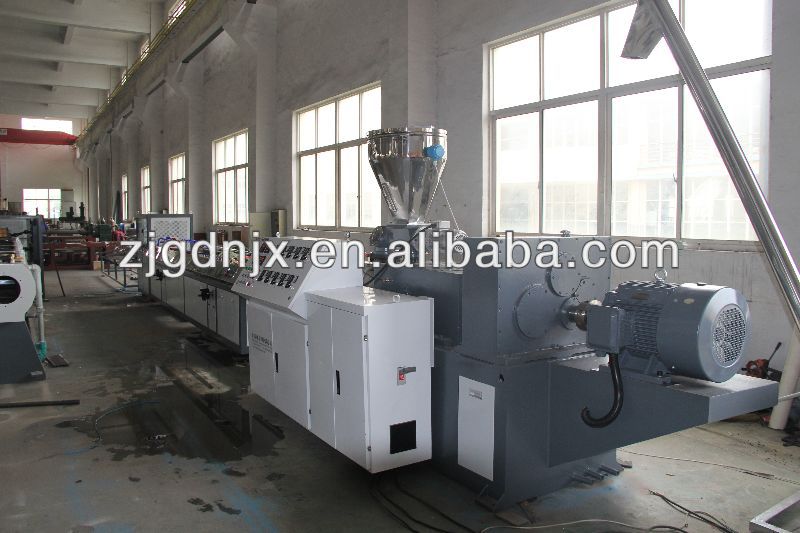

Twin Screw Extruder

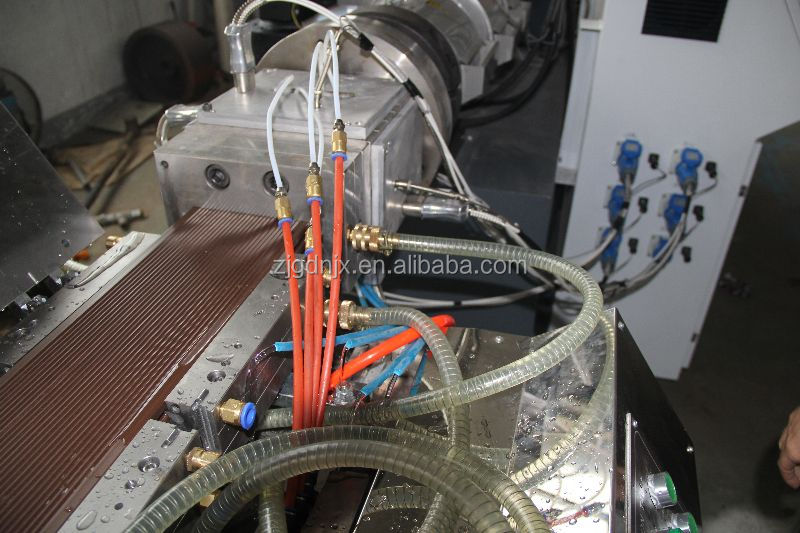

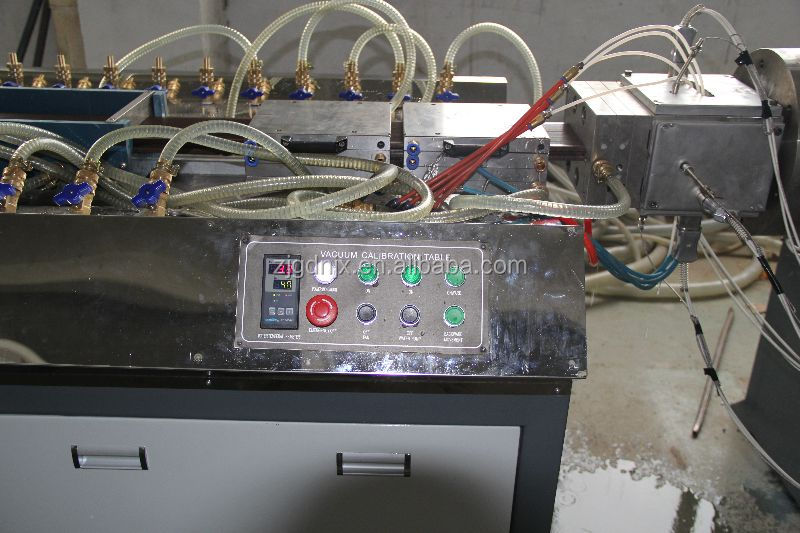

Vacuum Calibrating Table
Cutter Unit

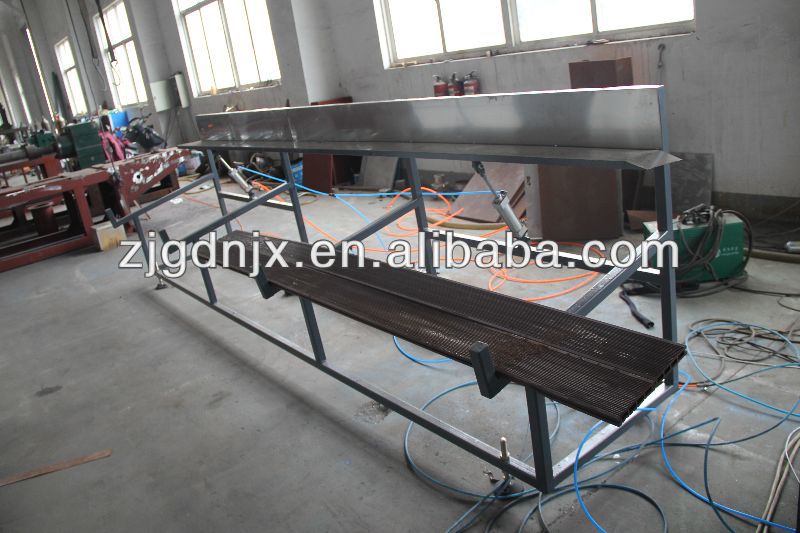

Tilting Stacker

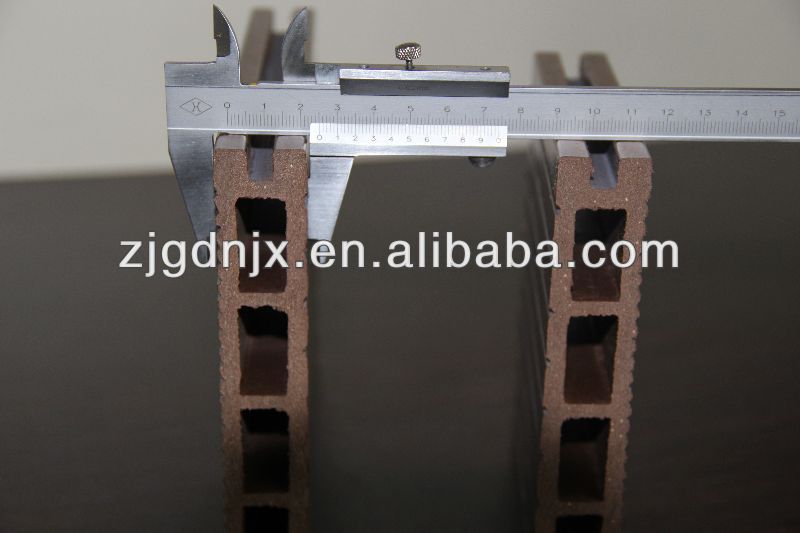

Finished Wood Plastic Composite Board FYR
Standard Export Seaworthy Packing Plastic+Wood Sawdust board making machine/WPC PVC door production line
a. Engineers available to service machinery overseas
b.?Guarantee Period: 12?Months
c. During this guarantee period,TECHNO will provide spare parts without any charge in case of quality discrepancy caused by us. If the malfunctions are caused by your incorrect operations,TECHNO will provide the buyer spare parts at cost price.
??
Zhangjiagang Techno Machinery?Co.,Ltd. is?specialized in manufacturing and exporting different kinds of plastic extrusion and plastic recycling machinery.
?
Our main machines include the following: 1)plastic pipes production line? 2)plastic profiles production line? 3)plastic sheets production line? 4)plastic pellets production line? 5)plastic mixers? 6)plastic pulverizer? 7)cryogenic grinder ?...........
?
Term of Payment
a. L/C
b. T/T (30% as advance payment by T/T after signing contract, 70% of total will be paid by T/T before delivery)
